Craftsman
Power Sander

Model # 75825820 Official Craftsman orbital sander

Here are the diagrams and repair parts for Official Craftsman 75825820 orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Screw 1-930993-01
#30

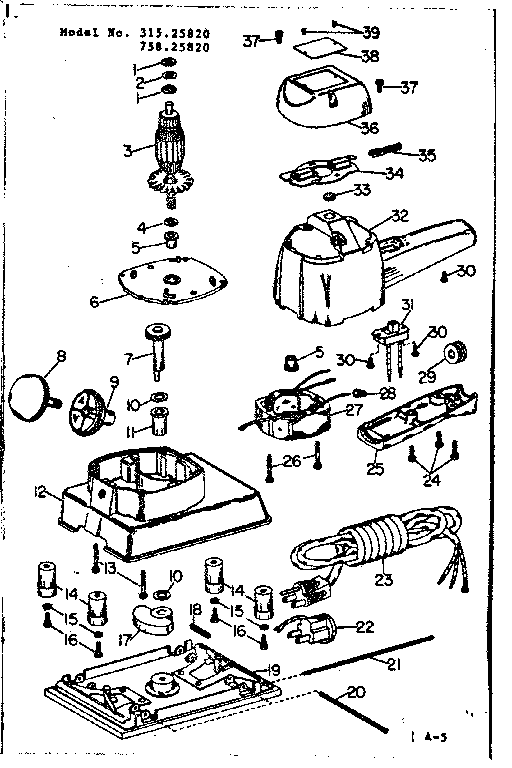

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Plate W/cush 1-624960-01
#19

Unit parts diagram

Plate w/cush

Part #1-624960-01

The manufacturer no longer makes this part, and there's no substitute part

Counterweight 1-717774-02
#17

Unit parts diagram

Counterweight

Part #1-717774-02

The manufacturer no longer makes this part, and there's no substitute part

Base Plate 4-620622-03
#6

Unit parts diagram

Base plate

Part #4-620622-03

The manufacturer no longer makes this part, and there's no substitute part

Fstng Screw 1-930150-13
#13

Unit parts diagram

Fstng screw

Part #1-930150-13

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1-706239-812
#10

Unit parts diagram

Spacer

Part #1-706239-812

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 1-941401-31
#18

Unit parts diagram

Roll pin

Part #1-941401-31

The manufacturer no longer makes this part, and there's no substitute part

Field Core 3-624986-01
#27

Unit parts diagram

Field core

Part #3-624986-01

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-624865-01
#11

Unit parts diagram

Bearing

Part #1-624865-01

The manufacturer no longer makes this part, and there's no substitute part

Instruction Sheet 2-620263-256

#NI

All parts diagram

Instruction sheet

Part #2-620263-256

The manufacturer no longer makes this part, and there's no substitute part
