Whirlpool
Side-By-Side Refrigerator

Model # ED22RKXXW01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ED22RKXXW01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

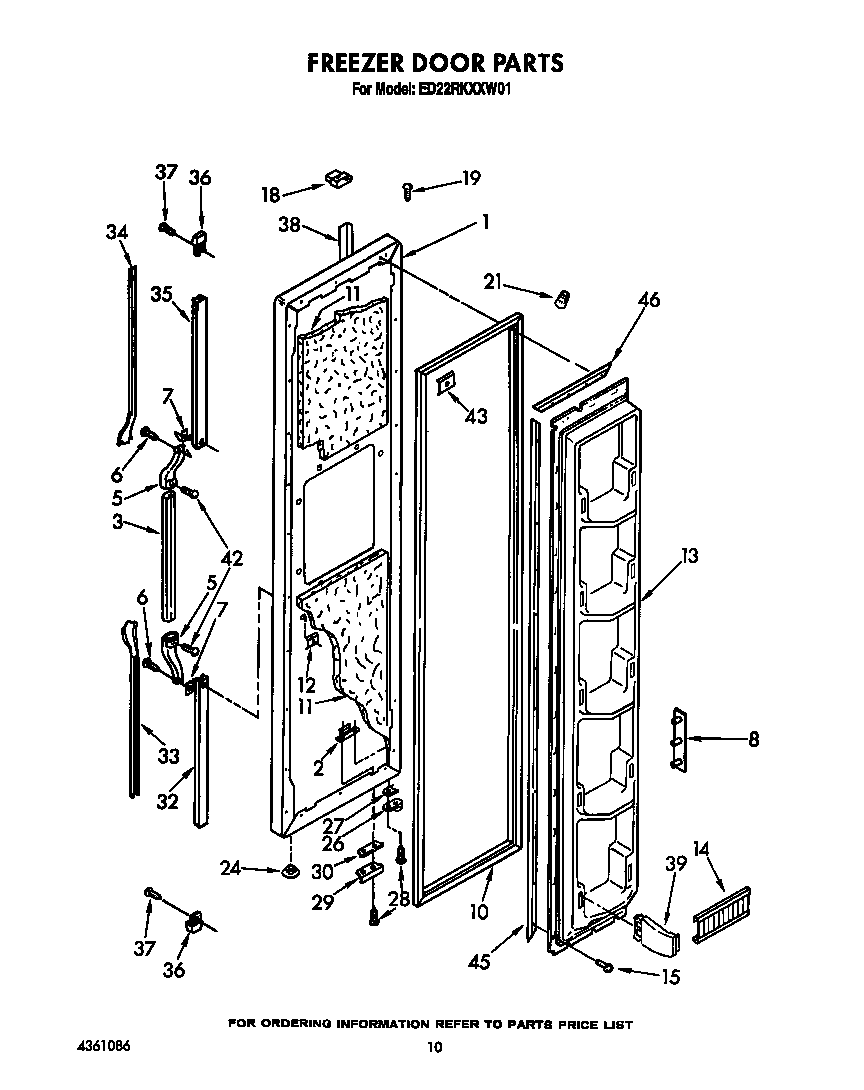

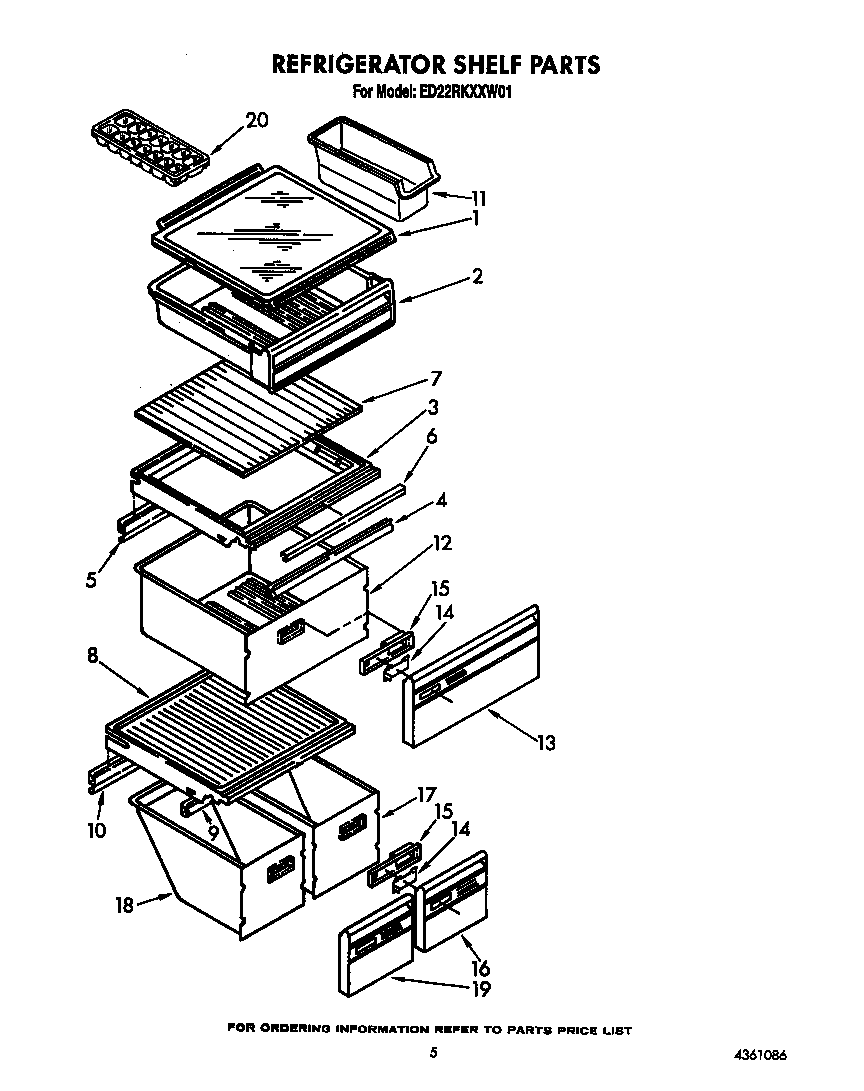

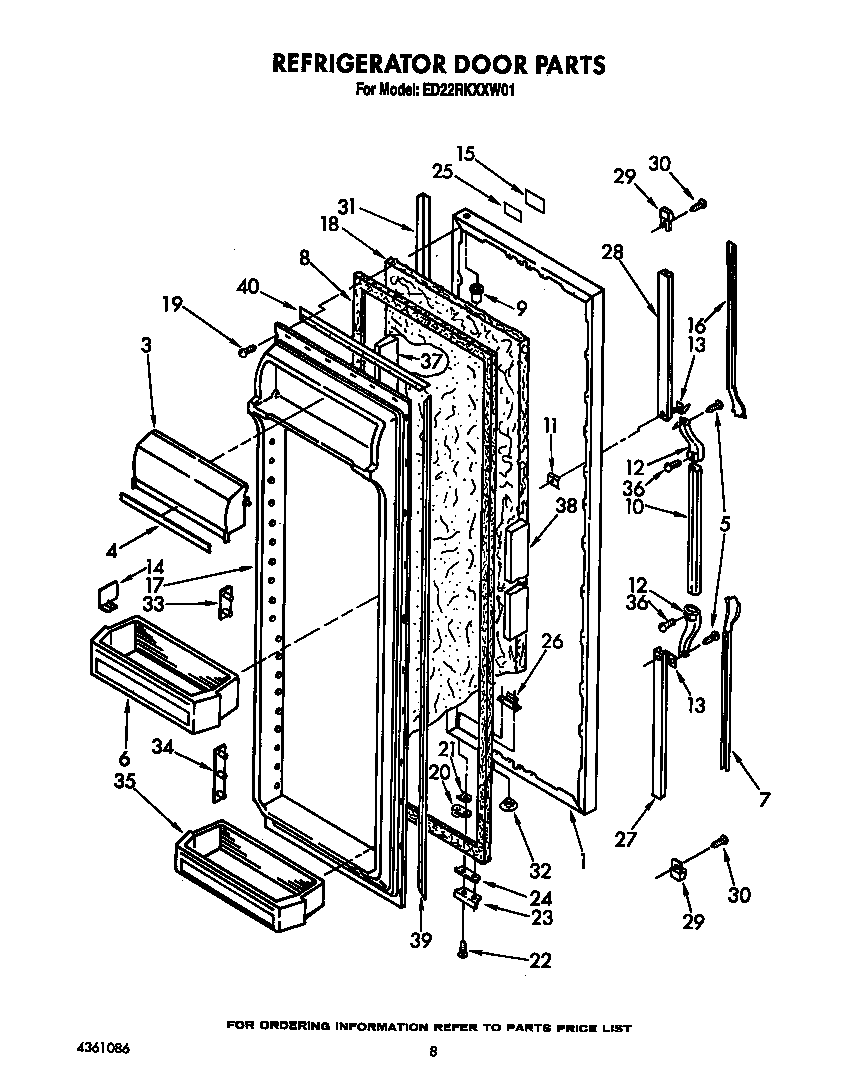

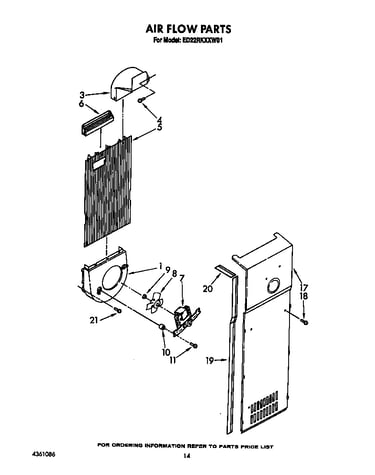

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Refrigerator Thermostat 1115244
#9

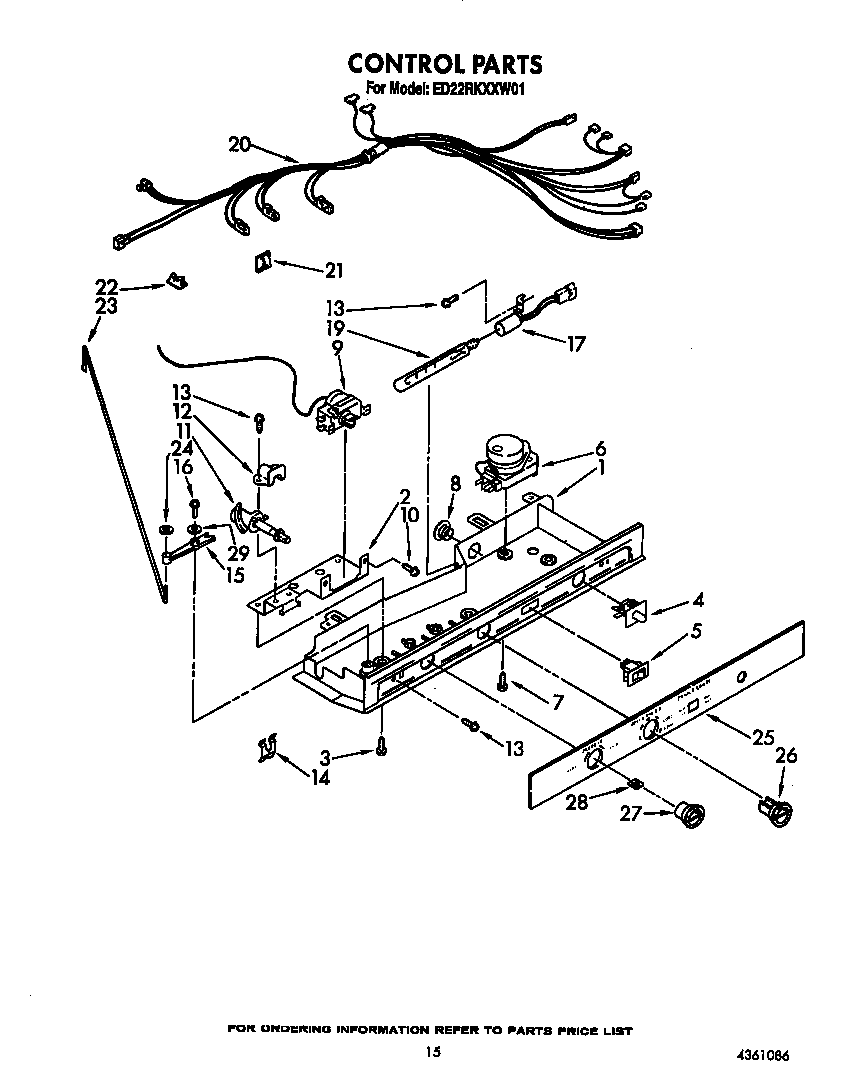

Control diagram

Refrigerator thermostat

Part #1115244

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 1115244. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Light Bulb 527949
#33

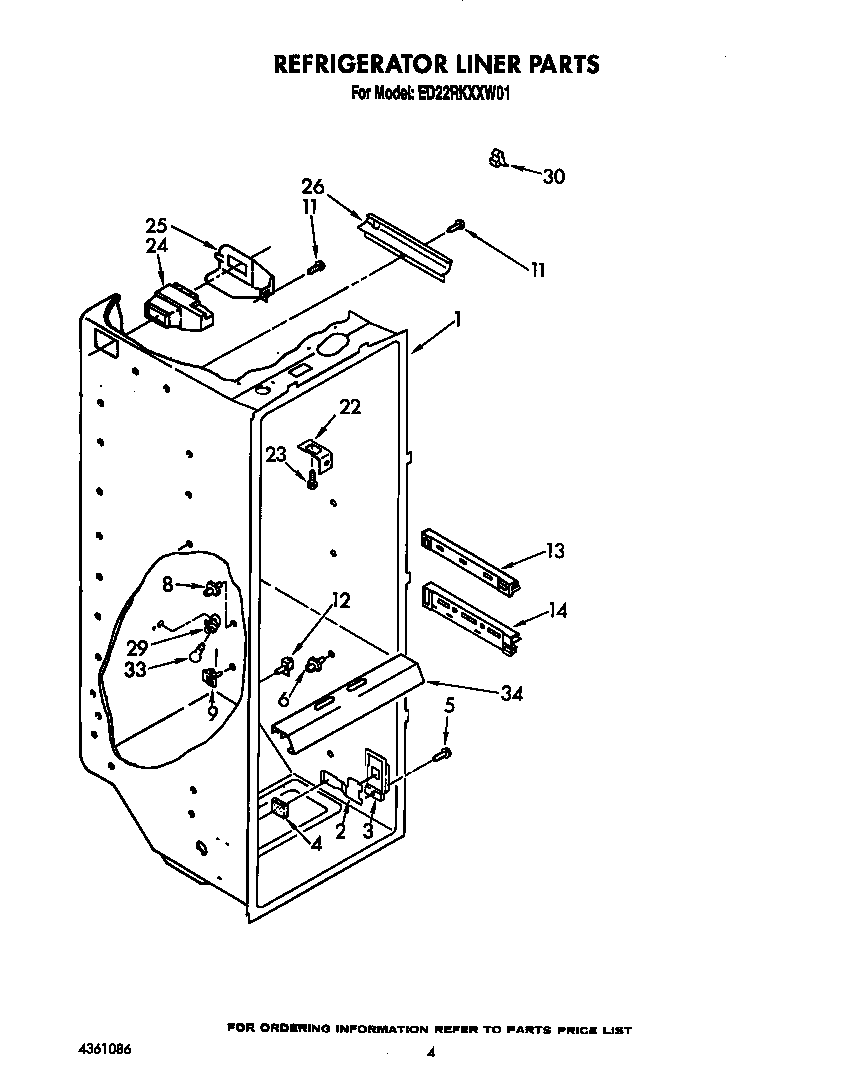

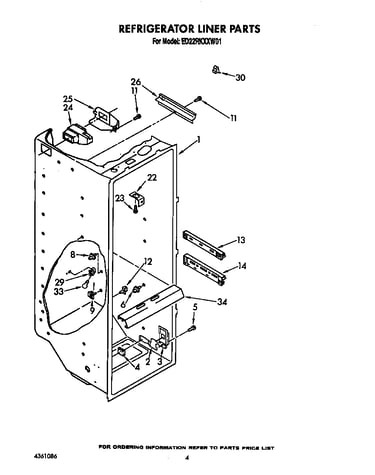

Refrigerator liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Closure (white) 986759
#17

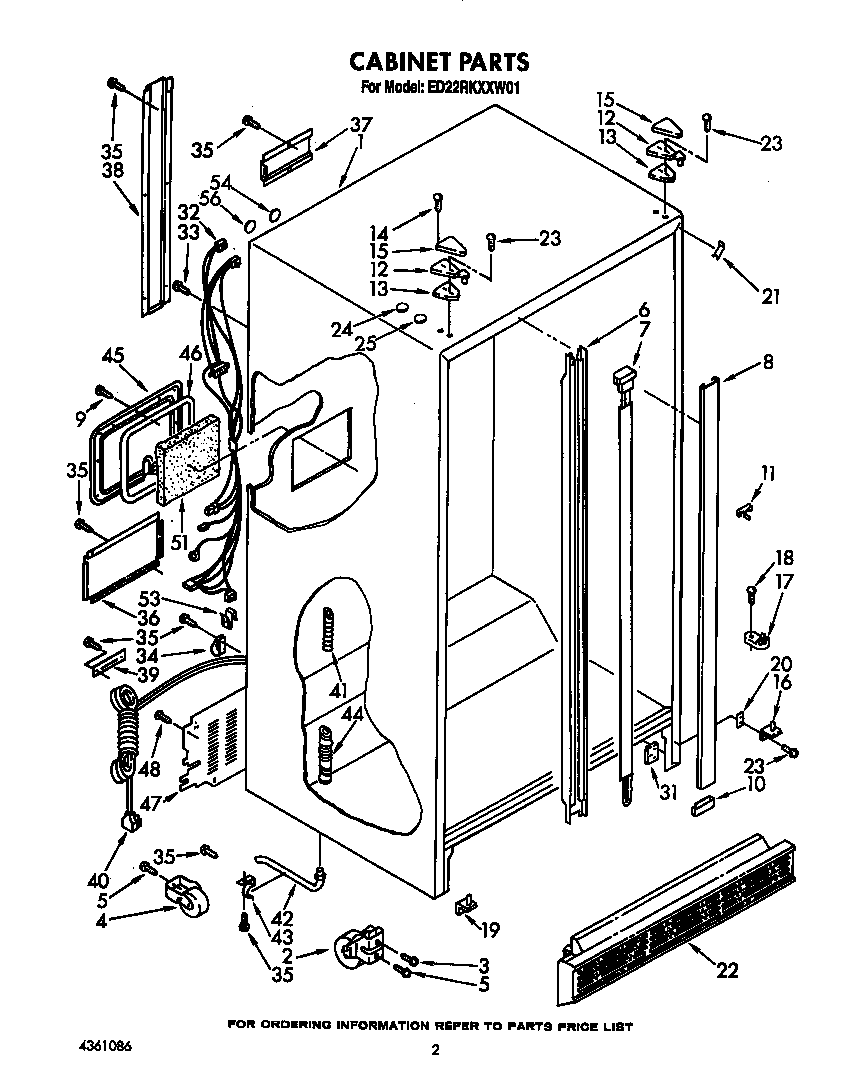

Cabinet diagram

Closure (white)

Part #986759

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 986759. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Switch 1108112
#19

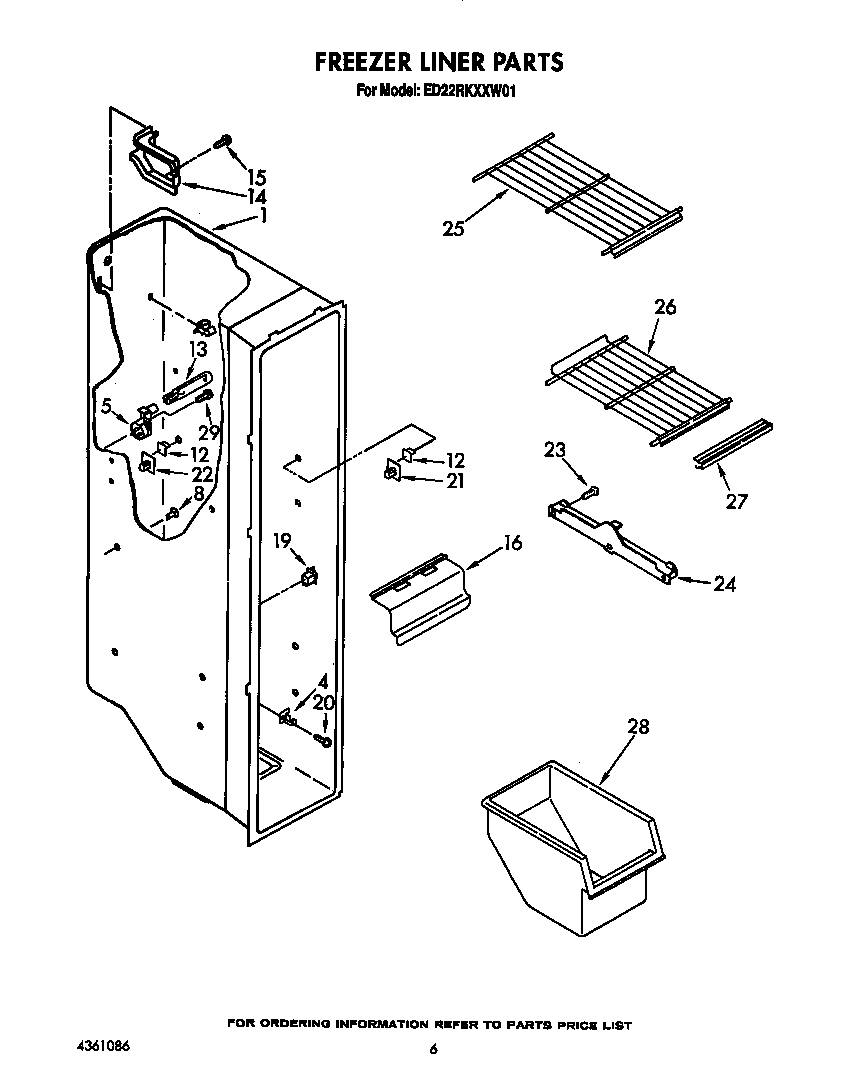

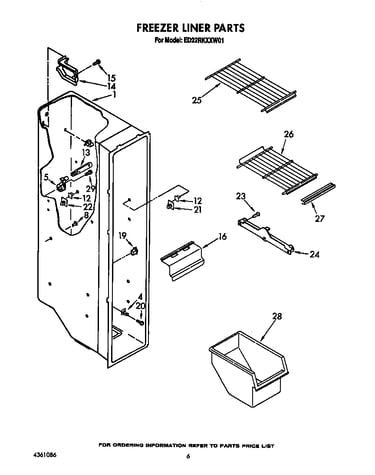

Freezer liner diagram

Switch

Part #1108112

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1108112. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Defrost Timer 1127570
#6

Control diagram

Defrost timer

Part #1127570

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 1127570. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier Tube 1105550
#27

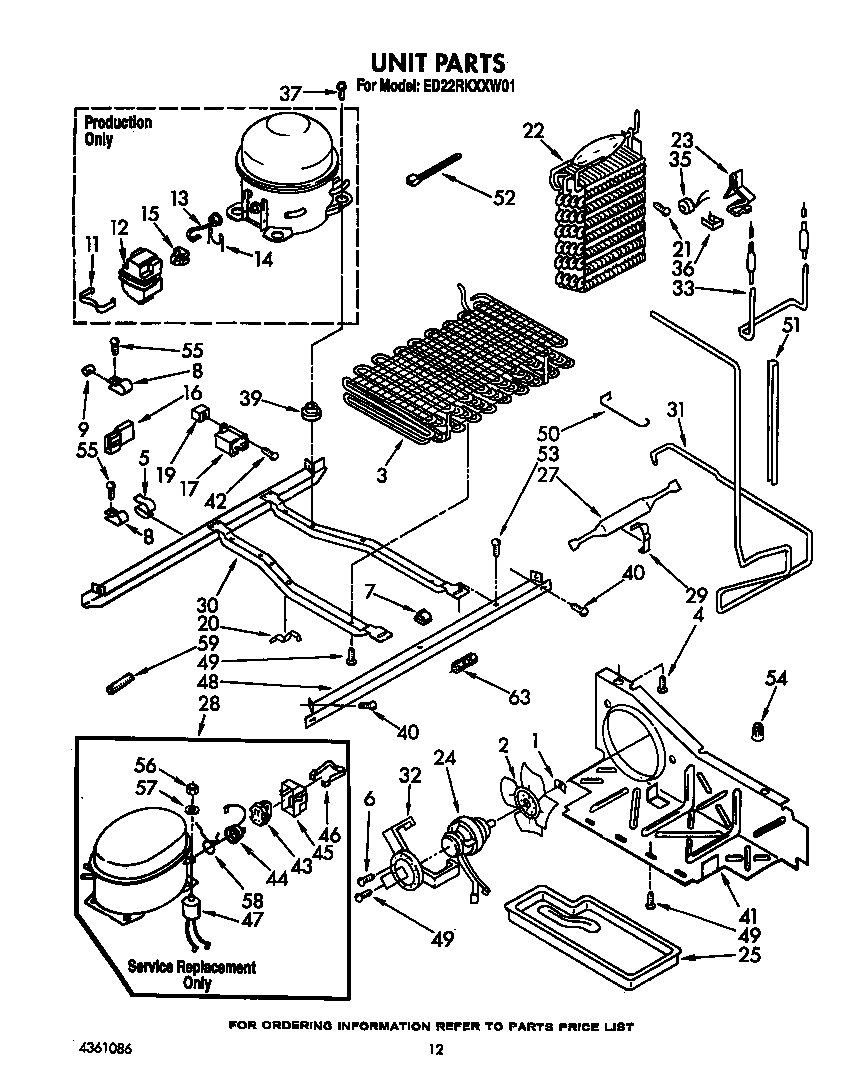

Unit diagram

Drier tube

Part #1105550

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 1105550. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Condenser Motor 2149963
#24

Unit diagram

Condenser motor

Part #2149963

Replaced by #833697

?
Manufacturer substitution
This part replaces 2149963. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Light Switch 1123923
#4

Control diagram

Refrigerator light switch

Part #1123923

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 1123923. Substitute parts can look different from the original.
BEST SELLER
$27.81 |
18% OFF Phone Price : $33.81
In Stock
Closure (white) 986758
Closure (white)

Part #986758

Replaced by #4318165

?
Manufacturer substitution
This part replaces 986758. Substitute parts can look different from the original.
BEST SELLER
$13.51 |
13% OFF Phone Price : $15.51
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
