Kenmore
Gas Range

Model # 103714610 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103714610 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Drawer Guide 97820
#86B

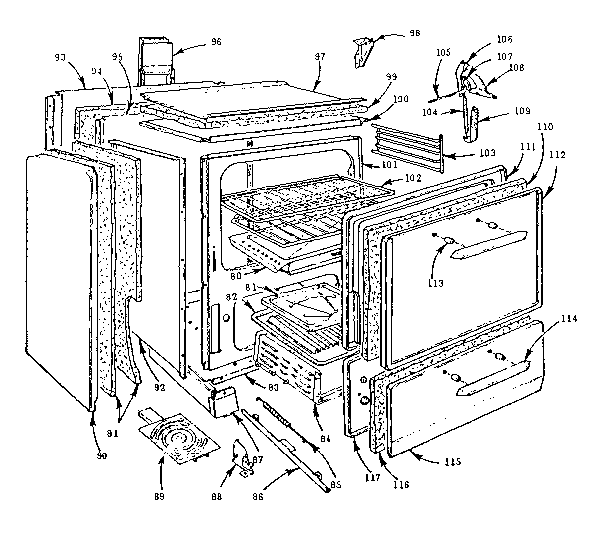

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Knob 86671
#25

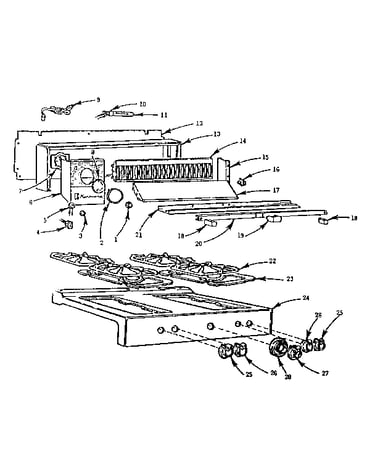

Backguard and main top diagram

Knob

Part #86671

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 70407
#106B

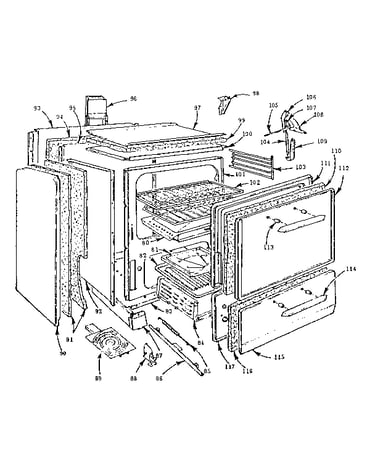

Body section diagram

Door hinge

Part #70407

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 71568
#40B

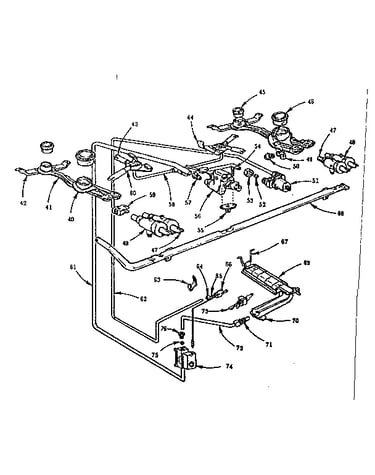

Burner section diagram

Burner body

Part #71568

The manufacturer no longer makes this part, and there's no substitute part

Thermo Nippl 87381
#55

Burner section diagram

Thermo nippl

Part #87381

The manufacturer no longer makes this part, and there's no substitute part

Tubular Lamp 67866
#11

Backguard and main top diagram

Tubular lamp

Part #67866

The manufacturer no longer makes this part, and there's no substitute part

Hanger 70400
#109

Body section diagram

Hanger

Part #70400

The manufacturer no longer makes this part, and there's no substitute part

Grate 98106
#22

Backguard and main top diagram

Grate

Part #98106

The manufacturer no longer makes this part, and there's no substitute part

Backguard Body 97818
#13

Backguard and main top diagram

Backguard body

Part #97818

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 87379
#56

Burner section diagram

Thermostat

Part #87379

The manufacturer no longer makes this part, and there's no substitute part
