Model # 8-9777X1 Official Murray 24" women's cliff hanger atb bicycle

Here are the diagrams and repair parts for Official Murray 8-9777X1 24" women's cliff hanger atb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Cable Casing 308525
#NI

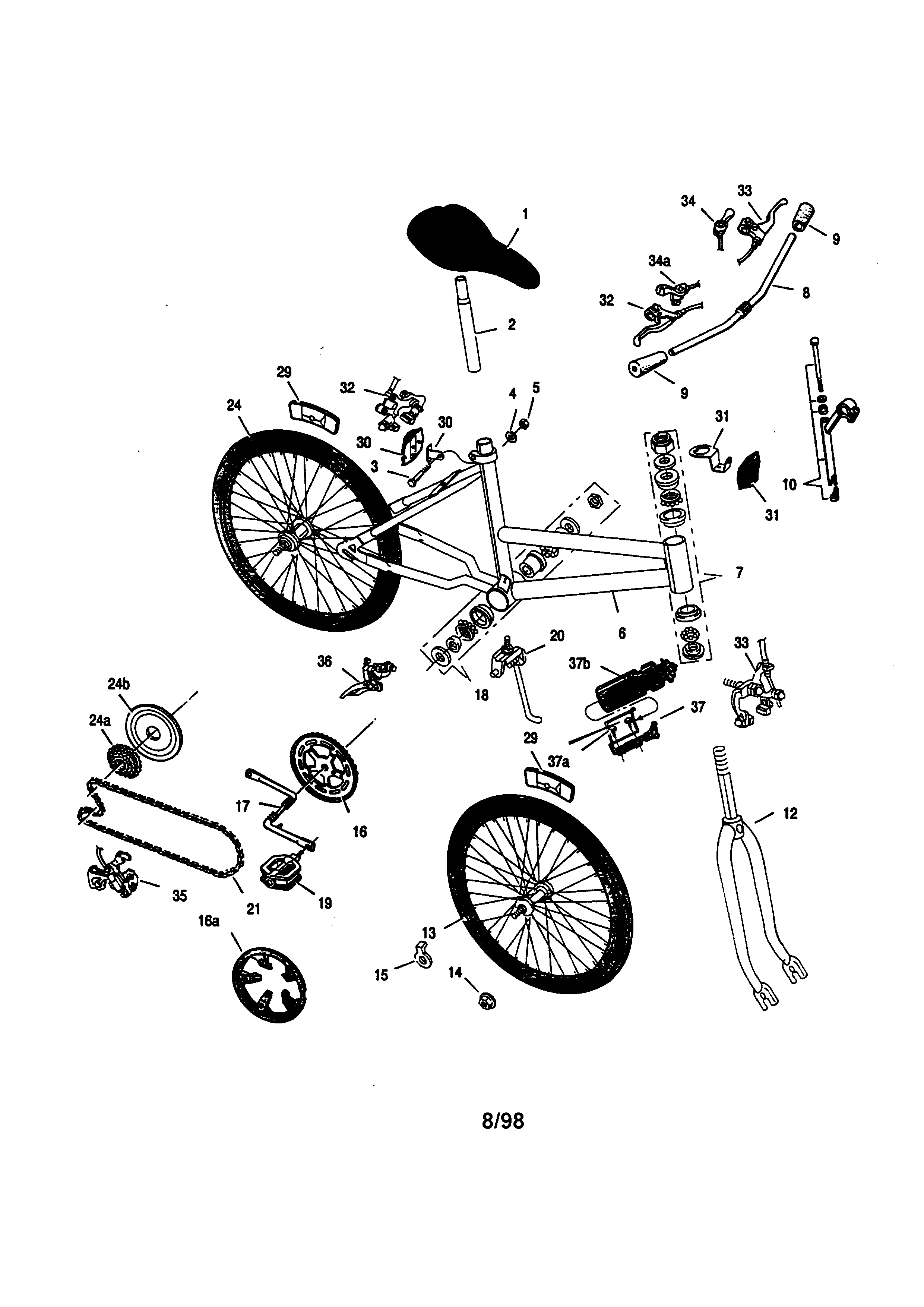

"cliff hanger" diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Rr Drllr R 050091
#35

"cliff hanger" diagram

Rr drllr r

Part #050091

The manufacturer no longer makes this part, and there's no substitute part

Retainer 032375Z
#15

"cliff hanger" diagram

Retainer

Part #032375Z

The manufacturer no longer makes this part, and there's no substitute part

Hbar Stem 040818
#10

"cliff hanger" diagram

Hbar stem

Part #040818

The manufacturer no longer makes this part, and there's no substitute part

Shftr Cable 308694
#NI

"cliff hanger" diagram

Shftr cable

Part #308694

The manufacturer no longer makes this part, and there's no substitute part

Brake Ever-r 051030
#32

"cliff hanger" diagram

Brake ever-r

Part #051030

The manufacturer no longer makes this part, and there's no substitute part

Brake Lever 051031
#33

"cliff hanger" diagram

Brake lever

Part #051031

The manufacturer no longer makes this part, and there's no substitute part

Nut 040478
#NI

"cliff hanger" diagram

Nut

Part #040478

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 034529Z
#2

"cliff hanger" diagram

Seat post

Part #034529Z

The manufacturer no longer makes this part, and there's no substitute part

Reflector 750692
#30

"cliff hanger" diagram

Reflector

Part #750692

The manufacturer no longer makes this part, and there's no substitute part
