Kenmore
Garbage Disposal

Model # 17568563 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17568563 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Insinkerator Garbage Disposal Drain Tube 2891
#40

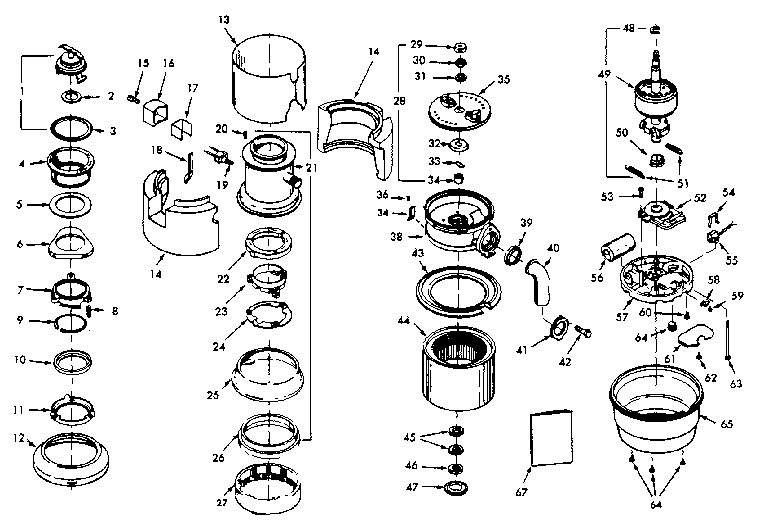

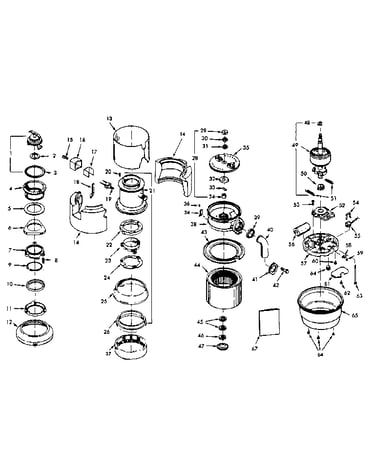

Replacement parts diagram

Insinkerator garbage disposal drain tube

Part #2891

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Support Ring 5166
#9

Replacement parts diagram

Insinkerator garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Bx Clamp 5060
#58

Replacement parts diagram

Bx clamp

Part #5060

The manufacturer no longer makes this part, and there's no substitute part

Screw 1614
#66

Replacement parts diagram

Screw

Part #1614

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Mounting Ring 5298
#11

Replacement parts diagram

Insinkerator garbage disposal mounting ring

Part #5298

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Wire Shield 1266
#37

Replacement parts diagram

Insinkerator wire shield

Part #1266

The manufacturer no longer makes this part, and there's no substitute part

Grind Ring 1248
#27

Replacement parts diagram

Grind ring

Part #1248

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Gasket 4395
#26

Replacement parts diagram

Insinkerator gasket

Part #4395

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Mounting Gasket 1155
#10

Replacement parts diagram

Insinkerator garbage disposal mounting gasket

Part #1155

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Screw 1491
#42

Replacement parts diagram

Insinkerator garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part
