KitchenAid
Blender

Model # 5KSB1320BOB0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB1320BOB0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Blender Drive Coupling W11294881
#13

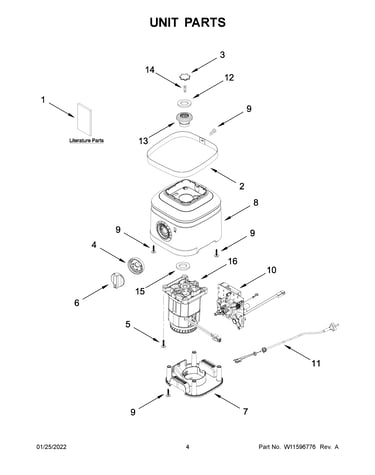

Unit parts diagram

Blender drive coupling

Part #W11294881

Replaced by #W11627528

?
Manufacturer substitution
This part replaces W11294881. Substitute parts can look different from the original.
BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Screw 697773
#5

Unit parts diagram

Screw

Part #697773

Replaced by #WP3395530

?
Manufacturer substitution
This part replaces 697773. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, Coupler W11174445
#14

Unit parts diagram

Screw, coupler

Part #W11174445

Replaced by #W11486756

?
Manufacturer substitution
This part replaces W11174445. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Pandora Powe W11390636
#11

Unit parts diagram

Pandora powe

Part #W11390636

$38.27
In Stock
Upper Base (white) W11563419
#8A

Unit parts diagram

Upper base (white)

Part #W11563419

$84.09
In Stock
Upper Base (onyx Black) W11563411
#8

Unit parts diagram

Upper base (onyx black)

Part #W11563411

$84.61
In Stock
Trimband W11557887
#2

Unit parts diagram

Trimband

Part #W11557887

$49.64
In Stock
Pad, Jar W11247566
#2

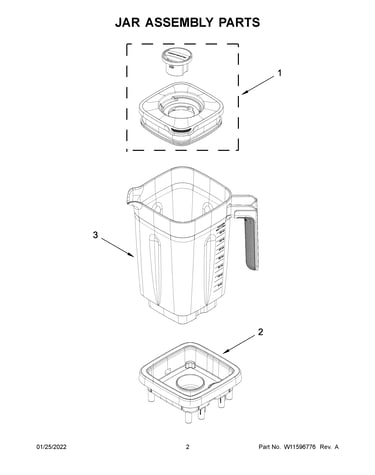

Jar assembly parts diagram

Pad, jar

Part #W11247566

Replaced by #W11629041

?
Manufacturer substitution
This part replaces W11247566. Substitute parts can look different from the original.
$34.70
In Stock
Base W11180765
#7

Unit parts diagram

Base

Part #W11180765

Replaced by #W11627536

?
Manufacturer substitution
This part replaces W11180765. Substitute parts can look different from the original.
$39.78
In Stock
Bezel, Rotary Switch W11214276
#4

Unit parts diagram

Bezel, rotary switch

Part #W11214276

Replaced by #W11627537

?
Manufacturer substitution
This part replaces W11214276. Substitute parts can look different from the original.
$10.15
In Stock
