Thermador
Bottom-Mount Refrigerator

Model # T36IT71NNP/31 Official Thermador refrigerator

Here are the diagrams and repair parts for Official Thermador T36IT71NNP-31 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

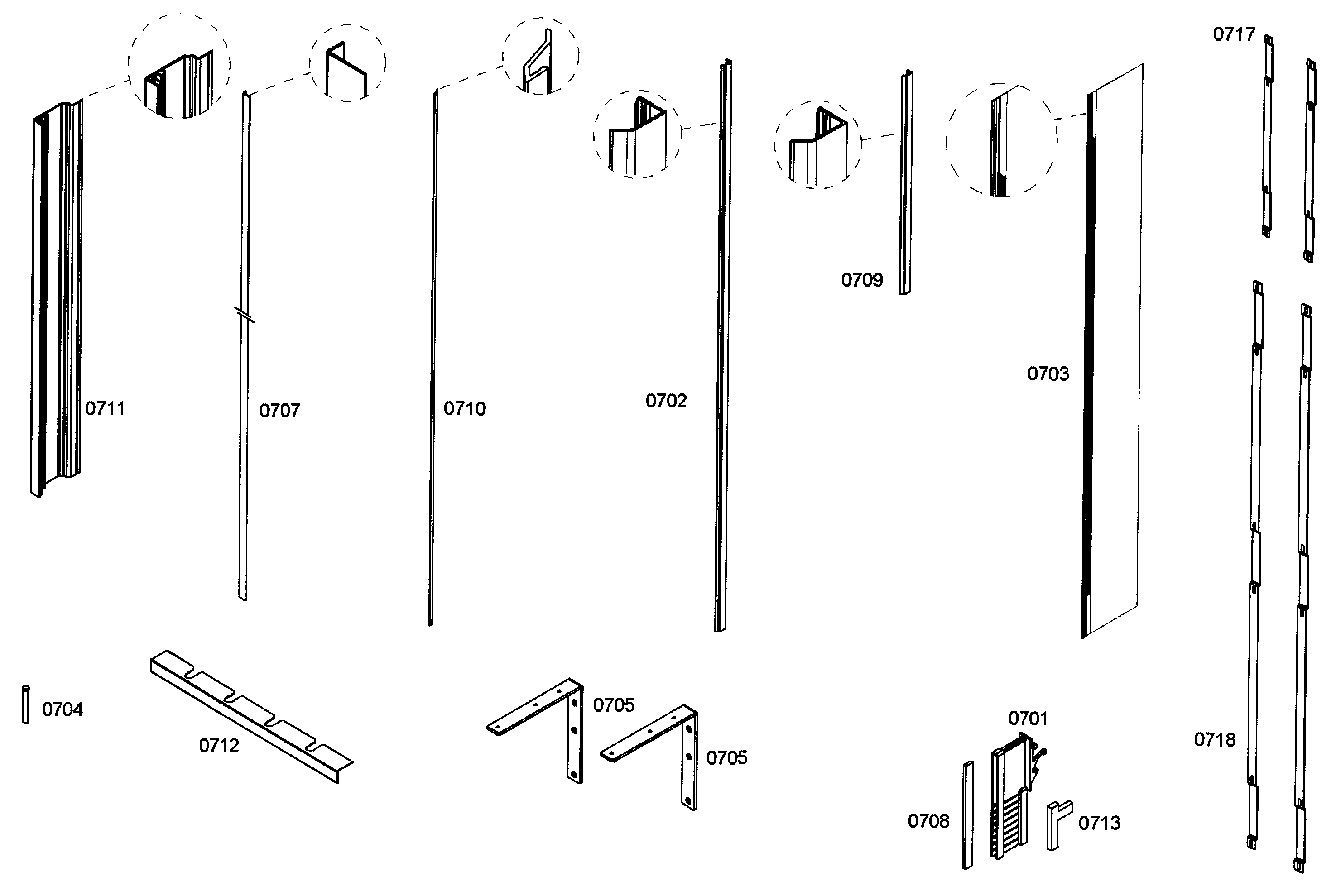

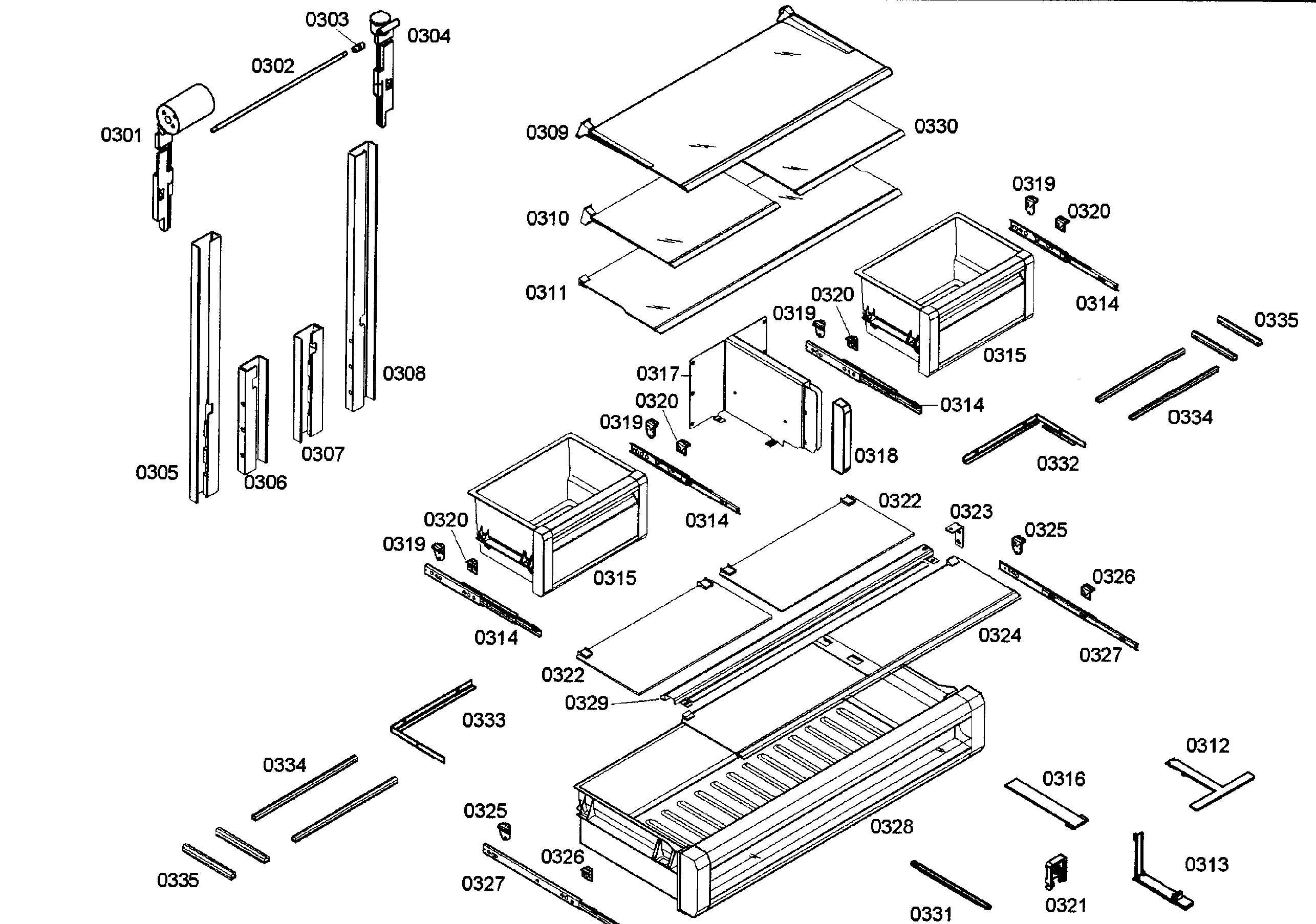

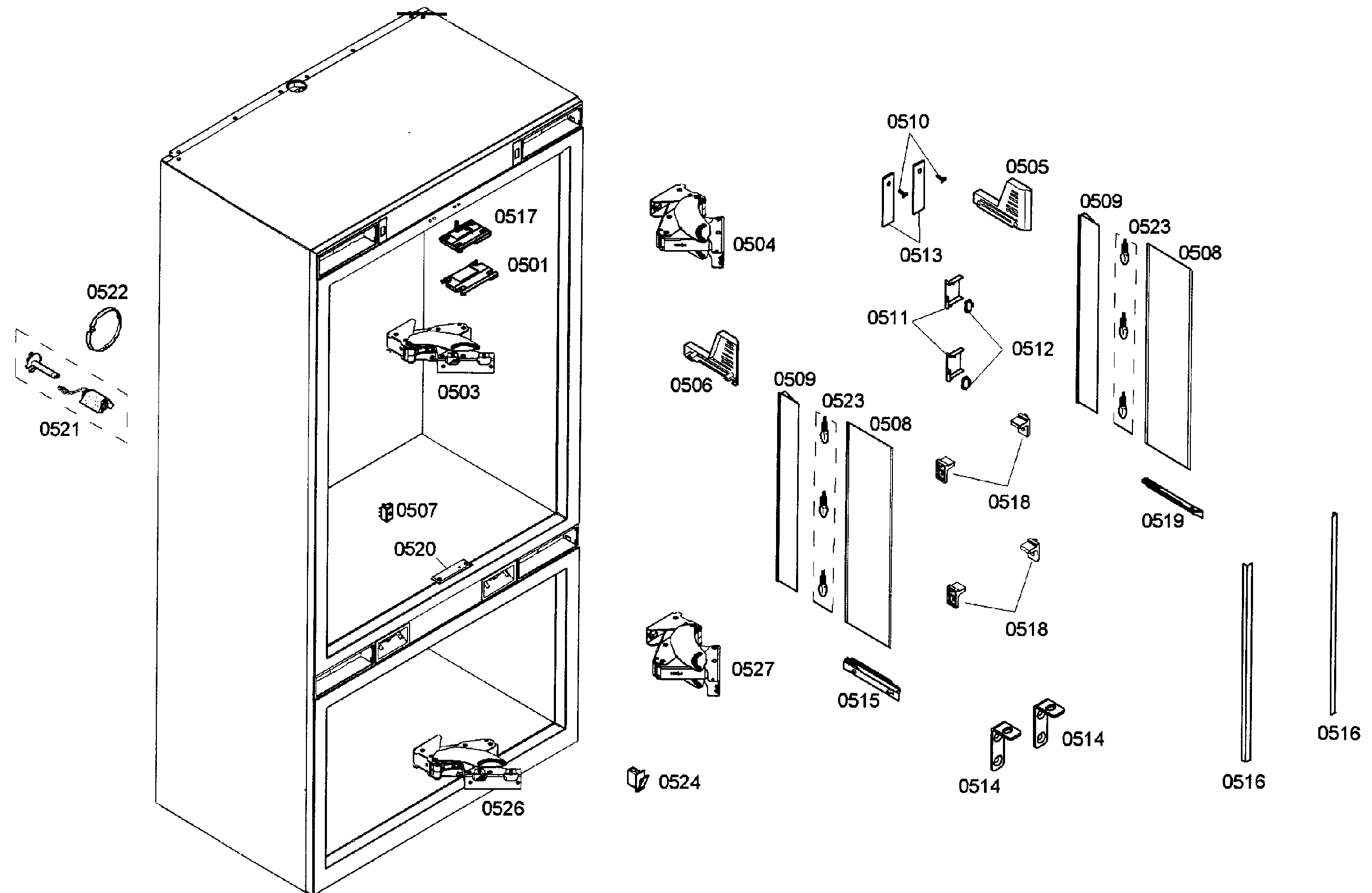

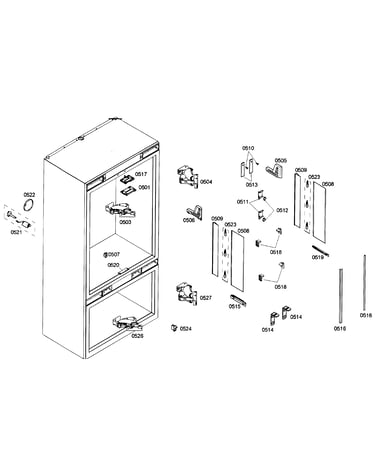

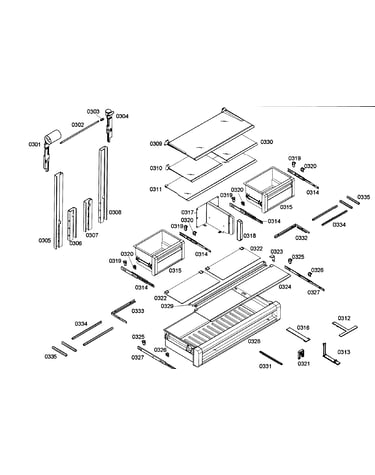

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 244 parts  |
Refrigerator Water Filter 641425
#646

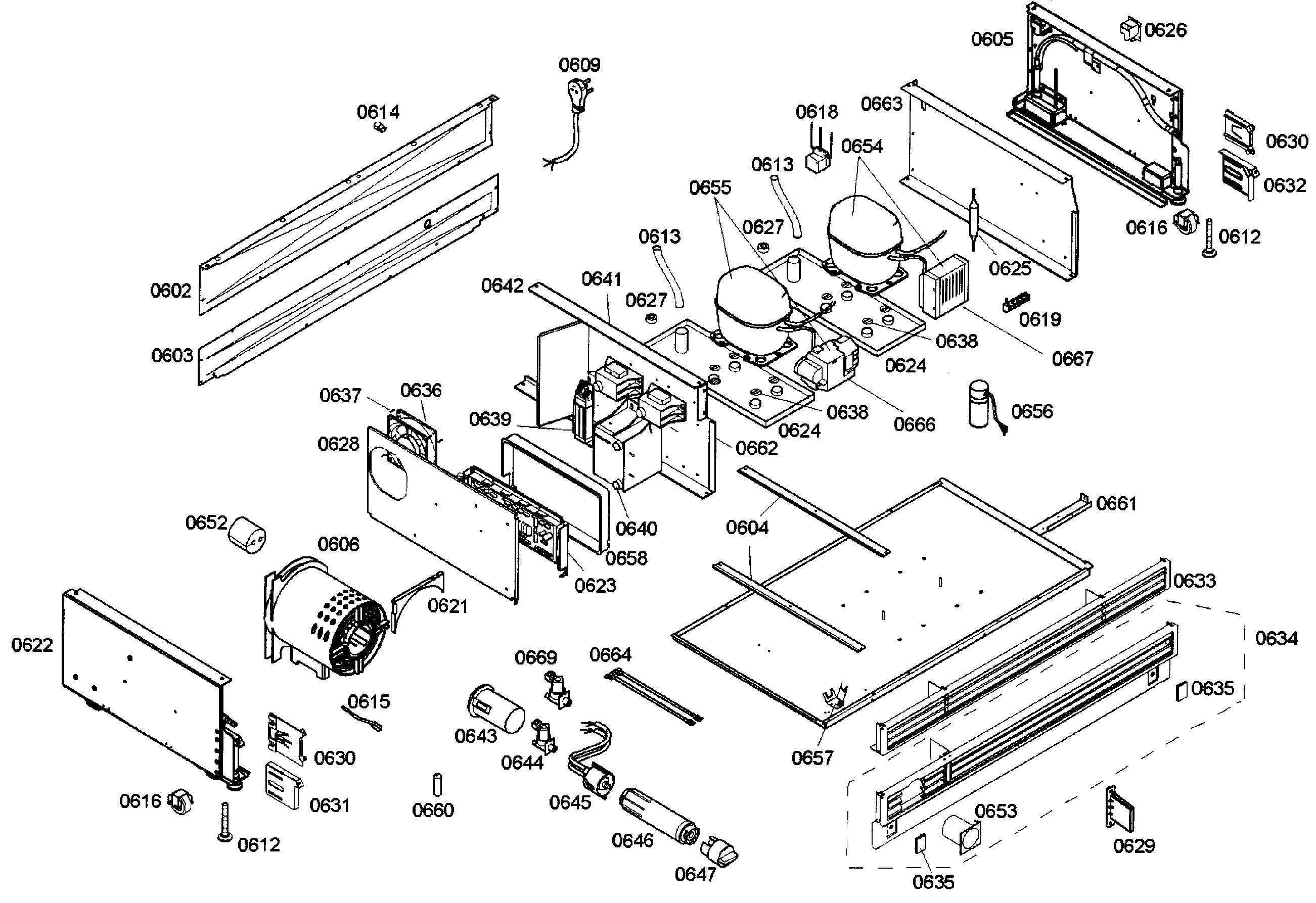

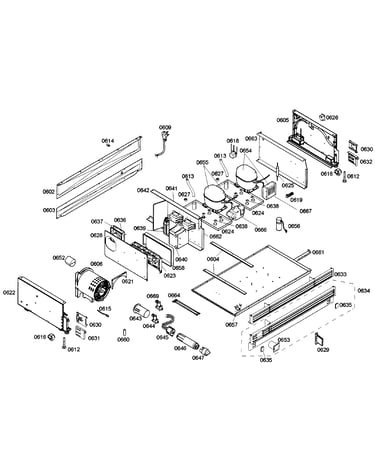

Compressor diagram

Refrigerator water filter

Part #641425

Replaced by #11034151

?
Manufacturer substitution
This part replaces 641425. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Defrost Sensor 604025
Defrost sensor

Part #604025

Replaced by #00617203

?
Manufacturer substitution
This part replaces 604025. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Refrigerator Door Seal 244576
#224

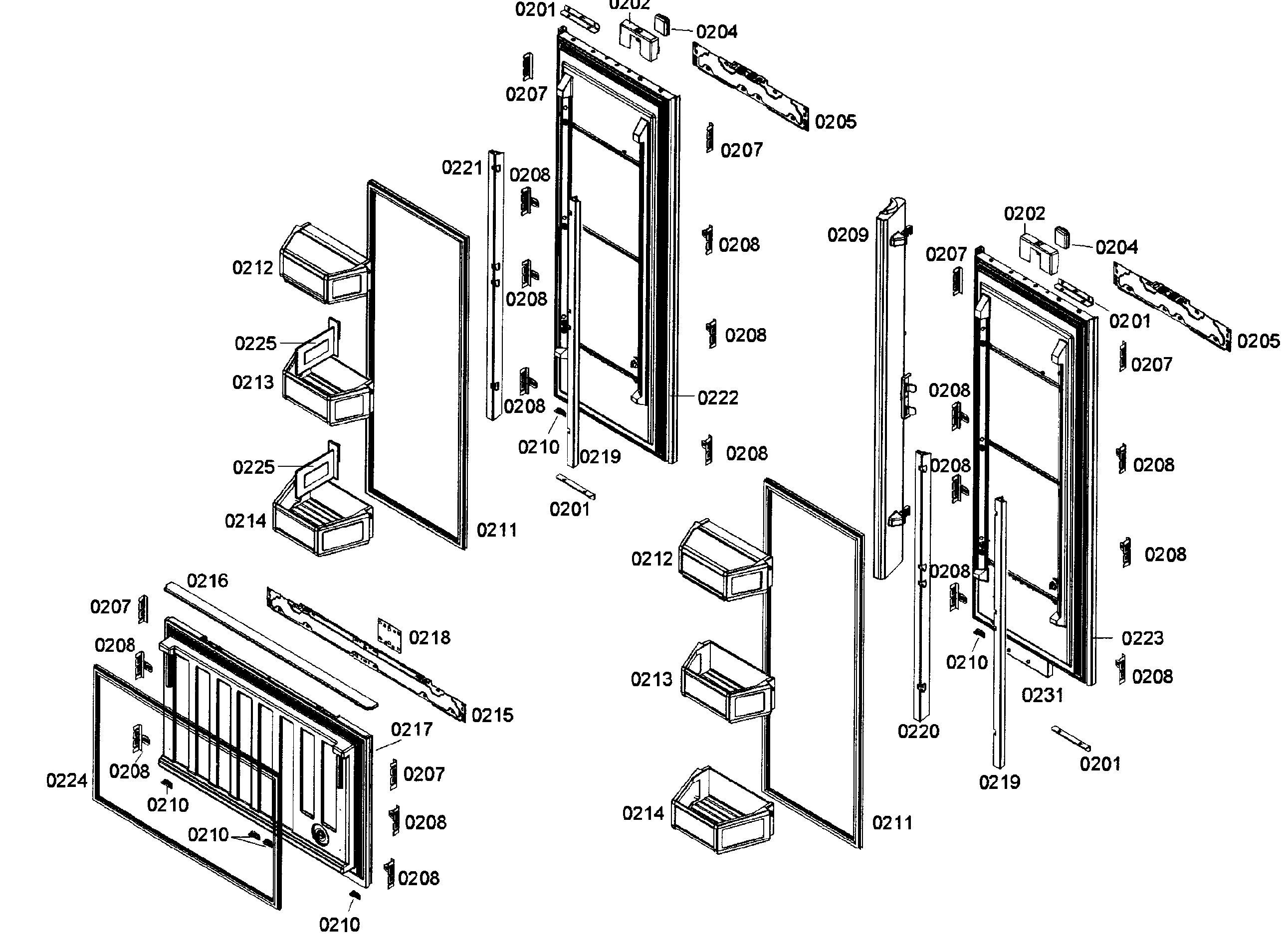

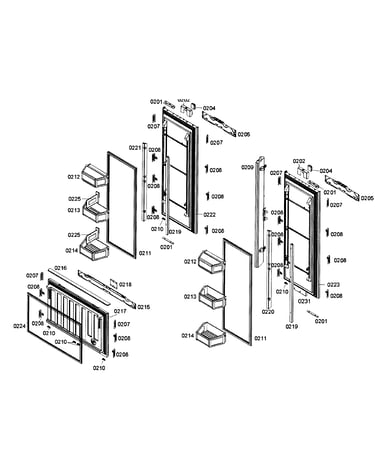

Door assy diagram

Refrigerator door seal

Part #244576

Replaced by #00710673

?
Manufacturer substitution
This part replaces 244576. Substitute parts can look different from the original.
$74.59 |
7% OFF Phone Price : $80.59
In Stock
Refrigerator Freezer Slide Rail Clip 605962
#427

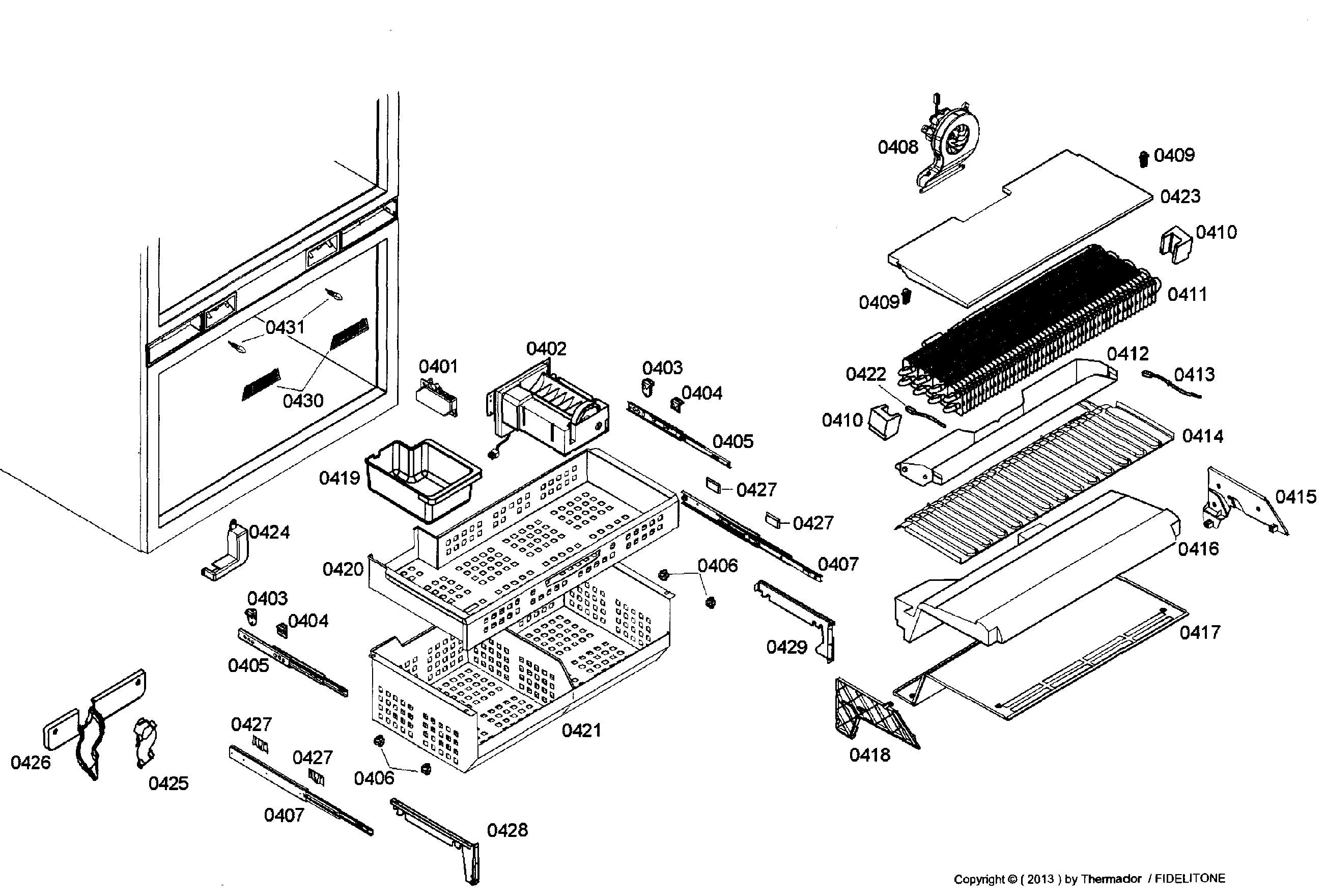

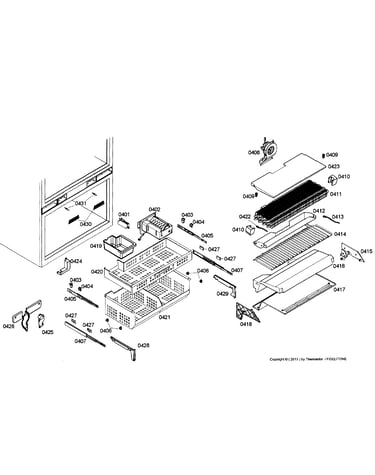

Freezer assy diagram

Refrigerator freezer slide rail clip

Part #605962

Replaced by #00605962

?
Manufacturer substitution
This part replaces 605962. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Lock Clamp 605593
#401

Freezer assy diagram

Lock clamp

Part #605593

Replaced by #00623375

?
Manufacturer substitution
This part replaces 605593. Substitute parts can look different from the original.
$19.46
In Stock
Refrigerator Insulation 244559
#102

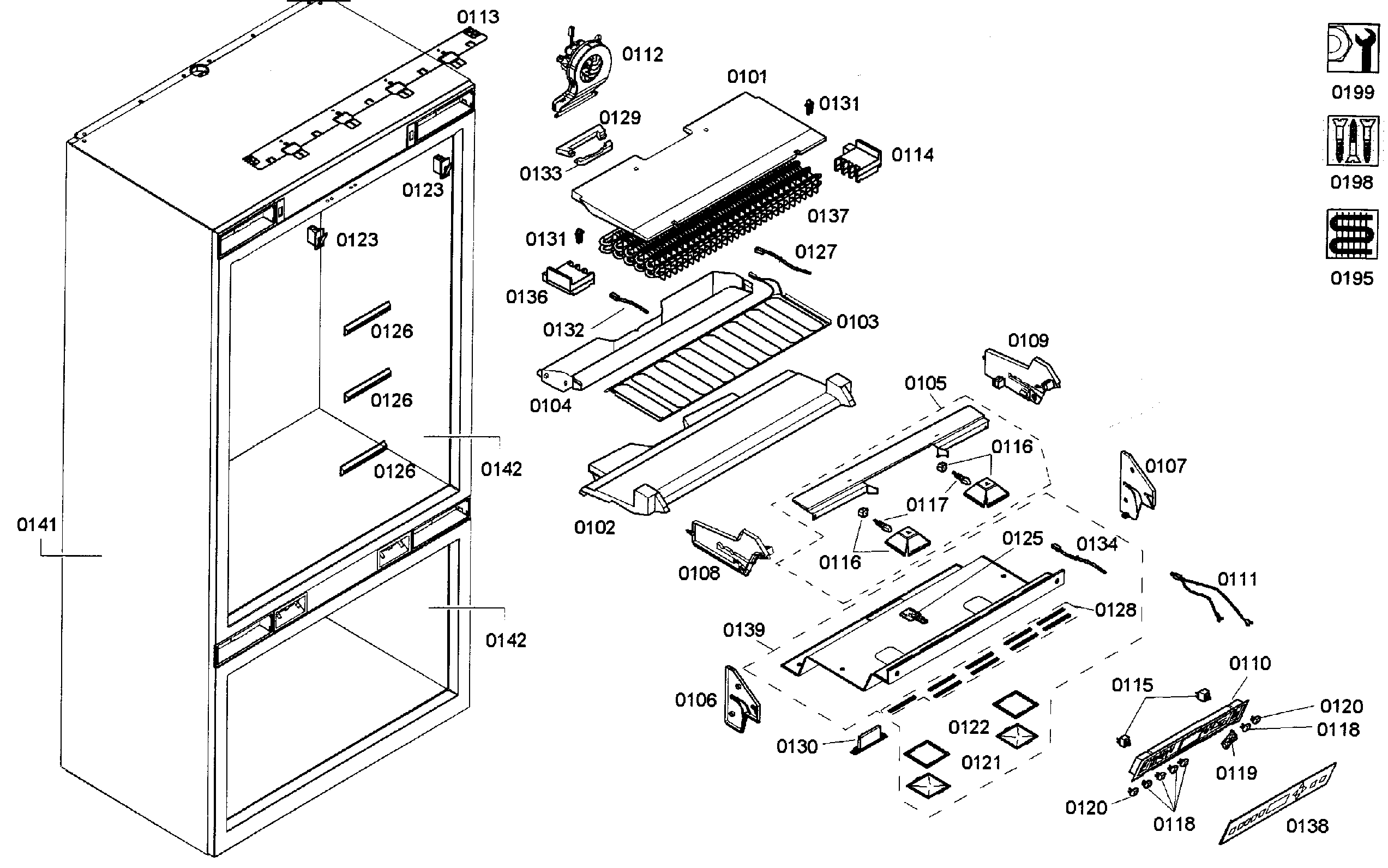

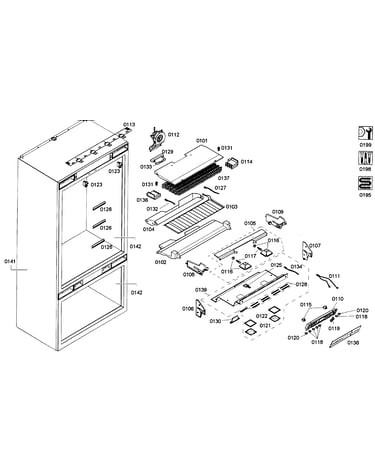

Cabinet 1 assy diagram

Refrigerator insulation

Part #244559

Replaced by #11018805

?
Manufacturer substitution
This part replaces 244559. Substitute parts can look different from the original.
$29.78
In Stock
Refrigerator Heater 244585
#414

Freezer assy diagram

Refrigerator heater

Part #244585

Replaced by #00776218

?
Manufacturer substitution
This part replaces 244585. Substitute parts can look different from the original.
$130.98
In Stock
Refrigerator Heater Element 244584
#412

Freezer assy diagram

Refrigerator heater element

Part #244584

Replaced by #00716805

?
Manufacturer substitution
This part replaces 244584. Substitute parts can look different from the original.
$244.38
In Stock
Cover 499853
#658

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Switch 168427
#115

Cabinet 1 assy diagram

Switch

Part #168427

Replaced by #00168427

?
Manufacturer substitution
This part replaces 168427. Substitute parts can look different from the original.
$22.34
In Stock
