GE
Trash Compactor

Model # GCG1200S3BW Official GE compactor

Here are the diagrams and repair parts for Official GE GCG1200S3BW compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Cabinet WC36X5001
#101

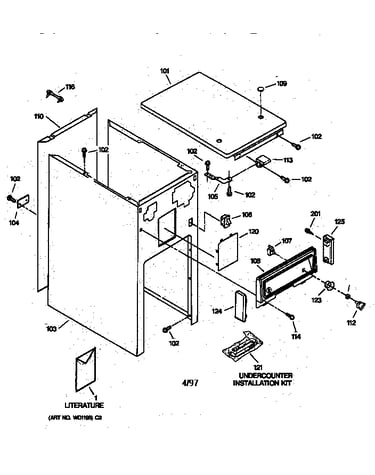

Cabinet diagram

Cabinet

Part #WC36X5001

$91.99
In Stock
Gcg1230 Gcg 49-5556
#1C

Cabinet diagram

Gcg1230 gcg

Part #49-5556

$8.49
In Stock
Spacer WC36X5108
#227

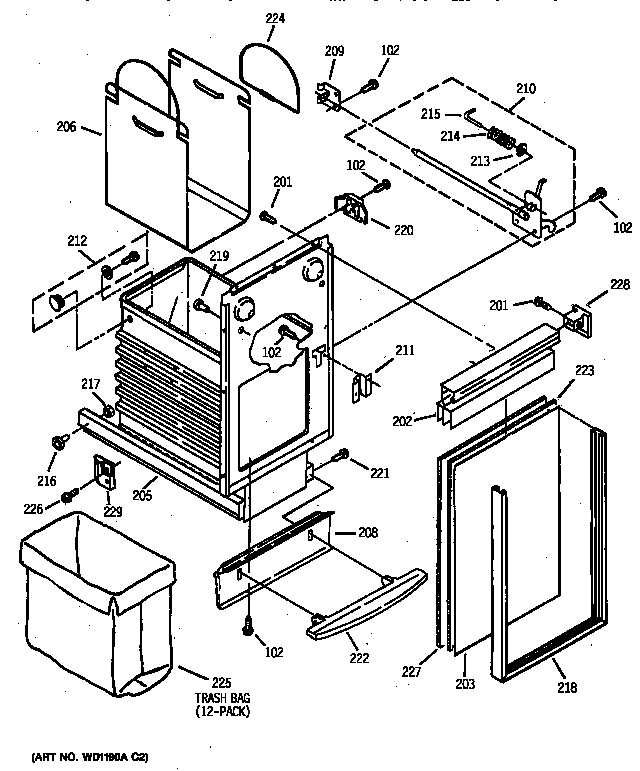

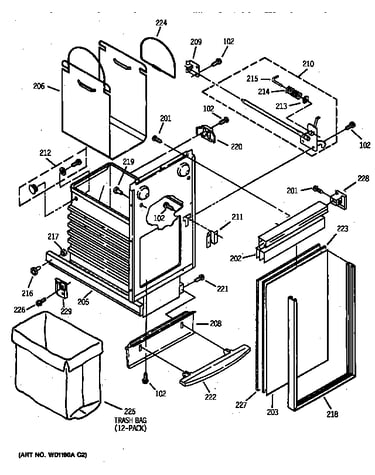

Container diagram

Spacer

Part #WC36X5108

$18.49 |
10% OFF Phone Price : $20.49
In Stock
Technical Sheet 31-3945
#1A

Cabinet diagram

Technical sheet

Part #31-3945

$21.99
In Stock
Brkt Ret Lh WC36X5006
#105B

Cabinet diagram

Brkt ret lh

Part #WC36X5006

Replaced by #WC36X5006

?
Manufacturer substitution
This part replaces WC36X5006. Substitute parts can look different from the original.
$32.49
In Stock
Screw WC36X5038
#221

Container diagram

Screw

Part #WC36X5038

Replaced by #WC36X5038

?
Manufacturer substitution
This part replaces WC36X5038. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Bag Pkg 12 WC60X5017
#225

Container diagram

Bag pkg 12

Part #WC60X5017

Replaced by #WC60X5017

?
Manufacturer substitution
This part replaces WC60X5017. Substitute parts can look different from the original.
$64.22
In Stock
Power Screw WC36X5074
#501

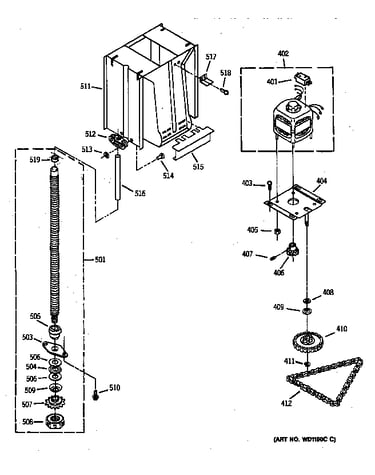

Ram & drive diagram

Power screw

Part #WC36X5074

The manufacturer no longer makes this part, and there's no substitute part

Cord Bushing WC36X5058
#322

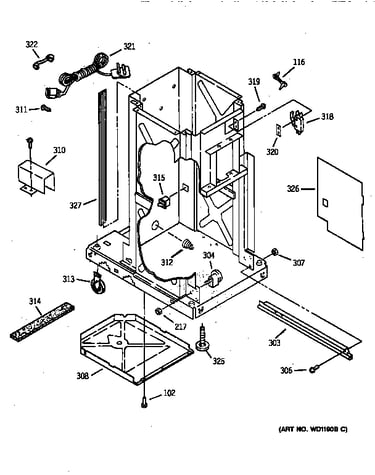

Frame diagram

Cord bushing

Part #WC36X5058

The manufacturer no longer makes this part, and there's no substitute part

Bag Retainer WC36X5029
#212

Container diagram

Bag retainer

Part #WC36X5029

The manufacturer no longer makes this part, and there's no substitute part
