Troybilt
Gas Line Trimmer

Model # 41ADT47C063 Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt 41ADT47C063 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Line Trimmer Handle 791-182167
#7

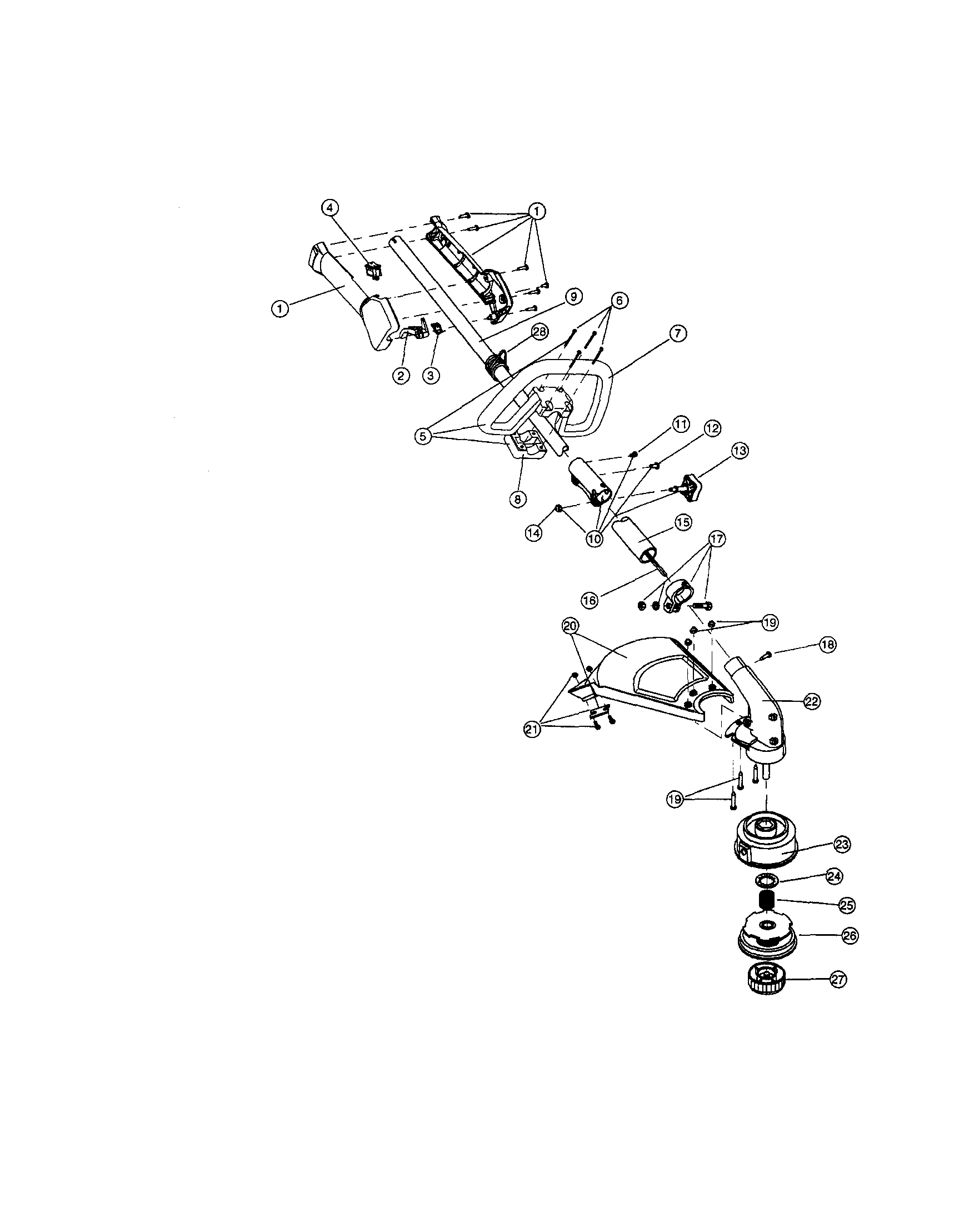

Boom and trimmer diagram

Line trimmer handle

Part #791-182167

$102.80
In Stock
O-ring 791-181751
#23

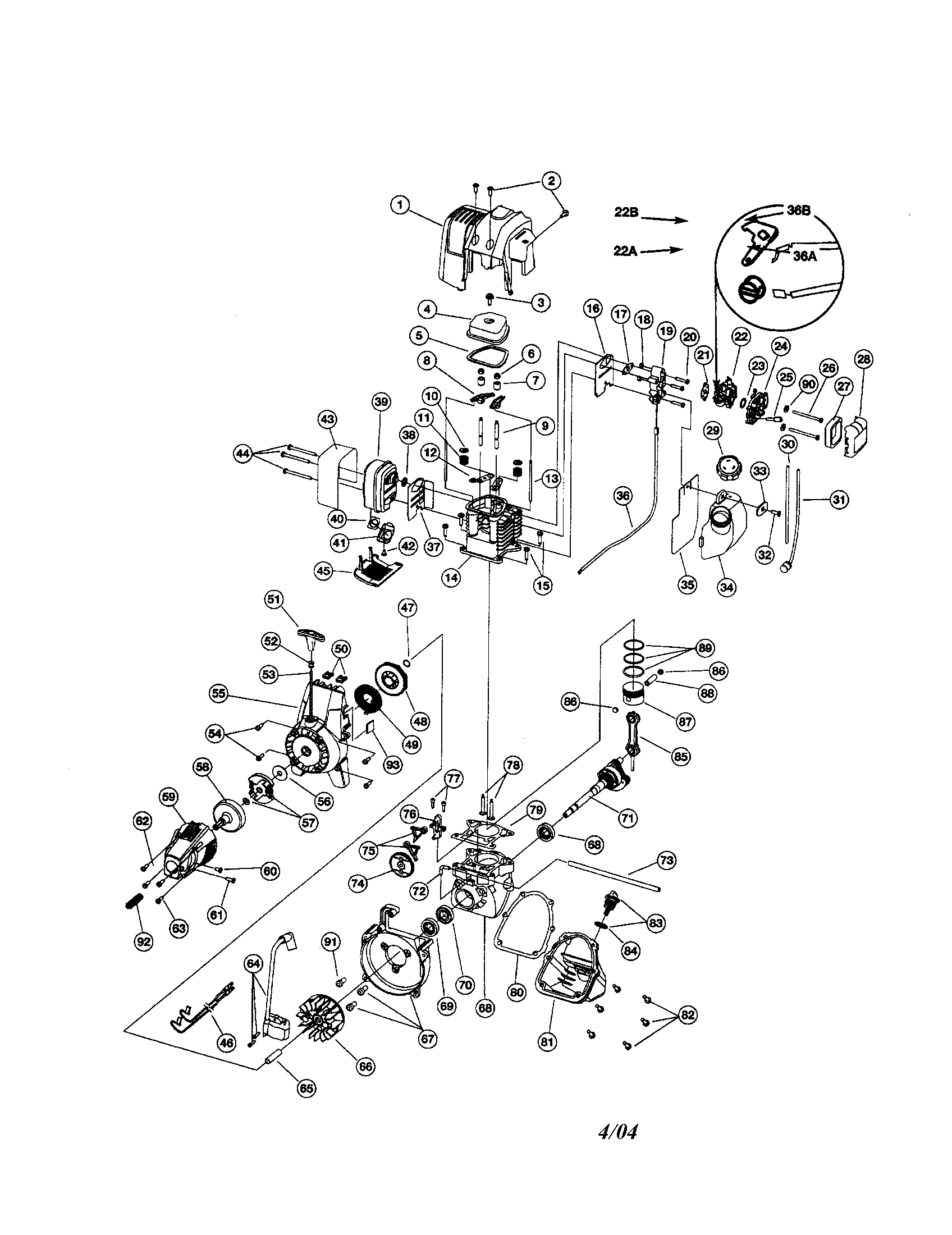

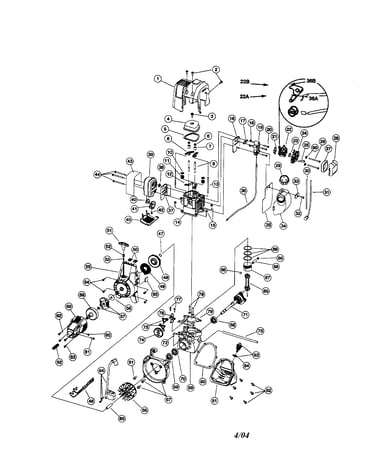

Engine part diagram

O-ring

Part #791-181751

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-181020
Screw

Part #791-181020

The manufacturer no longer makes this part, and there's no substitute part

Cover 753-1239
#59

Engine part diagram

Cover

Part #753-1239

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 791-182357
#36A

Engine part diagram

Cable assembly

Part #791-182357

The manufacturer no longer makes this part, and there's no substitute part

Gasket 791-181048
#38

Engine part diagram

Gasket

Part #791-181048

The manufacturer no longer makes this part, and there's no substitute part

Cover 753-1227
#24

Engine part diagram

Cover

Part #753-1227

The manufacturer no longer makes this part, and there's no substitute part

Carb/pri 753-1225
#22B

Engine part diagram

Carb/pri

Part #753-1225

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-181080
#32

Engine part diagram

Screw

Part #791-181080

The manufacturer no longer makes this part, and there's no substitute part

Rope 791-613103
#53

Engine part diagram

Rope

Part #791-613103

The manufacturer no longer makes this part, and there's no substitute part
