Top-Mount Refrigerator

Model # 25378232800 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25378232800 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

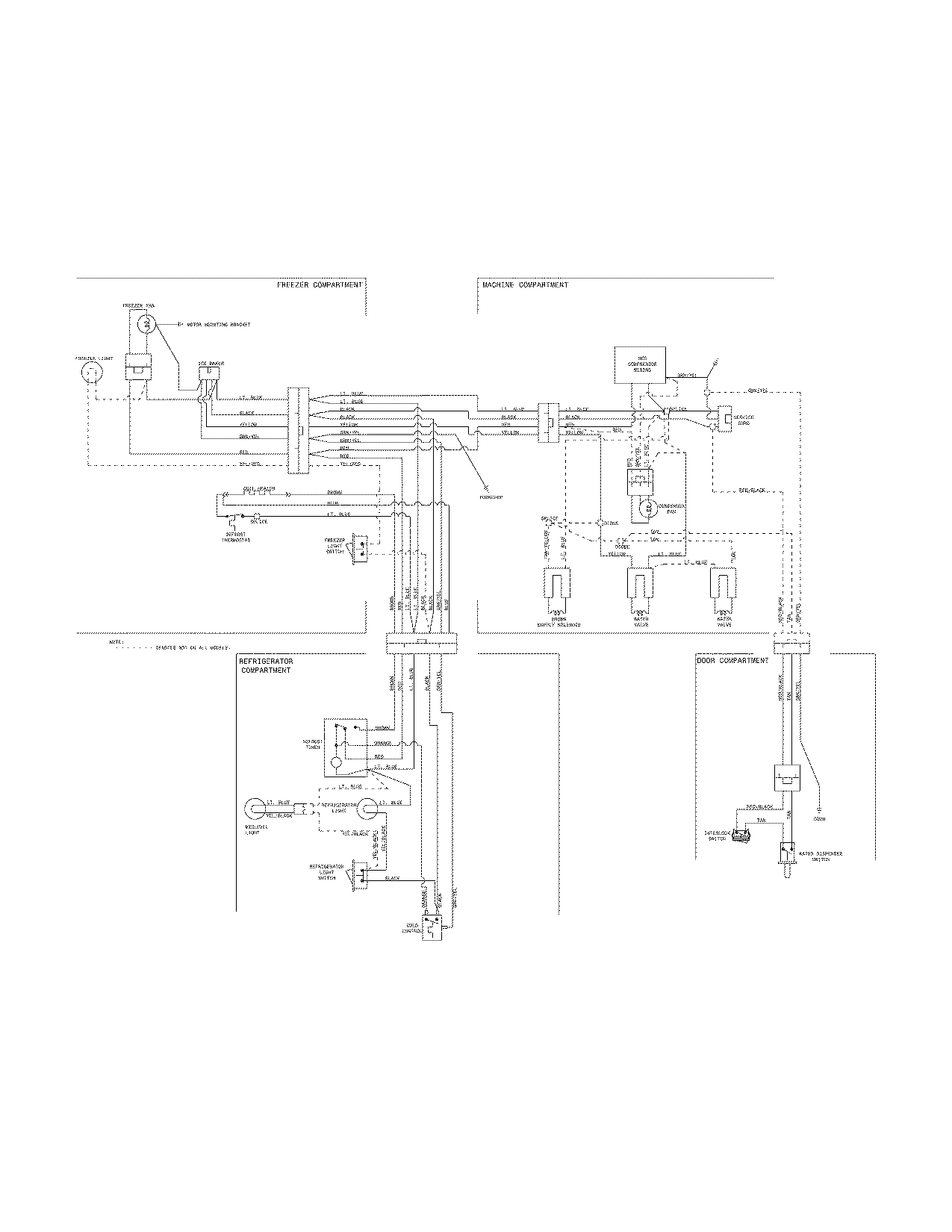

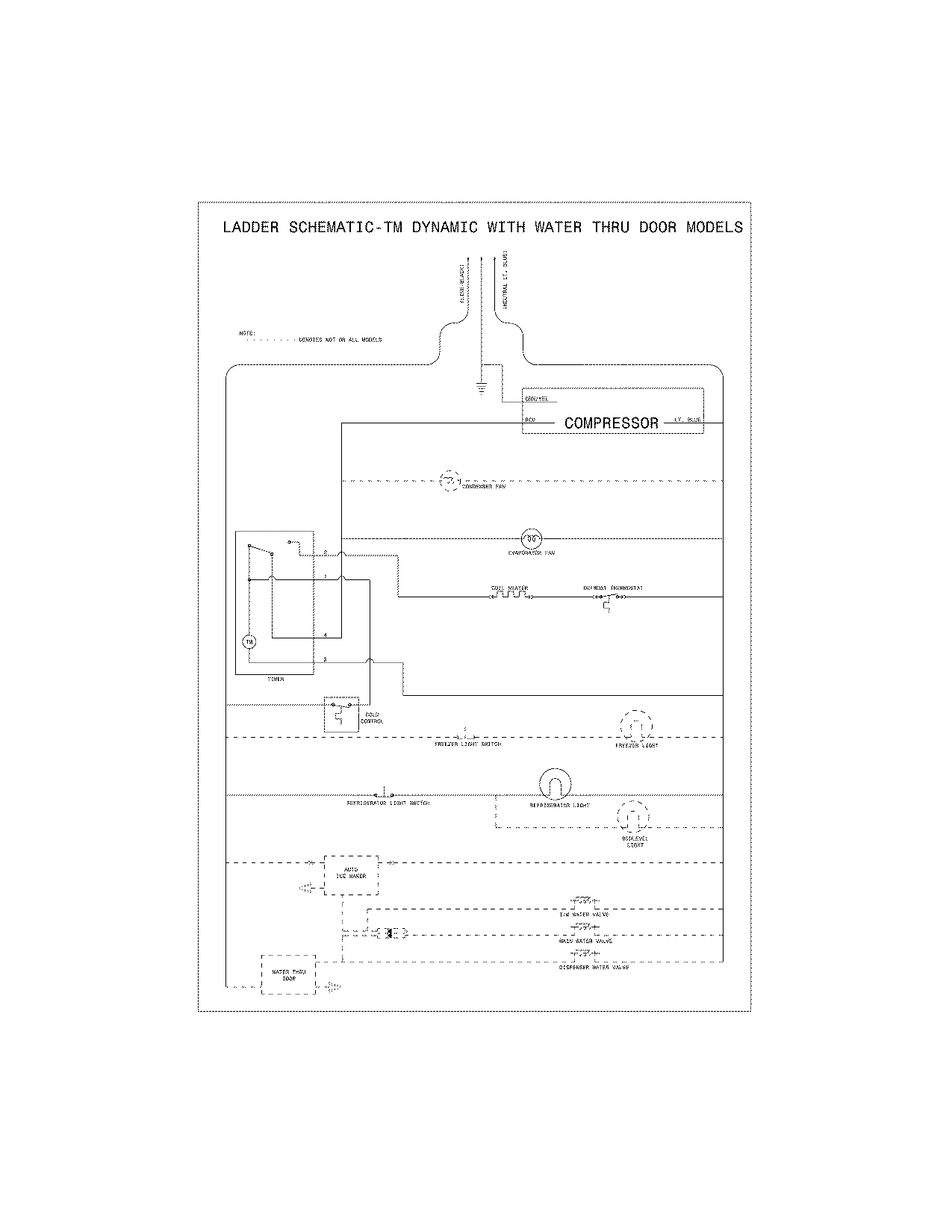

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for25378232800 Refrigerators

  • Refrigerator Ice Maker Fill Cup 5304456671
    #19

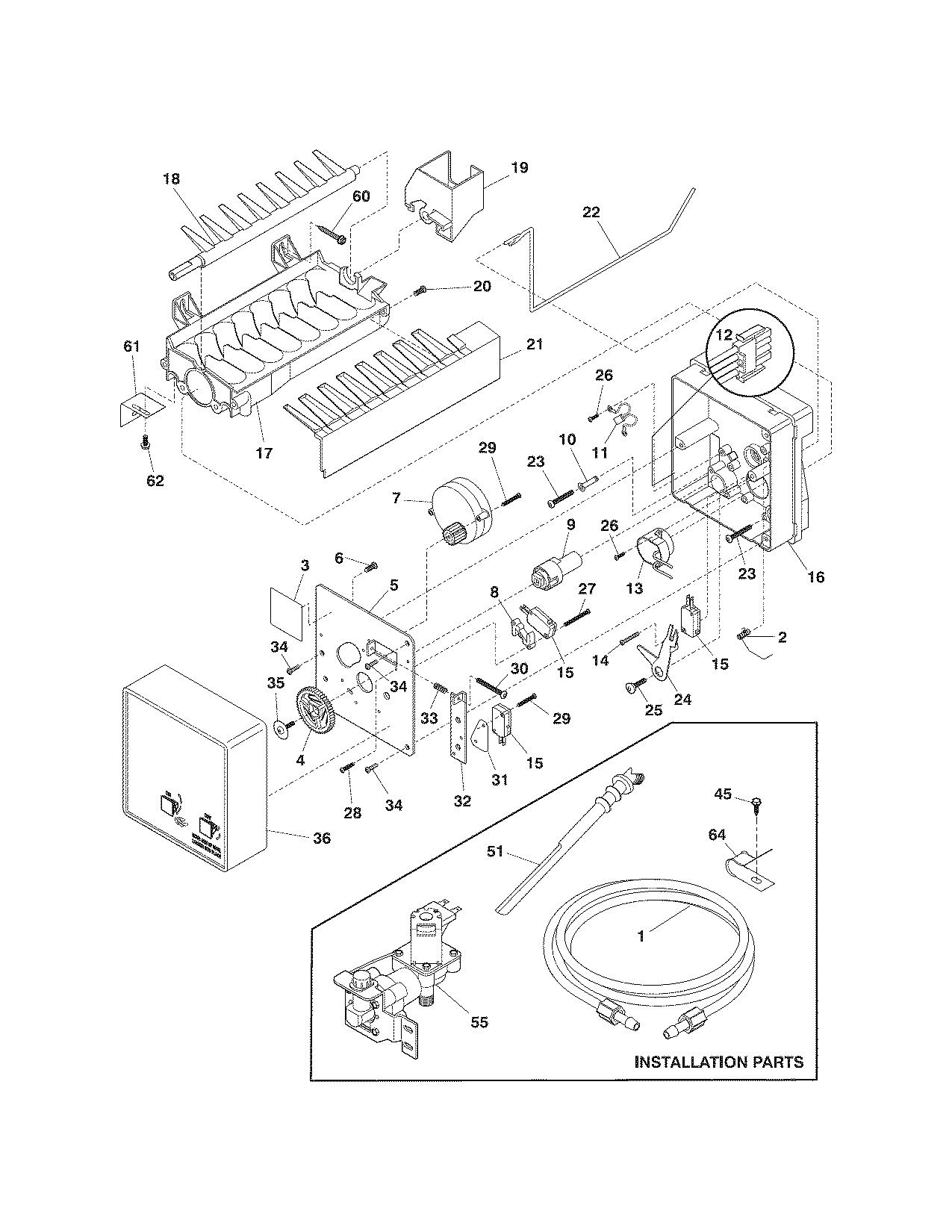

    Ice maker diagram

    Refrigerator ice maker fill cup

    Part #5304456671

    Replaced by #241798231

    ?
    Manufacturer substitution
    This part replaces 5304456671. Substitute parts can look different from the original.
    BEST SELLER
    $126.40
    9% OFF Phone Price : $138.40
    In Stock
  • Ice Maker Motor 5304445222
    #7

    Ice maker diagram

    Ice maker motor

    Part #5304445222

    Replaced by #241798231

    ?
    Manufacturer substitution
    This part replaces 5304445222. Substitute parts can look different from the original.
    BEST SELLER
    $126.40
    9% OFF Phone Price : $138.40
    In Stock
  • Ice Maker Mold 5304456669
    #17

    Ice maker diagram

    Ice maker mold

    Part #5304456669

    Replaced by #241798231

    ?
    Manufacturer substitution
    This part replaces 5304456669. Substitute parts can look different from the original.
    BEST SELLER
    $126.40
    9% OFF Phone Price : $138.40
    In Stock
  • Refrigerator Ice Maker Assembly 241642501
    #NI

    Ice maker diagram

    Refrigerator ice maker assembly

    Part #241642501

    Replaced by #241798231

    ?
    Manufacturer substitution
    This part replaces 241642501. Substitute parts can look different from the original.
    BEST SELLER
    $126.40
    9% OFF Phone Price : $138.40
    In Stock
  • Refrigerator Filter Drier 218944001
    #4

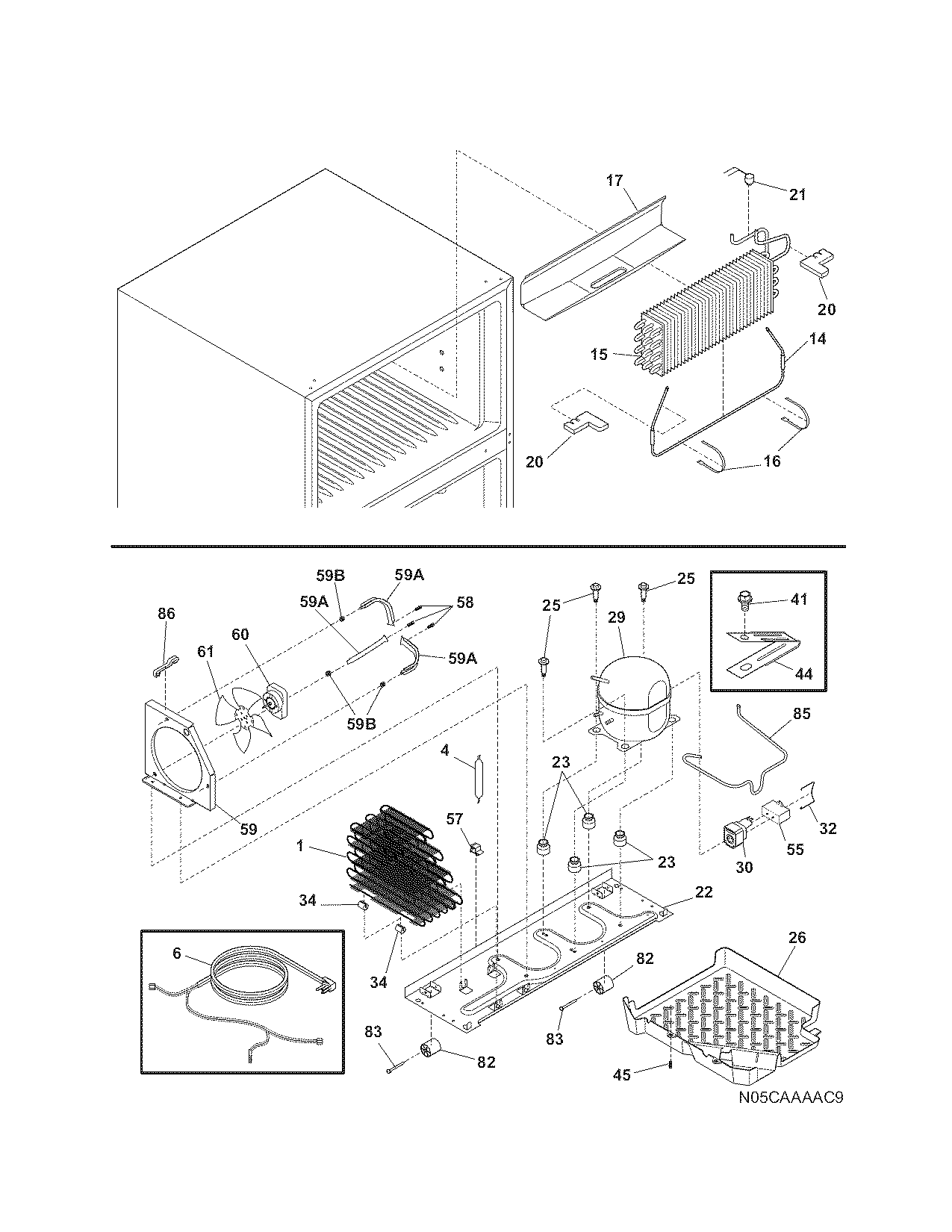

    System diagram

    Refrigerator filter drier

    Part #218944001

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 218944001. Substitute parts can look different from the original.
    BEST SELLER
    $20.18
    23% OFF Phone Price : $26.18
    In Stock
  • Refrigerator Evaporator Fan Blade 5308000010
    #5

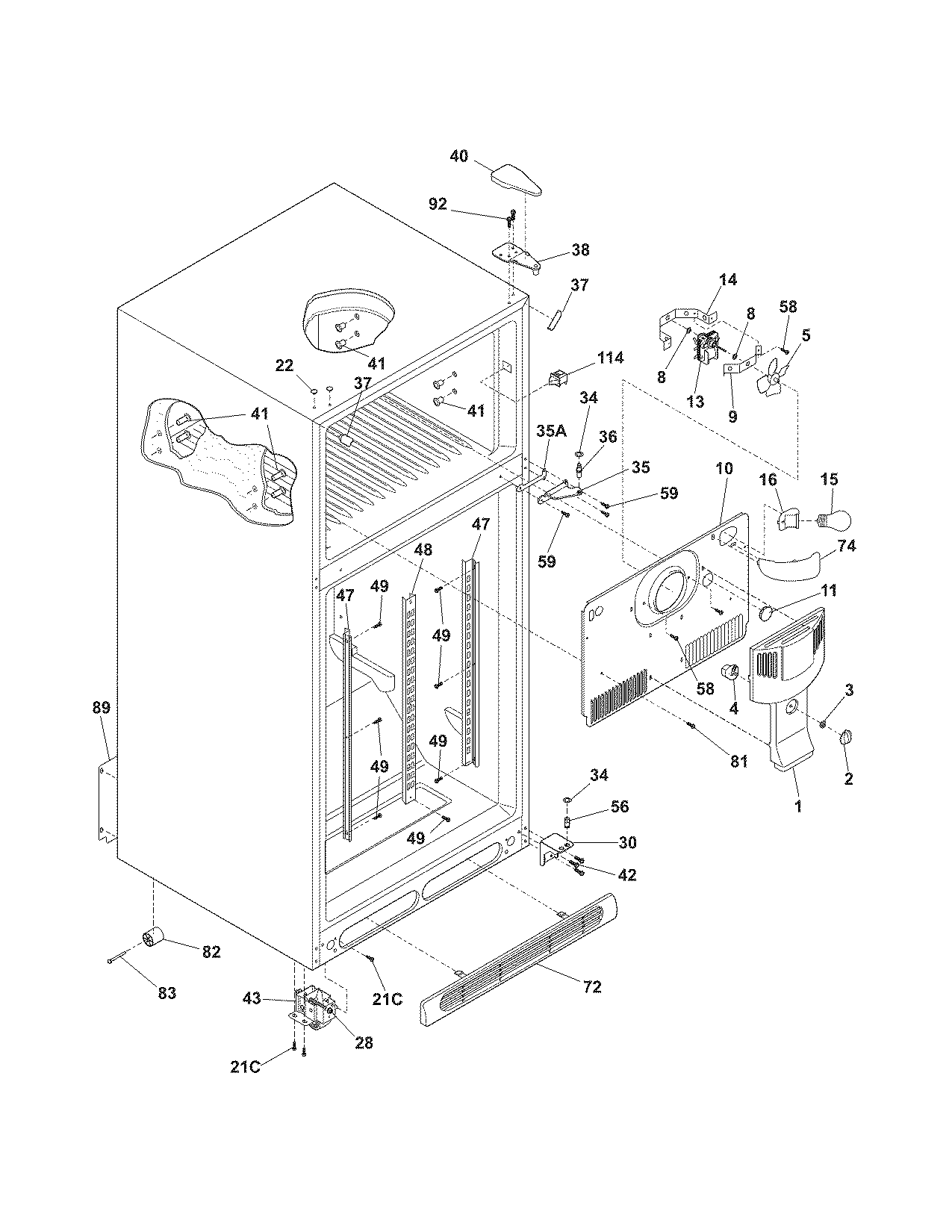

    Cabinet diagram

    Refrigerator evaporator fan blade

    Part #5308000010

    BEST SELLER
    $38.82
    13% OFF Phone Price : $44.82
    In Stock
  • Refrigerator Temperature Control Thermostat 5304445058
    #21

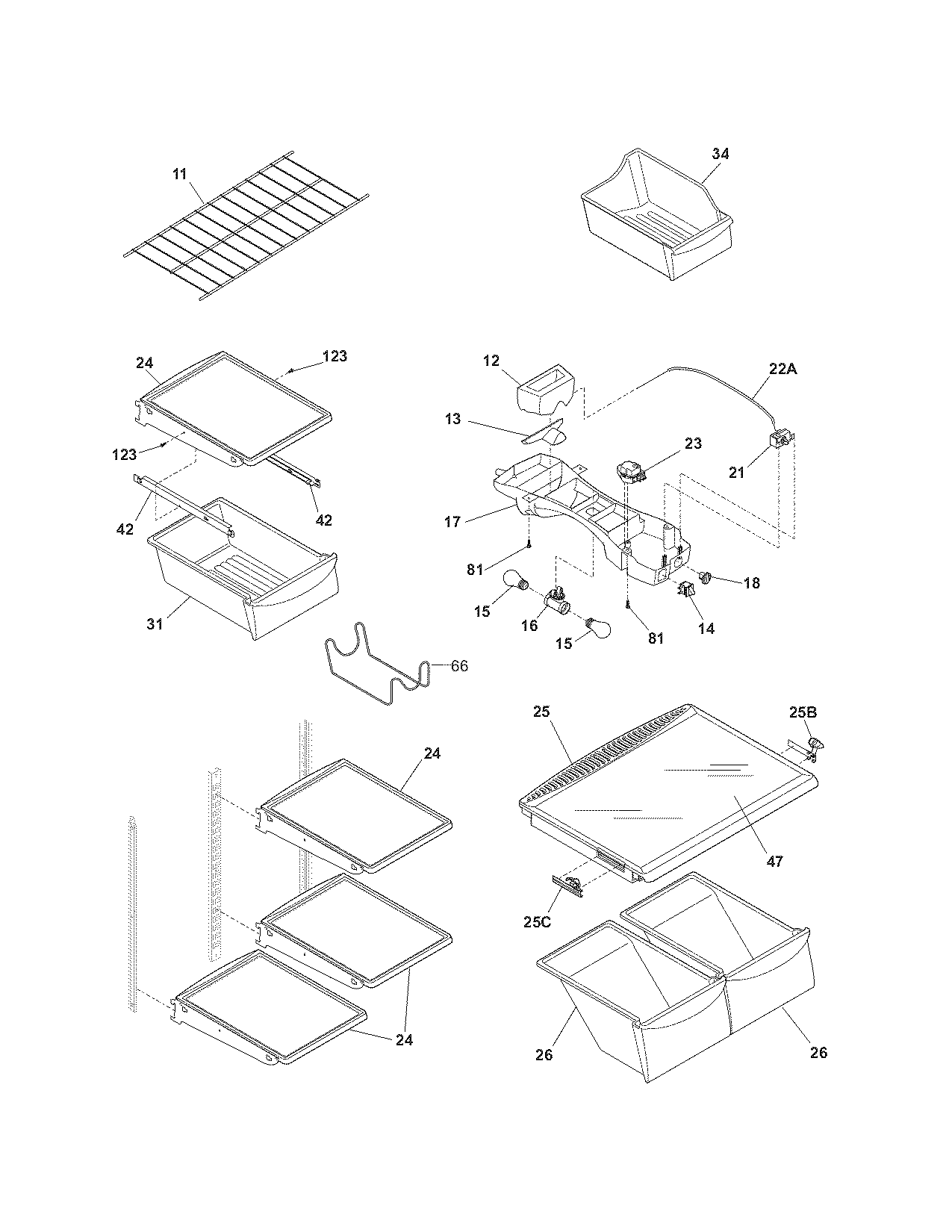

    Shelves diagram

    Refrigerator temperature control thermostat

    Part #5304445058

    Replaced by #241537103

    ?
    Manufacturer substitution
    This part replaces 5304445058. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $64.85
    8% OFF Phone Price : $70.85
    In Stock
  • Refrigerator Condenser Fan Blade 241639501
    #61

    System diagram

    Refrigerator condenser fan blade

    Part #241639501

    Replaced by #241639502

    ?
    Manufacturer substitution
    This part replaces 241639501. Substitute parts can look different from the original.
    BEST SELLER
    $20.81
    22% OFF Phone Price : $26.81
    In Stock
  • Refrigerator Evaporator Motor 240369702
    #13

    Cabinet diagram

    Refrigerator evaporator motor

    Part #240369702

    Replaced by #5303918549

    ?
    Manufacturer substitution
    This part replaces 240369702. Substitute parts can look different from the original.
    BEST SELLER
    $65.92
    8% OFF Phone Price : $71.92
    In Stock
  • Universal/multiflex Frigidaire Refrigerator Door Gasket (white) 241872513
    #2

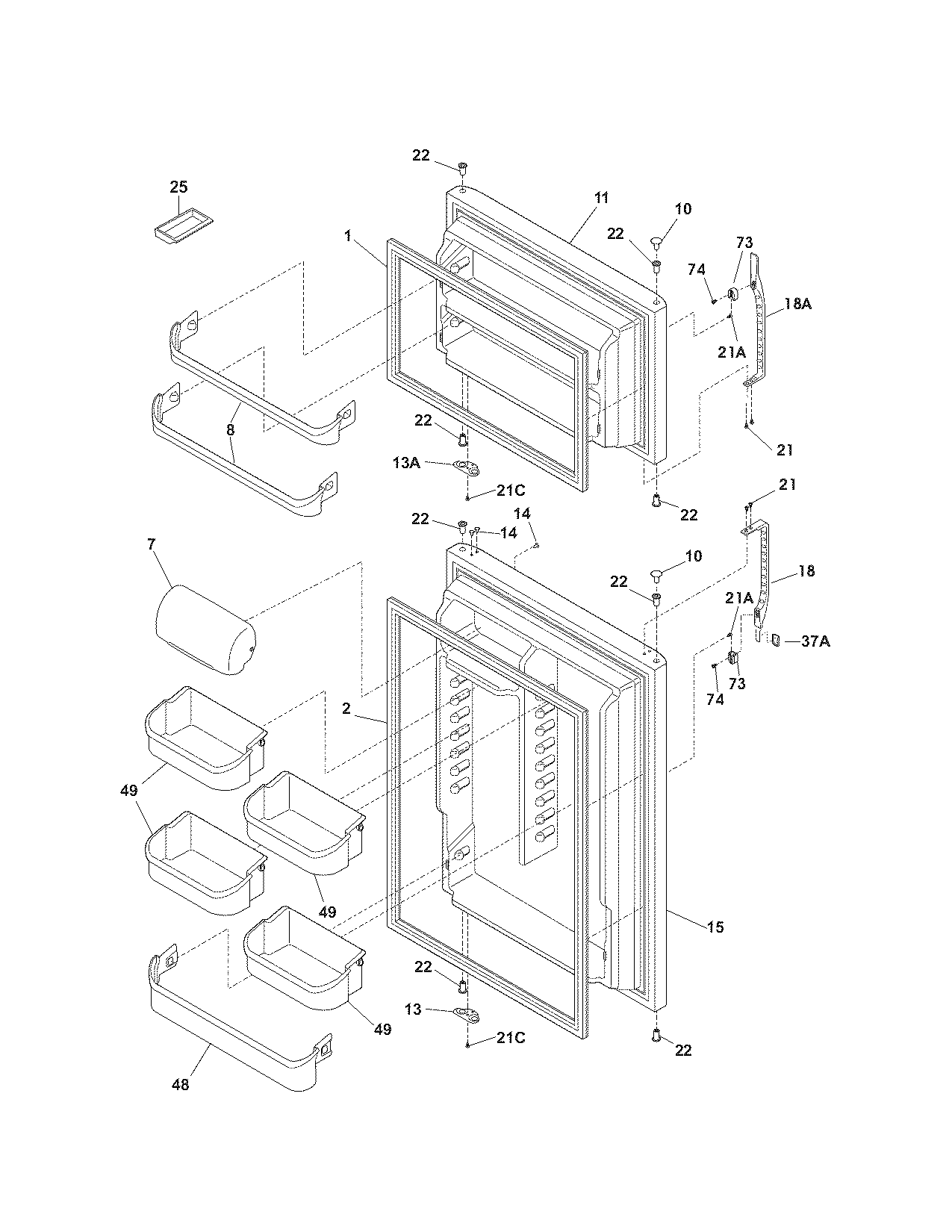

    Door diagram

    Universal/multiflex frigidaire refrigerator door gasket (white)

    Part #241872513

    Replaced by #242193213

    ?
    Manufacturer substitution
    This part replaces 241872513. Substitute parts can look different from the original.
    BEST SELLER
    $108.39
    10% OFF Phone Price : $120.39
    In Stock
