Model # 316792520 Official Craftsman curved shaft trimmer attachment

Here are the diagrams and repair parts for Official Craftsman 316792520 curved shaft trimmer attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Line Trimmer Bump Feed Knob (replaces 791-147153, 791-153066) 791-153066B
#9

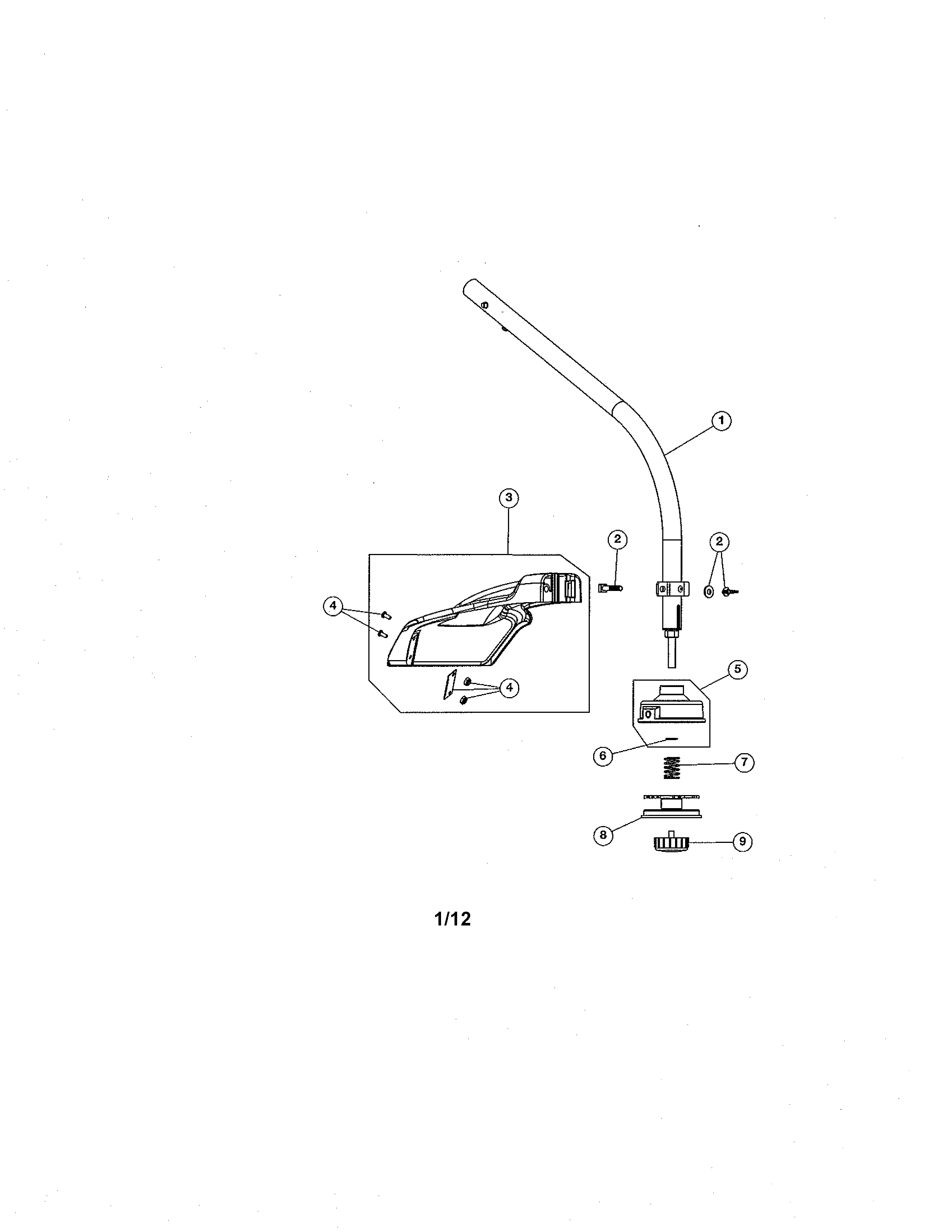

Trimmer attachment diagram

Line trimmer bump feed knob (replaces 791-147153, 791-153066)

Part #791-153066B

BEST SELLER
$18.38 |
10% OFF Phone Price : $20.38
In Stock
Line Trimmer Spool (replaces 791-610318) 753-1155
#8

Trimmer attachment diagram

Line trimmer spool (replaces 791-610318)

Part #753-1155

$26.04 |
19% OFF Phone Price : $32.04
In Stock
Line Cartrid 753-1156

#NI01

All parts diagram

Line cartrid

Part #753-1156

Replaced by #953-1156

?
Manufacturer substitution
This part replaces 753-1156. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Line Trimmer Drive Shaft Assembly, Lower 753-04508
#1

Trimmer attachment diagram

Line trimmer drive shaft assembly, lower

Part #753-04508

$79.10 |
10% OFF Was : $87.89
In Stock
Line Trimmer Spool Retainer Clip 791-610660
#6

Trimmer attachment diagram

Line trimmer spool retainer clip

Part #791-610660

This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Line Trimmer Spool Spring (replaces 791-610317, 791-bq01642) 791-610317B
#7

Trimmer attachment diagram

Line trimmer spool spring (replaces 791-610317, 791-bq01642)

Part #791-610317B

$16.62 |
11% OFF Phone Price : $18.62
In Stock
Line Trimmer Guard Assembly 753-04283
#3

Trimmer attachment diagram

Line trimmer guard assembly

Part #753-04283

Get free shipping with Automatic Reorder

$52.10 |
10% OFF Phone Price : $58.10
In Stock
Line Trimmer Spool Case And Eyelet 753-04284
#5

Trimmer attachment diagram

Line trimmer spool case and eyelet

Part #753-04284

$32.04 |
16% OFF Phone Price : $38.04
In Stock
Line Trimmer Guard Mounting Screw 753-04282
#2

Trimmer attachment diagram

Line trimmer guard mounting screw

Part #753-04282

This item is not returnable
$29.20 |
17% OFF Phone Price : $35.20
In Stock
.095 Replacement Line 791-180920

#NI02

All parts diagram

.095 replacement line

Part #791-180920

The manufacturer no longer makes this part, and there's no substitute part
