DeWalt
Power Hammer

Model # D25330K TYPE 3 Official DeWalt power hammer

Here are the diagrams and repair parts for Official DeWalt D25330K-TYPE-3 power hammer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Bearing 477216-00
#96

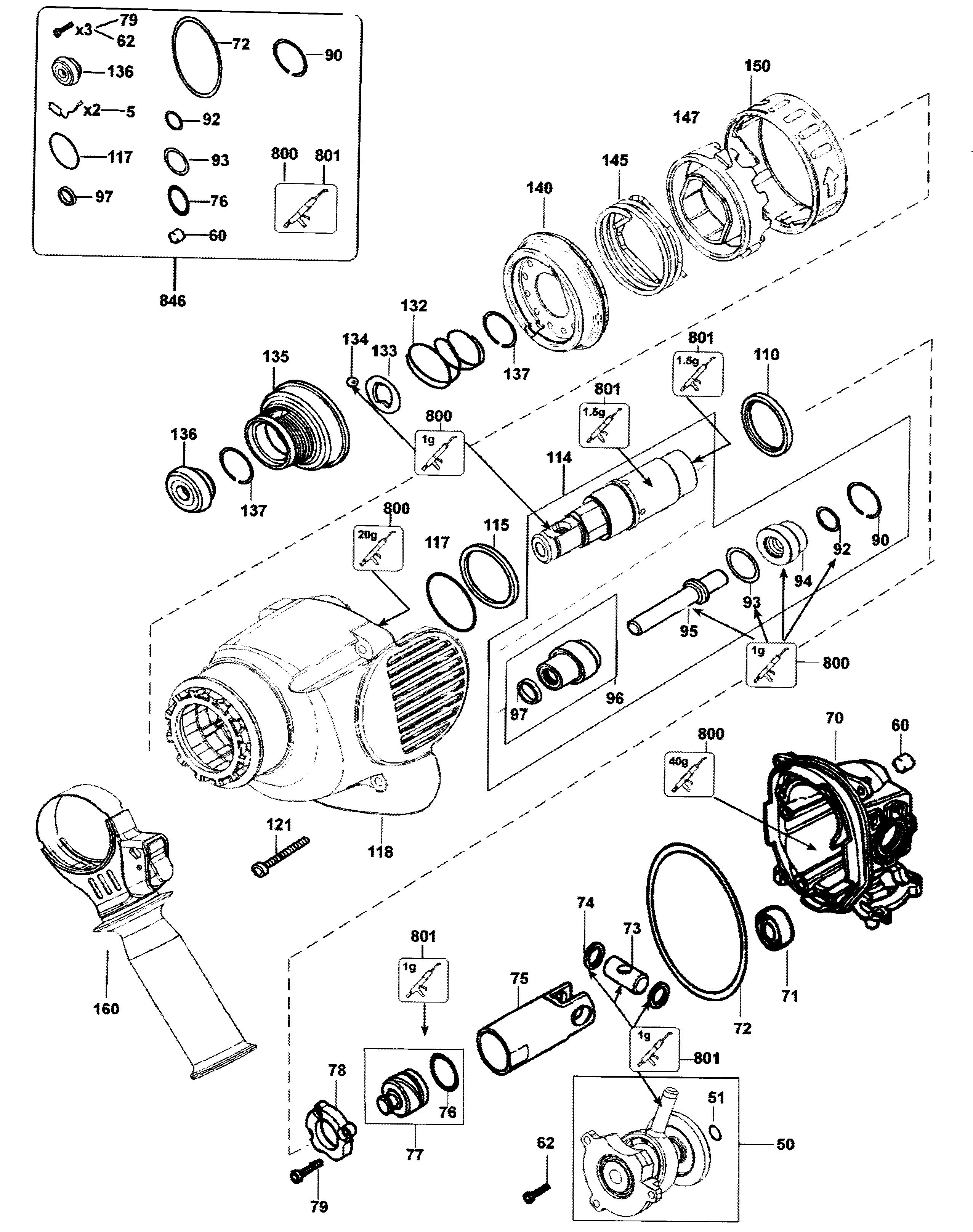

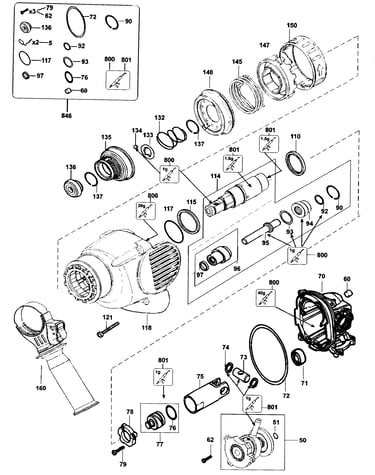

Drive assy diagram

Bearing

Part #477216-00

The manufacturer no longer makes this part, and there's no substitute part

Seal 578229-00
#72

Drive assy diagram

Seal

Part #578229-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-08
#35

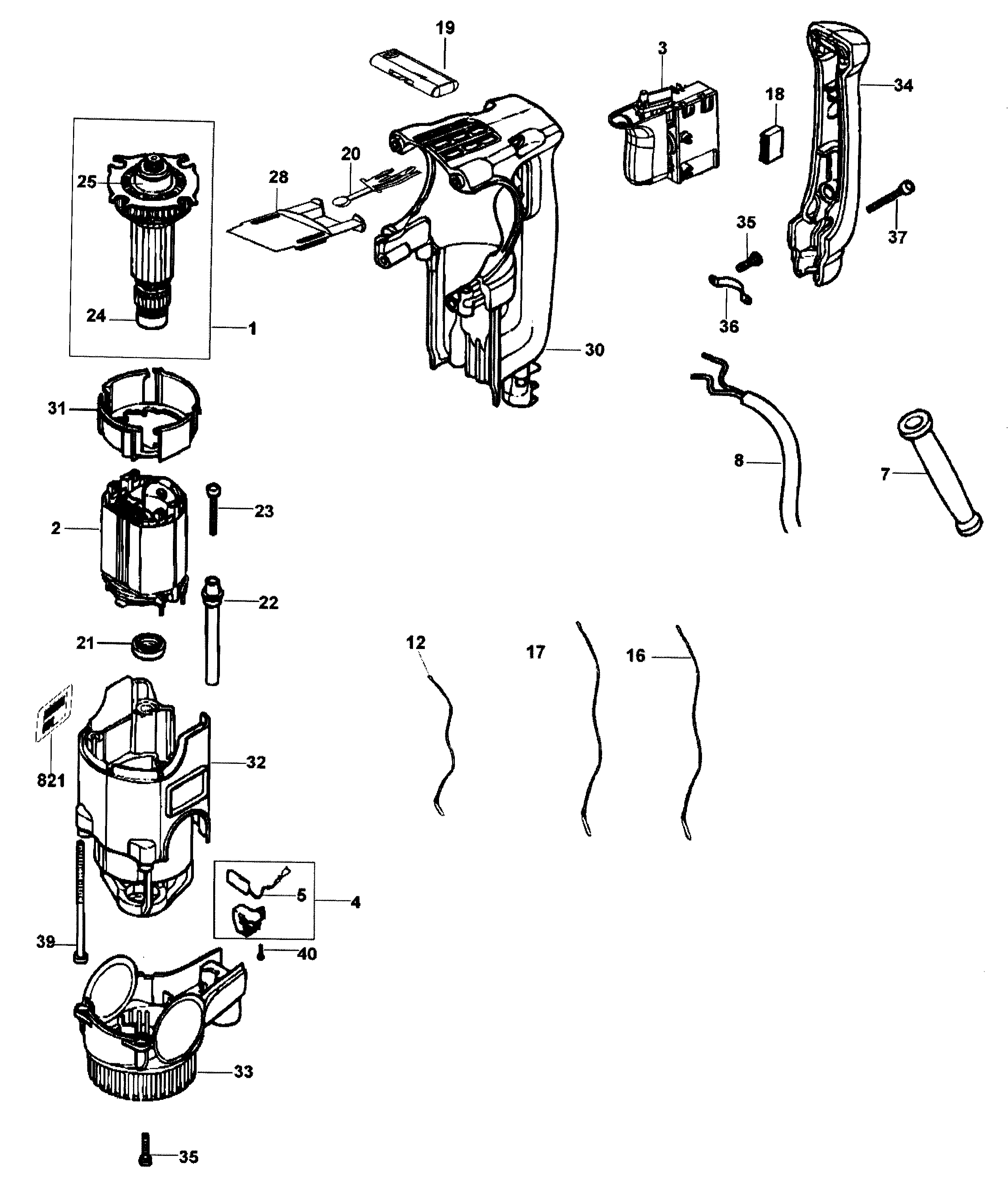

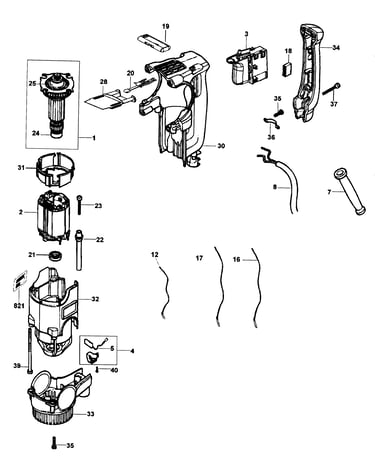

Motor & handle diagram

Screw

Part #330065-08

The manufacturer no longer makes this part, and there's no substitute part

Bearing Bushing N042808
#78

Drive assy diagram

Bearing bushing

Part #N042808

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 477218-00
#118

Drive assy diagram

Gear case

Part #477218-00

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Fa 581808-00
#31

Motor & handle diagram

Baffle, fa

Part #581808-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 586893-00
#145

Drive assy diagram

Spring

Part #586893-00

The manufacturer no longer makes this part, and there's no substitute part

O 580908-00
#51

Drive assy diagram

O

Part #580908-00

The manufacturer no longer makes this part, and there's no substitute part

Field 576690-06
#2

Motor & handle diagram

Field

Part #576690-06

The manufacturer no longer makes this part, and there's no substitute part

Seal 577139-00
#97

Drive assy diagram

Seal

Part #577139-00

The manufacturer no longer makes this part, and there's no substitute part
