Frigidaire
Electric Range

Model # FEF357CGSA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FEF357CGSA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

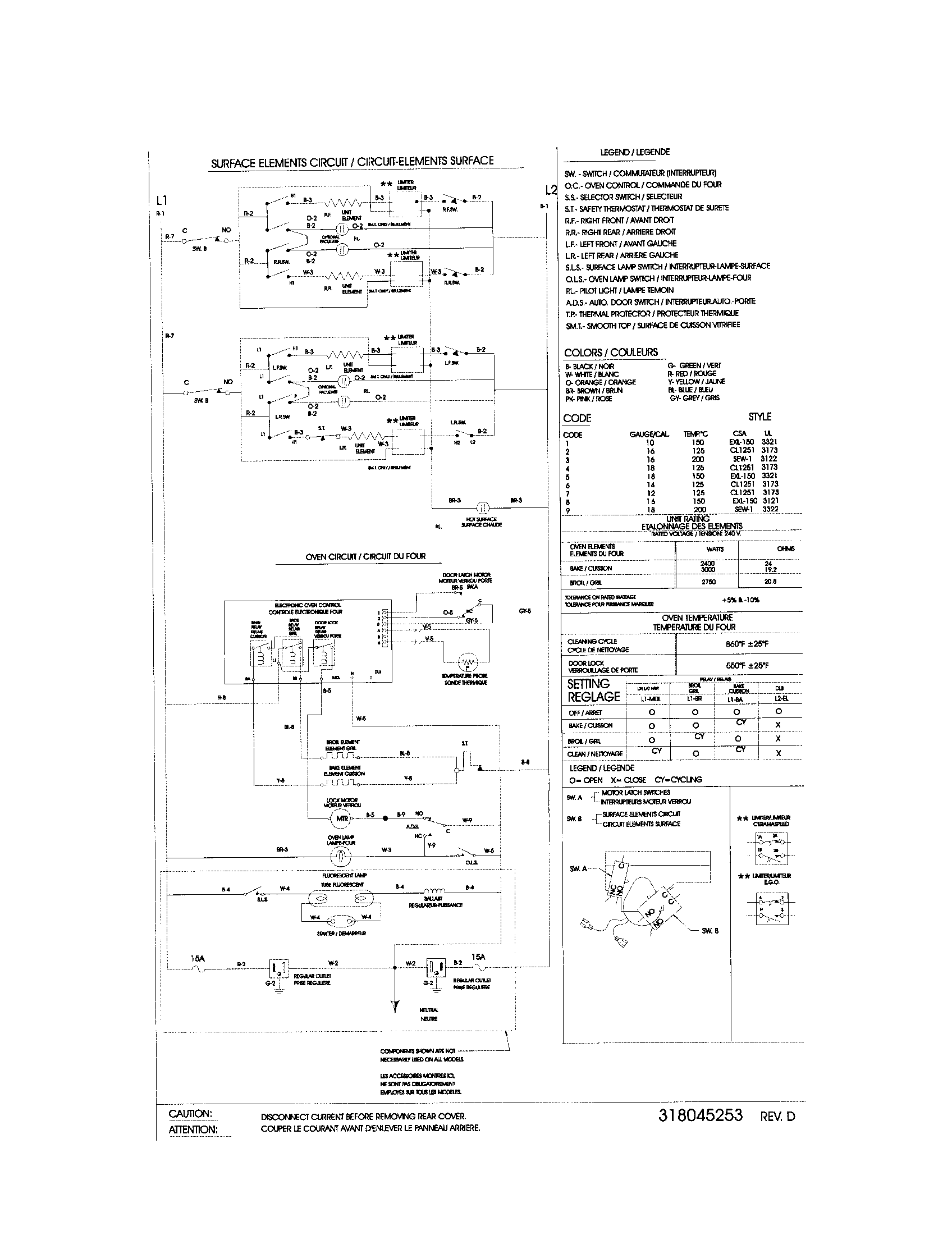

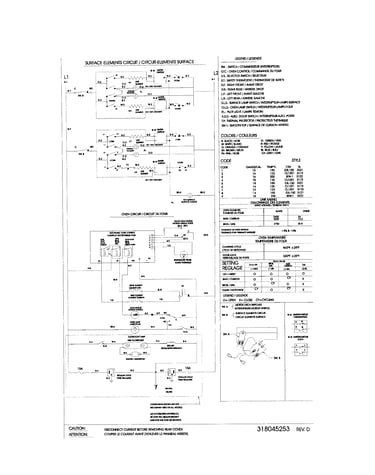

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Bulb 3201908
#15

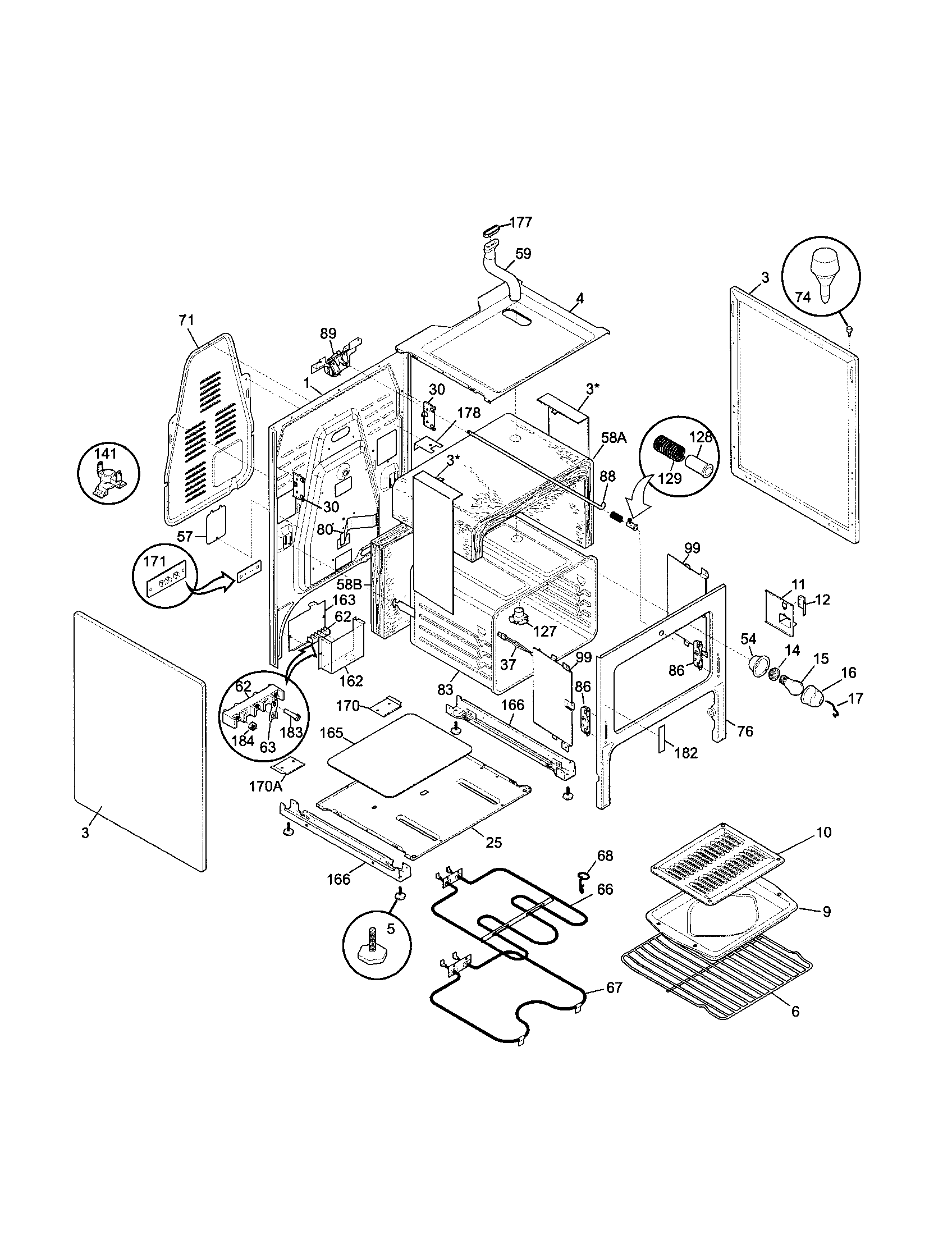

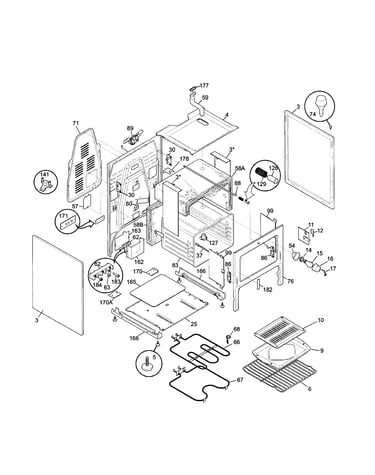

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Sensor Probe 316111203
#37

Body diagram

Sensor probe

Part #316111203

Replaced by #316217002

?
Manufacturer substitution
This part replaces 316111203. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
R F Element 316010203
#15A

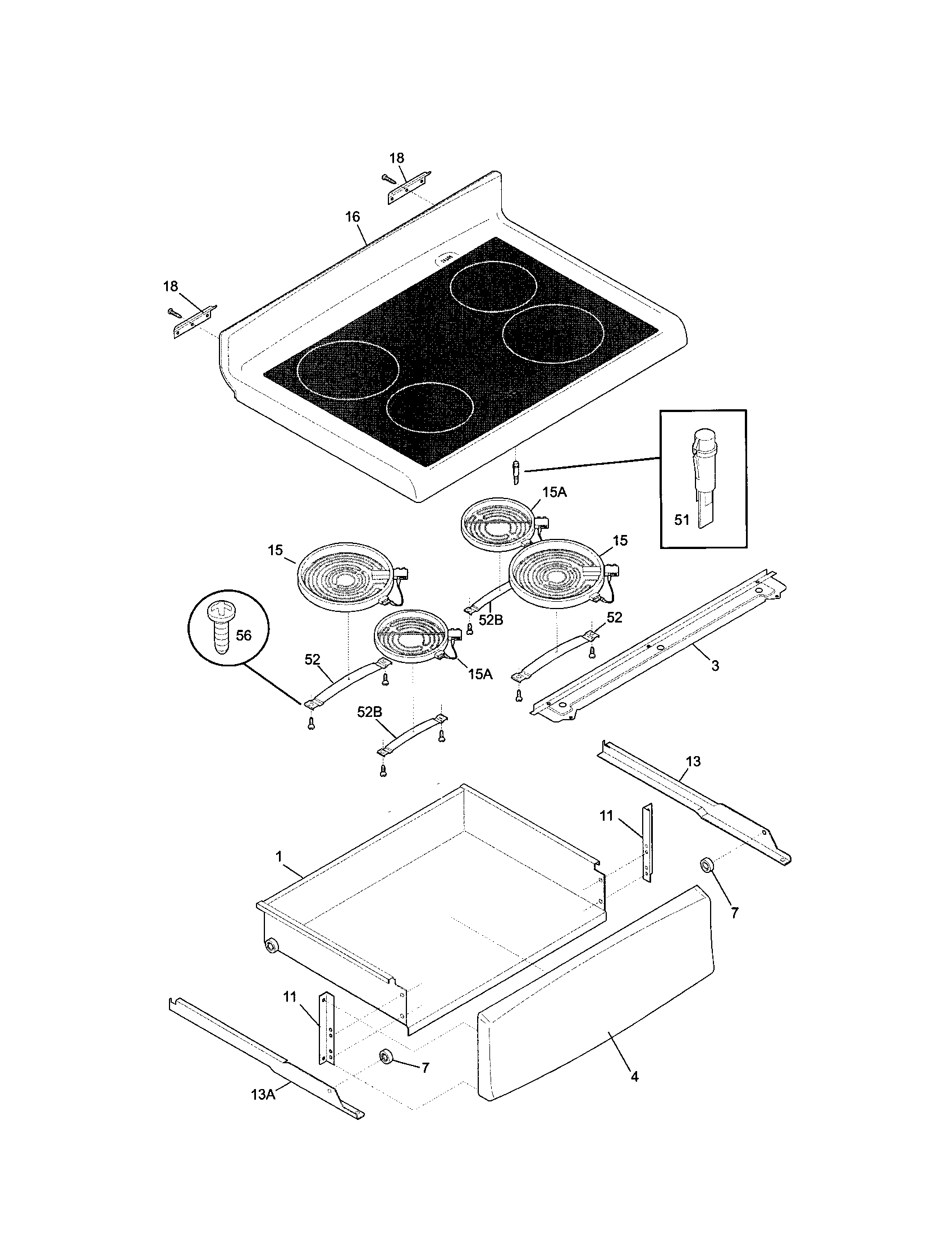

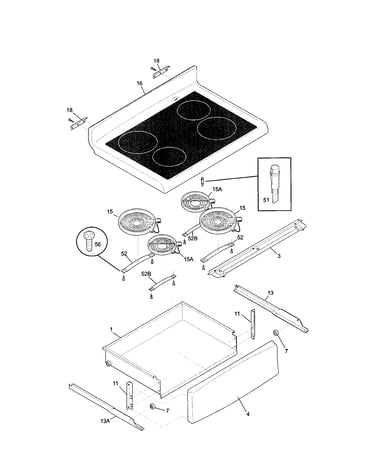

Top/drawer diagram

R f element

Part #316010203

Replaced by #318178110

?
Manufacturer substitution
This part replaces 316010203. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Oven Bake Element 5303310512
#67

Body diagram

Oven bake element

Part #5303310512

Replaced by #318255006

?
Manufacturer substitution
This part replaces 5303310512. Substitute parts can look different from the original.
BEST SELLER
$145.64 |
8% OFF Phone Price : $157.64
In Stock
Receptacle 5308011085
#14

Body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Element 316010204
#15

Top/drawer diagram

Element

Part #316010204

Replaced by #318198834

?
Manufacturer substitution
This part replaces 316010204. Substitute parts can look different from the original.
$119.60 |
9% OFF Phone Price : $131.60
In Stock
Range Screw 5303323134
#69

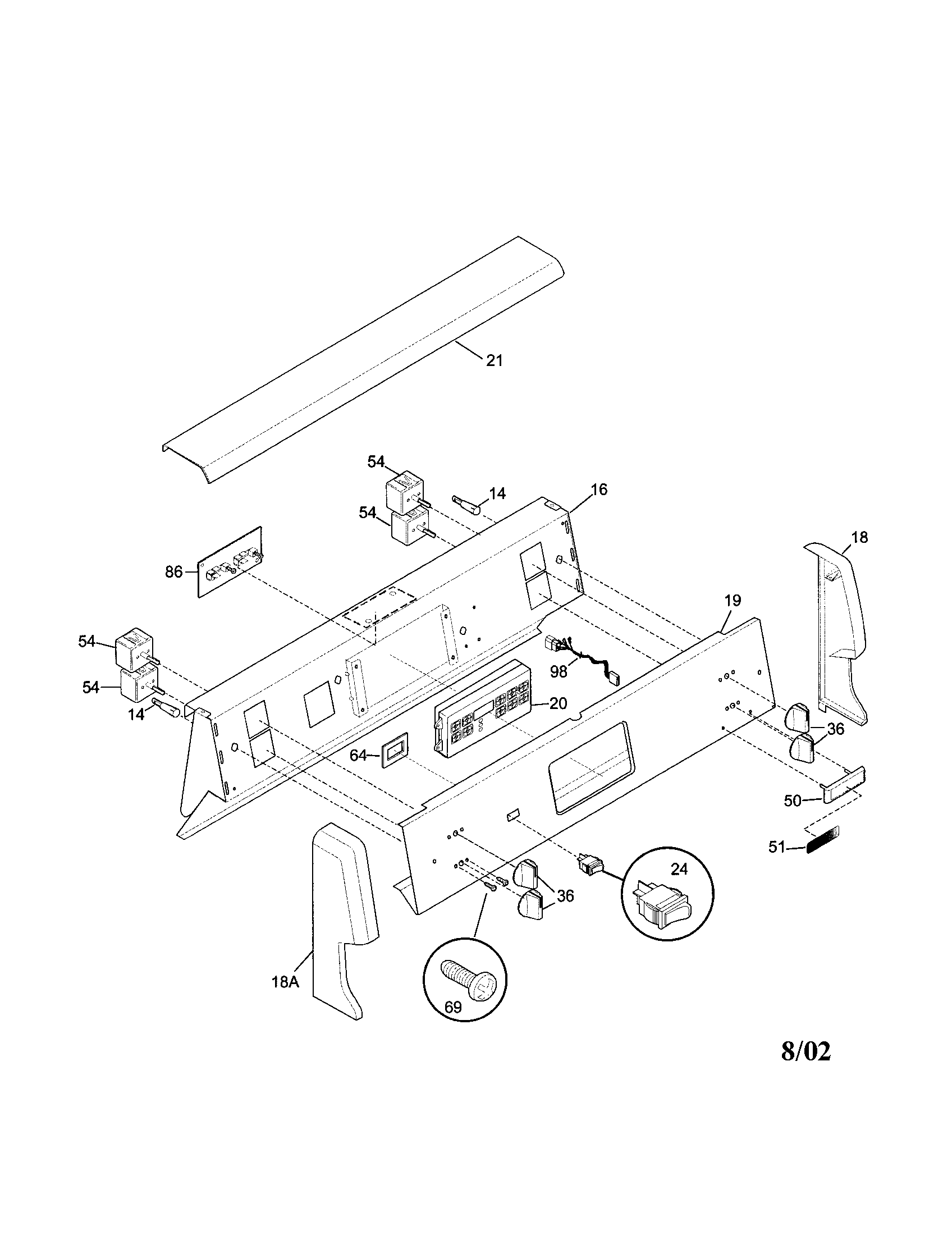

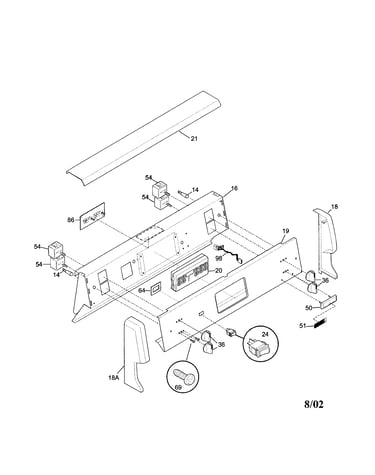

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Rocker Switch 316005607
#24

Backguard diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Range Oven Door Seal (replaces 318253001, 318253002) 318053103
#12

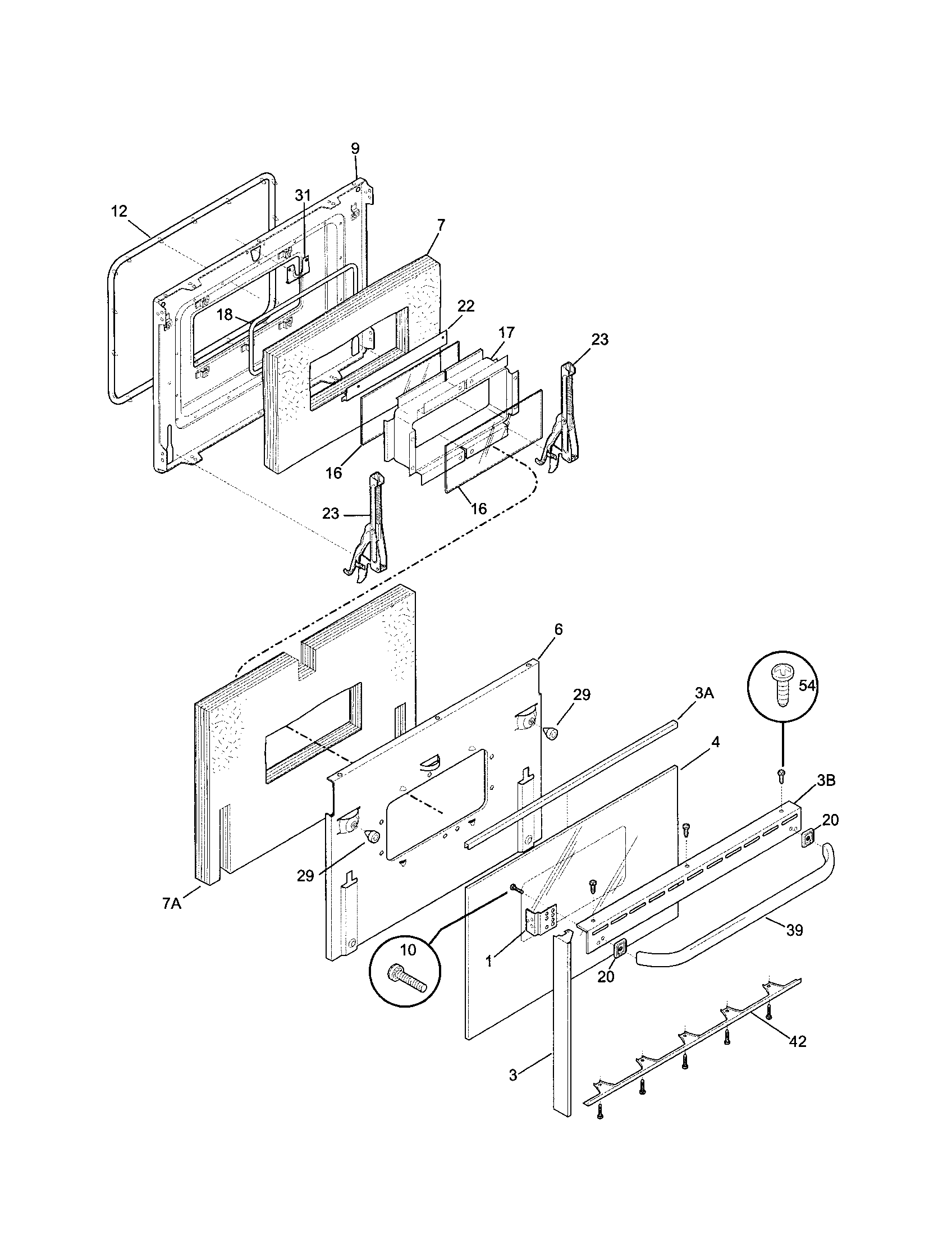

Door diagram

Range oven door seal (replaces 318253001, 318253002)

Part #318053103

$103.39 |
10% OFF Phone Price : $115.39
In Stock
Nut 3201885

#NI07

All parts diagram

Nut

Part #3201885

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3201885. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
