GE
Side-By-Side Refrigerator

Model # MSX25GRBAAA Official GE refrigerator

Here are the diagrams and repair parts for Official GE MSX25GRBAAA refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

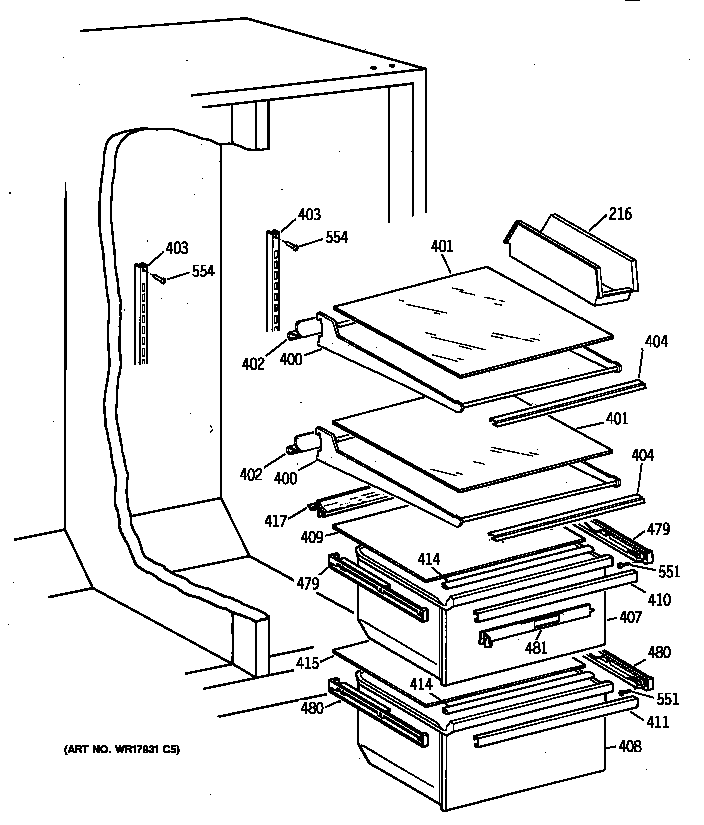

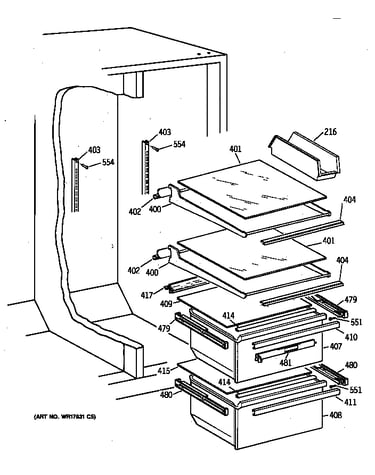

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 297 parts  |
Ice Maker WR30X0327
#820

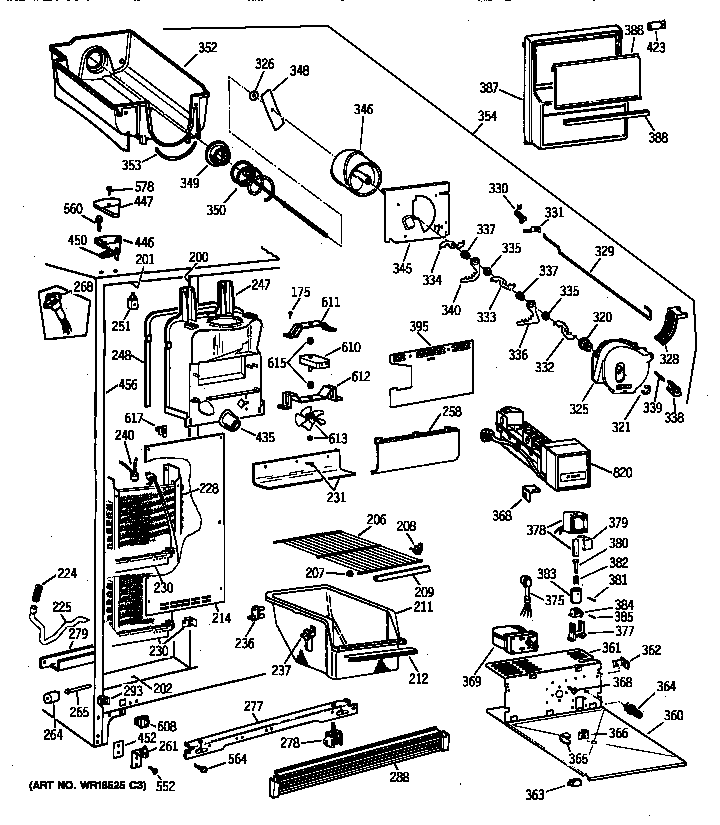

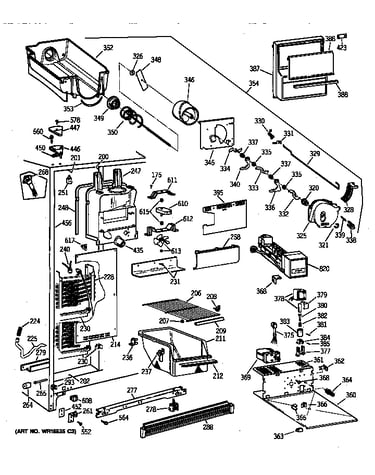

Freezer diagram

Ice maker

Part #WR30X0327

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0327. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

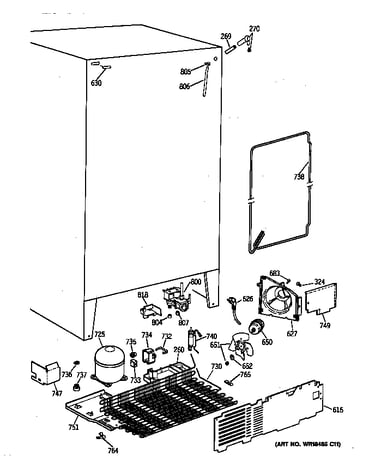

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Connector WR02X10067
#80

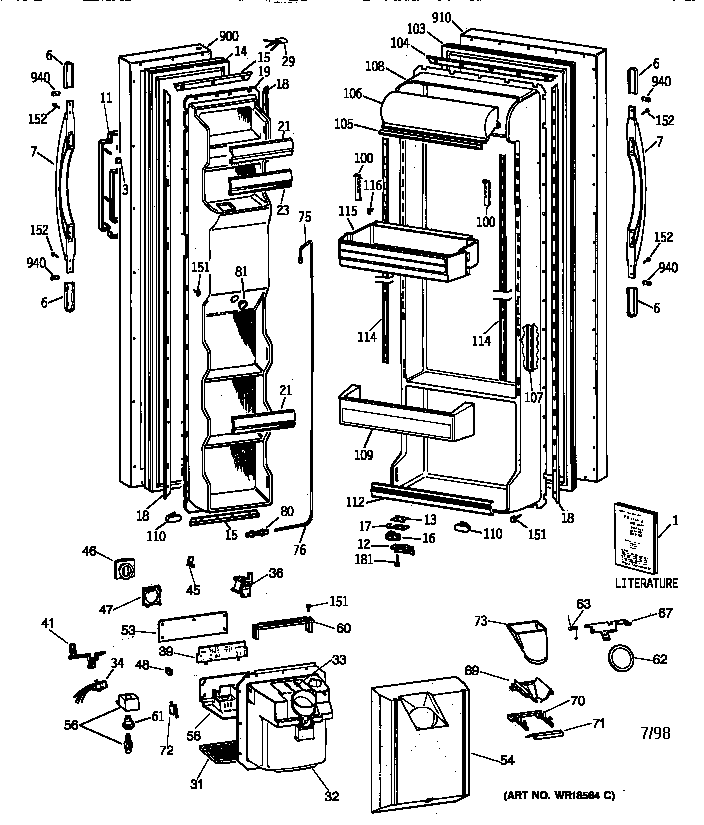

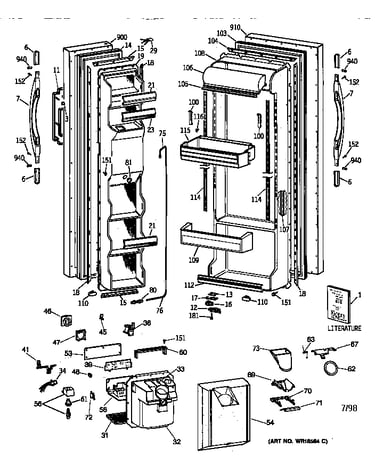

Doors diagram

Refrigerator connector

Part #WR02X10067

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10067. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Nut & Union WR02X4048
#807B

Unit parts diagram

Nut & union

Part #WR02X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Dr Reces Asm WR17X3093
#62

Doors diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Defrost Thermostat WR50X0122
#240

Freezer diagram

Refrigerator defrost thermostat

Part #WR50X0122

Replaced by #WR50X122

?
Manufacturer substitution
This part replaces WR50X0122. Substitute parts can look different from the original.
BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Reservoir-to-dispenser Water Tubing (replaces Wr17x10732, Wr17x11439, Wr17x3104, Wr17x3140, Wr17x3228) WR17X2891
#812

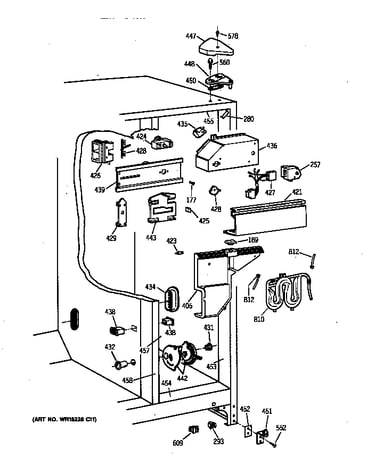

Controls diagram

Refrigerator reservoir-to-dispenser water tubing (replaces wr17x10732, wr17x11439, wr17x3104, wr17x3140, wr17x3228)

Part #WR17X2891

BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Refrigerator Defrost Control WR09X0489
#257

Controls diagram

Refrigerator defrost control

Part #WR09X0489

Replaced by #WR9X489

?
Manufacturer substitution
This part replaces WR09X0489. Substitute parts can look different from the original.
BEST SELLER
$36.07 |
14% OFF Phone Price : $42.07
In Stock
Lo Side Asm WR85X0309
#228

Freezer diagram

Lo side asm

Part #WR85X0309

Replaced by #WR87X29147

?
Manufacturer substitution
This part replaces WR85X0309. Substitute parts can look different from the original.
BEST SELLER
$406.73 |
$12.00 OFF Phone Price : $418.73
In Stock
