Model # SUPER TOMAHAWK 4HP Official Troybilt super tomahawk chipper/shredder

Here are the diagrams and repair parts for Official Troybilt SUPER-TOMAHAWK-4HP super tomahawk chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

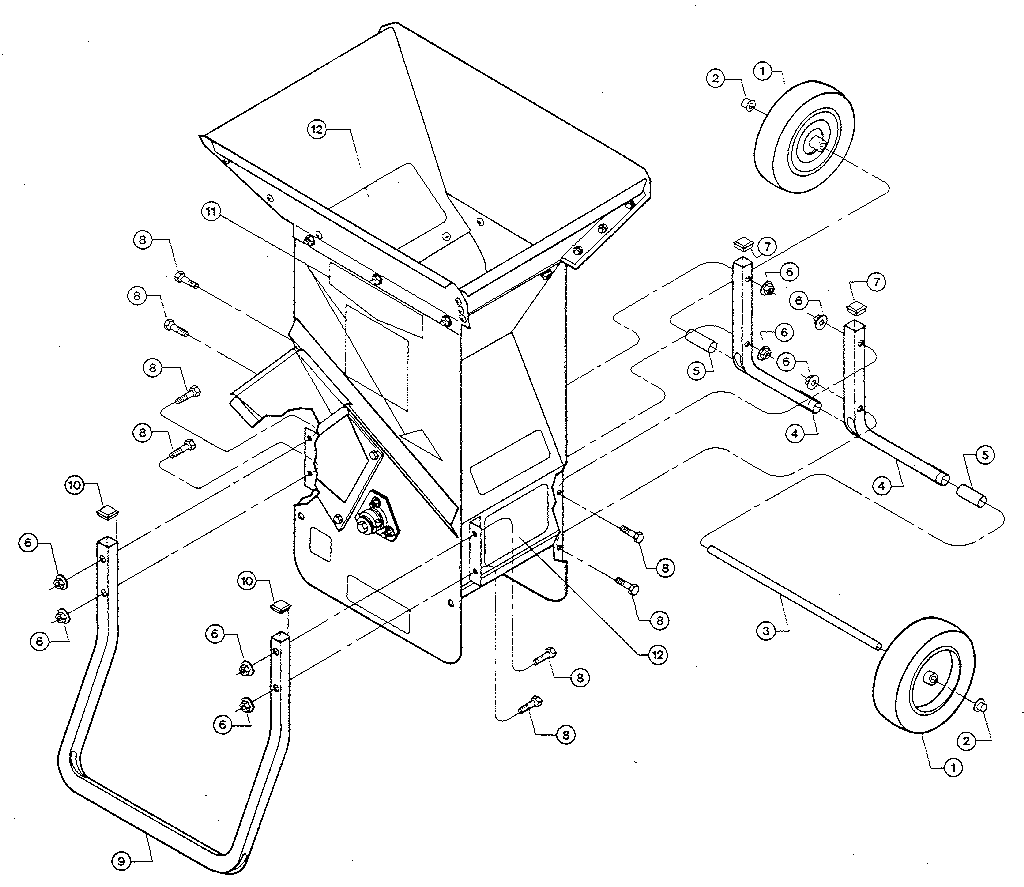

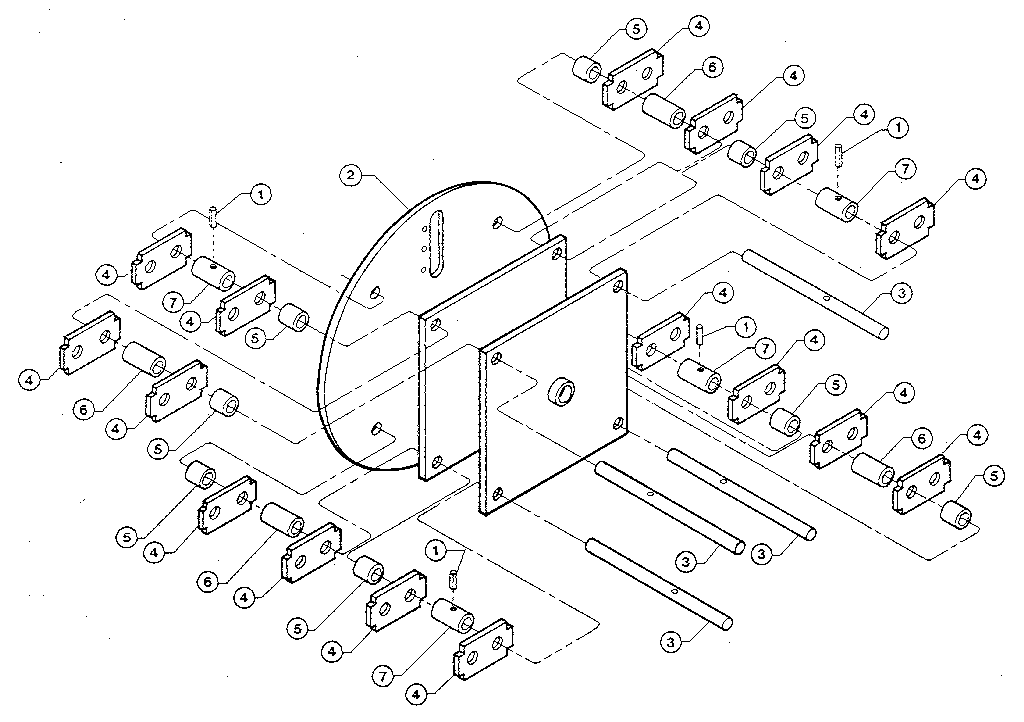

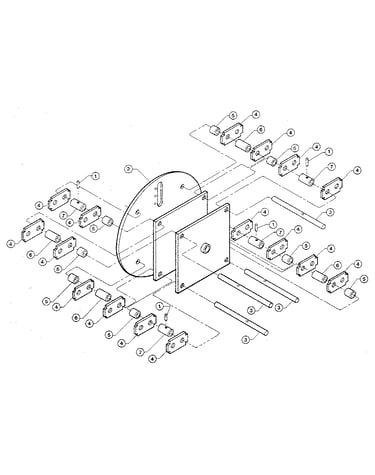

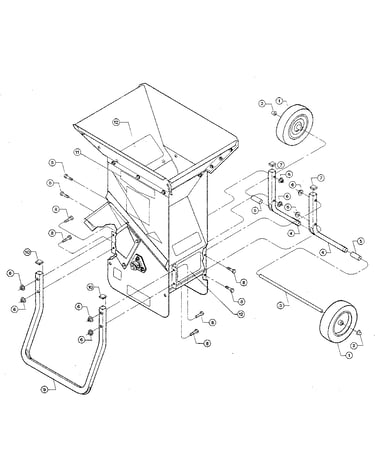

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Screw W02050513P
#8

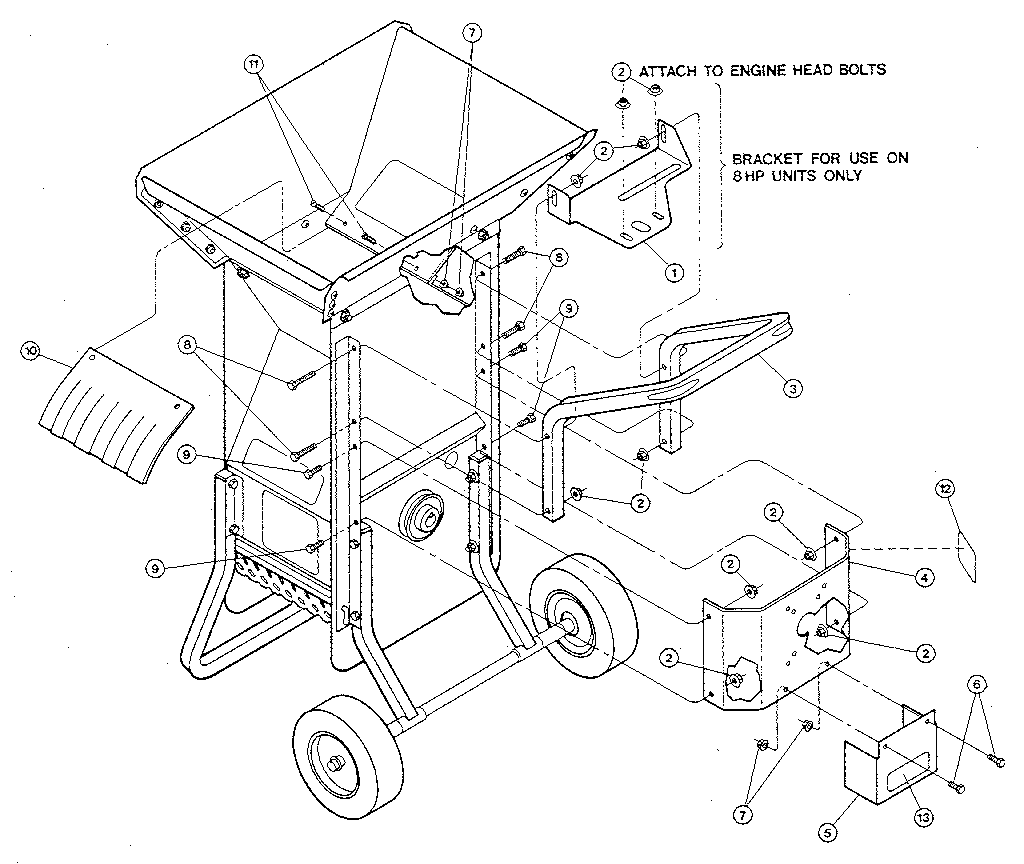

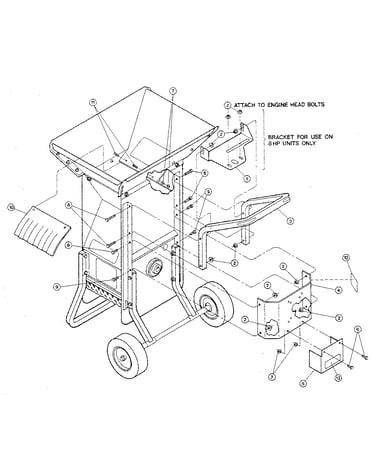

Drawing four diagram

Screw

Part #W02050513P

Replaced by #710-3180

?
Manufacturer substitution
This part replaces W02050513P. Substitute parts can look different from the original.
This item is not returnable
$6.93 |
13% OFF Phone Price : $7.93
In Stock
Screw W02050503P
#2

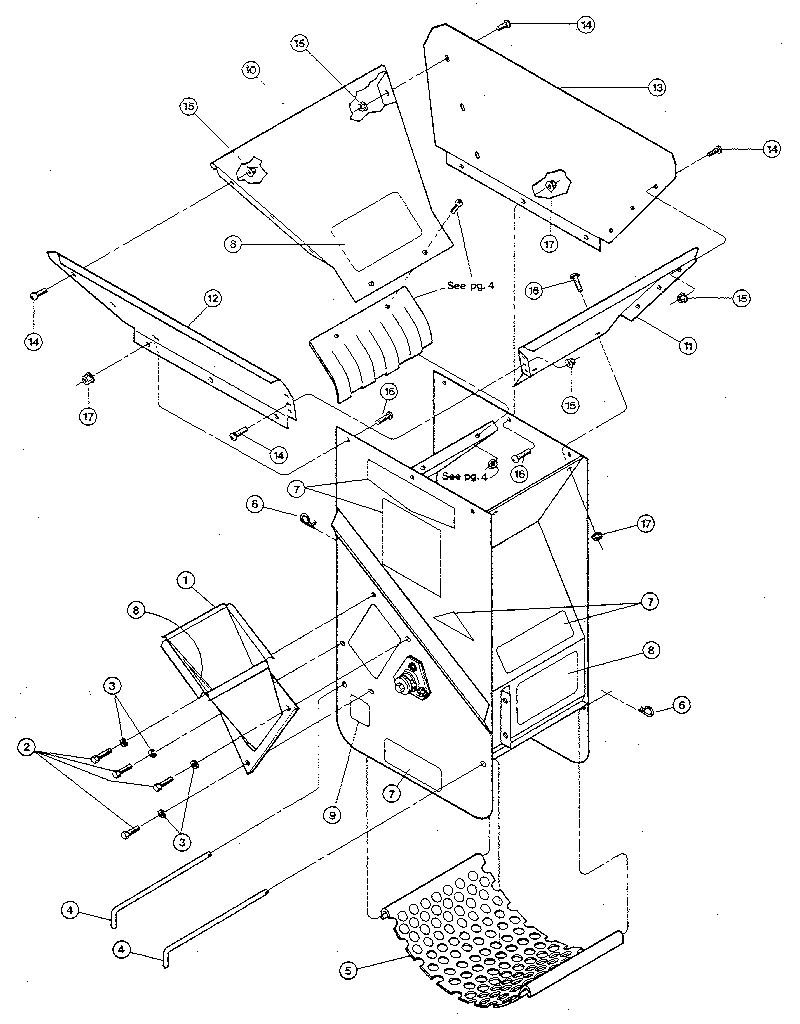

Drawing two diagram

Screw

Part #W02050503P

Replaced by #710-3008

?
Manufacturer substitution
This part replaces W02050503P. Substitute parts can look different from the original.
This item is not returnable
$4.62 |
18% OFF Phone Price : $5.62
In Stock
Bolt W02550503P
#15

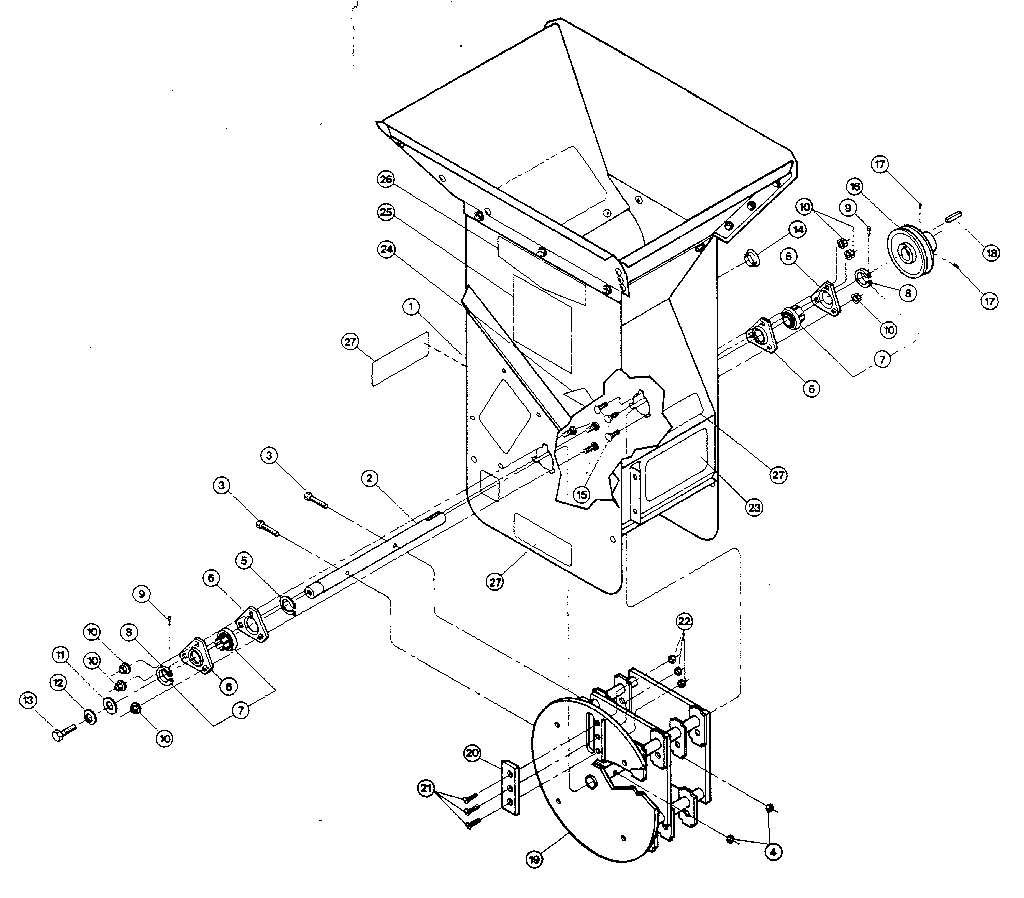

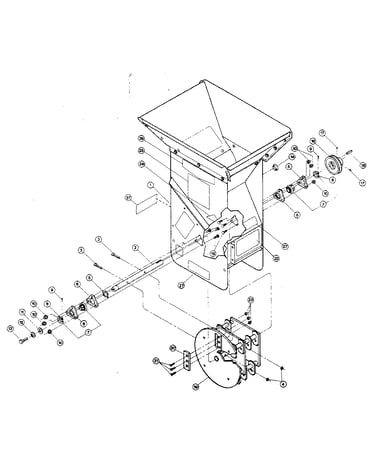

Drawing one diagram

Bolt

Part #W02550503P

The manufacturer no longer makes this part, and there's no substitute part

Screw W02050621P
#19

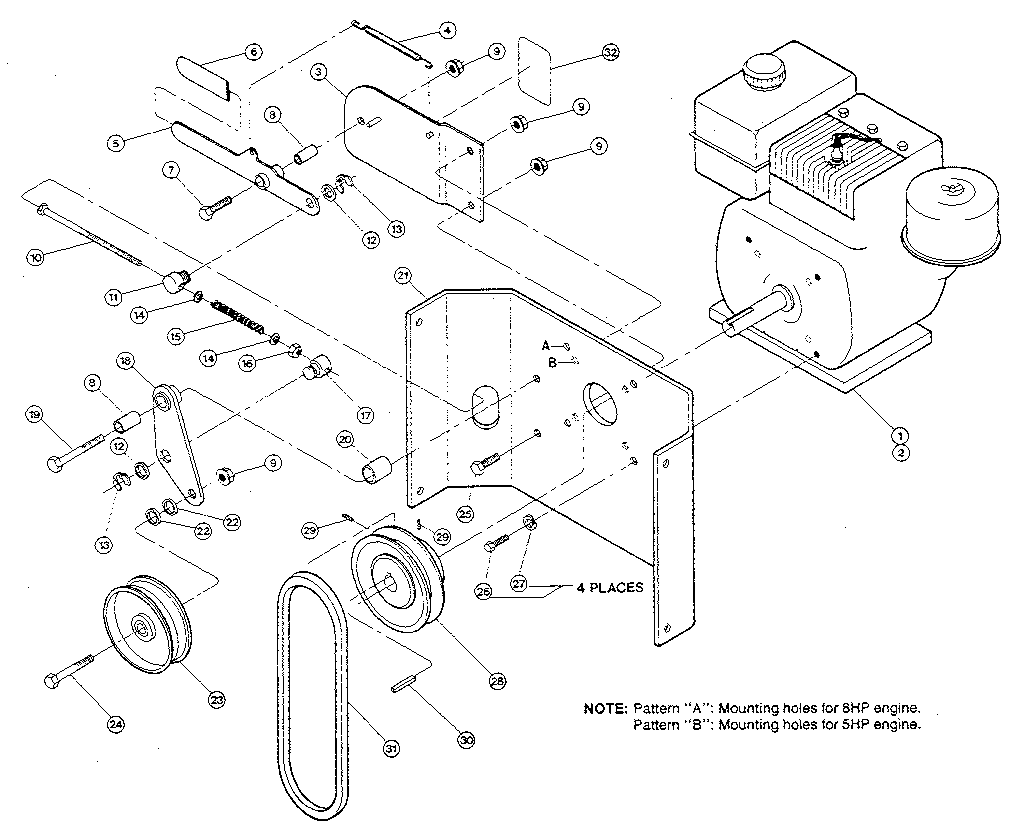

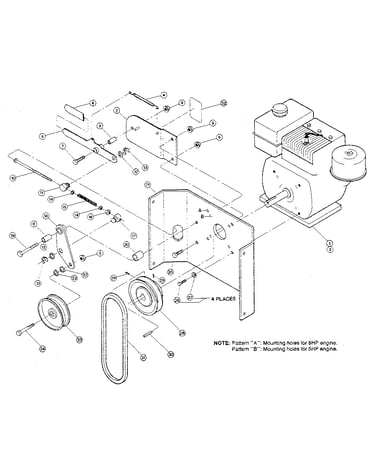

Drawing six diagram

Screw

Part #W02050621P

Replaced by #710-3011

?
Manufacturer substitution
This part replaces W02050621P. Substitute parts can look different from the original.
$9.12 |
10% OFF Phone Price : $10.12
In Stock
Screw W02050403P
#6

Drawing four diagram

Screw

Part #W02050403P

Replaced by #710-3015

?
Manufacturer substitution
This part replaces W02050403P. Substitute parts can look different from the original.
This item is not returnable
$5.12 |
16% OFF Phone Price : $6.12
In Stock
Washer WK1250C065
#12

Drawing one diagram

Washer

Part #WK1250C065

Replaced by #736-0331

?
Manufacturer substitution
This part replaces WK1250C065. Substitute parts can look different from the original.
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Retainer, Snap Ring 9511
#5

Drawing one diagram

Retainer, snap ring

Part #9511

Replaced by #716-04104

?
Manufacturer substitution
This part replaces 9511. Substitute parts can look different from the original.
This item is not returnable
$6.11
In Stock
Whiz Nut W0335006P
#9

Drawing six diagram

Whiz nut

Part #W0335006P

Replaced by #1186393

?
Manufacturer substitution
This part replaces W0335006P. Substitute parts can look different from the original.
This item is not returnable
$5.20
In Stock
Lock Nut W0310006P
#4

Drawing one diagram

Lock nut

Part #W0310006P

Replaced by #712-0375

?
Manufacturer substitution
This part replaces W0310006P. Substitute parts can look different from the original.
This item is not returnable
$6.37
In Stock
Lock Nut 9811
Lock nut

Part #9811

Replaced by #712-0324

?
Manufacturer substitution
This part replaces 9811. Substitute parts can look different from the original.
This item is not returnable
$4.72 |
17% OFF Phone Price : $5.72
In Stock
