Frigidaire
Top-Mount Refrigerator

Model # FPE19TIFF0 Official Frigidaire top-mount refrigerator - lf30588350

Here are the diagrams and repair parts for Official Frigidaire FPE19TIFF0 top-mount refrigerator - lf30588350, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

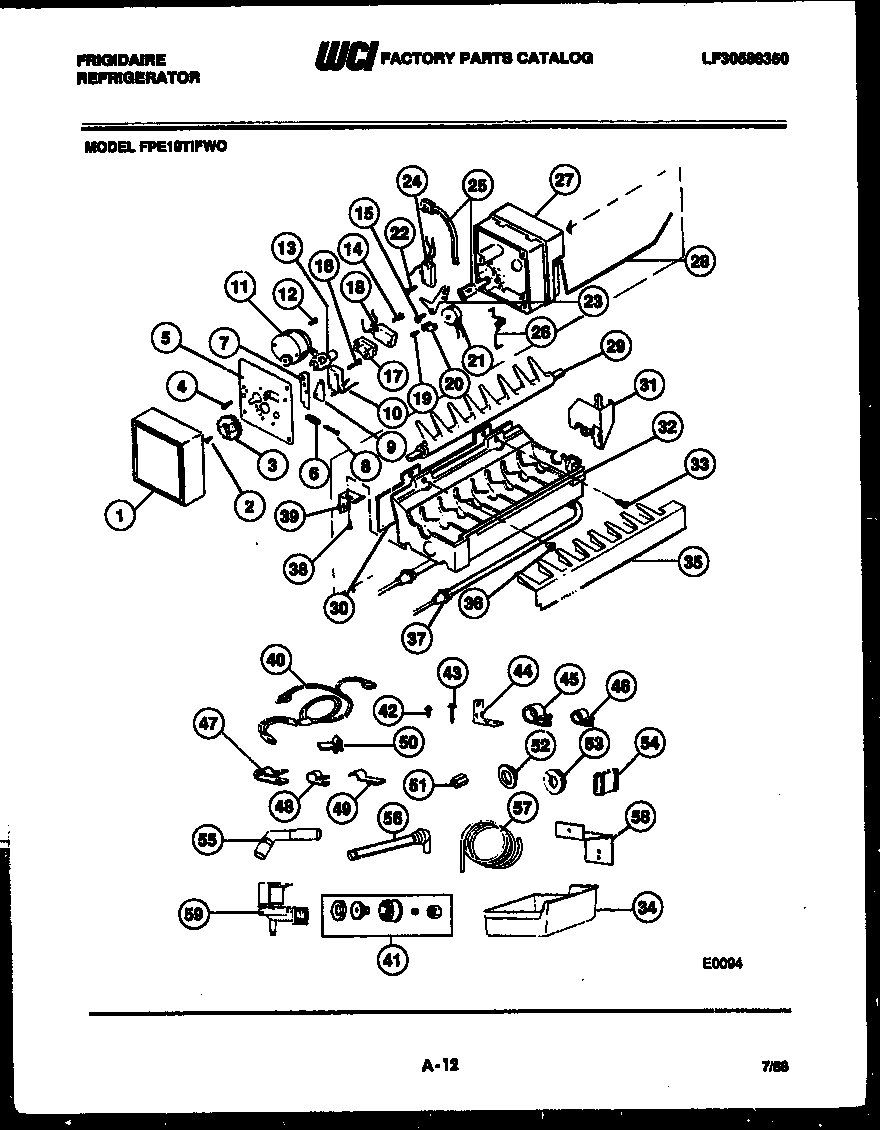

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 255 parts  |
Drier 3007351
#1

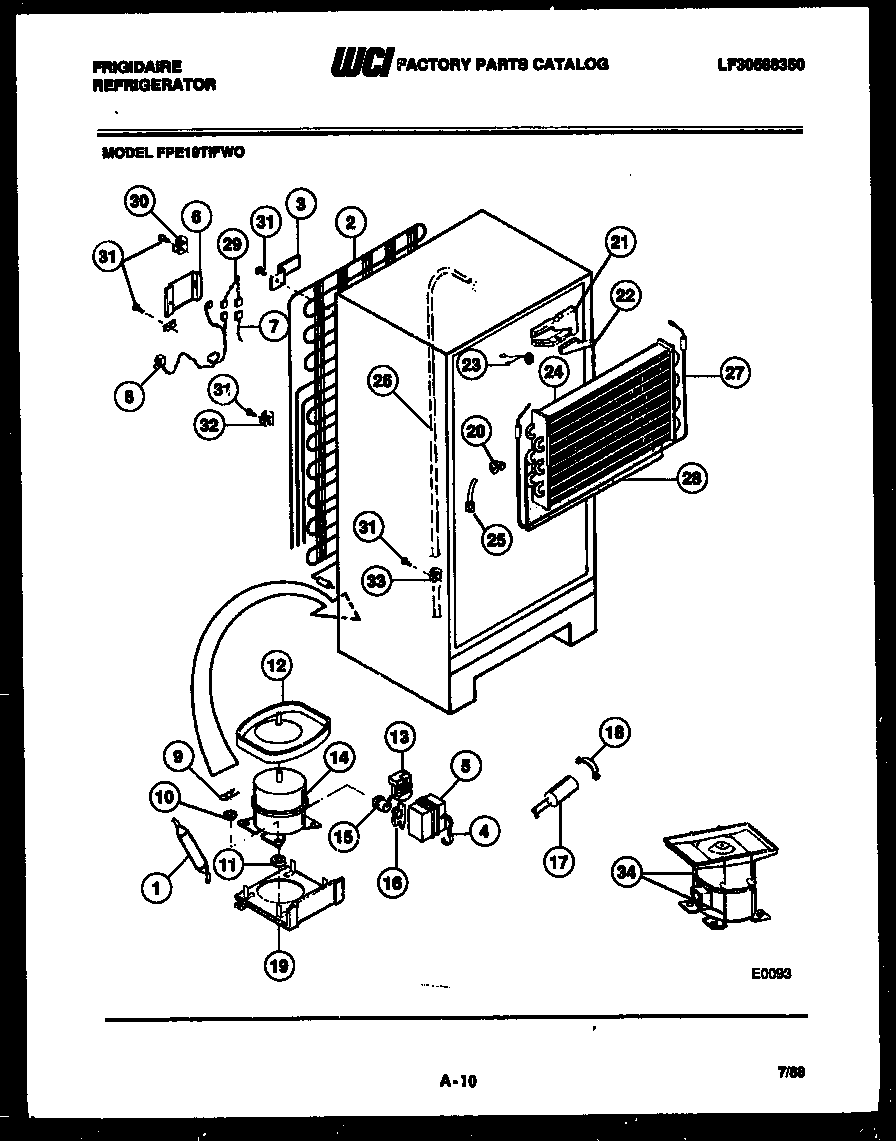

System and automatic defrost parts diagram

Drier

Part #3007351

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 3007351. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Timer 8006992
#26

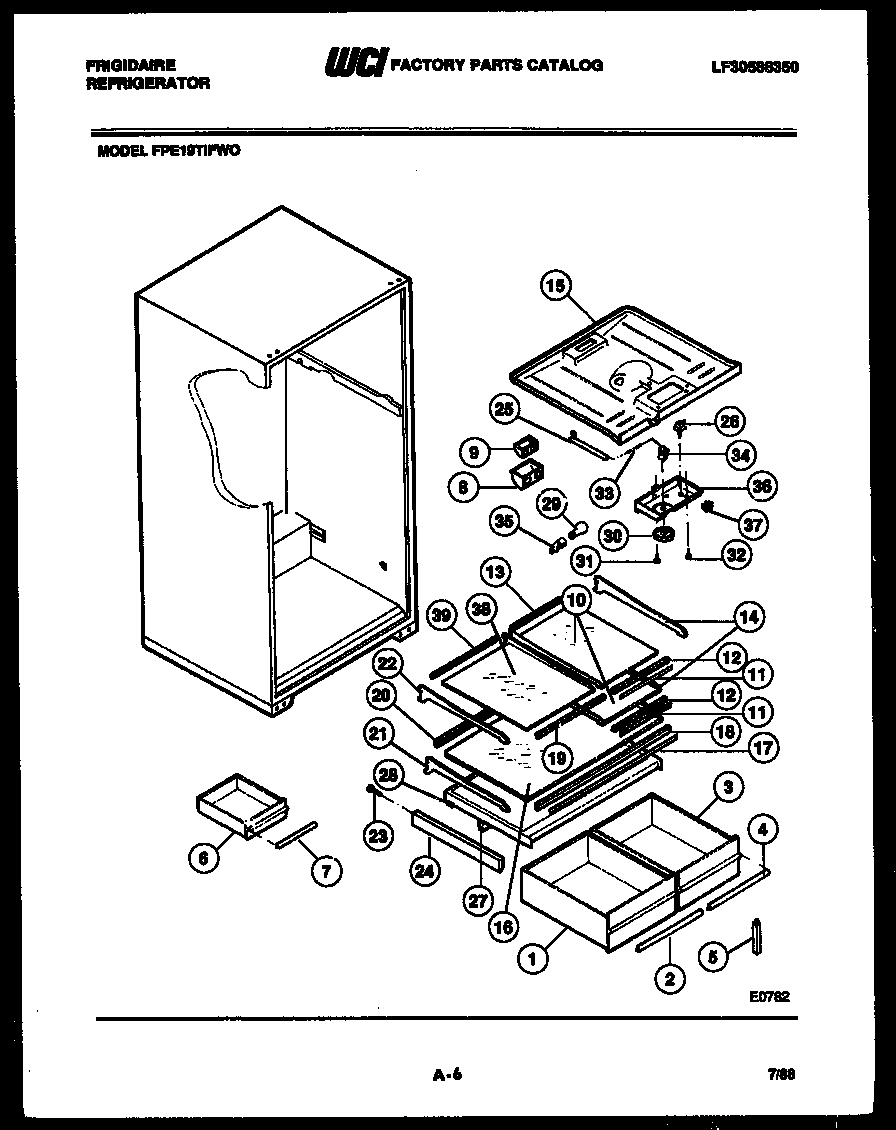

Shelves and supports diagram

Refrigerator timer

Part #8006992

Replaced by #215846602

?
Manufacturer substitution
This part replaces 8006992. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Screw 8012354
#5

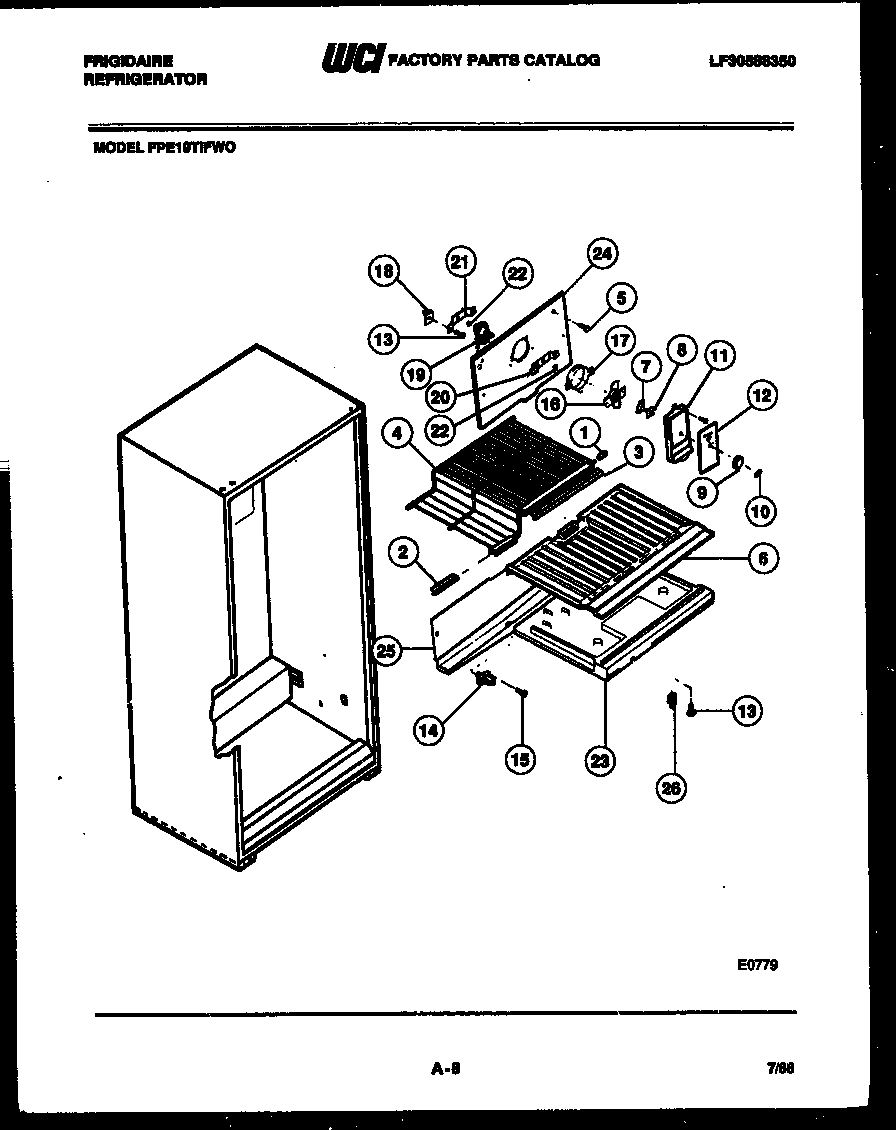

Shelves and supports diagram

Refrigerator screw

Part #8012354

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 8012354. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Refrigerator Door Rack 3019018
#20

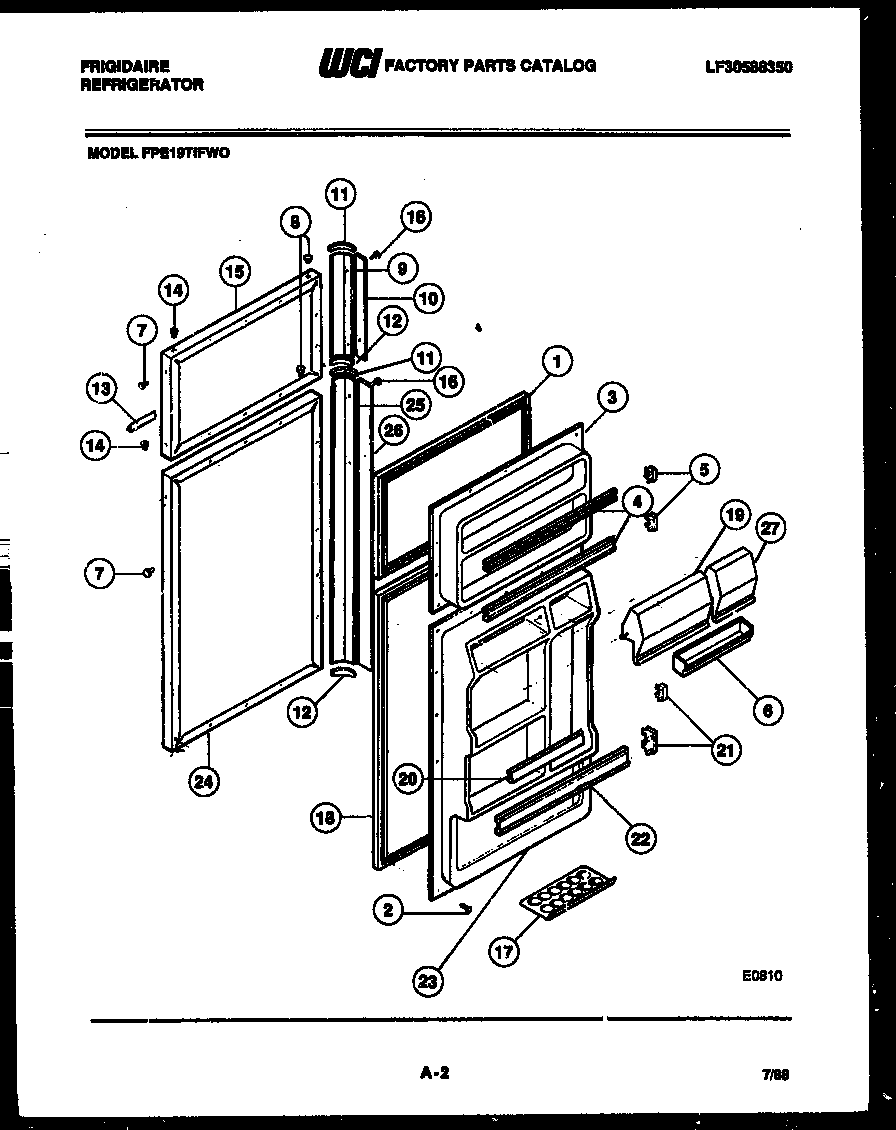

Door parts diagram

Refrigerator door rack

Part #3019018

Replaced by #215516220

?
Manufacturer substitution
This part replaces 3019018. Substitute parts can look different from the original.
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Refrigerator Hinge Screw 8000123
#31

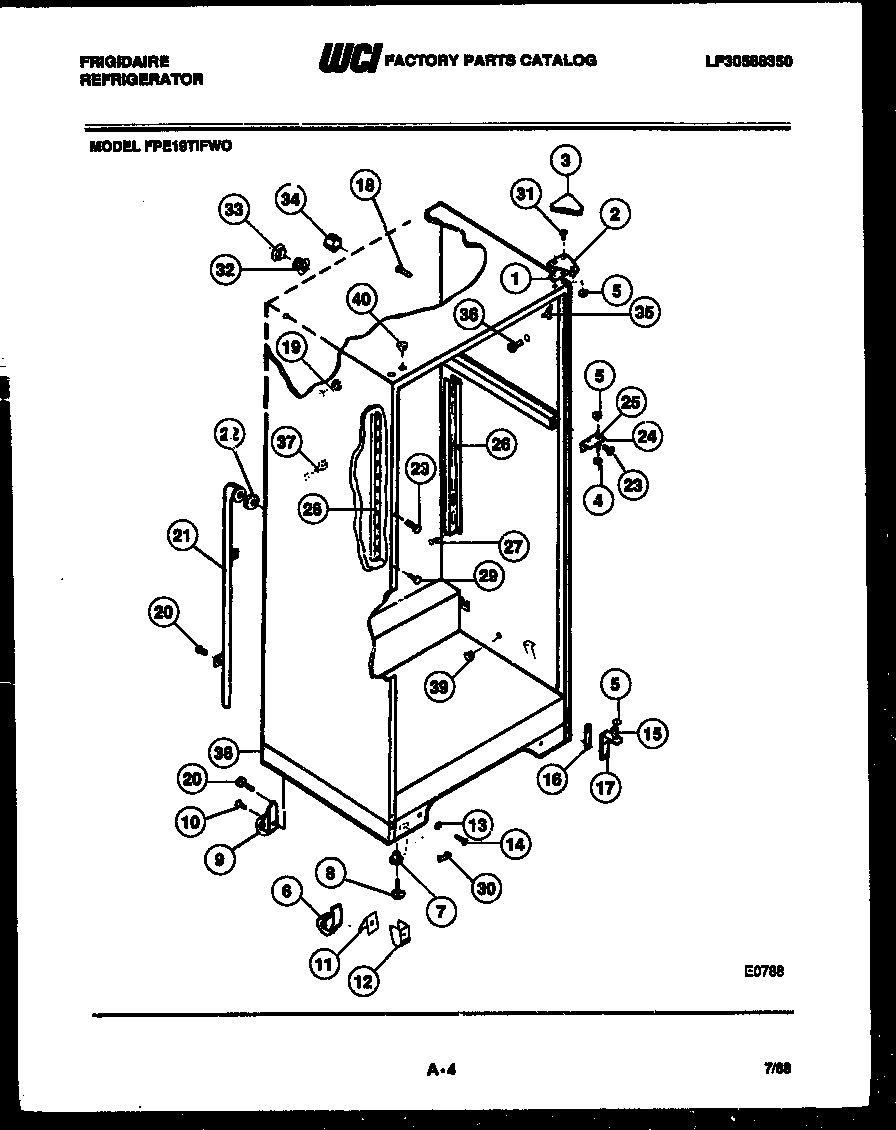

Cabinet parts diagram

Refrigerator hinge screw

Part #8000123

Replaced by #241710601

?
Manufacturer substitution
This part replaces 8000123. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Front 3018975
#22

Door parts diagram

Refrigerator front

Part #3018975

Replaced by #215516220

?
Manufacturer substitution
This part replaces 3018975. Substitute parts can look different from the original.
$39.02 |
13% OFF Phone Price : $45.02
In Stock
Grommet 8008778
#11

System and automatic defrost parts diagram

Grommet

Part #8008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 8008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Trim 3018986
#7

Shelves and supports diagram

Refrigerator trim

Part #3018986

This item is not returnable
$4.49
In Stock
Refrigerator Glass Retainer 3200316
Refrigerator glass retainer

Part #3200316

This item is not returnable
$3.49
In Stock
Refrigerator Retainer 3200317
#13

Shelves and supports diagram

Refrigerator retainer

Part #3200317

$8.99
In Stock

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more
