Model # GTE16BBSKRWW Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTE16BBSKRWW refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Dryer Filter WR86X0096
#740

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

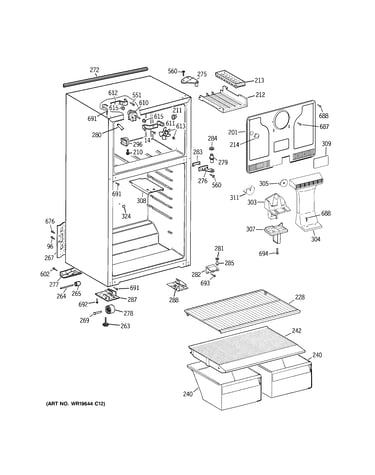

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

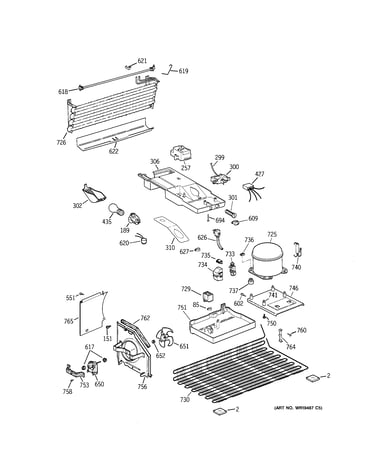

Unit parts diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Door Shelf Rail (replaces Wr17x12916) WR17X11889
#19

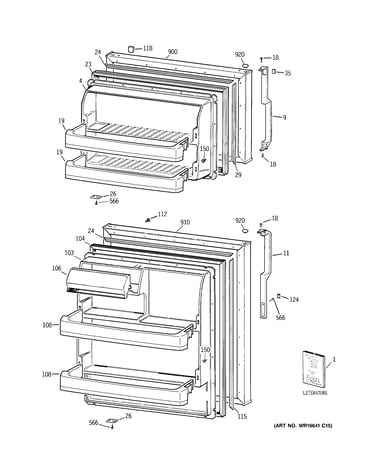

Doors diagram

Refrigerator door shelf rail (replaces wr17x12916)

Part #WR17X11889

BEST SELLER
$26.47 |
18% OFF Phone Price : $32.47
In Stock
Refrigerator Drawer Cover (replaces Wr32x10353, Wr32x1083, Wr32x1086, Wr32x1094) WR32X10398
#242

Cabinet diagram

Refrigerator drawer cover (replaces wr32x10353, wr32x1083, wr32x1086, wr32x1094)

Part #WR32X10398

$83.52 |
7% OFF Phone Price : $89.52
In Stock
Refrigerator Temperature Control Thermostat WR09X10133
#300

Unit parts diagram

Refrigerator temperature control thermostat

Part #WR09X10133

Replaced by #WR09X20002

?
Manufacturer substitution
This part replaces WR09X10133. Substitute parts can look different from the original.
$69.88 |
8% OFF Phone Price : $75.88
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x10822, Wr2x10098) WR02X10098
#617

Unit parts diagram

Refrigerator evaporator fan motor grommet (replaces wr02x10822, wr2x10098)

Part #WR02X10098

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Freezer Door Gasket WR24X10050
#23

Doors diagram

Refrigerator freezer door gasket

Part #WR24X10050

Replaced by #WR24X10228

?
Manufacturer substitution
This part replaces WR24X10050. Substitute parts can look different from the original.
$71.05 |
8% OFF Phone Price : $77.05
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#652

Unit parts diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
