GE
Gas Range

Model # JGHC60GEJ5 Official GE gas range

Here are the diagrams and repair parts for Official GE JGHC60GEJ5 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

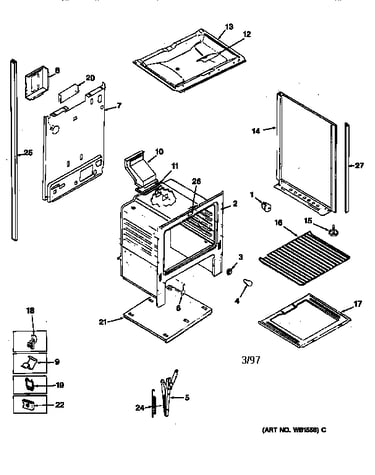

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 275 parts  |
Fastener WB02X10080
#113

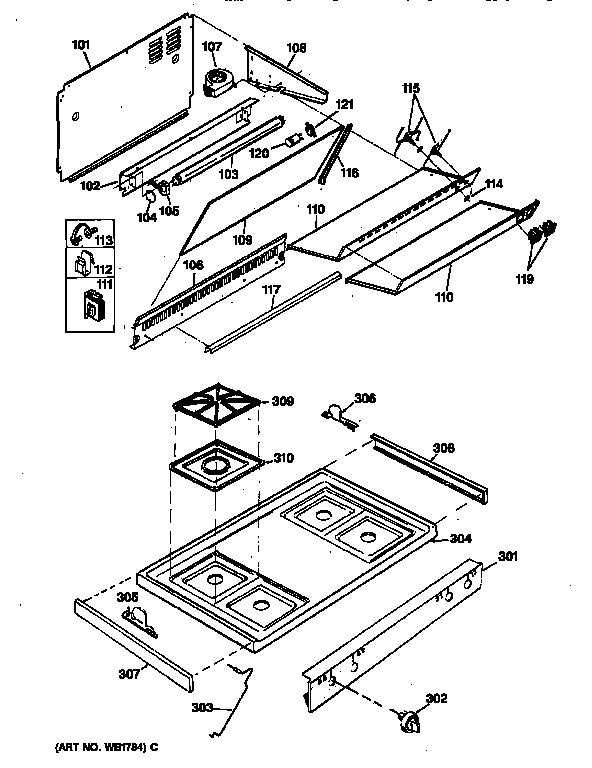

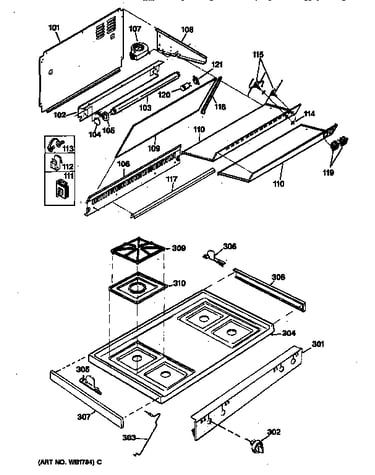

Backsplash & cooktop diagram

Fastener

Part #WB02X10080

This item is not returnable
$3.99
In Stock
Fastener WB02X10053
#112

Backsplash & cooktop diagram

Fastener

Part #WB02X10053

This item is not returnable
$2.49
In Stock
Insulator WB02X10079
#104

Backsplash & cooktop diagram

Insulator

Part #WB02X10079

This item is not returnable
$2.29
In Stock
Retainer WB02X10089
#1111

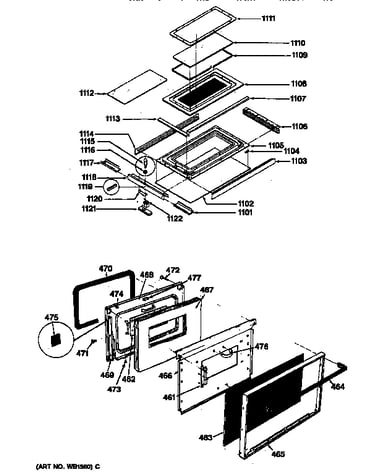

Upper & lower oven door diagram

Retainer

Part #WB02X10089

$38.99
In Stock
Line Plug WB55X636
#477

Upper & lower oven door diagram

Line plug

Part #WB55X636

$8.49
In Stock
Light WB02X10069
#914

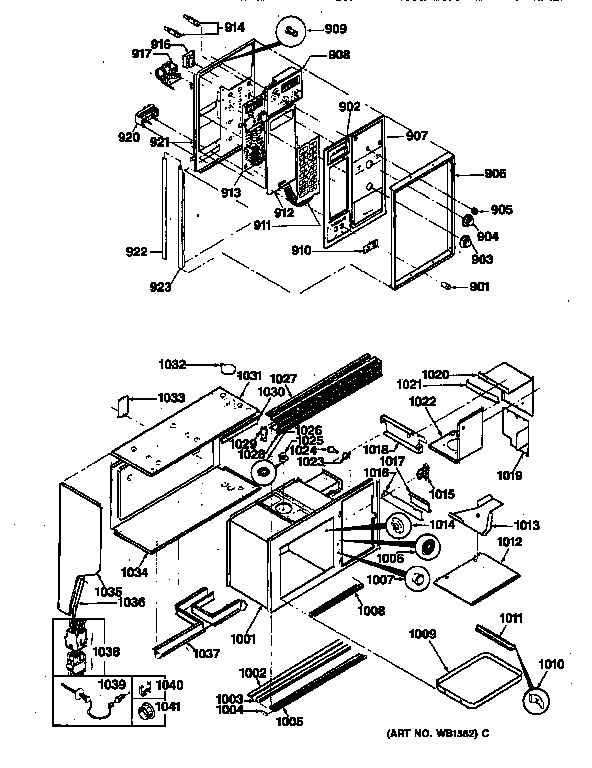

Upper control panel & oven body diagram

Light

Part #WB02X10069

$14.49
In Stock
Manifold WB2X4749
#711

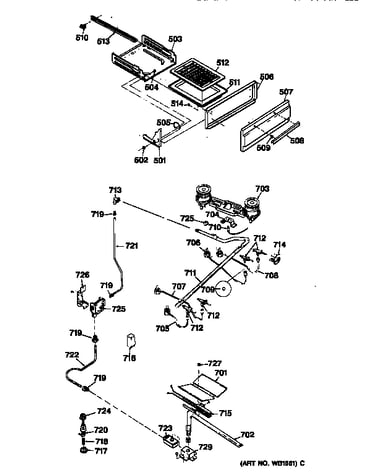

Broiler unit & gas control system diagram

Manifold

Part #WB2X4749

$70.49
In Stock
Insulation Shield WB56X1980
#468A

Upper & lower oven door diagram

Insulation shield

Part #WB56X1980

$61.99
In Stock
Elbow WB2X4750
#713B

Broiler unit & gas control system diagram

Elbow

Part #WB2X4750

$31.49
In Stock
Fan Blade WB02X10071
#1208

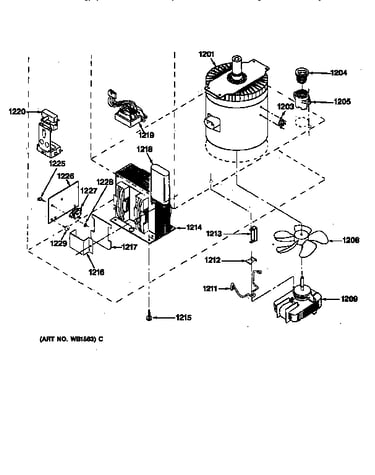

Power control diagram

Fan blade

Part #WB02X10071

$10.99
In Stock
