Frigidaire
Dishwasher

Model # FDPC4314AS0A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDPC4314AS0A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

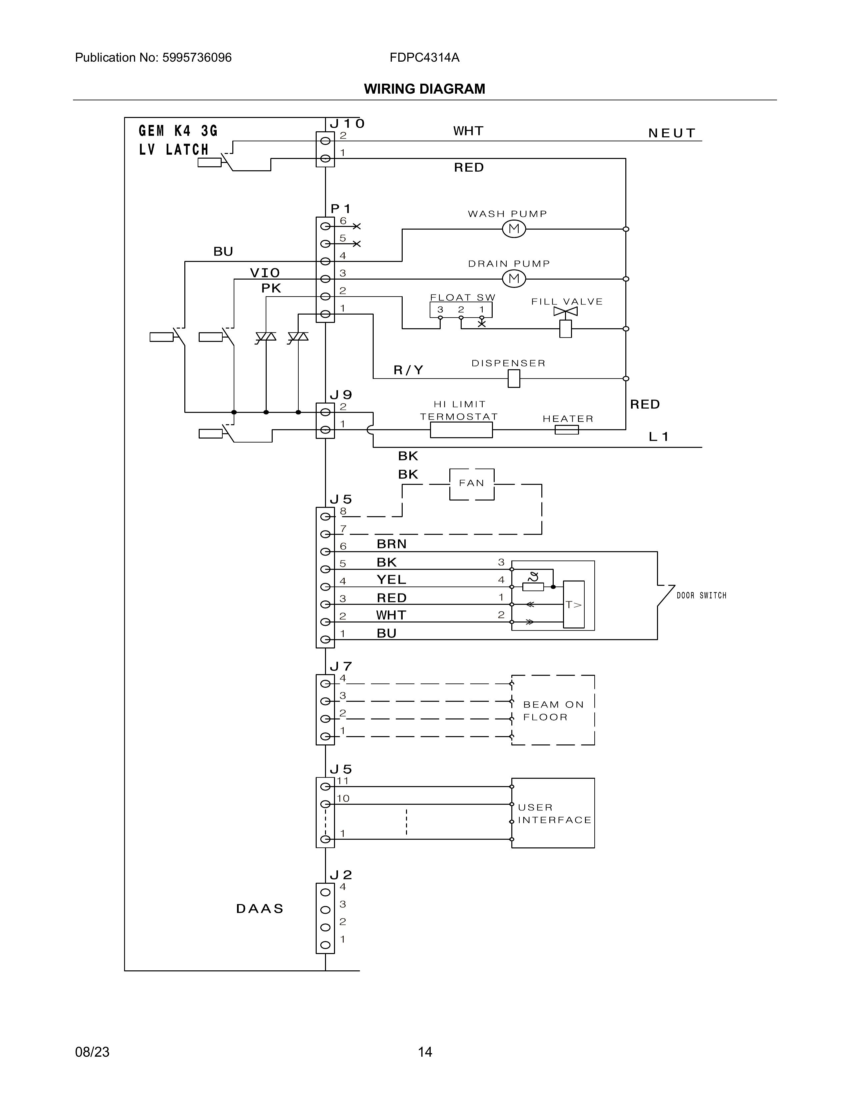

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Frigidaire Dishwasher Door Seal (replaces 154845301) 154827601
#3

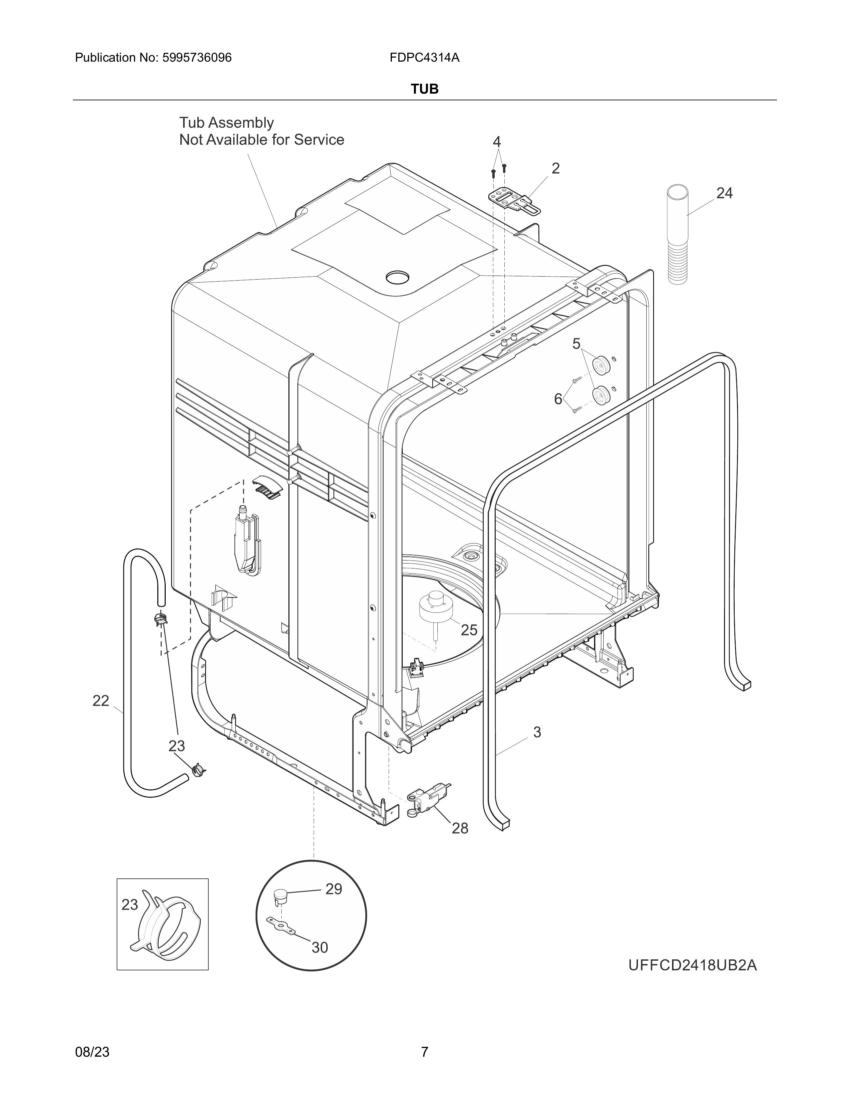

Tub diagram

Frigidaire dishwasher door seal (replaces 154845301)

Part #154827601

BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Crosley Dishwasher Pump And Motor Assembly 5304519906
#70

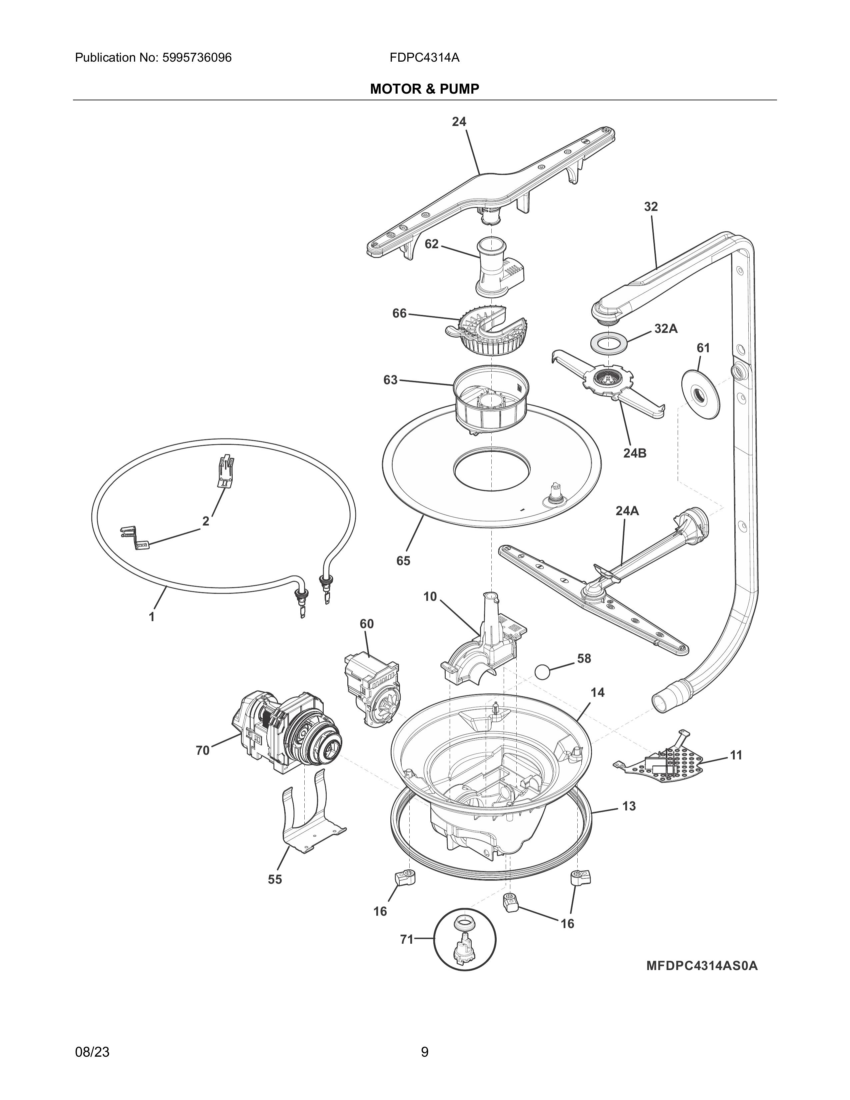

Motor & pump diagram

Crosley dishwasher pump and motor assembly

Part #5304519906

BEST SELLER
$138.89 |
8% OFF Phone Price : $150.89
In Stock
Dishwasher Heating Element (replaces 154663801) 154825001
#1

Motor & pump diagram

Dishwasher heating element (replaces 154663801)

Part #154825001

BEST SELLER
$58.92 |
9% OFF Phone Price : $64.92
In Stock
Dishwasher Drain Hose (replaces 154753201) 807117001
#24

Tub diagram

Dishwasher drain hose (replaces 154753201)

Part #807117001

BEST SELLER
$30.73 |
16% OFF Phone Price : $36.73
In Stock
Crosley Dishwasher Dishrack Roller, Lower (replaces 5300809640, 5304521179) 5304532229
#7

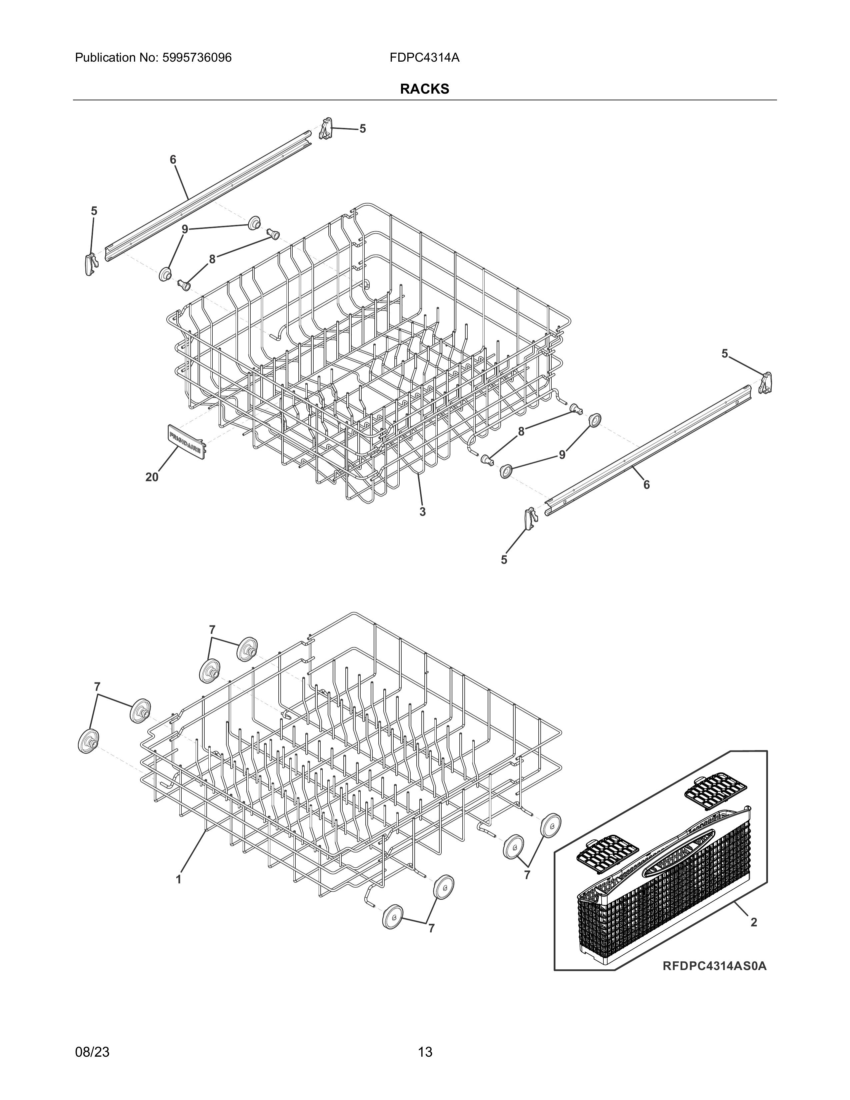

Racks diagram

Crosley dishwasher dishrack roller, lower (replaces 5300809640, 5304521179)

Part #5304532229

BEST SELLER
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Crosley Pump Assembl 5304533024
#60

Motor & pump diagram

Crosley pump assembl

Part #5304533024

BEST SELLER
$53.43
In Stock
Dishwasher Pump Motor Bracket (replaces 154362301) 154595901
#55

Motor & pump diagram

Dishwasher pump motor bracket (replaces 154362301)

Part #154595901

Replaced by #5304534830

?
Manufacturer substitution
This part replaces 154595901. Substitute parts can look different from the original.
BEST SELLER
$14.46
In Stock
Dishwasher Door Spring (replaces 154226002, 154345901, 154345902, 154413301) 154430501
#1

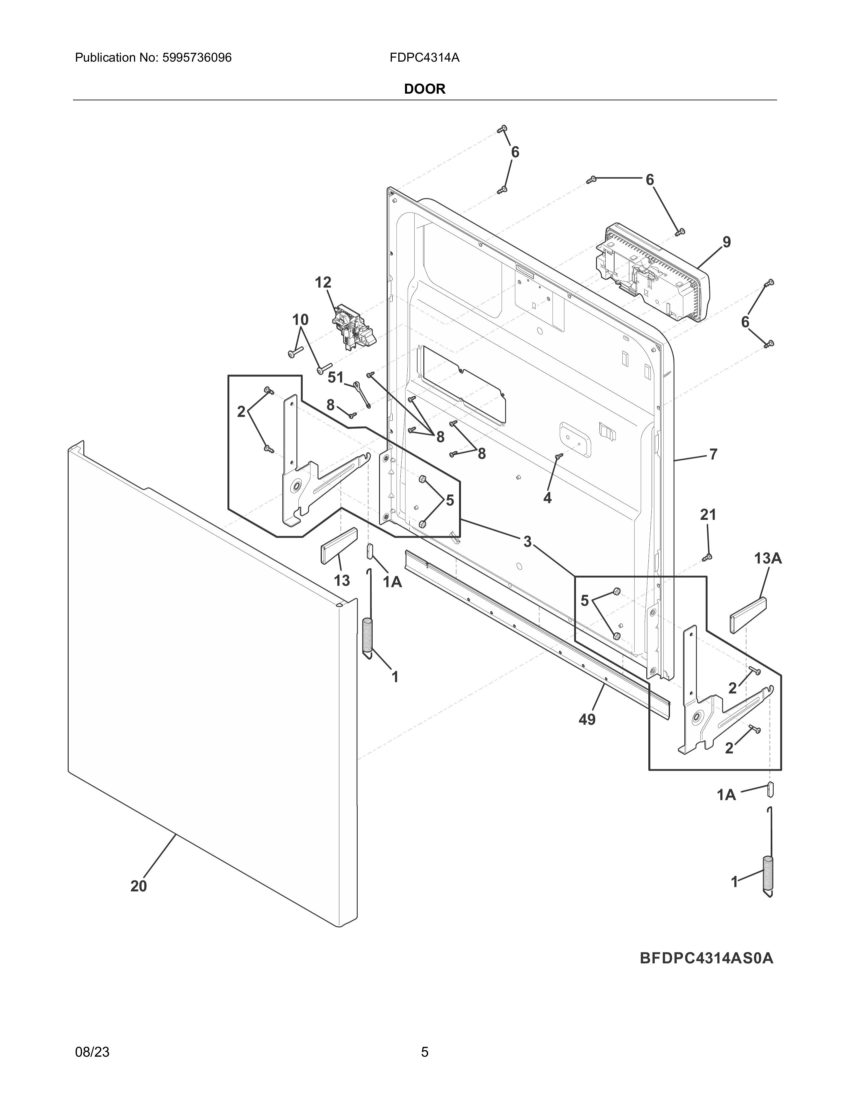

Door diagram

Dishwasher door spring (replaces 154226002, 154345901, 154345902, 154413301)

Part #154430501

BEST SELLER
$29.59 |
17% OFF Phone Price : $35.59
In Stock
Dishwasher Door Hinge Arm Set (replaces 154691101, 154691201, 5304471888) 5304513274
#3

Door diagram

Dishwasher door hinge arm set (replaces 154691101, 154691201, 5304471888)

Part #5304513274

BEST SELLER
$61.14 |
9% OFF Phone Price : $67.14
In Stock
Dishwasher Float Switch (replaces 154408701) 154773201
#28

Tub diagram

Dishwasher float switch (replaces 154408701)

Part #154773201

BEST SELLER
$41.07 |
13% OFF Phone Price : $47.07
In Stock
