Model # 16743471 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 16743471 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Grid Reel 11-1072
#72

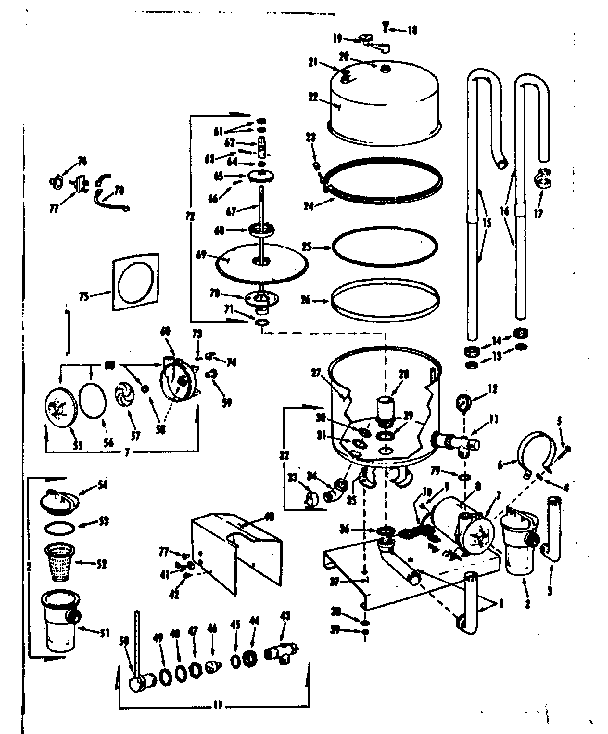

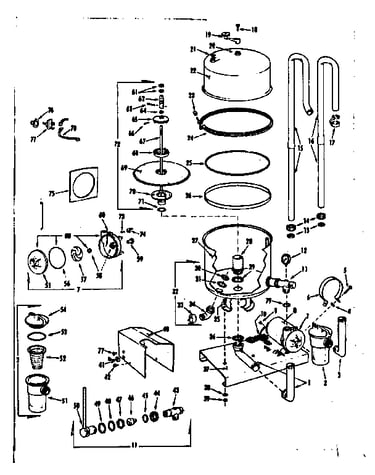

Replacement parts diagram

Grid reel

Part #11-1072

The manufacturer no longer makes this part, and there's no substitute part

Motor 1/2 Hp 01-4048
#8

Replacement parts diagram

Motor 1/2 hp

Part #01-4048

The manufacturer no longer makes this part, and there's no substitute part

Closure Cap 098-7088
#65

Replacement parts diagram

Closure cap

Part #098-7088

The manufacturer no longer makes this part, and there's no substitute part

Grid Axle 098-7042
#62

Replacement parts diagram

Grid axle

Part #098-7042

The manufacturer no longer makes this part, and there's no substitute part

O-ring 037-3406
#71

Replacement parts diagram

O-ring

Part #037-3406

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Shaft 098-7074
#59

Replacement parts diagram

Sleeve shaft

Part #098-7074

The manufacturer no longer makes this part, and there's no substitute part

Impeller 016-3102
#57

Replacement parts diagram

Impeller

Part #016-3102

The manufacturer no longer makes this part, and there's no substitute part

Gasket 038-3417
#29

Replacement parts diagram

Gasket

Part #038-3417

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 031-3301
#76

Replacement parts diagram

Switch cover

Part #031-3301

The manufacturer no longer makes this part, and there's no substitute part

Spider 098-6959
#70

Replacement parts diagram

Spider

Part #098-6959

The manufacturer no longer makes this part, and there's no substitute part
