GE
Electric Wall Oven

Model # JTP55DP2BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP55DP2BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

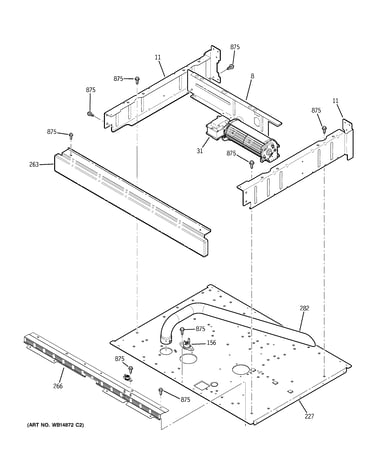

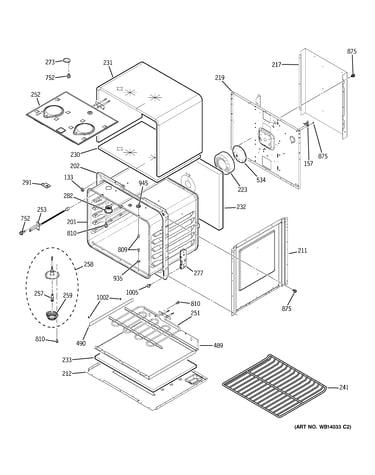

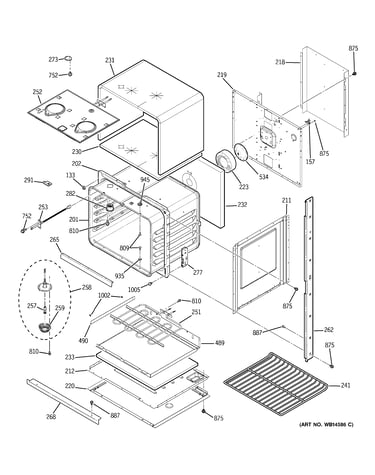

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Appliance Light Bulb, 40-watt 40A15
Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Pack Window WB56T10152
#338

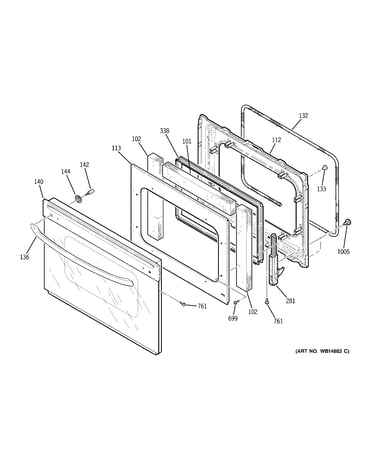

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$370.15 |
$12.00 OFF Phone Price : $382.15
In Stock
Oven Lamp Holder WB08T10002
Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#158

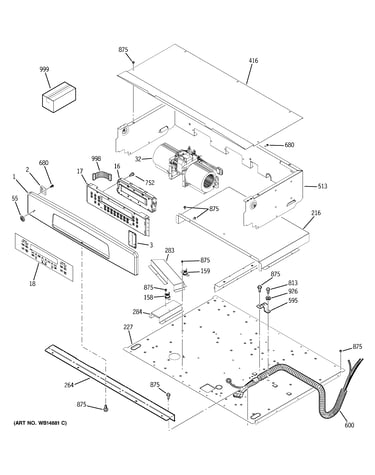

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5150
#699

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Wall Oven High-limit Thermostat WB24T10081
Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Sensor Assembly WB21T10018
Sensor assembly

Part #WB21T10018

This item is not returnable
$23.58 |
20% OFF Phone Price : $29.58
In Stock
Lens Cover WB25T10002
Lens cover

Part #WB25T10002

Replaced by #WB25T10002

?
Manufacturer substitution
This part replaces WB25T10002. Substitute parts can look different from the original.
This item is not returnable
$7.51 |
12% OFF Phone Price : $8.51
In Stock
Range Oven Rack WB48T10050
Range oven rack

Part #WB48T10050

$64.46 |
9% OFF Phone Price : $70.46
In Stock
