Kenmore
Top-Mount Refrigerator

Model # 25360409410 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25360409410 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

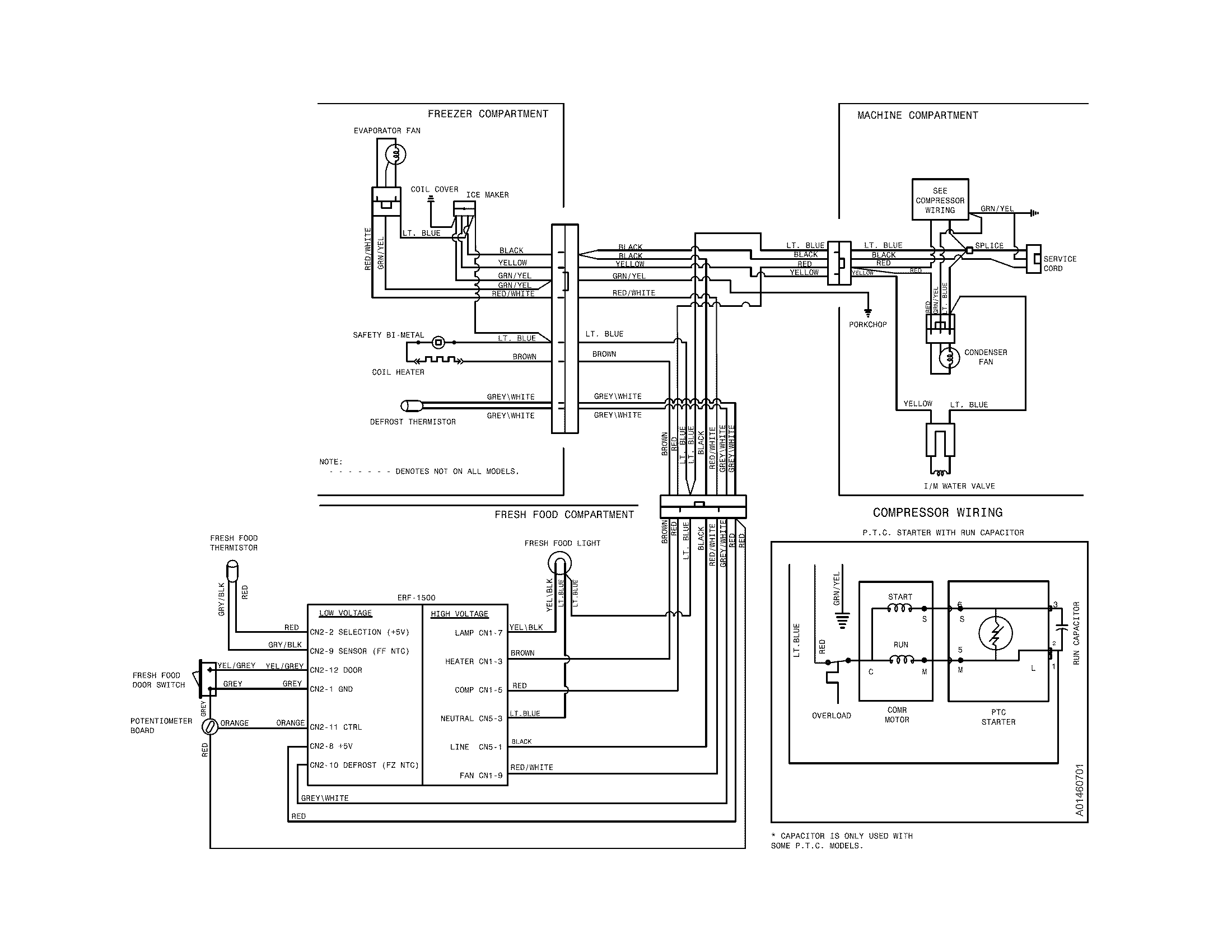

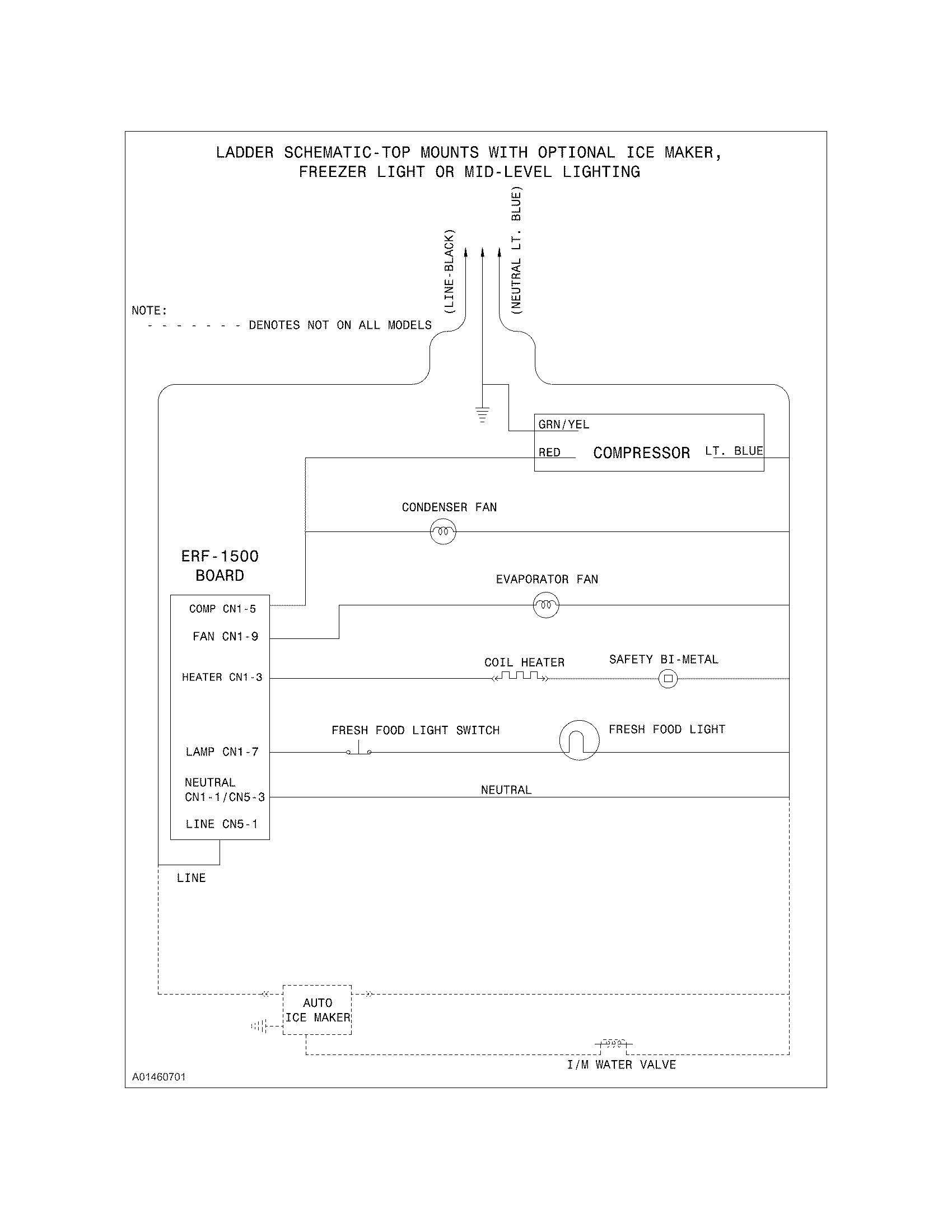

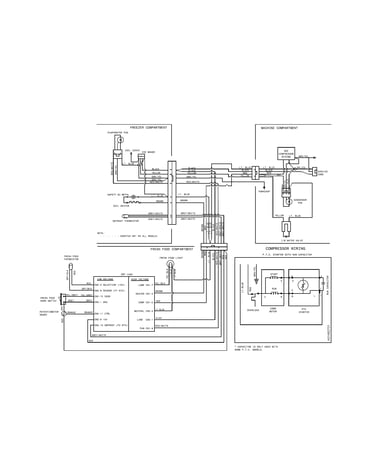

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Refrigerator Filter Dryer 242190201
#4

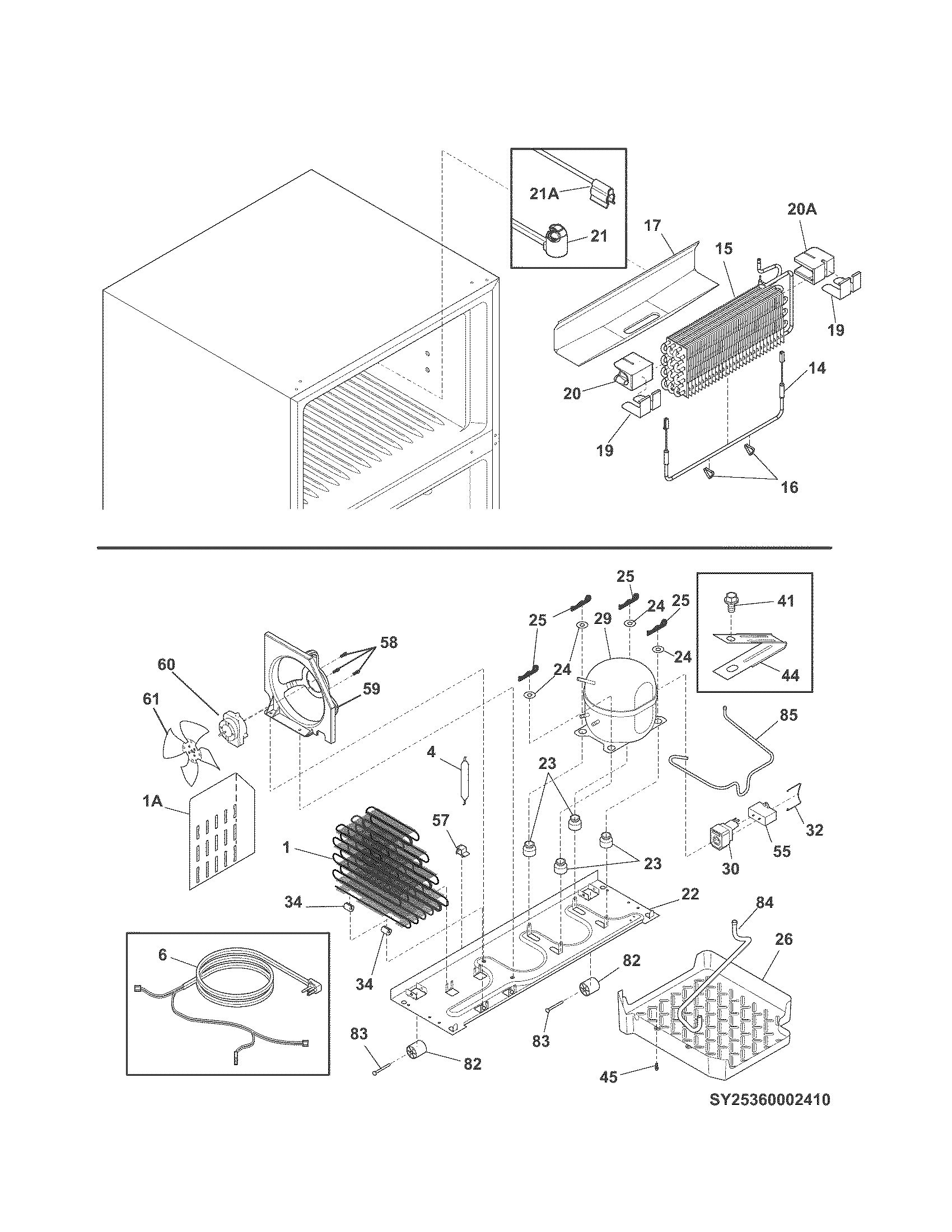

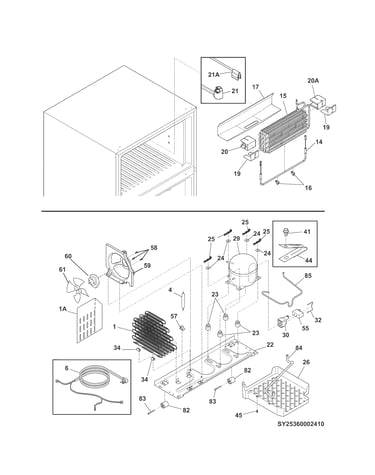

System diagram

Refrigerator filter dryer

Part #242190201

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242190201. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

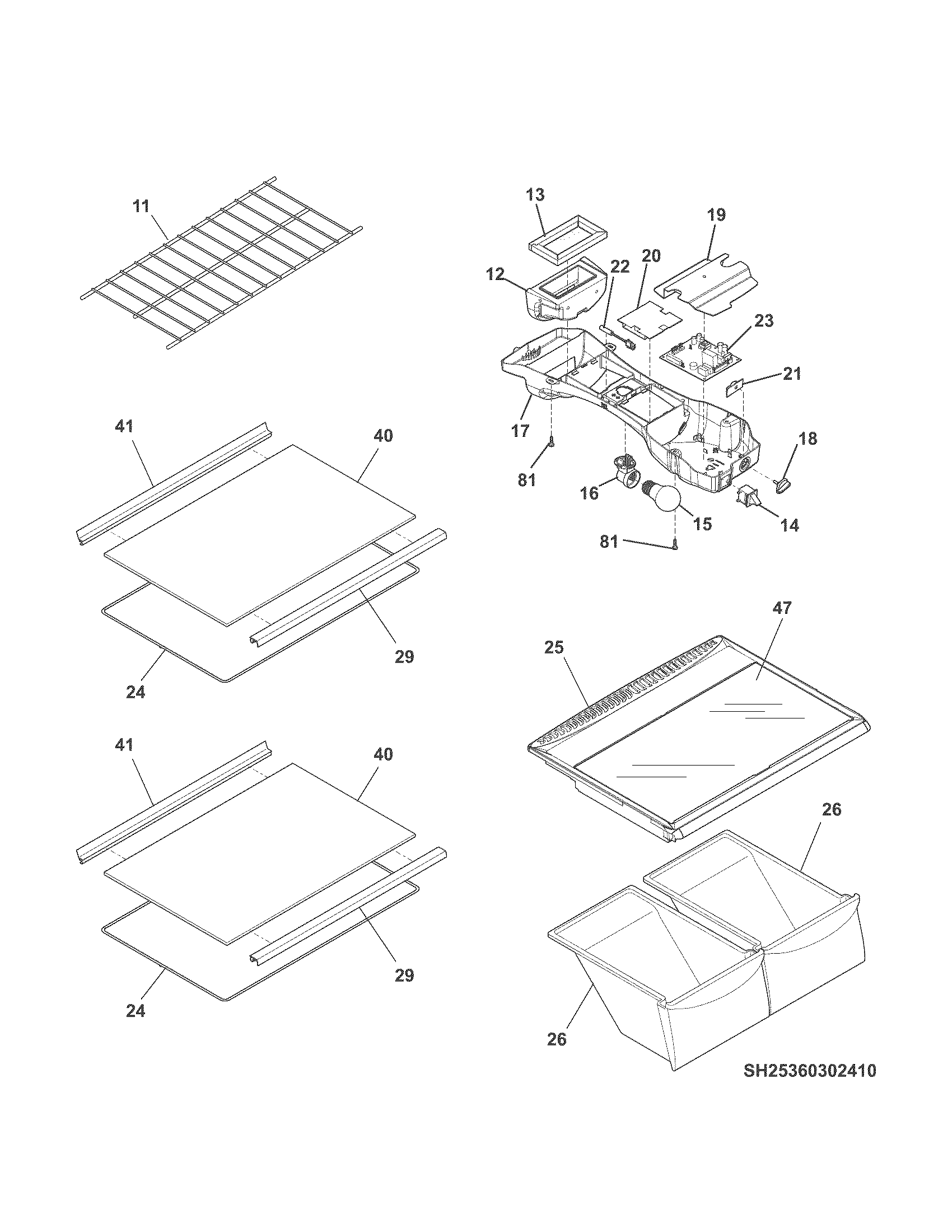

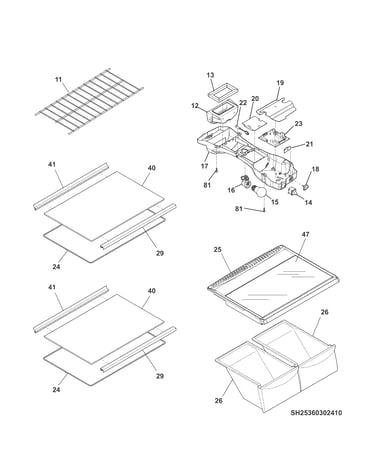

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#22

Shelves diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44 |
13% OFF Phone Price : $46.44
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Shelf Rail 240535101
#4

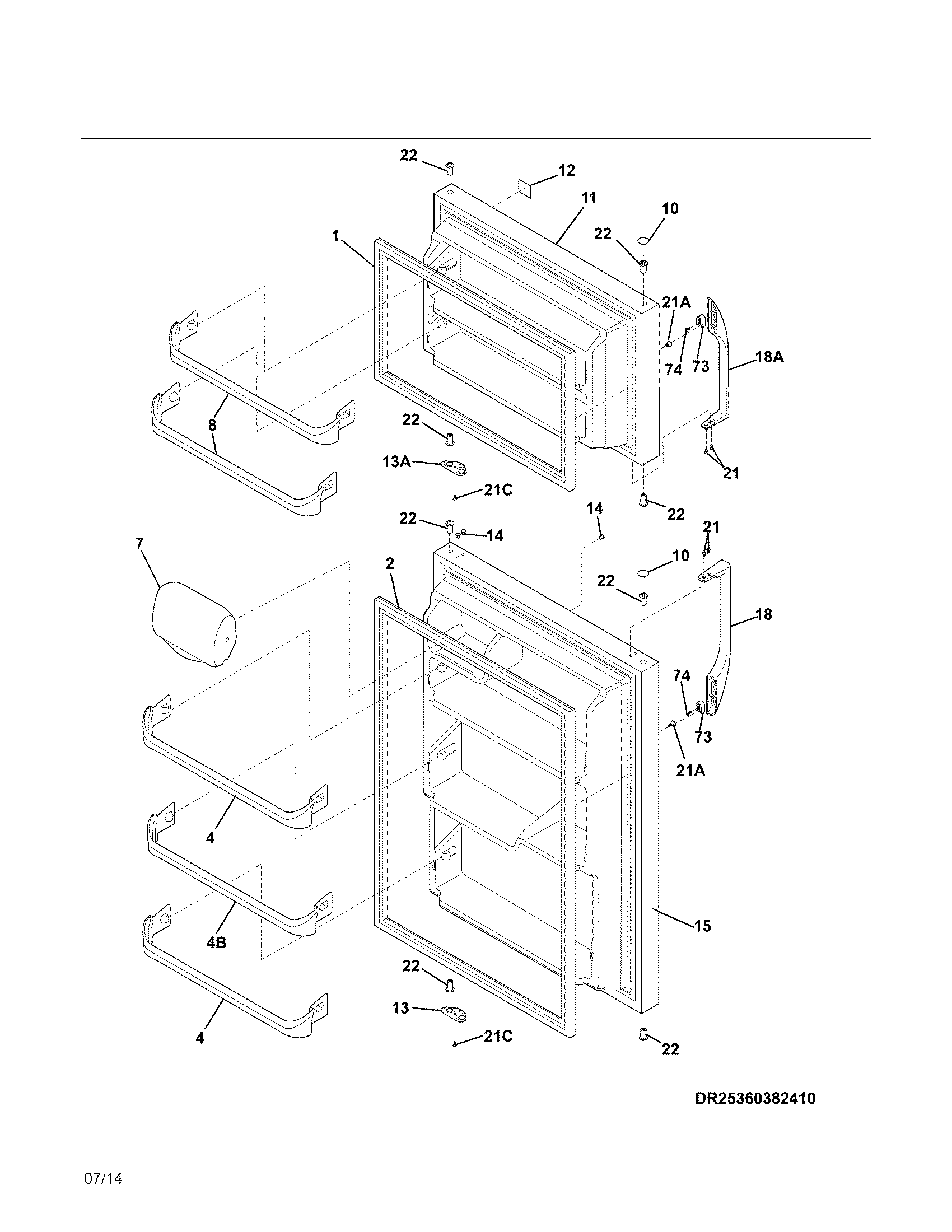

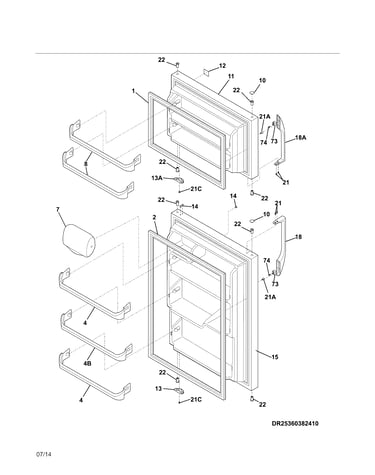

Doors diagram

Refrigerator door shelf rail

Part #240535101

BEST SELLER
$31.06 |
16% OFF Phone Price : $37.06
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

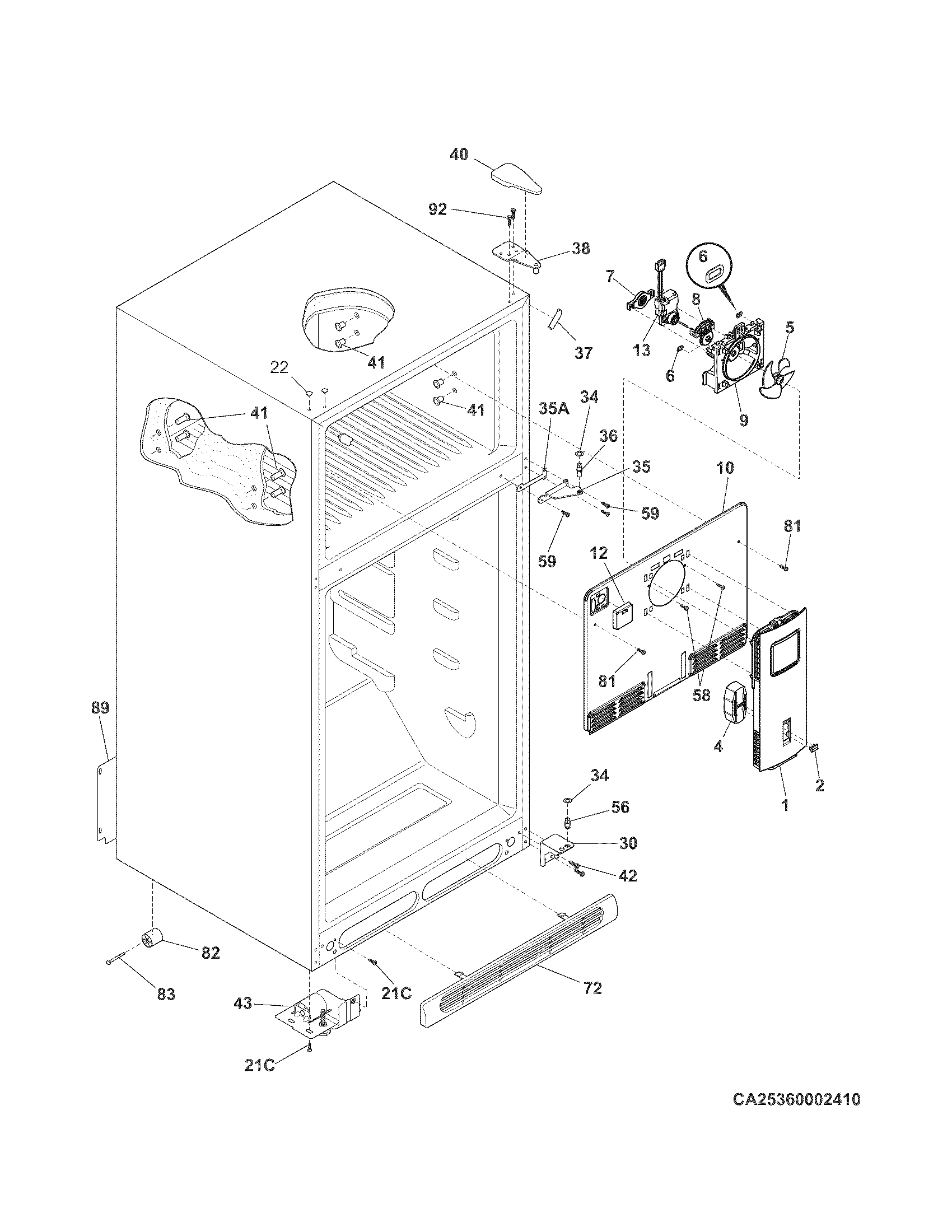

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Motor 242219201
#13

Cabinet diagram

Refrigerator motor

Part #242219201

Replaced by #242077705

?
Manufacturer substitution
This part replaces 242219201. Substitute parts can look different from the original.
BEST SELLER
$87.80 |
6% OFF Phone Price : $93.80
In Stock
Condenser Motor 297279502
#60

System diagram

Condenser motor

Part #297279502

Replaced by #242018304

?
Manufacturer substitution
This part replaces 297279502. Substitute parts can look different from the original.
BEST SELLER
$91.38 |
6% OFF Phone Price : $97.38
In Stock
Refrigerator Evaporator Fan Blade 242219302
#5

Cabinet diagram

Refrigerator evaporator fan blade

Part #242219302

BEST SELLER
$17.09 |
10% OFF Phone Price : $19.09
In Stock
