Kenmore
Gas Water Heater

Model # 153336451 Official Kenmore power miser 6 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153336451 power miser 6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Burner 9002411
#11

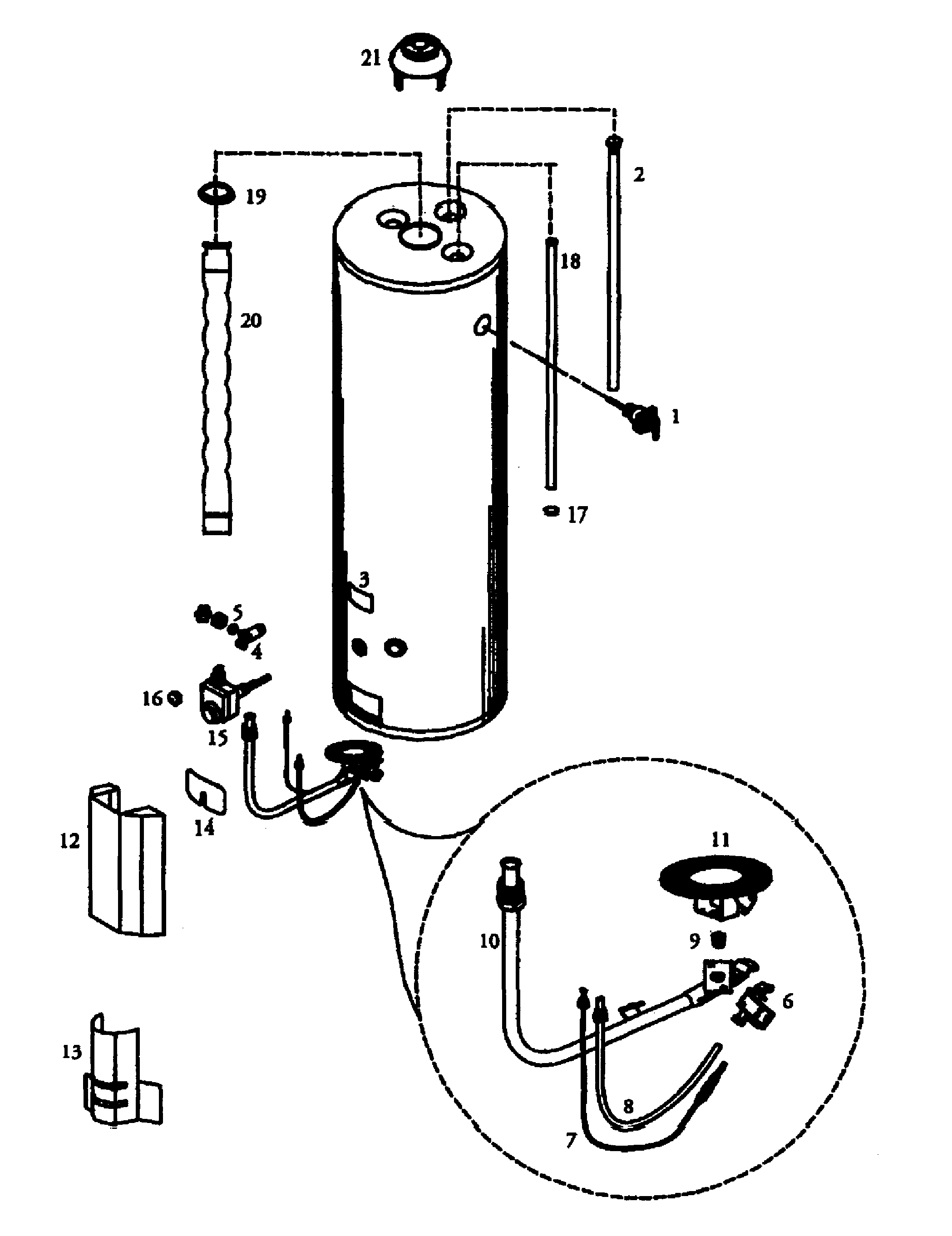

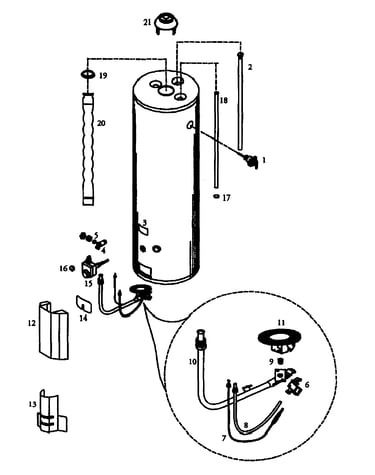

Main assembly diagram

Burner

Part #9002411

Replaced by #9003631005

?
Manufacturer substitution
This part replaces 9002411. Substitute parts can look different from the original.
$46.79 |
11% OFF Phone Price : $52.79
In Stock
Baffle 9002489
#20

Main assembly diagram

Baffle

Part #9002489

$30.49
In Stock
Water Heater Manifold Inner Door 9000281
#14

Main assembly diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Pilot 9000284
#6

Main assembly diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Water Heater Gas Valve Assembly F145-1278
#15

Main assembly diagram

Water heater gas valve assembly

Part #F145-1278

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 42-33900
#7

Main assembly diagram

Thermocouple

Part #42-33900

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-33900. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Water Heater Drain Valve 9000254
#4

Main assembly diagram

Water heater drain valve

Part #9000254

Replaced by #100108361

?
Manufacturer substitution
This part replaces 9000254. Substitute parts can look different from the original.
$17.14
In Stock
Annode Rod 9000279
#2

Main assembly diagram

Annode rod

Part #9000279

Replaced by #100108571

?
Manufacturer substitution
This part replaces 9000279. Substitute parts can look different from the original.
$90.00
In Stock
Ring 9000275
#19

Main assembly diagram

Ring

Part #9000275

Replaced by #100108369

?
Manufacturer substitution
This part replaces 9000275. Substitute parts can look different from the original.
$27.78
In Stock
Water Heater Gas Control Valve Knob F145-1280
#16

Main assembly diagram

Water heater gas control valve knob

Part #F145-1280

The manufacturer no longer makes this part, and there's no substitute part
