Kenmore
Upright Vacuum

Model # 1753216590 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1753216590 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

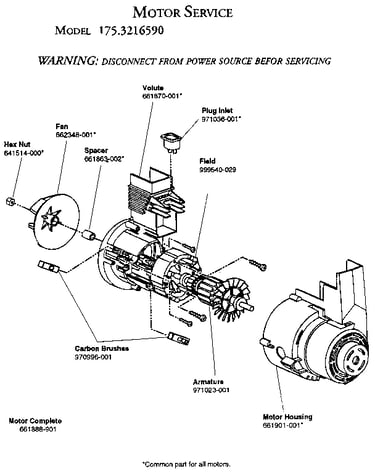

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Bulb 20-5248
#22

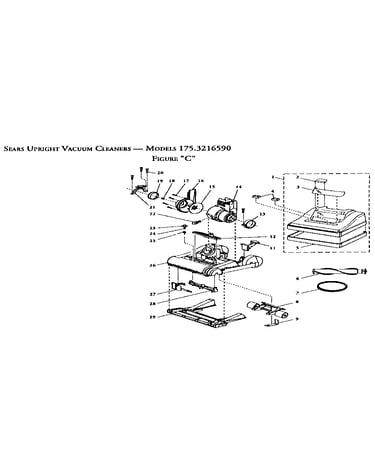

Figure "c" diagram

Bulb

Part #20-5248

The manufacturer no longer makes this part, and there's no substitute part

Switch 971037-001
#5

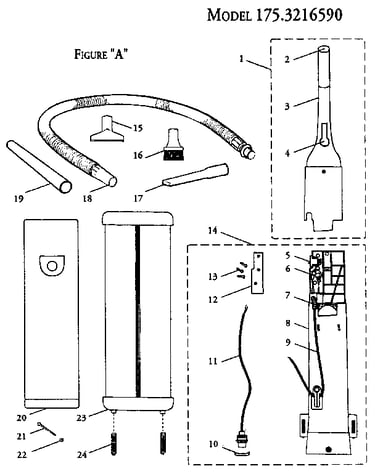

Figure "a" diagram

Switch

Part #971037-001

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 641671-017
#17

Figure "a" diagram

Crevice tool

Part #641671-017

The manufacturer no longer makes this part, and there's no substitute part

Wand 662139-001
#19

Figure "a" diagram

Wand

Part #662139-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 662137-001
#24

Figure "a" diagram

Spring

Part #662137-001

The manufacturer no longer makes this part, and there's no substitute part

Motor Strap 661902-001
#21

Figure "c" diagram

Motor strap

Part #661902-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 968702-007
Screw

Part #968702-007

The manufacturer no longer makes this part, and there's no substitute part

Slide Spring 662135-001
#25

Figure "c" diagram

Slide spring

Part #662135-001

The manufacturer no longer makes this part, and there's no substitute part

Bumper 661876-001
#5

Figure "c" diagram

Bumper

Part #661876-001

The manufacturer no longer makes this part, and there's no substitute part

Nut 706405-002
#22

Figure "a" diagram

Nut

Part #706405-002

The manufacturer no longer makes this part, and there's no substitute part
