Craftsman
Air Compressor

Model # 919167450 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919167450 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Air Compressor Compression Ring DAC-308
#52

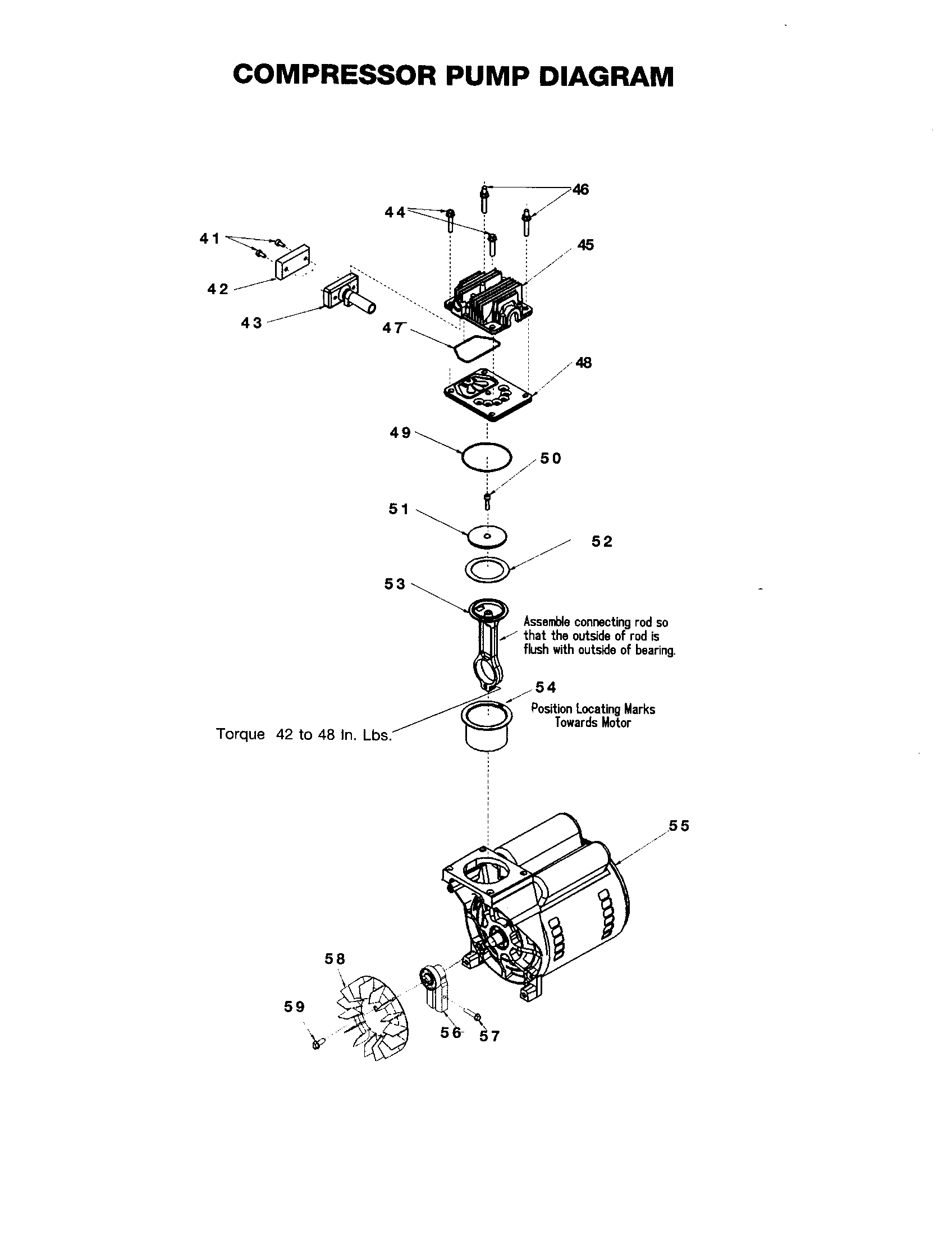

Compressor pump diagram

Air compressor compression ring

Part #DAC-308

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Valve Plate O-ring (replaces Stg-8156) SSG-8156
#49

Compressor pump diagram

Tower air compressor valve plate o-ring (replaces stg-8156)

Part #SSG-8156

The manufacturer no longer makes this part, and there's no substitute part

Screw SUDL-9-1
#25

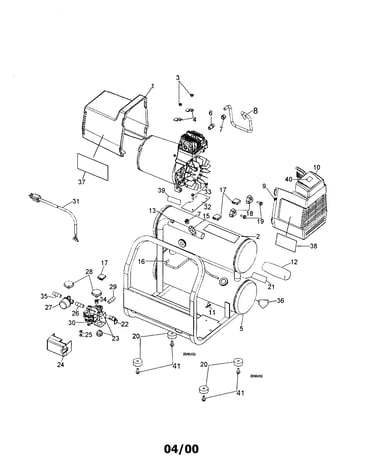

Air compressor diagram

Screw

Part #SUDL-9-1

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut SSP-7813
#7

Air compressor diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

Unknown Brand Name #696 Air Compressor Safety Valve TIA-4150
#22

Air compressor diagram

Unknown brand name #696 air compressor safety valve

Part #TIA-4150

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Air Filter Screw DAC-144
#41

Compressor pump diagram

Air compressor air filter screw

Part #DAC-144

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Air Filter DAC-143
#42

Compressor pump diagram

Air compressor air filter

Part #DAC-143

The manufacturer no longer makes this part, and there's no substitute part

Fastener SSN-8001
#33

Air compressor diagram

Fastener

Part #SSN-8001

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Connecting Rod Screw SSF-3158-1
#50

Compressor pump diagram

Tower air compressor connecting rod screw

Part #SSF-3158-1

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Fan Blade Screw SSF-586
#59

Compressor pump diagram

Air compressor fan blade screw

Part #SSF-586

The manufacturer no longer makes this part, and there's no substitute part
