Model # WAH09EP2T1 Official White-Westinghouse room air conditioner - 5995216248

Here are the diagrams and repair parts for Official White-Westinghouse WAH09EP2T1 room air conditioner - 5995216248, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
WAH09EP2T1 Room Air Conditioner - 5995216248
Bracket Screw 3015312
#8

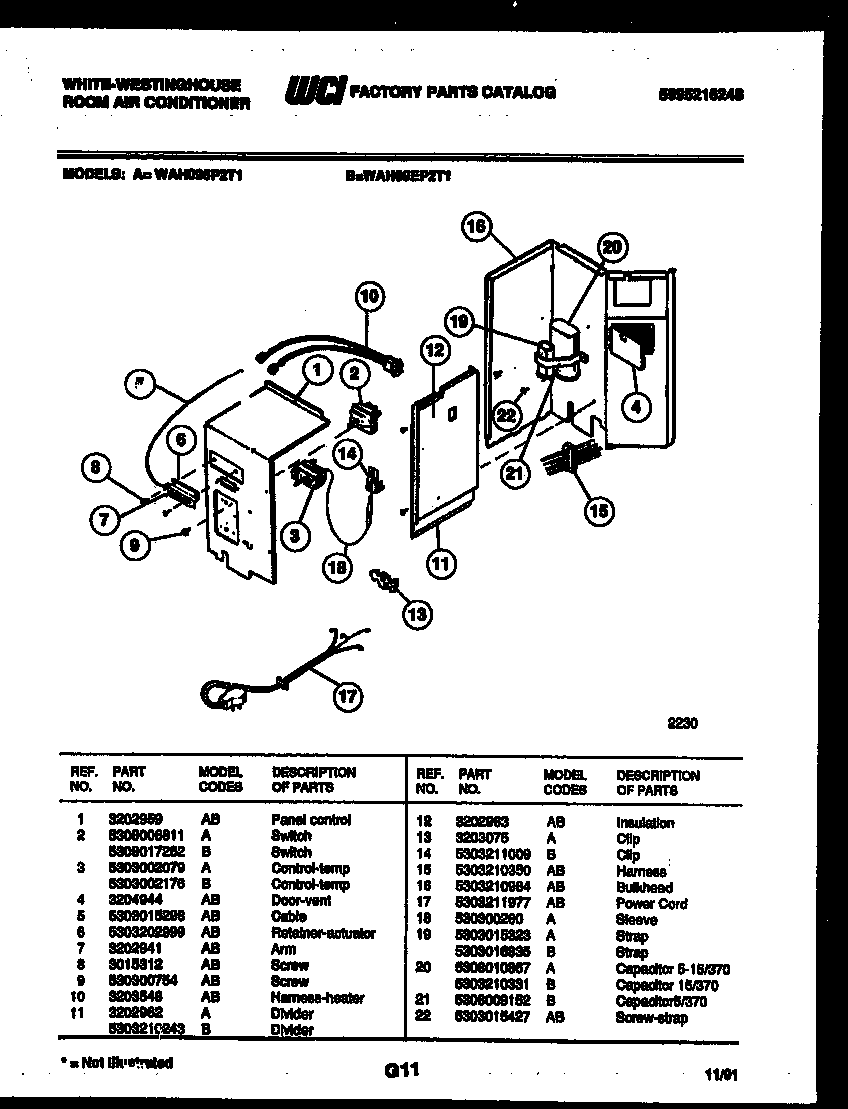

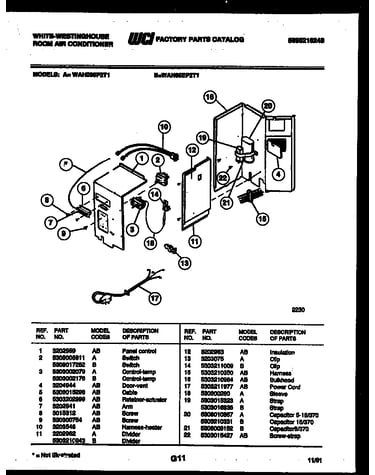

Electrical parts diagram

Bracket screw

Part #3015312

Replaced by #134178901

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
In Stock
Room Air Conditioner Screw 5303015427
#22

Electrical parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Spacer 5303211009
#14

Electrical parts diagram

Spacer

Part #5303211009

This item is not returnable
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#18

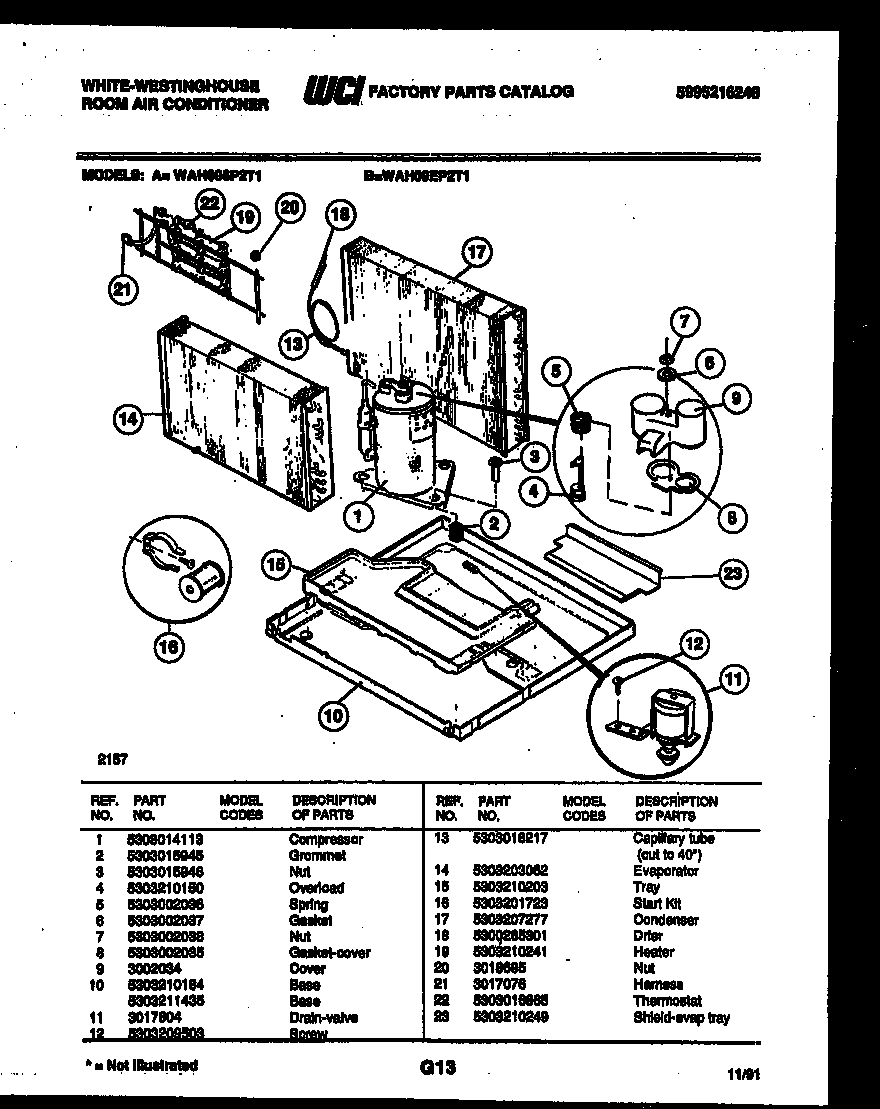

System parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

In Stock

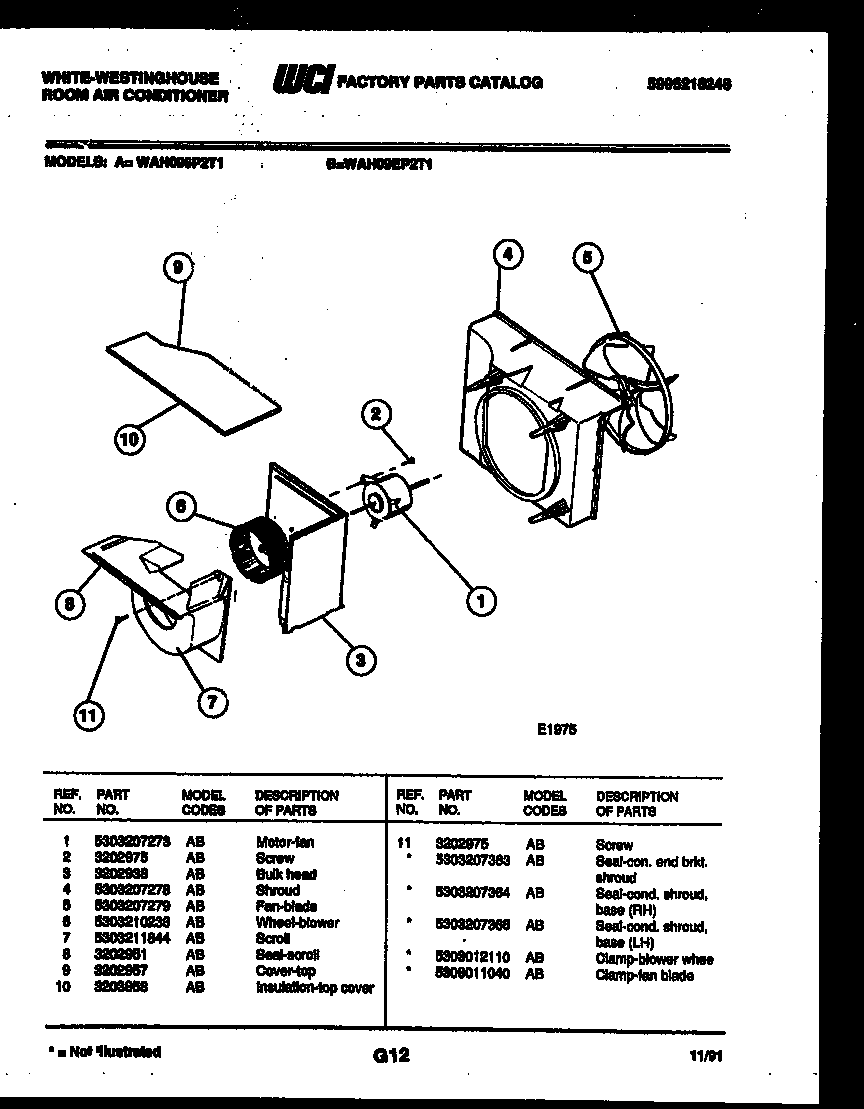

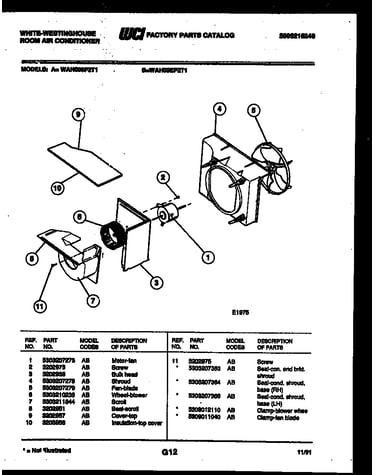

Screw 3202975
Screw

Part #3202975

Replaced by #131202300

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$15.00
12% OFF Phone Price : $17.00
In Stock
Evaporator 5303203062
#14

System parts diagram

Evaporator

Part #5303203062

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 5303211977
#17

Electrical parts diagram

Power cord

Part #5303211977

The manufacturer no longer makes this part, and there's no substitute part

Panel 5303210352
#9

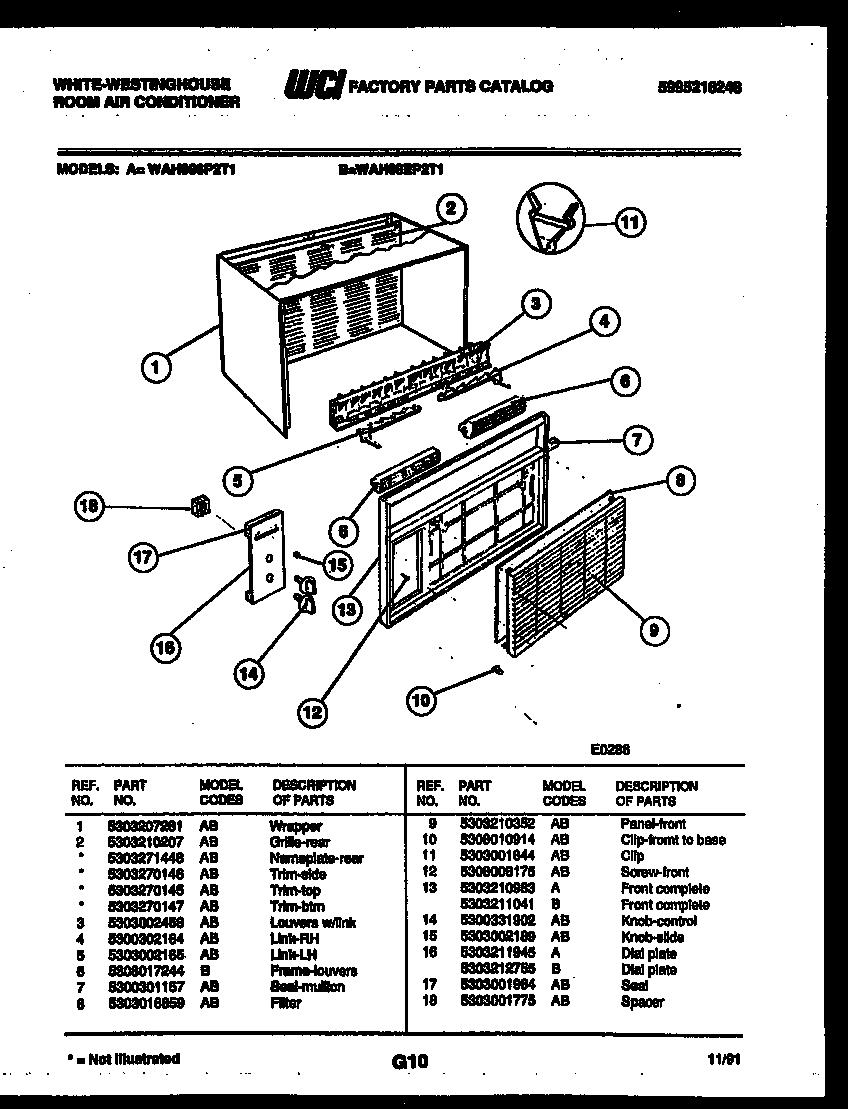

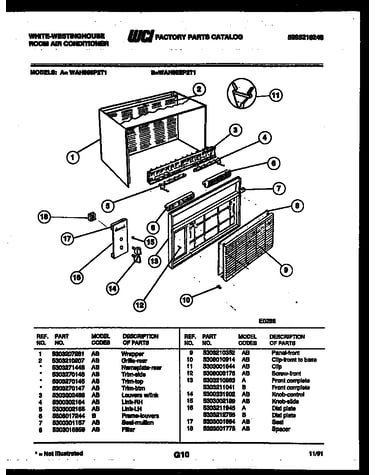

Cabinet parts diagram

Panel

Part #5303210352

The manufacturer no longer makes this part, and there's no substitute part

Selector 5308006811
#2

Electrical parts diagram

Selector

Part #5308006811

The manufacturer no longer makes this part, and there's no substitute part

Tray 5303210203
#15

System parts diagram

Tray

Part #5303210203

The manufacturer no longer makes this part, and there's no substitute part
