Model # JVM1533BD05 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1533BD05 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

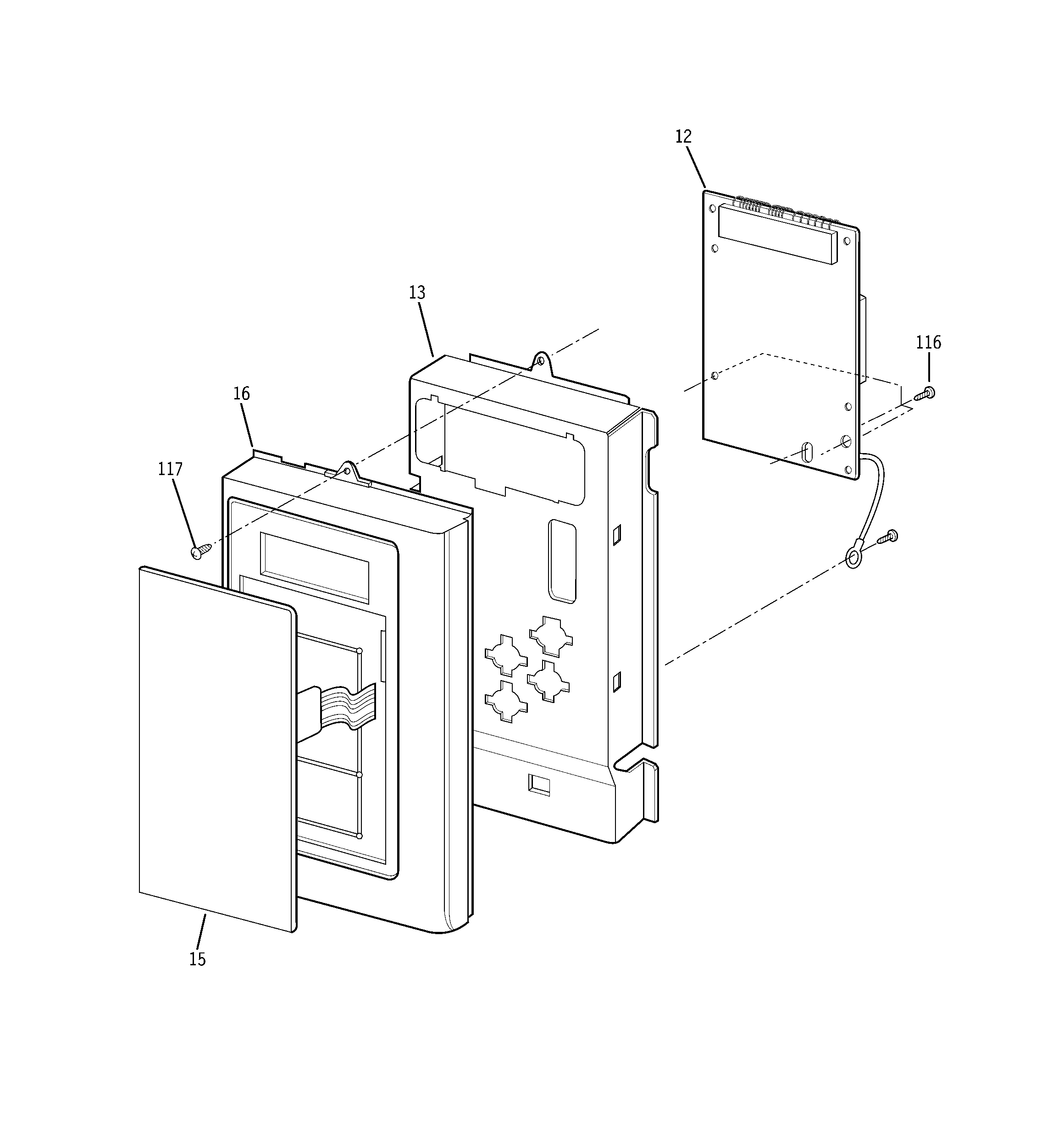

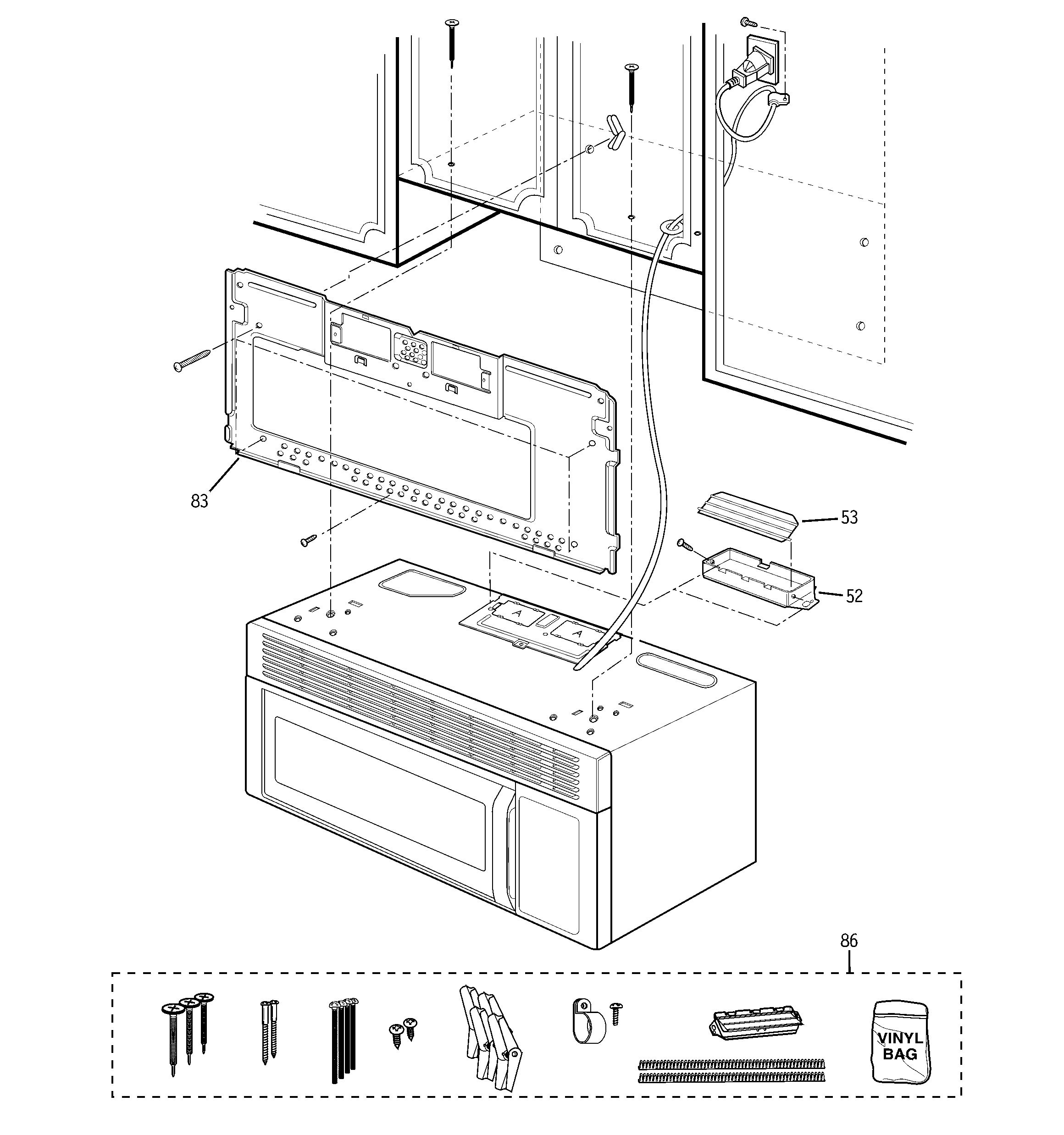

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Microwave Fuse WB27X10388
#47

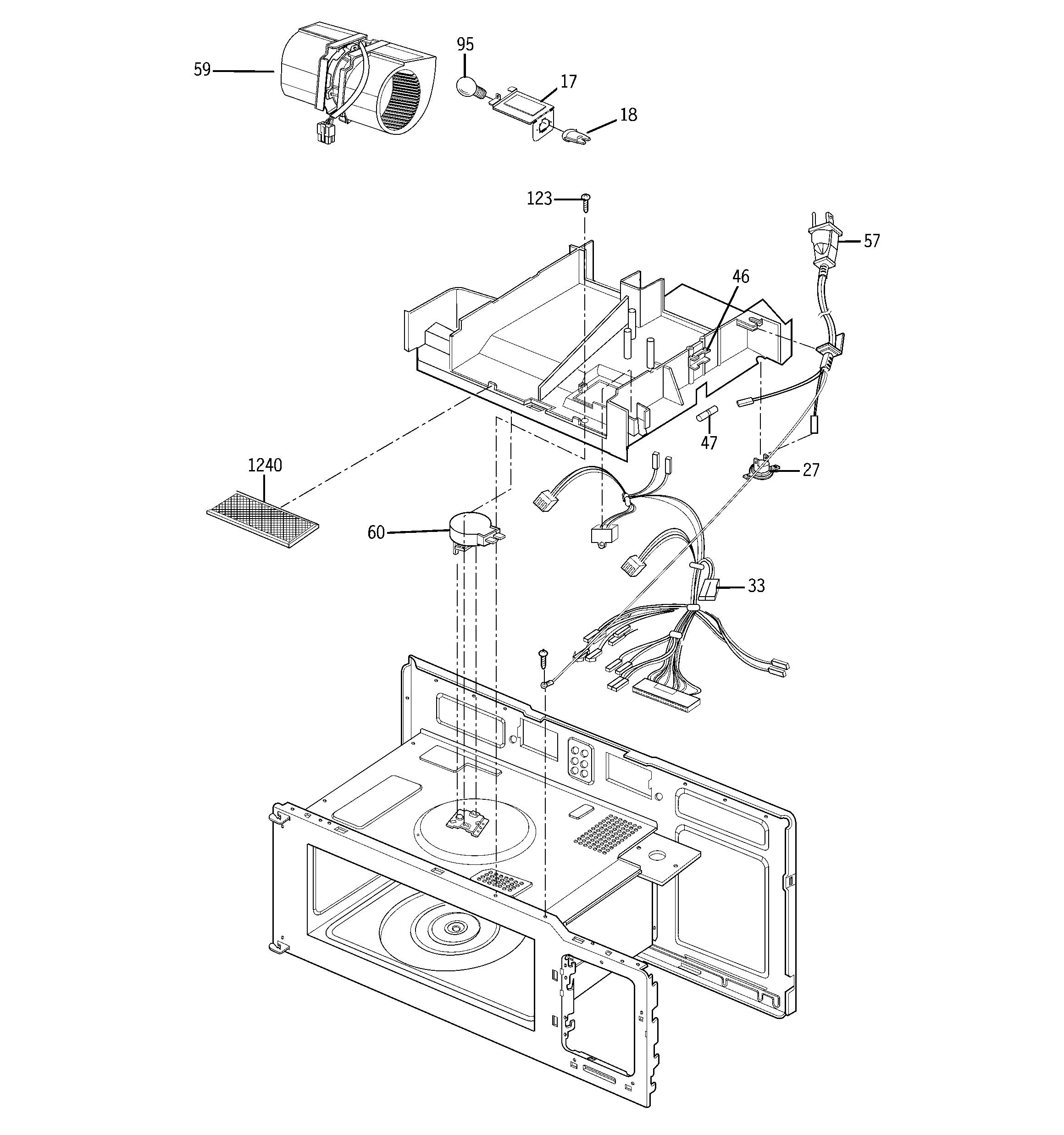

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Micro-switch WB24X10072
#29

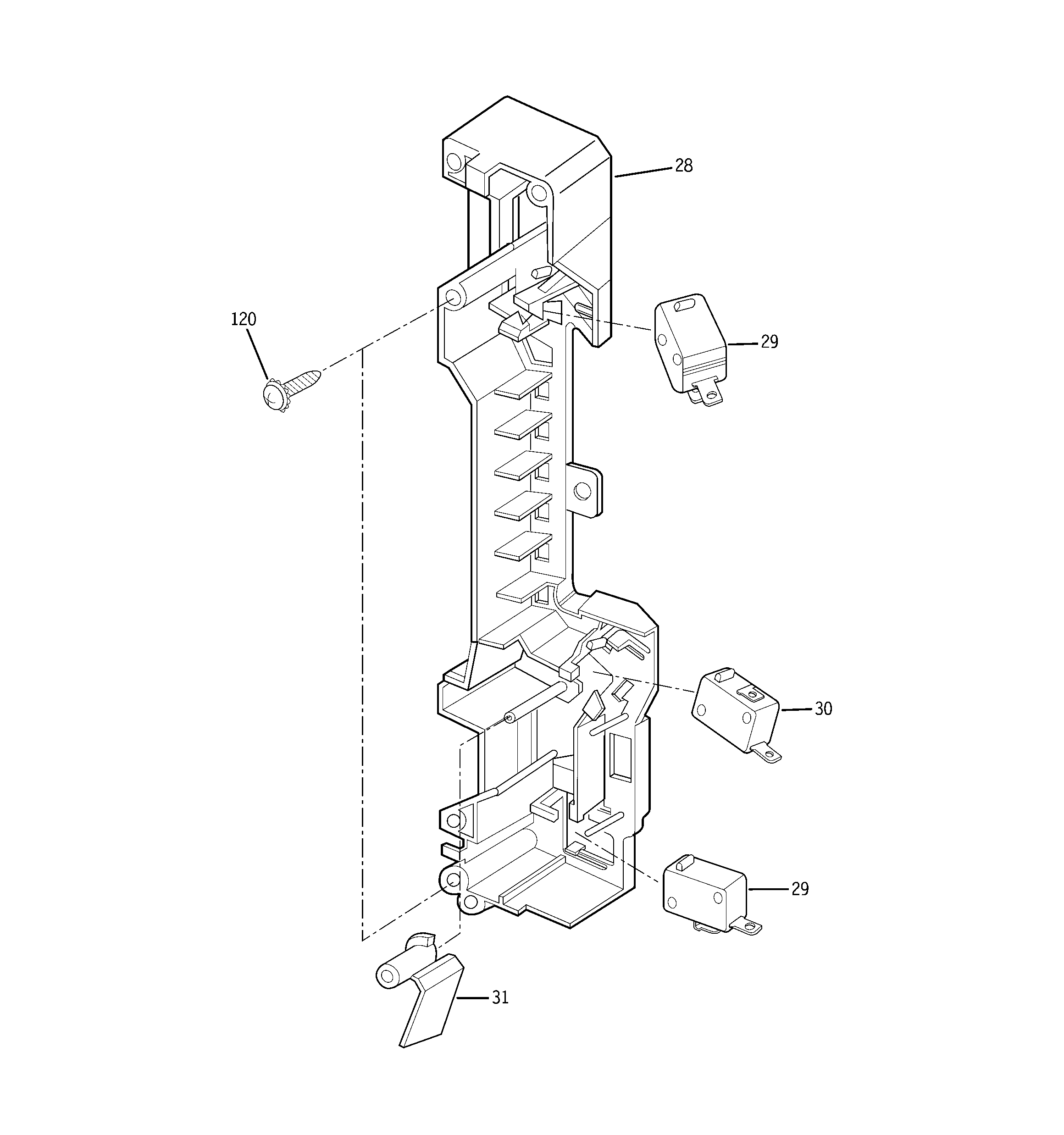

Latch board parts diagram

Micro-switch

Part #WB24X10072

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X10072. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Drive Capacitor WB27X10701
#49

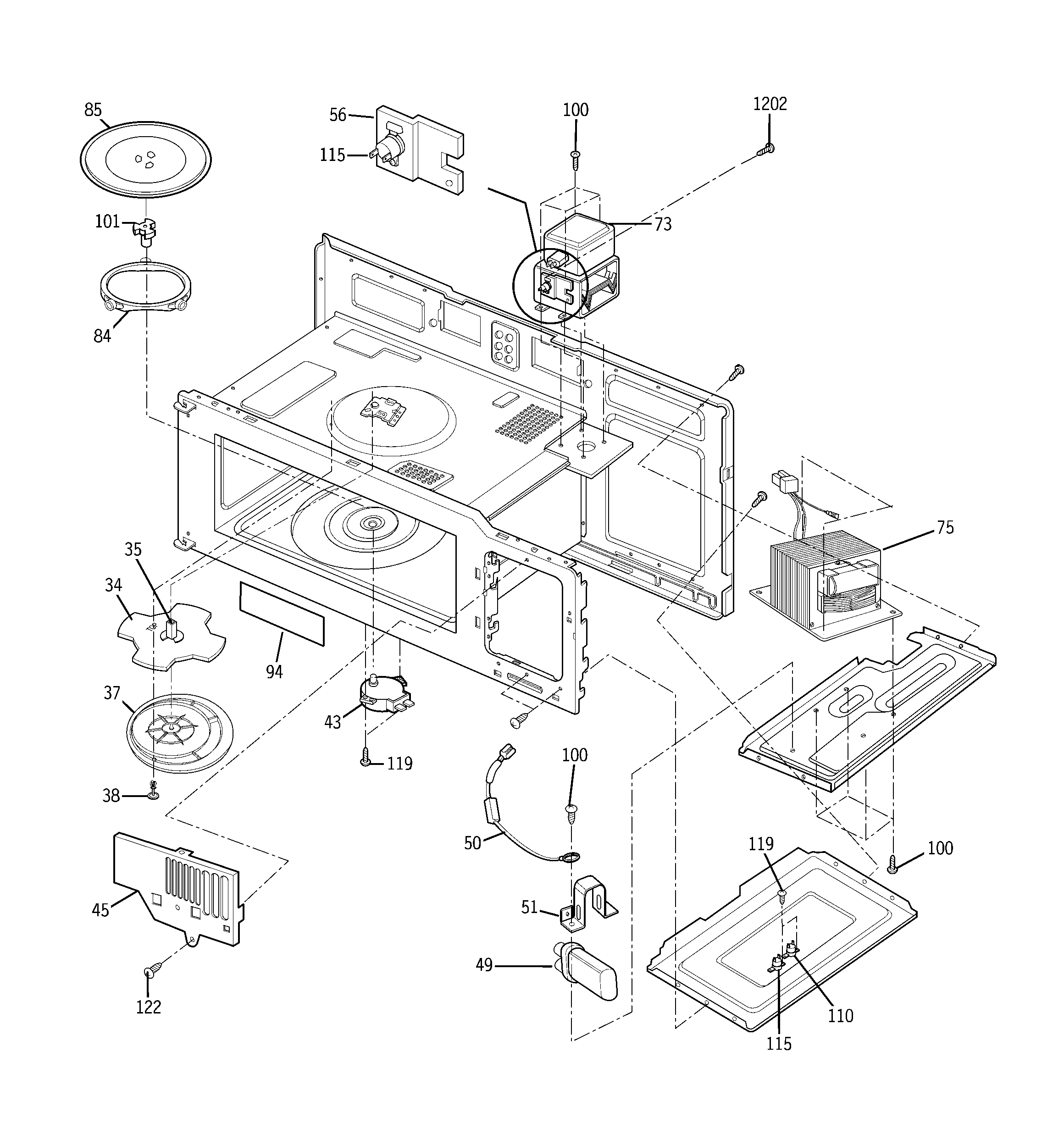

Interior parts (1) diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Microwave Door Latch Spring WB09X10017
#5

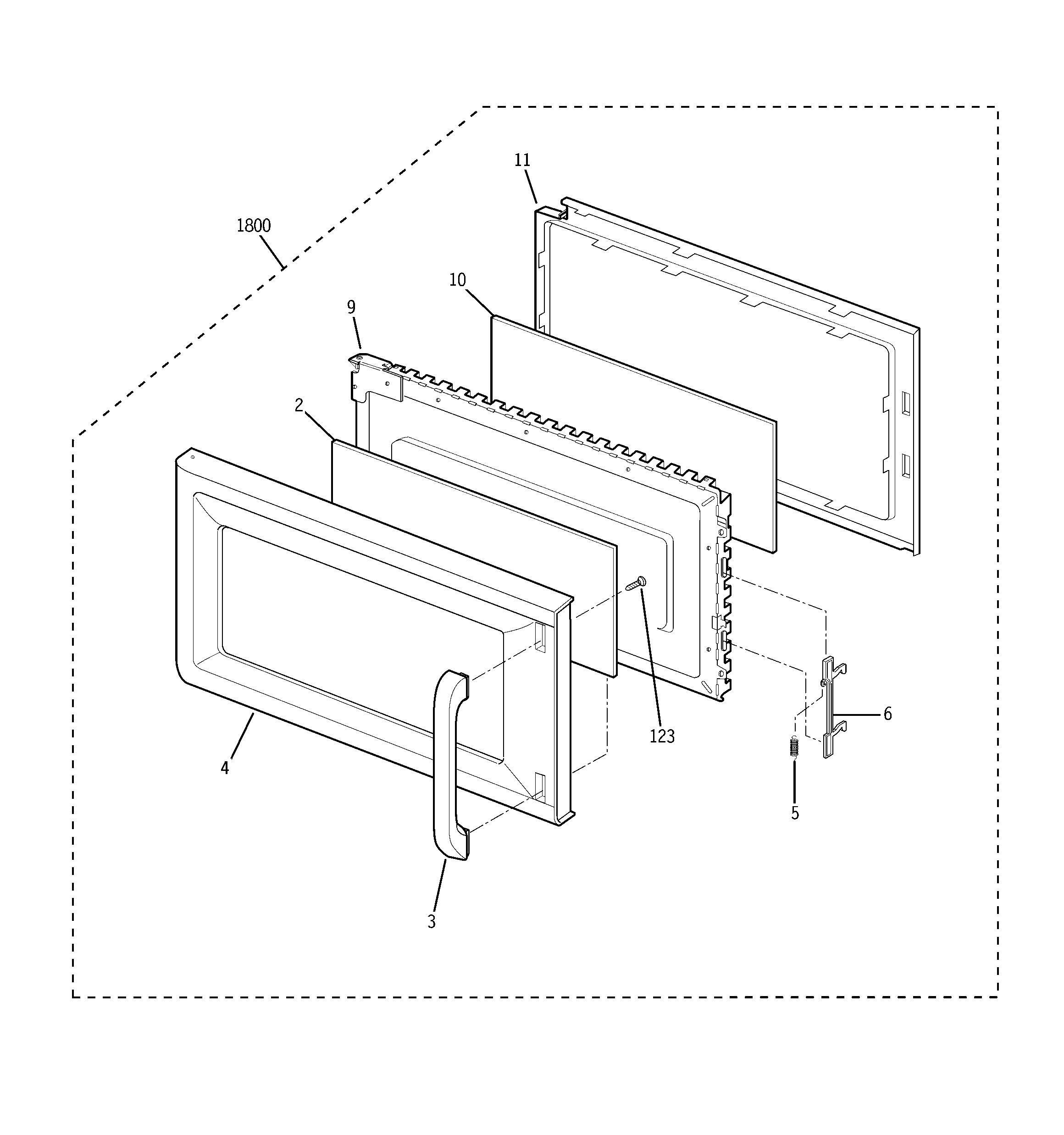

Door parts diagram

Microwave door latch spring

Part #WB09X10017

$8.69 |
10% OFF Phone Price : $9.69
In Stock
Microwave Glass Turntable Tray (replaces 1b71961a, Wb49x10061, Wb49x10067, Wb49x10225) WB49X10129
#85

Interior parts (1) diagram

Microwave glass turntable tray (replaces 1b71961a, wb49x10061, wb49x10067, wb49x10225)

Part #WB49X10129

$78.33 |
7% OFF Phone Price : $84.33
In Stock
Microwave Stirrer Fan Cover Clip WB01X10055
#38

Interior parts (1) diagram

Microwave stirrer fan cover clip

Part #WB01X10055

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Microwave Light Lens WB36X10293
#22

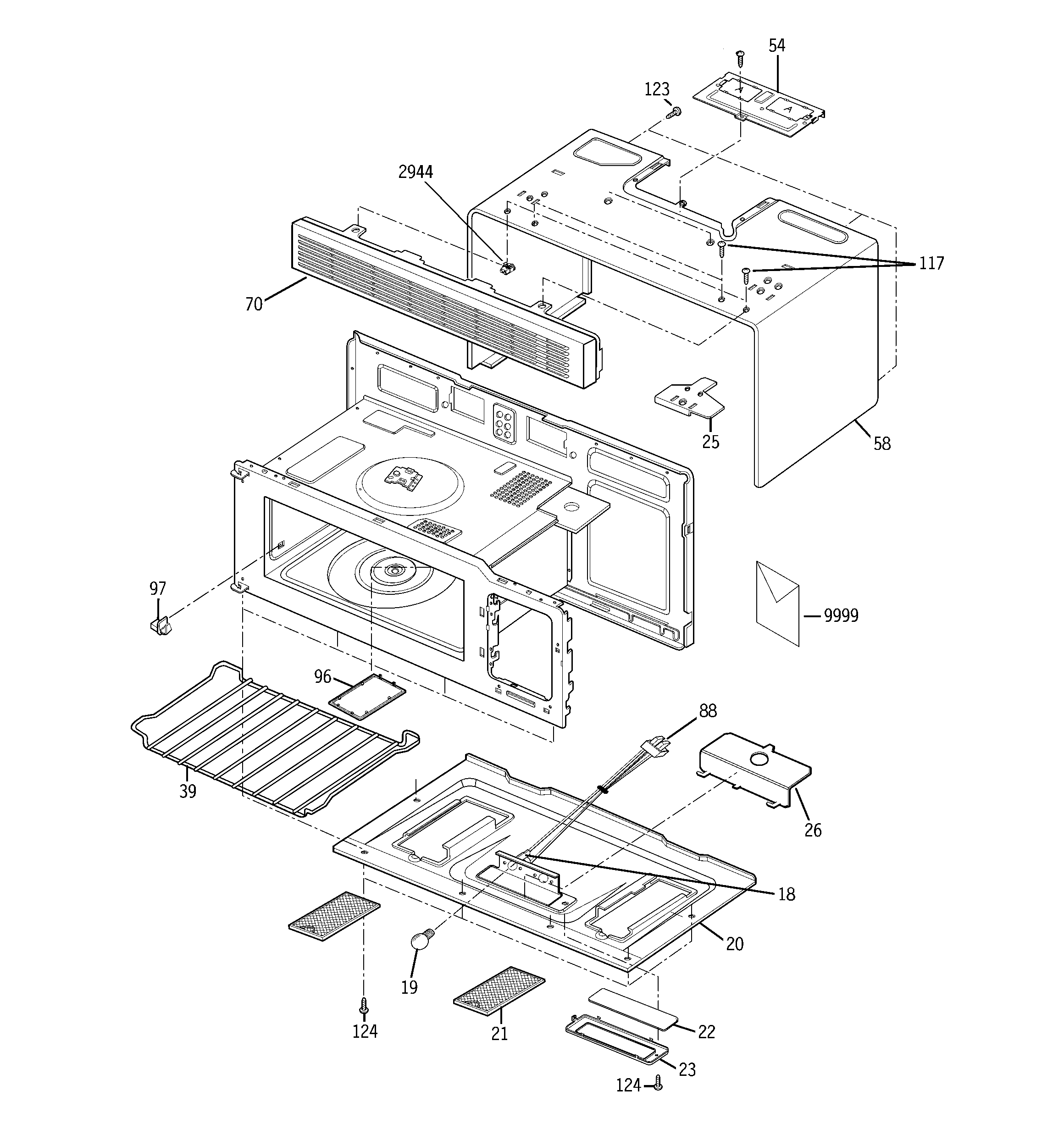

Oven cavity parts diagram

Microwave light lens

Part #WB36X10293

$27.25 |
18% OFF Phone Price : $33.25
In Stock
Bracket WB06X10570
#56

Interior parts (1) diagram

Bracket

Part #WB06X10570

$8.11
In Stock
Lever WB06X10559
#31

Latch board parts diagram

Lever

Part #WB06X10559

This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Screw Bind WB02X10777
#100

Interior parts (1) diagram

Screw bind

Part #WB02X10777

Replaced by #WB02X10745

?
Manufacturer substitution
This part replaces WB02X10777. Substitute parts can look different from the original.
$8.11
In Stock
