Universal/Multiflex (Frigidaire)
Electric Range

Model # MEF300PXWC Official Universal/Multiflex (Frigidaire) electric range - 5995289369

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MEF300PXWC electric range - 5995289369, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

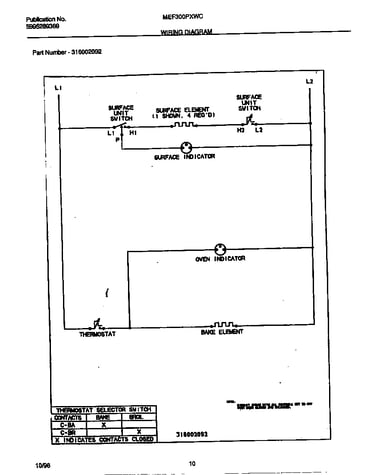

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Bake Element 316075102
#67

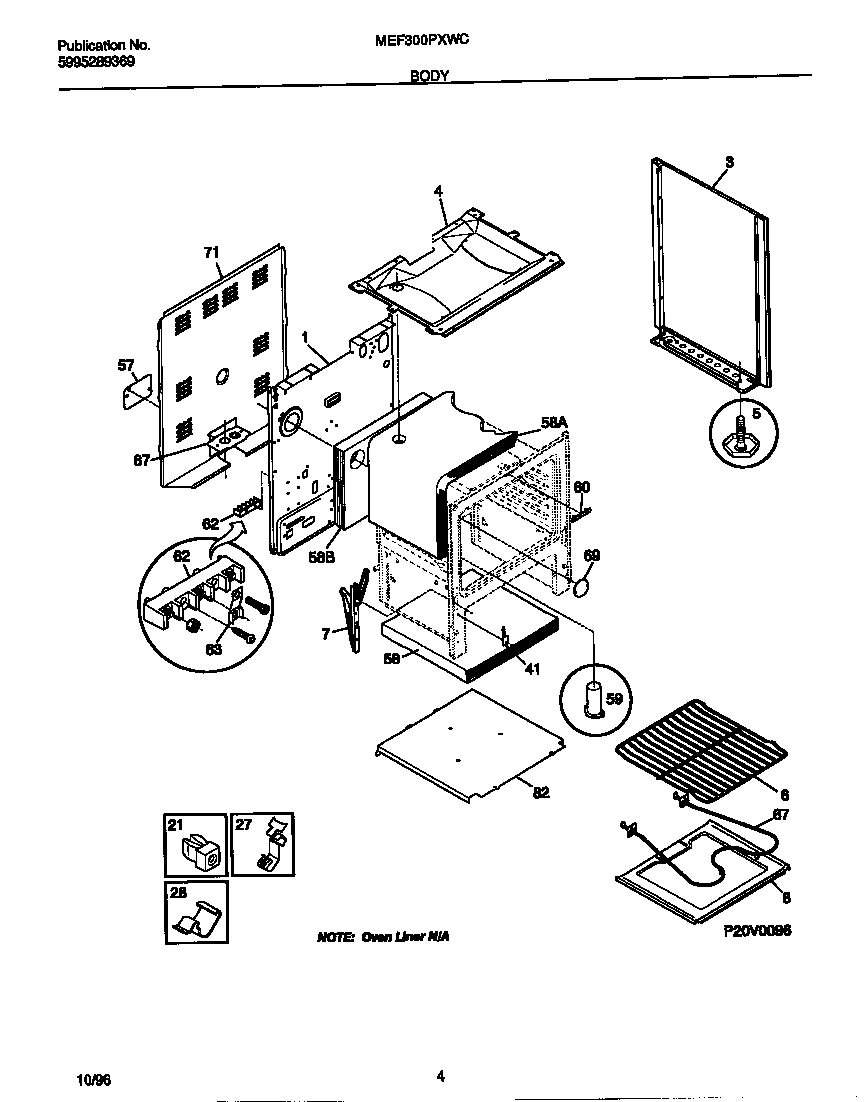

Body diagram

Bake element

Part #316075102

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316075102. Substitute parts can look different from the original.
BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Block 5303912666
#27

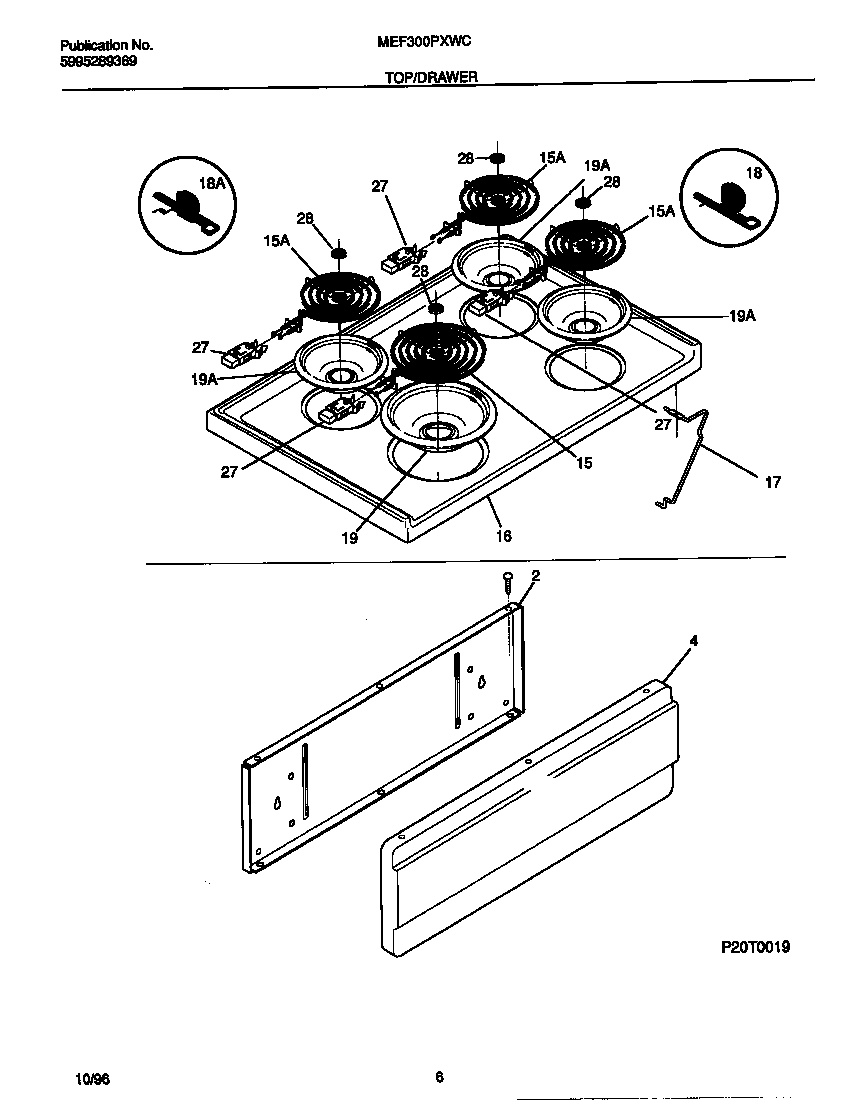

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Lens 316040201
#46

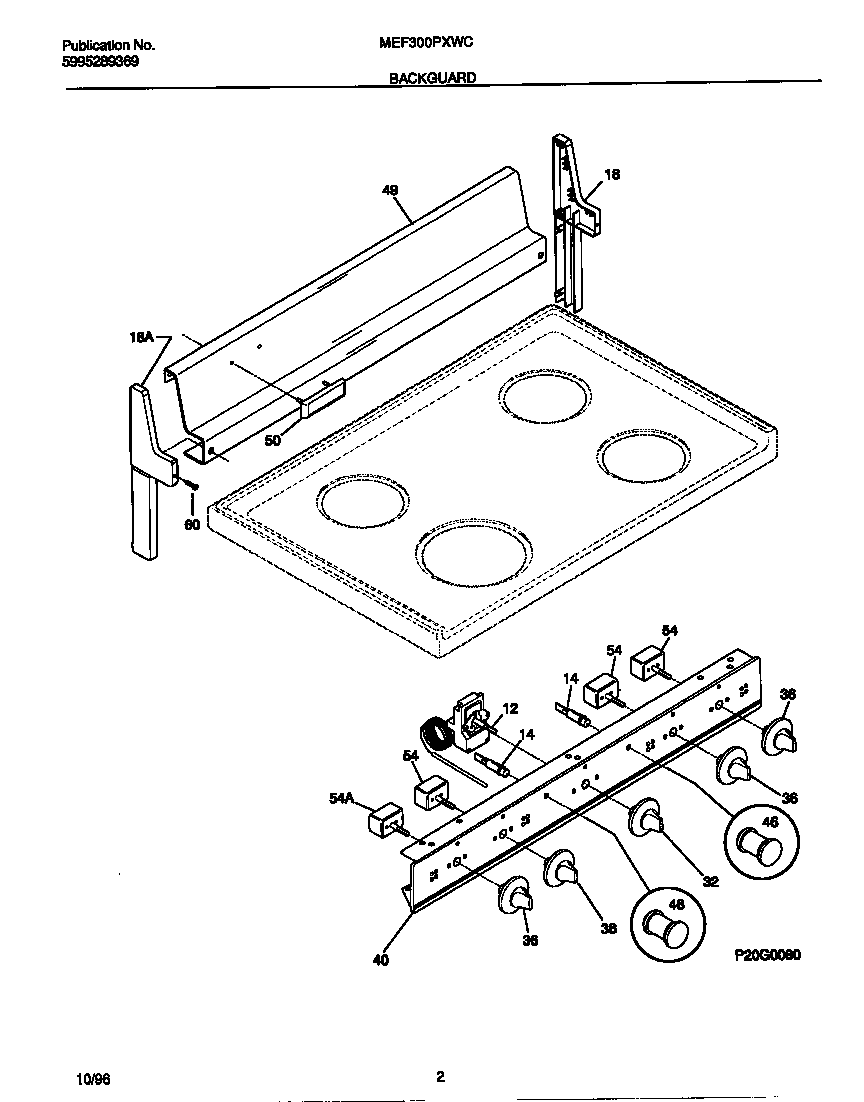

Backguard diagram

Lens

Part #316040201

Replaced by #318228310

?
Manufacturer substitution
This part replaces 316040201. Substitute parts can look different from the original.
BEST SELLER
$9.60 |
9% OFF Phone Price : $10.60
In Stock
Range Coil Surface Element, 6-in 5303015716
#15

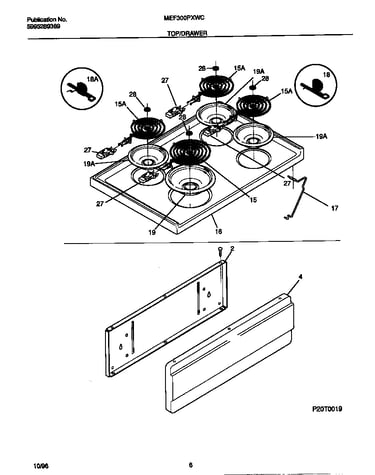

Top/drawer diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$26.22 |
19% OFF Phone Price : $32.22
In Stock
Switch 5303051540
#54

Backguard diagram

Switch

Part #5303051540

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5303051540. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Switch-8" El 5301313767
#54

Backguard diagram

Switch-8" el

Part #5301313767

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5301313767. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Range Drip Pan 5303935057
#19

Top/drawer diagram

Range drip pan

Part #5303935057

Replaced by #L304430992

?
Manufacturer substitution
This part replaces 5303935057. Substitute parts can look different from the original.
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Oven Rack 316067901
#6

Body diagram

Oven rack

Part #316067901

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 316067901. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Nut 5303051099

#NI

All parts diagram

Nut

Part #5303051099

Replaced by #316205500

?
Manufacturer substitution
This part replaces 5303051099. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Plate-oven L 3051218
#69

Body diagram

Plate-oven l

Part #3051218

$54.42
In Stock
