Model # KUDR204EPA01 Official KitchenAid refrigerator, all

Here are the diagrams and repair parts for Official KitchenAid KUDR204EPA01 refrigerator, all, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Screw W10204865
#24

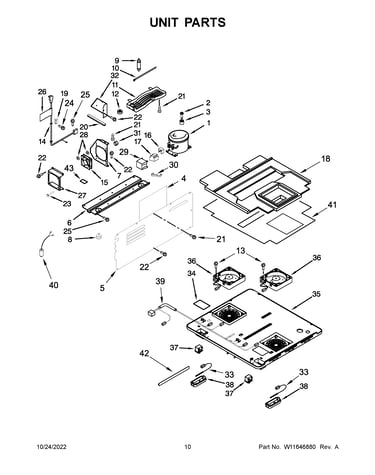

Unit parts diagram

Screw

Part #W10204865

Replaced by #W10837731

?
Manufacturer substitution
This part replaces W10204865. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Evaporator Motor W10204942
#36

Unit parts diagram

Evaporator motor

Part #W10204942

Replaced by #W10854409

?
Manufacturer substitution
This part replaces W10204942. Substitute parts can look different from the original.
$147.98 |
8% OFF Phone Price : $159.98
In Stock
Wine Cooler Leveling Leg 4344763
Wine cooler leveling leg

Part #4344763

Replaced by #W11106296

?
Manufacturer substitution
This part replaces 4344763. Substitute parts can look different from the original.
This item is not returnable
$11.28 |
15% OFF Phone Price : $13.28
In Stock
Refrigerator Drawer Display-to-indicator Wire Harness W10789534
#16

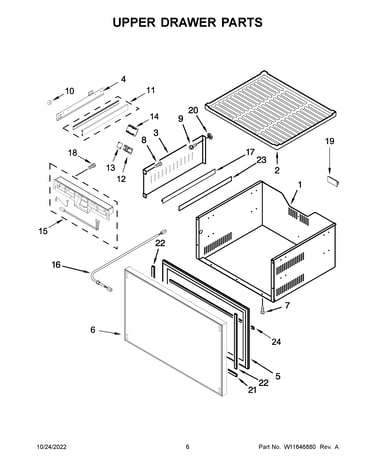

Upper drawer parts diagram

Refrigerator drawer display-to-indicator wire harness

Part #W10789534

$93.29 |
6% OFF Phone Price : $99.29
In Stock
Refrigerator Led Light W10204930
#13

Upper drawer parts diagram

Refrigerator led light

Part #W10204930

$134.12 |
8% OFF Phone Price : $146.12
In Stock
Maytag Refrigerator Defrost Drain Pan W10316689
#11

Unit parts diagram

Maytag refrigerator defrost drain pan

Part #W10316689

$77.18
In Stock
Refrigerator Main Pcb W10772868
#19

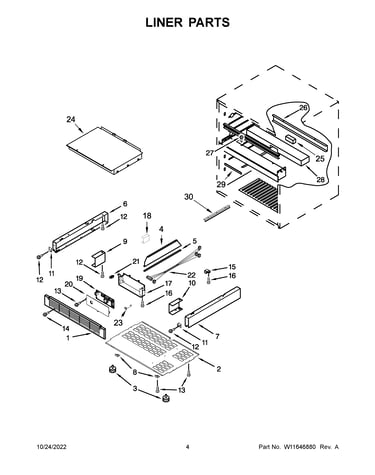

Liner parts diagram

Refrigerator main pcb

Part #W10772868

Replaced by #WPW10772868

?
Manufacturer substitution
This part replaces W10772868. Substitute parts can look different from the original.
$184.29 |
6% OFF Phone Price : $196.29
In Stock
Screw 4344832
#22

Unit parts diagram

Screw

Part #4344832

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4344832. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Grommet 4344779
#3

Unit parts diagram

Grommet

Part #4344779

Replaced by #WP4344779

?
Manufacturer substitution
This part replaces 4344779. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Cord Clamp W10270482
#15

Liner parts diagram

Cord clamp

Part #W10270482

$29.89
In Stock
