Kenmore
Gas Water Heater

Model # 153552400 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153552400 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Water Heater Burner Assembly 9007656
#10

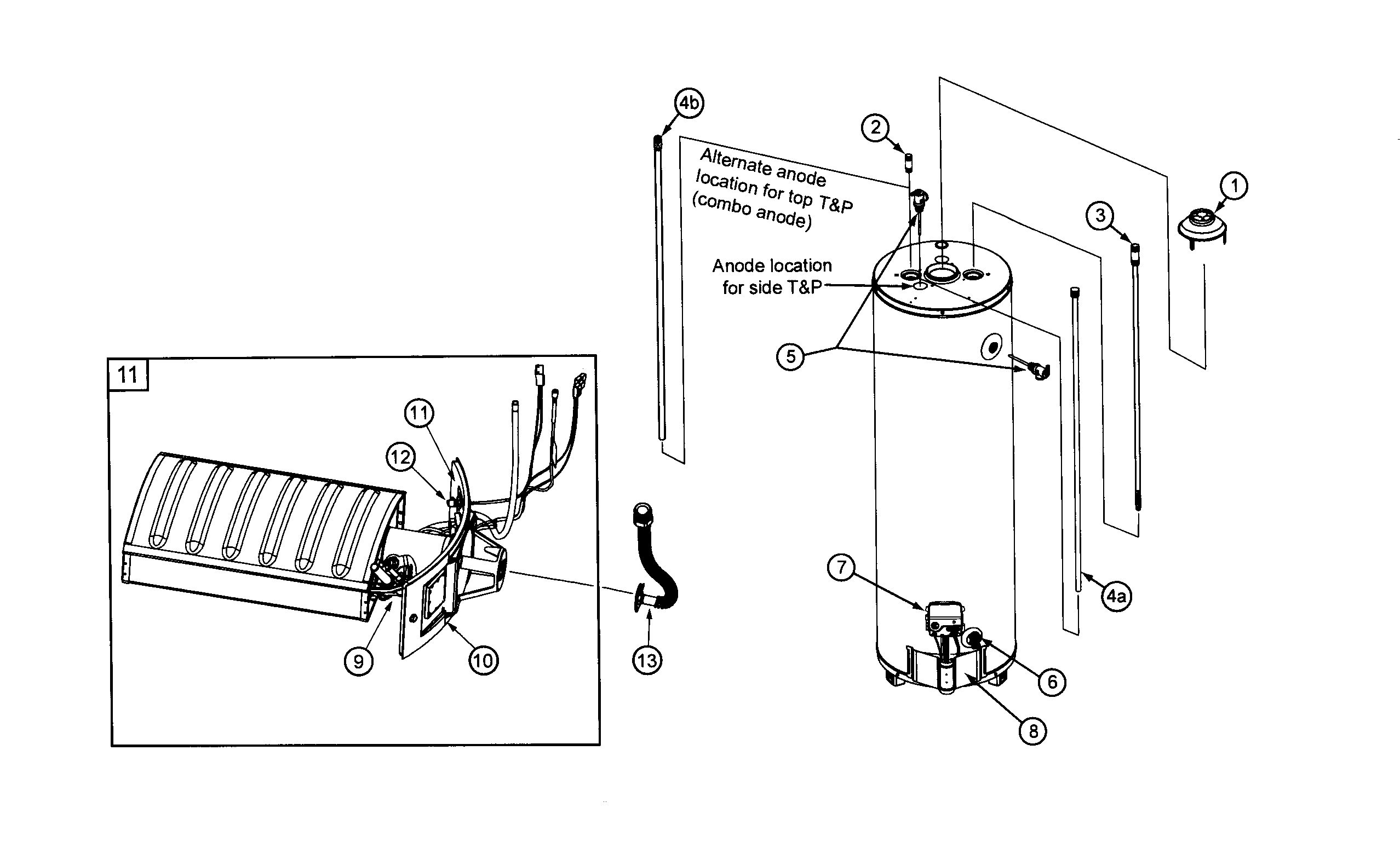

Main assy diagram

Water heater burner assembly

Part #9007656

Replaced by #100346612

?
Manufacturer substitution
This part replaces 9007656. Substitute parts can look different from the original.
BEST SELLER
$364.84 |
$12.00 OFF Phone Price : $376.84
In Stock
Combination Dip Tube And Heat Trap Nipple 100217964
#3

Main assy diagram

Combination dip tube and heat trap nipple

Part #100217964

$49.49
In Stock
Water Heater Manifold Door Gasket 9006141
#11

Main assy diagram

Water heater manifold door gasket

Part #9006141

This item is not returnable
$25.47 |
19% OFF Phone Price : $31.47
In Stock
Water Heater Gas Valve And Temperature Control Assembly 9007632
#7

Main assy diagram

Water heater gas valve and temperature control assembly

Part #9007632

$163.19 |
7% OFF Phone Price : $175.19
In Stock
Draft Hood 185917-001
#1

Main assy diagram

Draft hood

Part #185917-001

Replaced by #100111362

?
Manufacturer substitution
This part replaces 185917-001. Substitute parts can look different from the original.
$34.44
In Stock
Nipple 9003915
#2

Main assy diagram

Nipple

Part #9003915

Replaced by #100108409

?
Manufacturer substitution
This part replaces 9003915. Substitute parts can look different from the original.
$25.71
In Stock
Anode Rod 9003892
#4A

Main assy diagram

Anode rod

Part #9003892

Replaced by #100109594

?
Manufacturer substitution
This part replaces 9003892. Substitute parts can look different from the original.
$55.56
In Stock
Drain 9000058
Drain

Part #9000058

Replaced by #100108269

?
Manufacturer substitution
This part replaces 9000058. Substitute parts can look different from the original.
$18.57
In Stock
Water Heater Pilot Assembly 9007633
#9

Main assy diagram

Water heater pilot assembly

Part #9007633

Replaced by #100093972

?
Manufacturer substitution
This part replaces 9007633. Substitute parts can look different from the original.
$130.00
In Stock
Anode Rod/heat Trap Combination 100112446
#4B

Main assy diagram

Anode rod/heat trap combination

Part #100112446

The manufacturer no longer makes this part, and there's no substitute part
