Kenmore Elite
Electric Range

Model # 79041013802 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79041013802 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

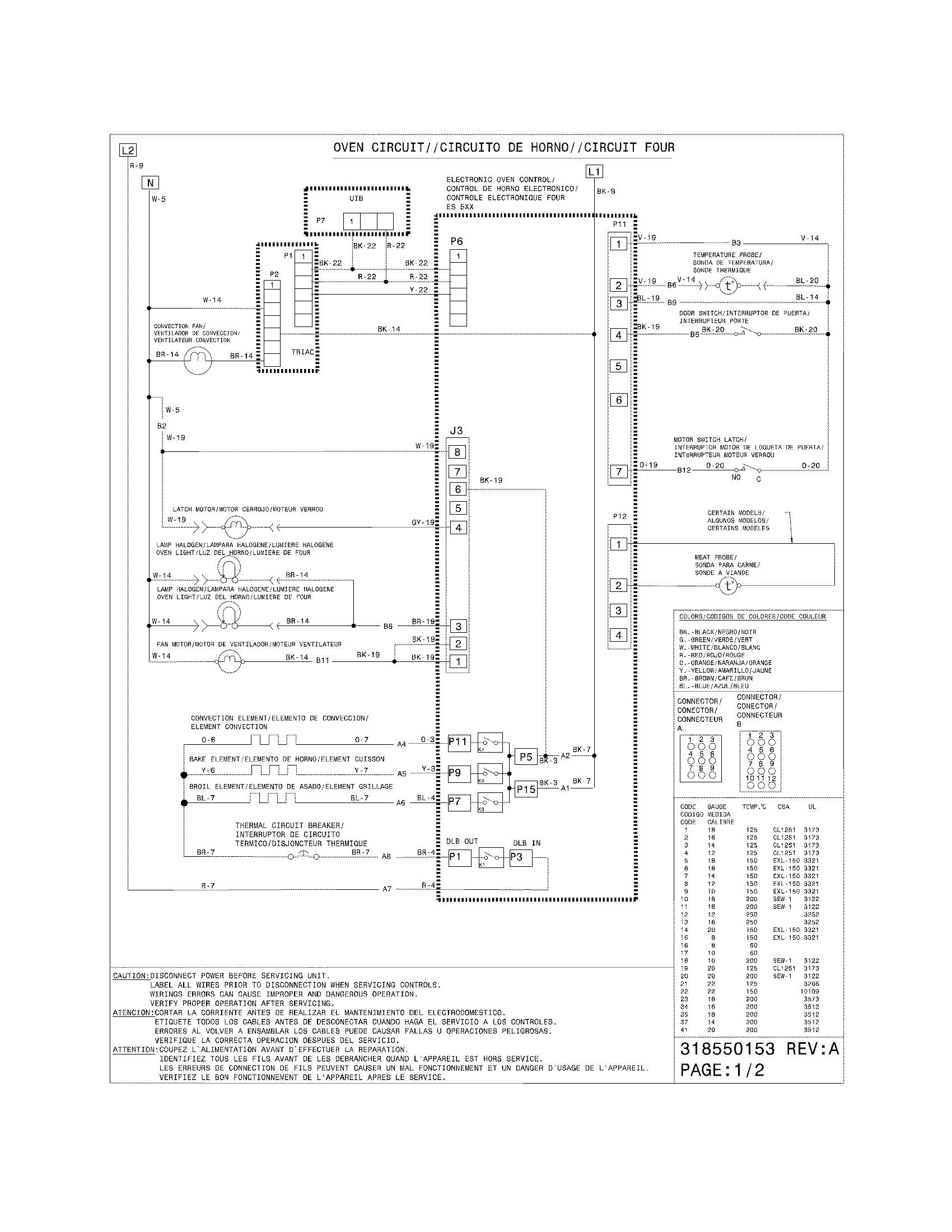

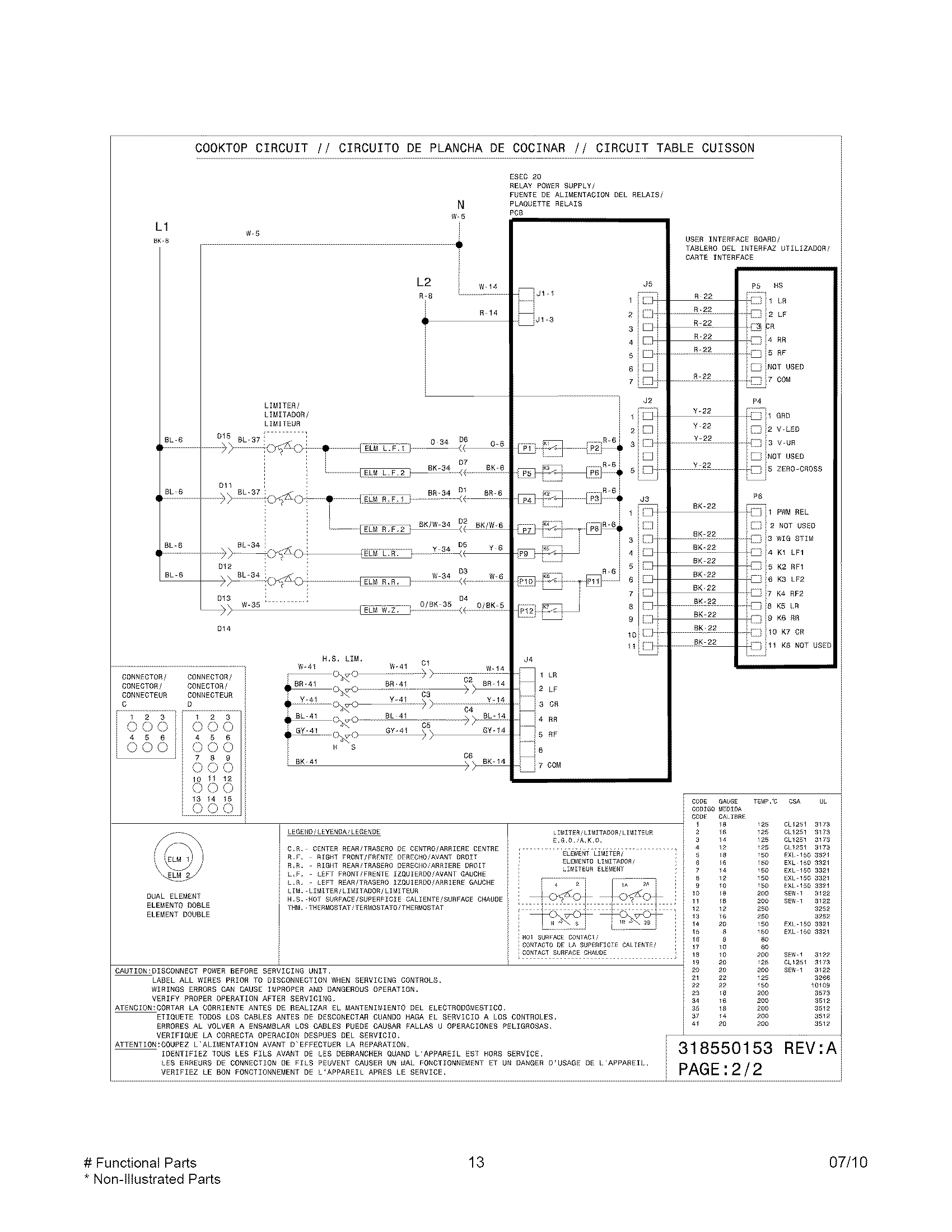

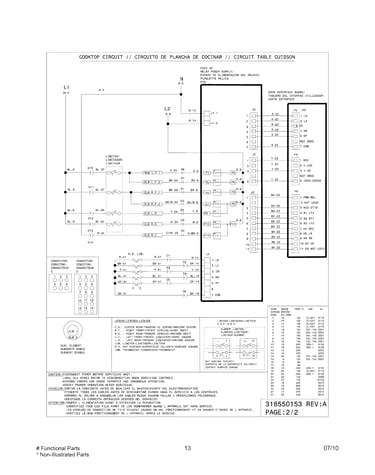

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Range Oven Temperature Sensor 318562500
#37

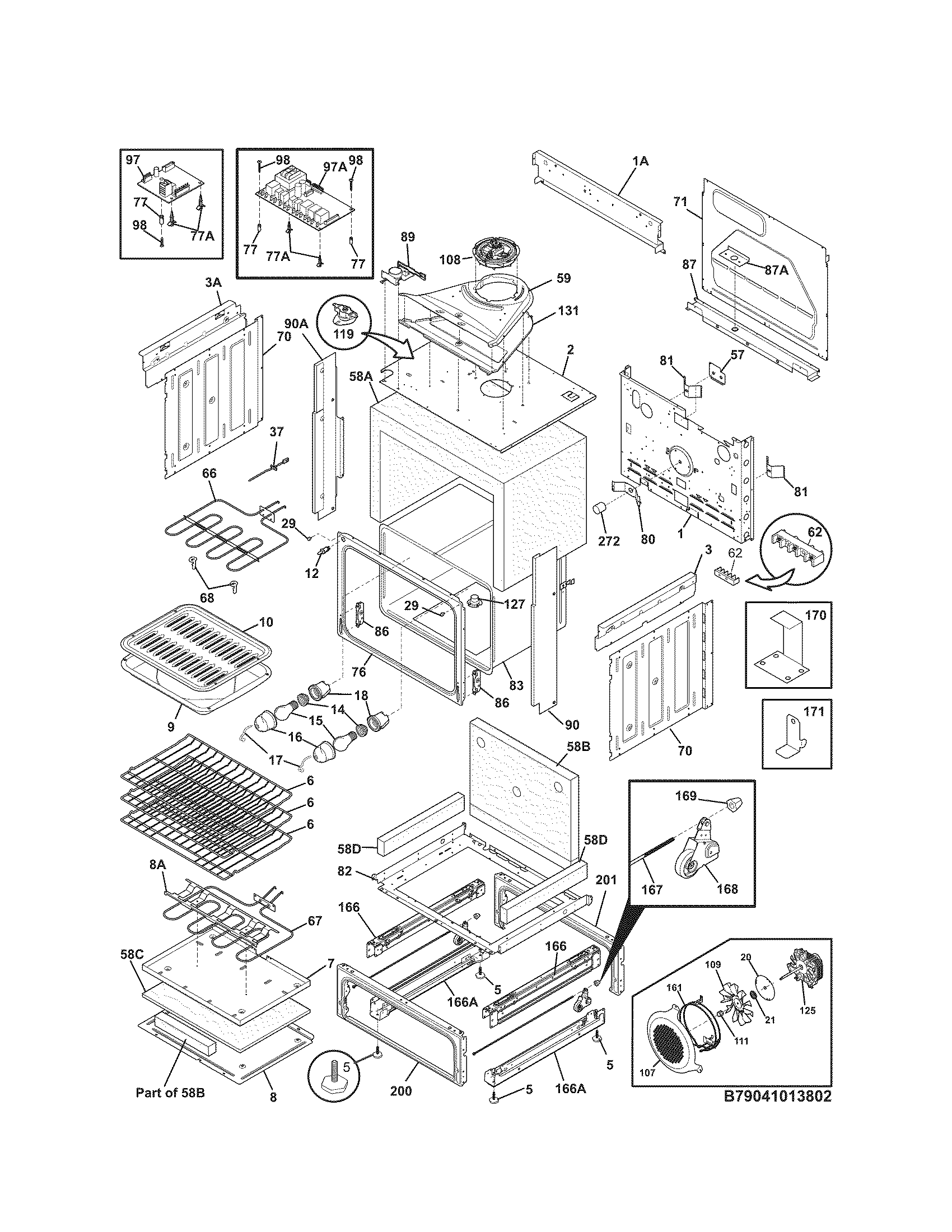

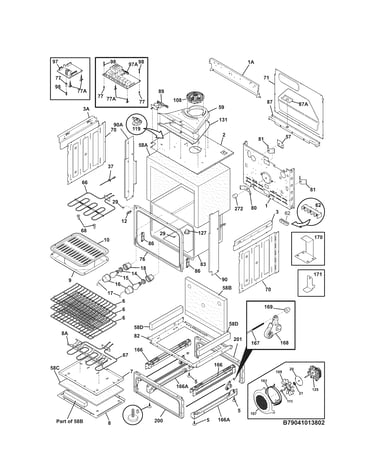

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Element 318198830
#15

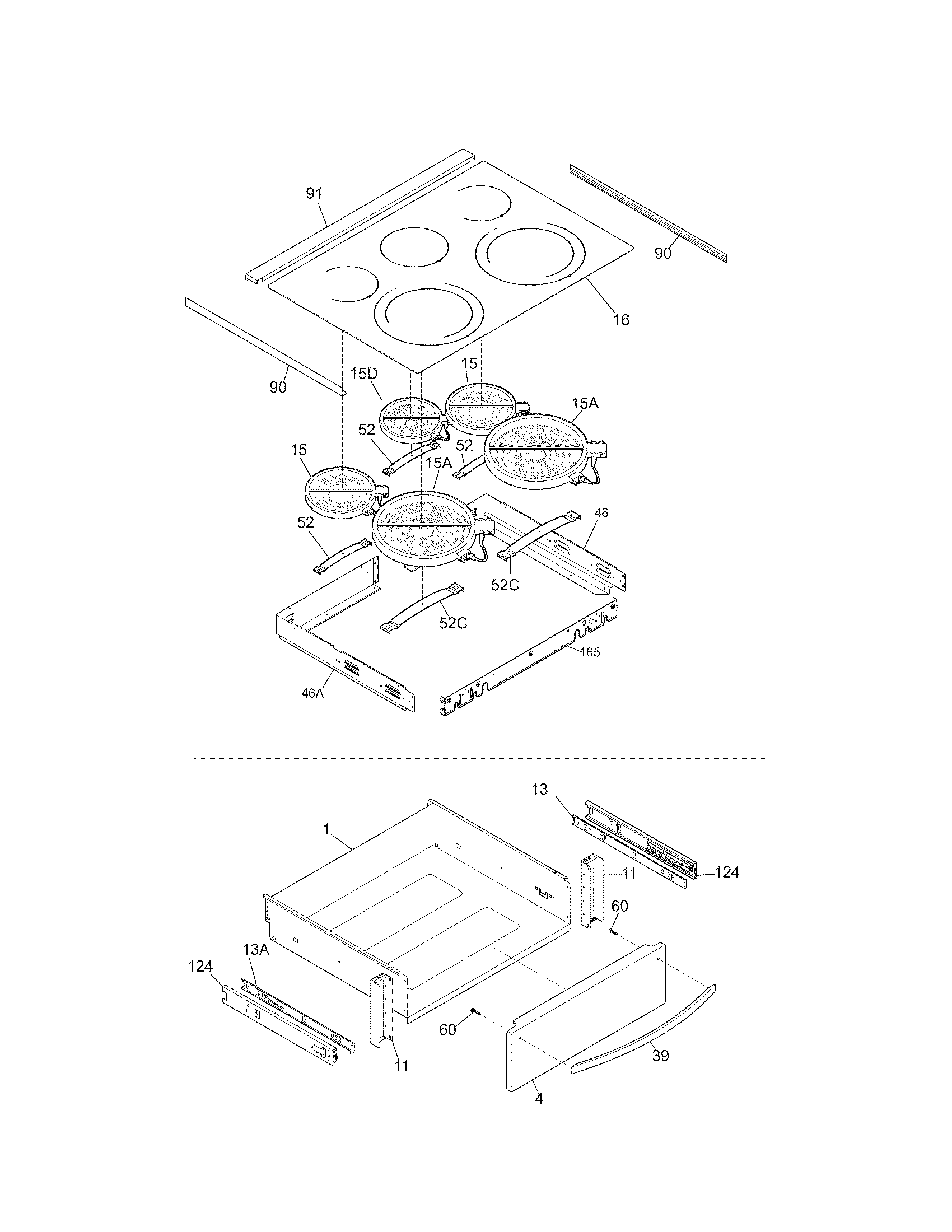

Top/drawer diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Body diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Range Oven Door Inner Glass 316117500
#8

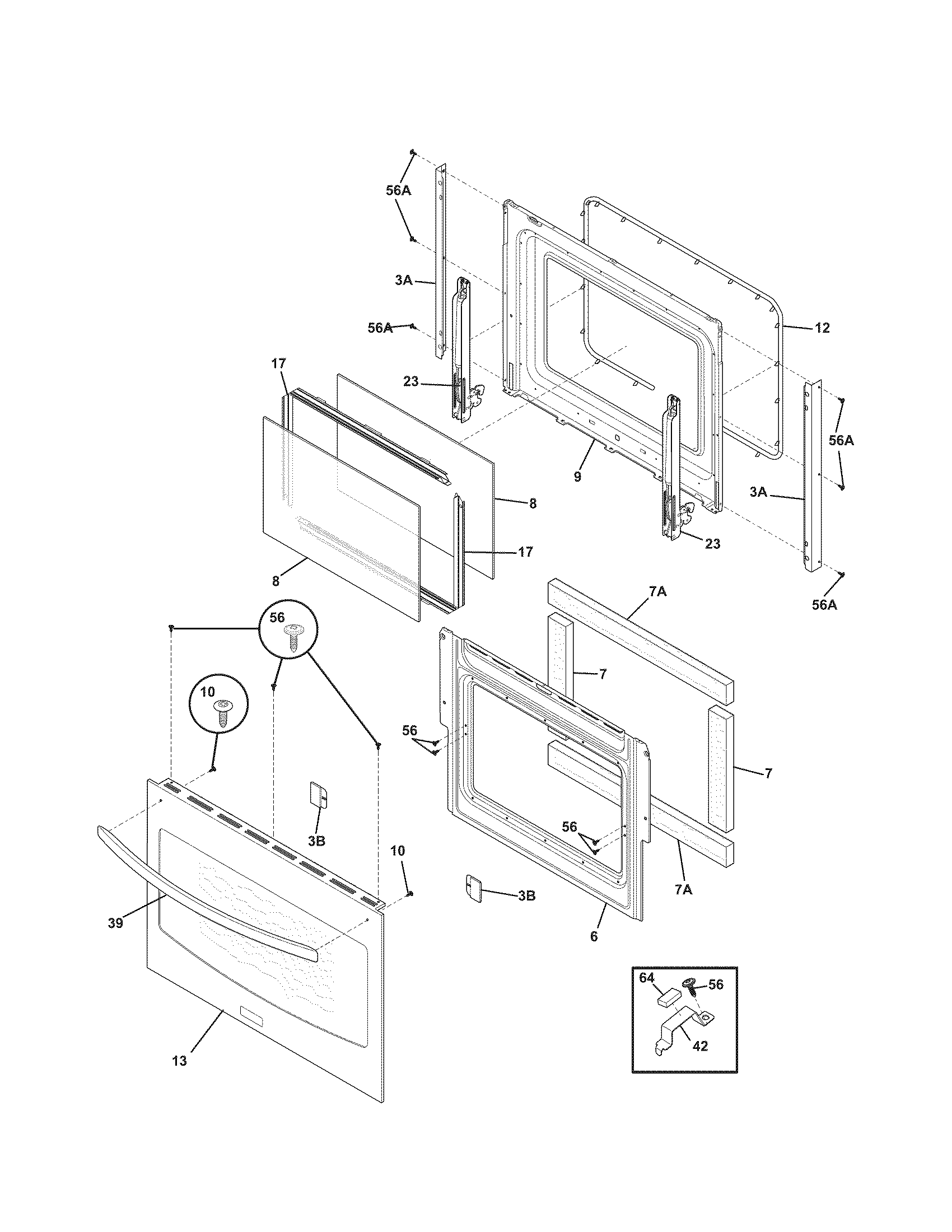

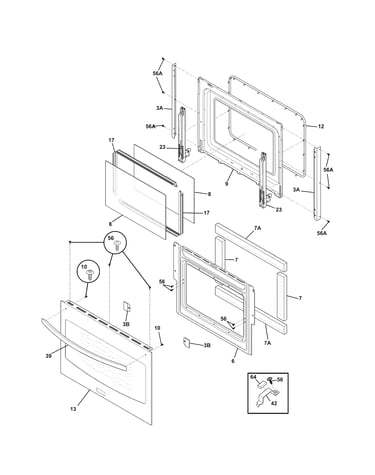

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Dual Radiant Surface Element 318198935
#15A

Top/drawer diagram

Range dual radiant surface element

Part #318198935

Replaced by #316282101

?
Manufacturer substitution
This part replaces 318198935. Substitute parts can look different from the original.
BEST SELLER
$163.94 |
7% OFF Phone Price : $175.94
In Stock
Oven Element 318255800
#66

Body diagram

Oven element

Part #318255800

Replaced by #318255807

?
Manufacturer substitution
This part replaces 318255800. Substitute parts can look different from the original.
BEST SELLER
$195.27 |
6% OFF Phone Price : $207.27
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Control Panel Gasket (replaces 318313211) 318313231
#99A

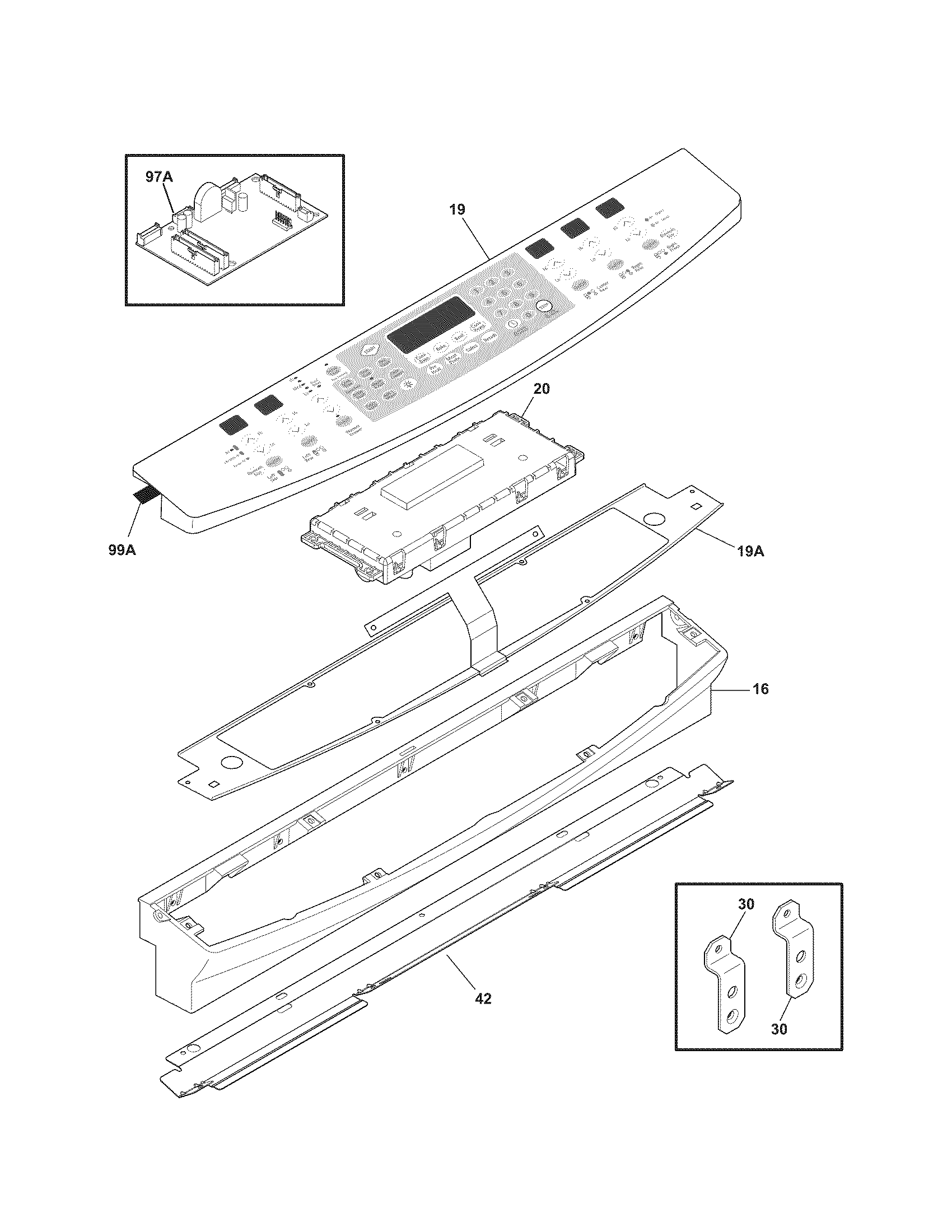

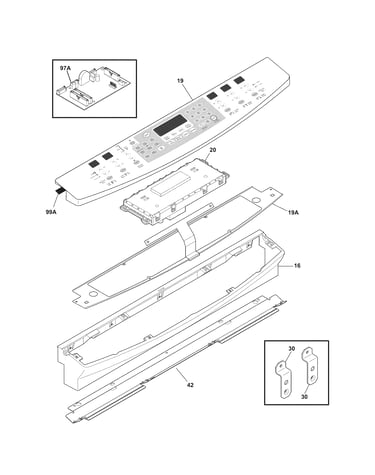

Backguard diagram

Range control panel gasket (replaces 318313211)

Part #318313231

$65.29 |
8% OFF Phone Price : $71.29
In Stock
Range Surface Unit Relay Control Board 316442112
#97A

Body diagram

Range surface unit relay control board

Part #316442112

This item is not returnable
$182.70 |
6% OFF Phone Price : $194.70
In Stock
