Amana
Countertop Microwave

Model # MWT4441D-P1119113M Official Amana microwave

Here are the diagrams and repair parts for Official Amana MWT4441D-P1119113M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Motor Capacitor R0711504
#2

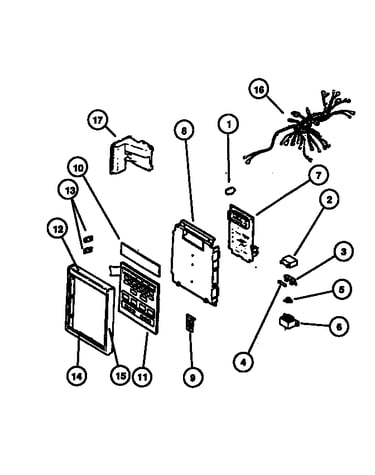

Control panel assy diagram

Motor capacitor

Part #R0711504

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate R0705961
#24

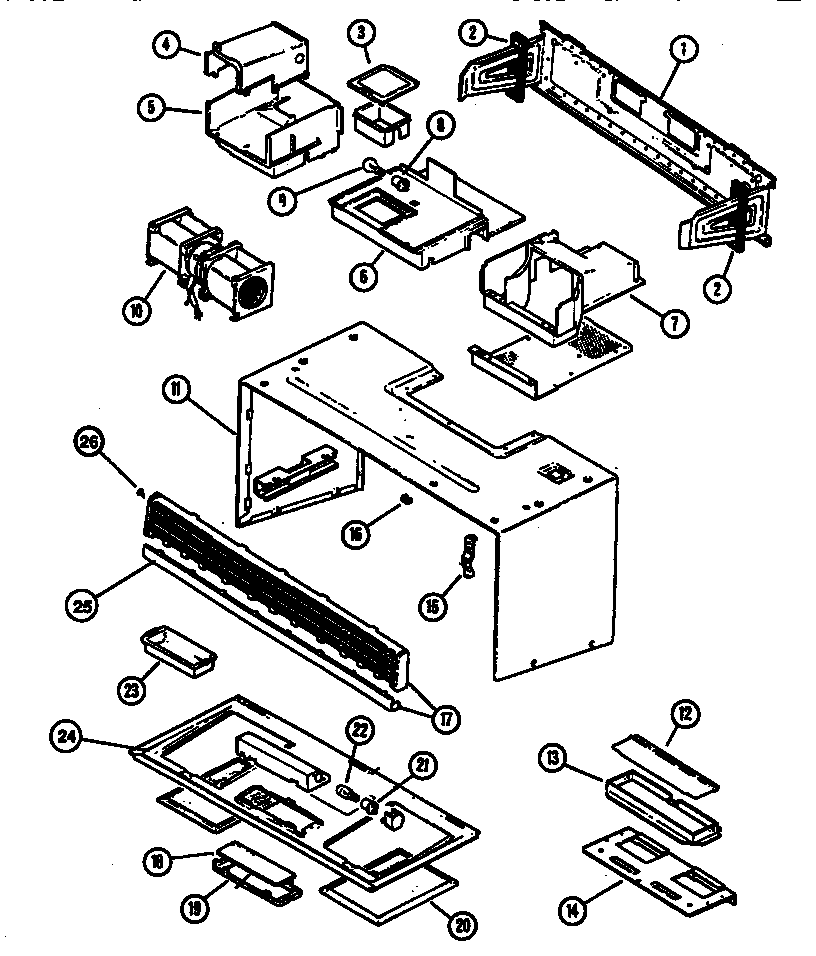

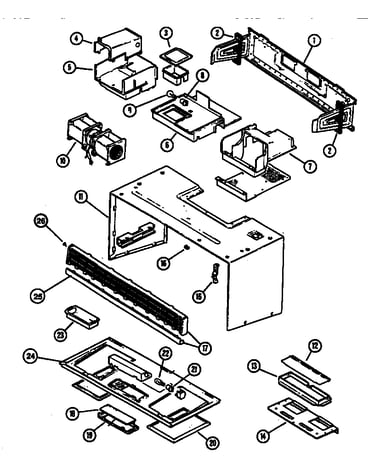

Cabinet assy diagram

Bottom plate

Part #R0705961

The manufacturer no longer makes this part, and there's no substitute part

Latch R0705882
#27

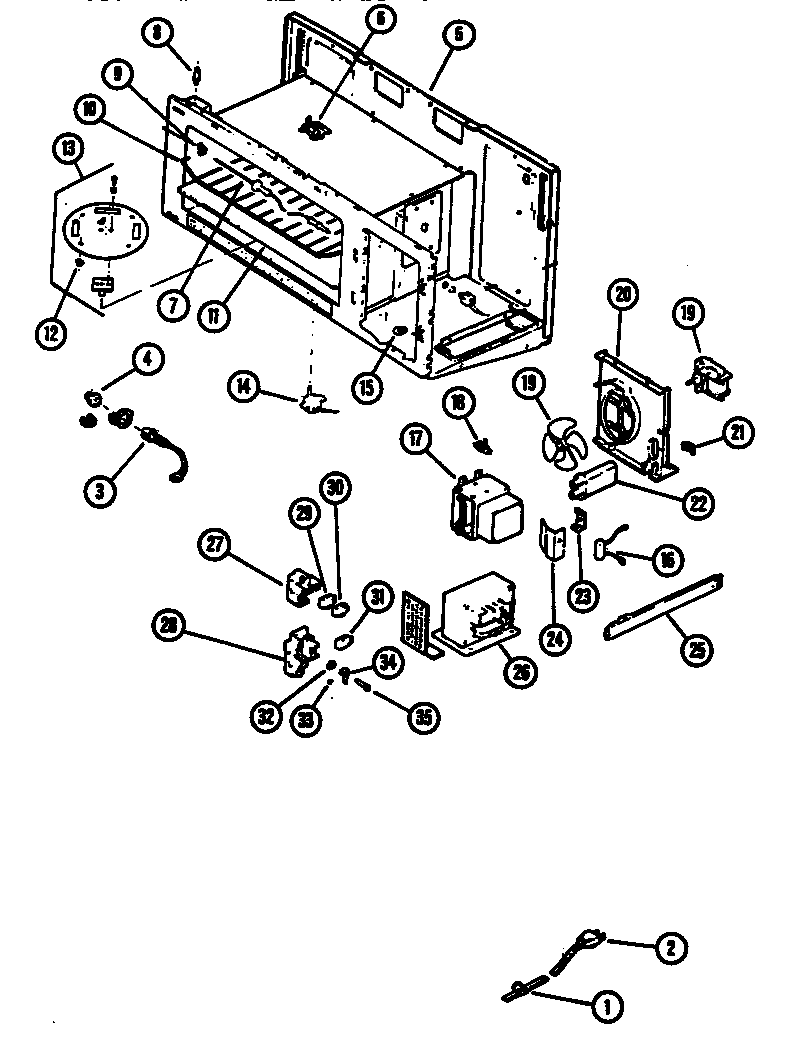

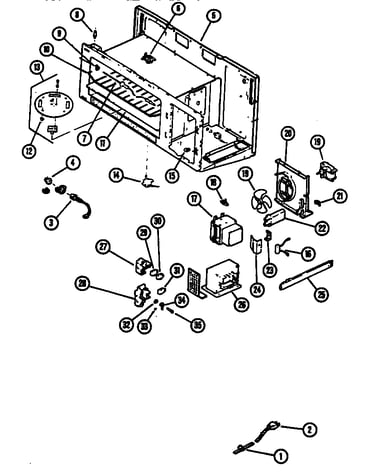

Cavity assy diagram

Latch

Part #R0705882

The manufacturer no longer makes this part, and there's no substitute part

H V Transformer R0710502
#26

Cavity assy diagram

H v transformer

Part #R0710502

The manufacturer no longer makes this part, and there's no substitute part

Handle R0705987
#12

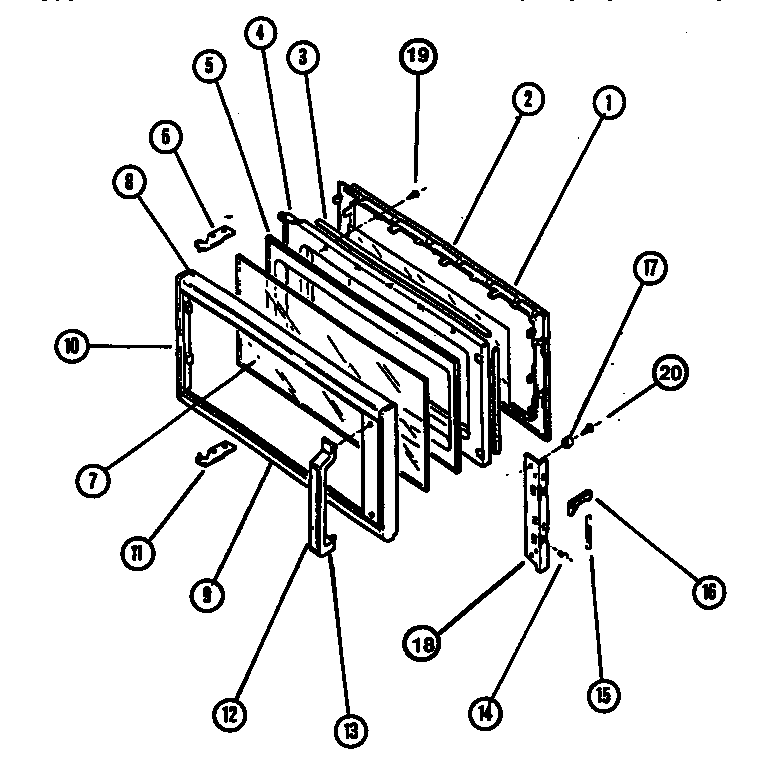

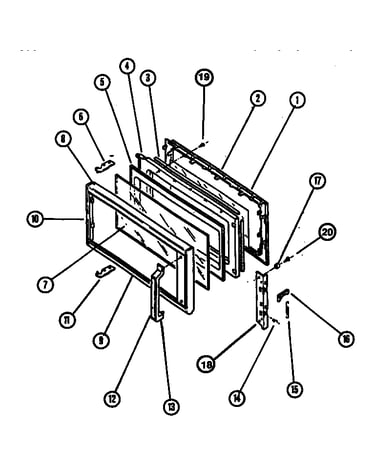

Door assy diagram

Handle

Part #R0705987

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15 Amp R0709507
#4

Control panel assy diagram

Fuse 15 amp

Part #R0709507

The manufacturer no longer makes this part, and there's no substitute part

Switch R0702546
#31

Cavity assy diagram

Switch

Part #R0702546

The manufacturer no longer makes this part, and there's no substitute part

Screw-grille Mtg Black R0700097
#26

Cabinet assy diagram

Screw-grille mtg black

Part #R0700097

The manufacturer no longer makes this part, and there's no substitute part

Bracket Control Box R0705948
#13

Control panel assy diagram

Bracket control box

Part #R0705948

The manufacturer no longer makes this part, and there's no substitute part

Door Switch R0702547
#29

Cavity assy diagram

Door switch

Part #R0702547

The manufacturer no longer makes this part, and there's no substitute part
