Model # AW11MT5N1 Official Frigidaire room air conditioner - lf34090170

Here are the diagrams and repair parts for Official Frigidaire AW11MT5N1 room air conditioner - lf34090170, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

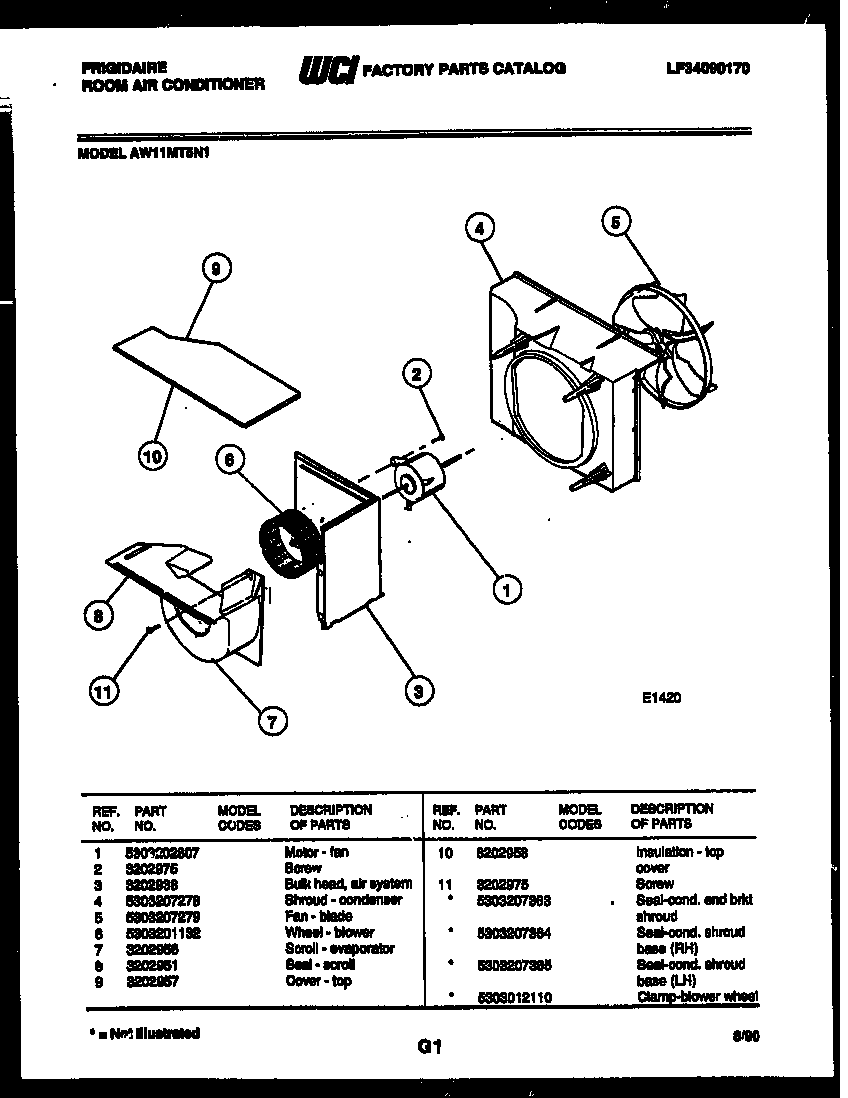

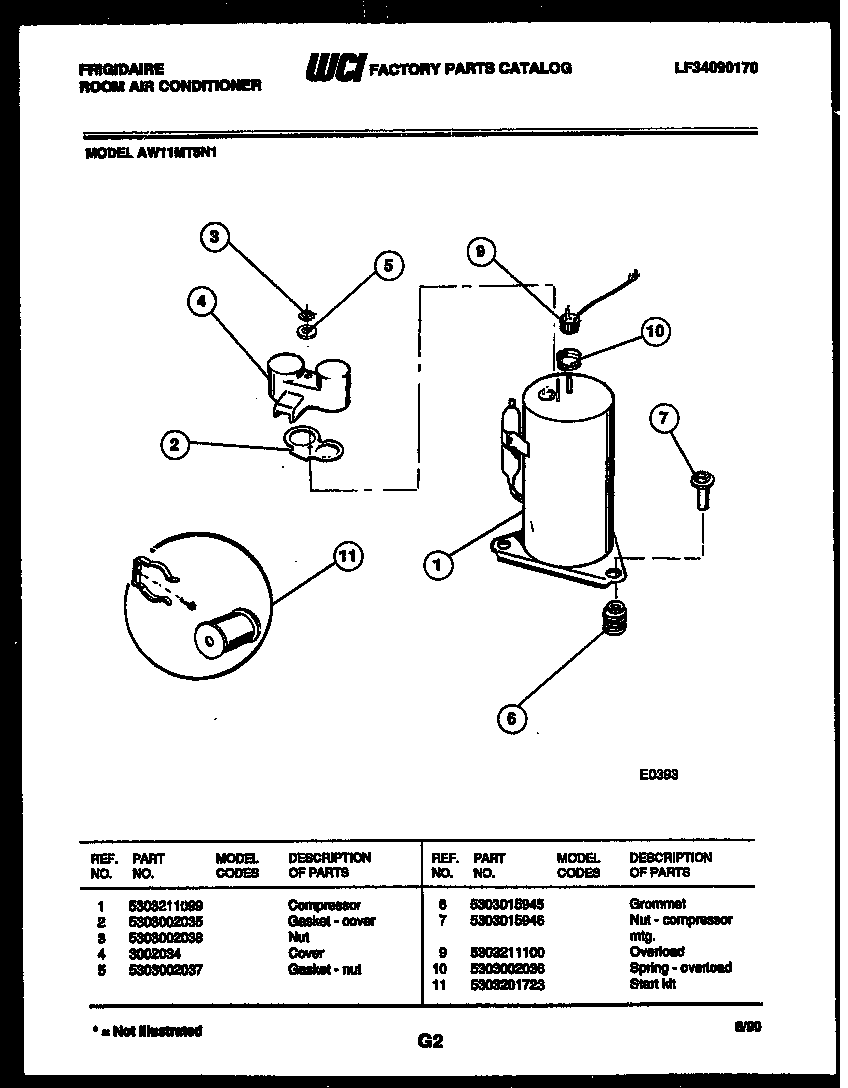

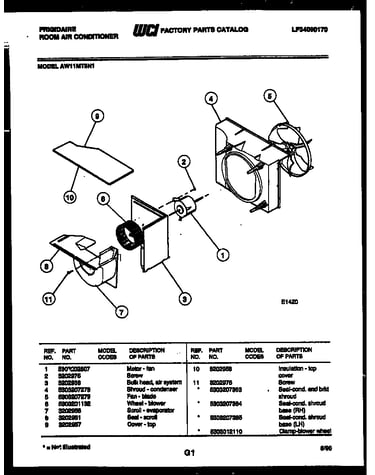

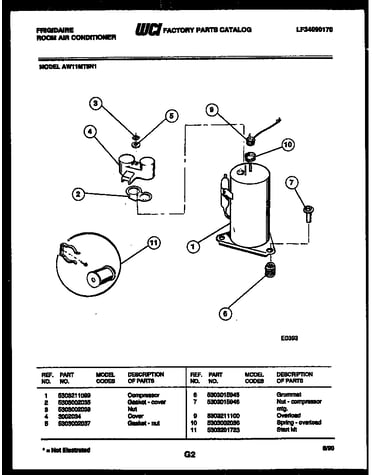

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Bracket Screw 3015312
#3

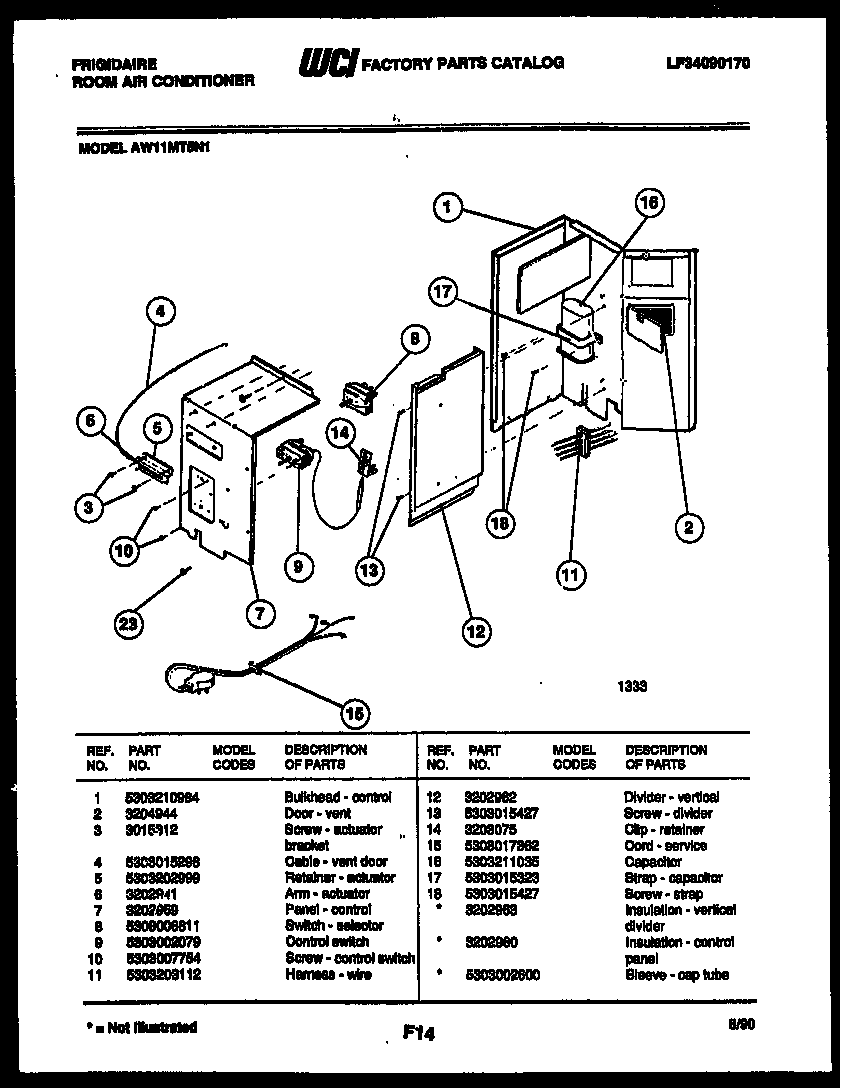

Electrical parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#5

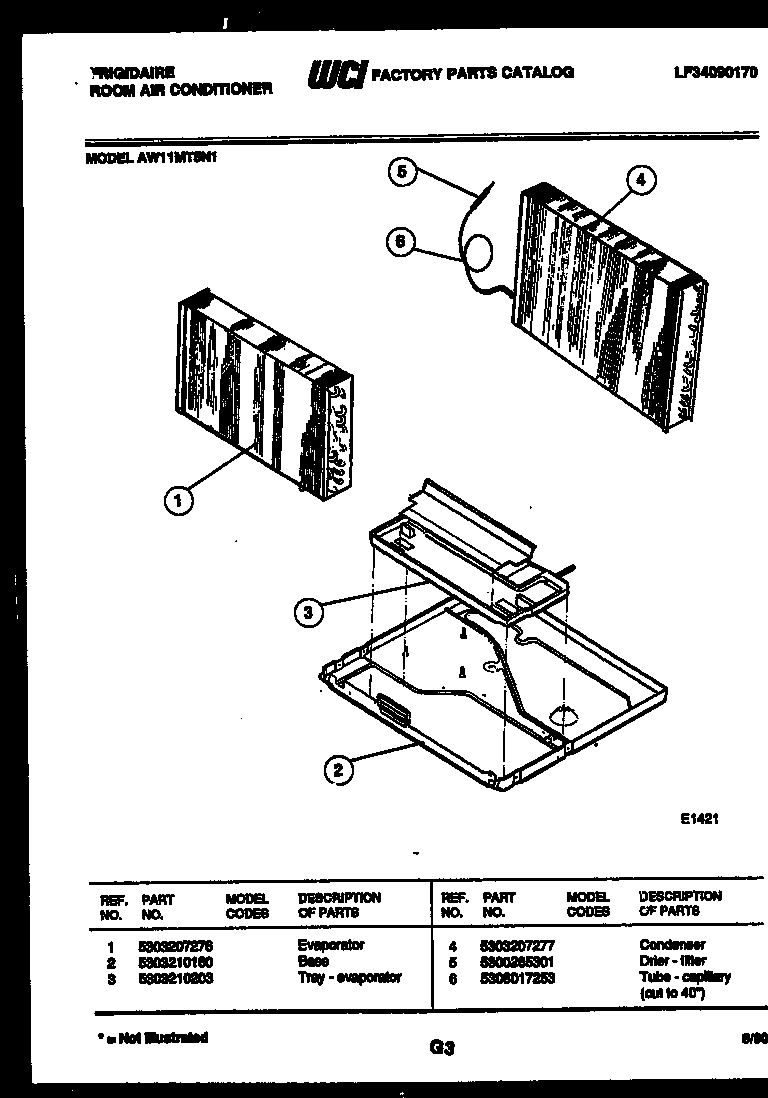

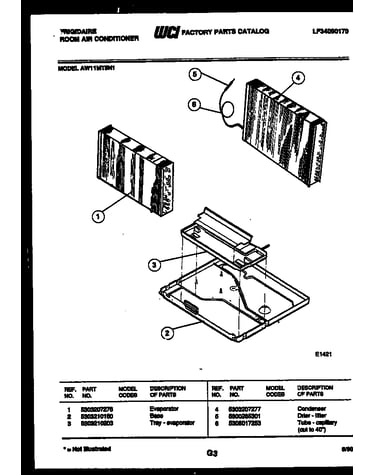

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
220v Cord 5308017362
#15

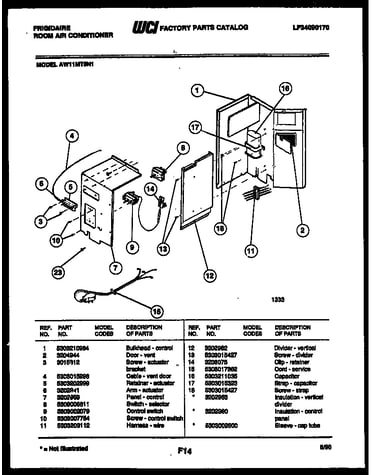

Electrical parts diagram

220v cord

Part #5308017362

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 5308017362. Substitute parts can look different from the original.
$49.98
In Stock
Louver 5303002458
#10

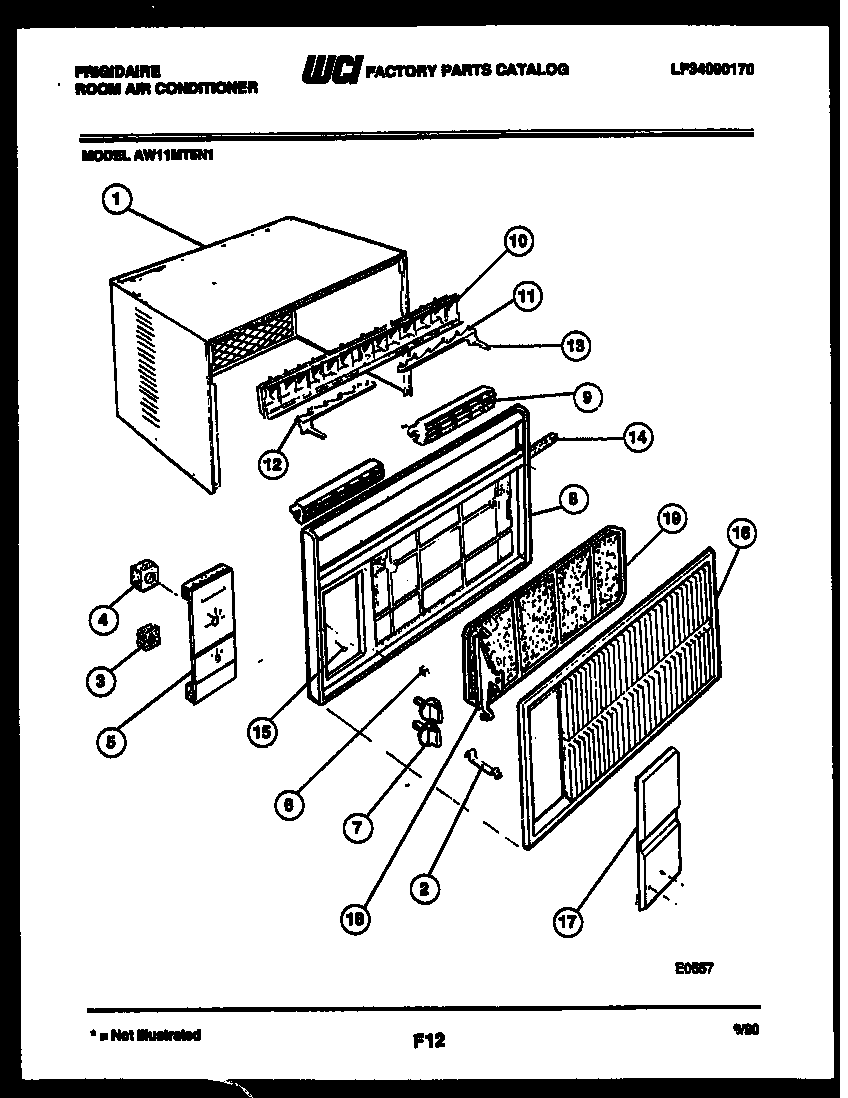

Cabinet parts diagram

Louver

Part #5303002458

The manufacturer no longer makes this part, and there's no substitute part

Track 5308017294
#18

Cabinet parts diagram

Track

Part #5308017294

The manufacturer no longer makes this part, and there's no substitute part

Clip 5308010914
#2

Cabinet parts diagram

Clip

Part #5308010914

The manufacturer no longer makes this part, and there's no substitute part

Frame - Horiz. Louver 5303017244
#9

Cabinet parts diagram

Frame - horiz. louver

Part #5303017244

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5303002600

#NI

All parts diagram

Sleeve

Part #5303002600

The manufacturer no longer makes this part, and there's no substitute part
