Model # RSD379 Official Caloric gas self-cleaning range with electric ignition - rsd model

Here are the diagrams and repair parts for Official Caloric RSD379 gas self-cleaning range with electric ignition - rsd model, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

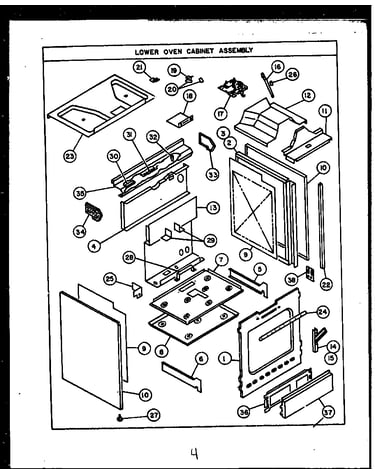

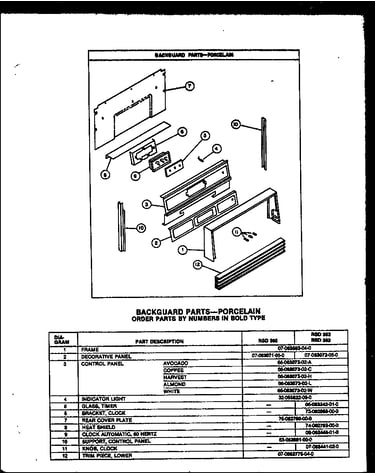

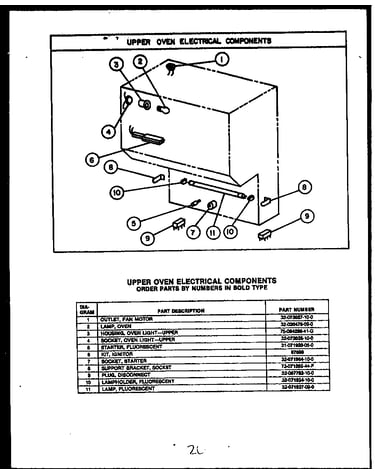

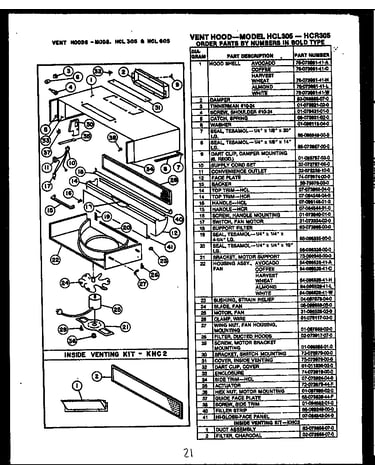

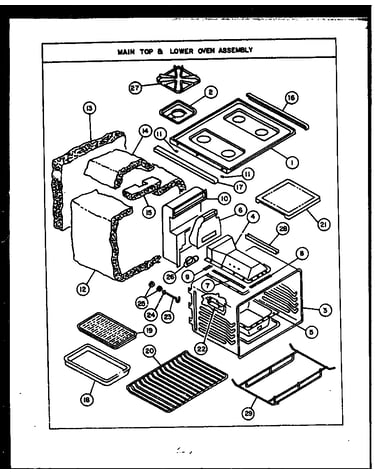

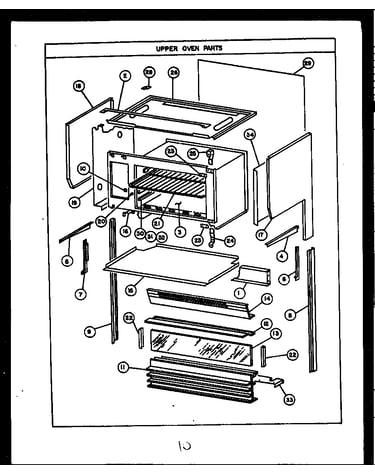

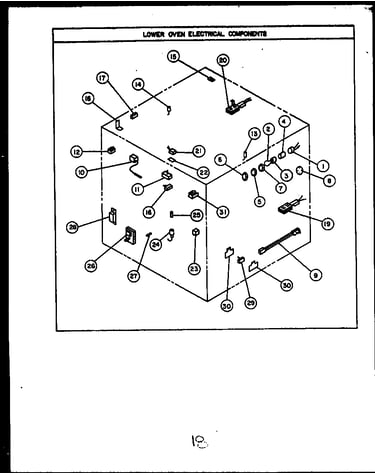

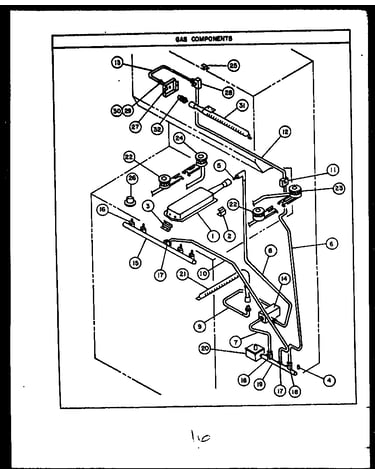

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 310 parts  |

Thermostat Knob 07-063100-02-0
#10

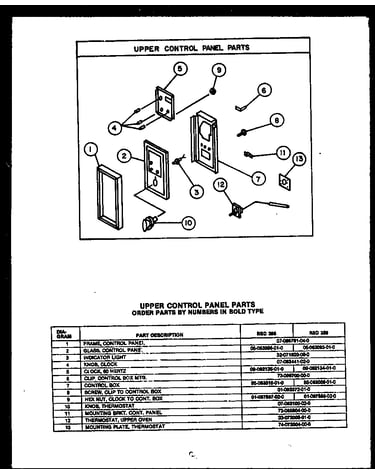

Upper control panel parts (rsd398) (rsd399) diagram

Thermostat knob

Part #07-063100-02-0

The manufacturer no longer makes this part, and there's no substitute part

Upper Oven Thermostat 33-072005-01-0
#12

Upper control panel parts (rsd398) (rsd399) diagram

Upper oven thermostat

Part #33-072005-01-0

The manufacturer no longer makes this part, and there's no substitute part

Screw, Clip To Control Box 01-092372-01-0
#8

Upper control panel parts (rsd398) (rsd399) diagram

Screw, clip to control box

Part #01-092372-01-0

The manufacturer no longer makes this part, and there's no substitute part

Wrapper, Storage Drawer (after Serial Number 5907737 Use 57-062814-41-S
#1

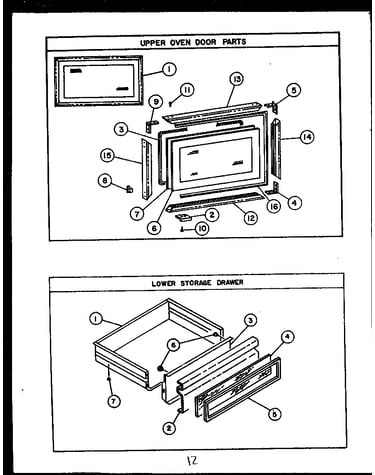

Lower storage drawer (rsd353) (rsd354) (rsd359) (rsd363) (rsd379) (rsd369) (rsd398) (rsd399) diagram

Wrapper, storage drawer (after serial number 5907737 use

Part #57-062814-41-S

The manufacturer no longer makes this part, and there's no substitute part

Frame 07-063804-04-0
#7

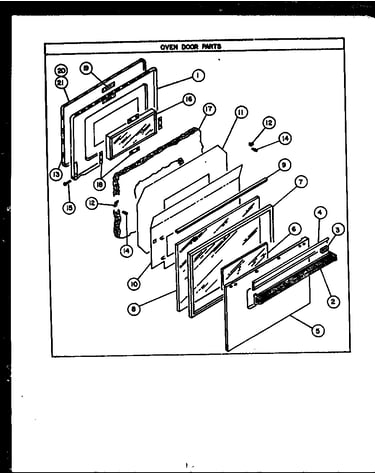

Oven door parts (rsd350) (rsd353) (rsd352) (rsd354) (rsd359) (rsd363) (rsd379) (rsd369) (rsd398) (rsd399) diagram

Frame

Part #07-063804-04-0

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer, Side 73-062876-00-0
Insulation retainer, side

Part #73-062876-00-0

The manufacturer no longer makes this part, and there's no substitute part

Insulator, Door Latch Switch 32-091523-14-0
Insulator, door latch switch

Part #32-091523-14-0

The manufacturer no longer makes this part, and there's no substitute part

Fluorescent, Lamp 32-067945-09-0
#13

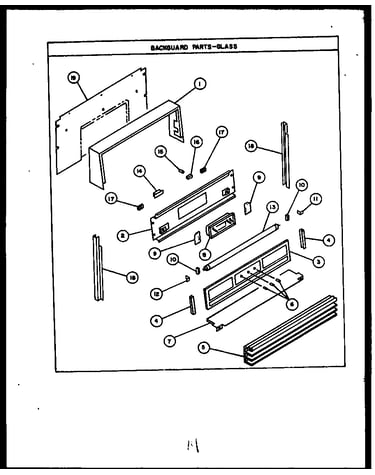

Backguard parts-glass (rsd354) (rsd359) (rsd363) (rsd379) (rsd369) diagram

Fluorescent, lamp

Part #32-067945-09-0

The manufacturer no longer makes this part, and there's no substitute part

Oven Bottom 83-062891-07-0
Oven bottom

Part #83-062891-07-0

The manufacturer no longer makes this part, and there's no substitute part

Drawer Panel, White 57-063702-41-W
#2F

Lower storage drawer (rsd353) (rsd354) (rsd359) (rsd363) (rsd379) (rsd369) (rsd398) (rsd399) diagram

Drawer panel, white

Part #57-063702-41-W

The manufacturer no longer makes this part, and there's no substitute part
