GE
Electric Range

Model # JBP22G*R2 Official GE 30" range upgrade

Here are the diagrams and repair parts for Official GE JBP22GR2 30" range upgrade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Range Oven Light Bulb WX12X1510

#1024

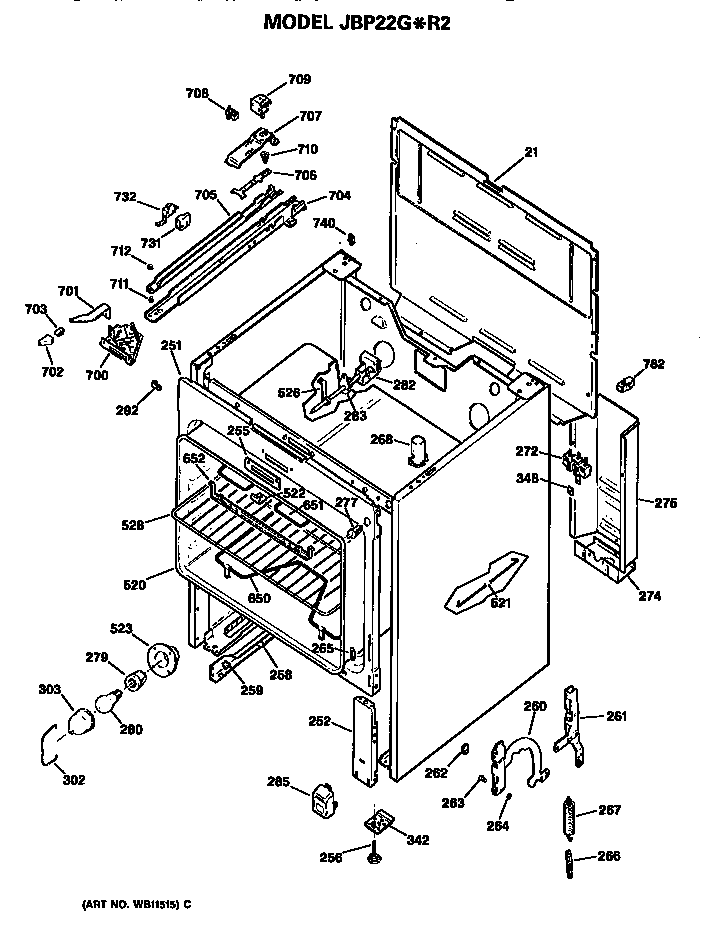

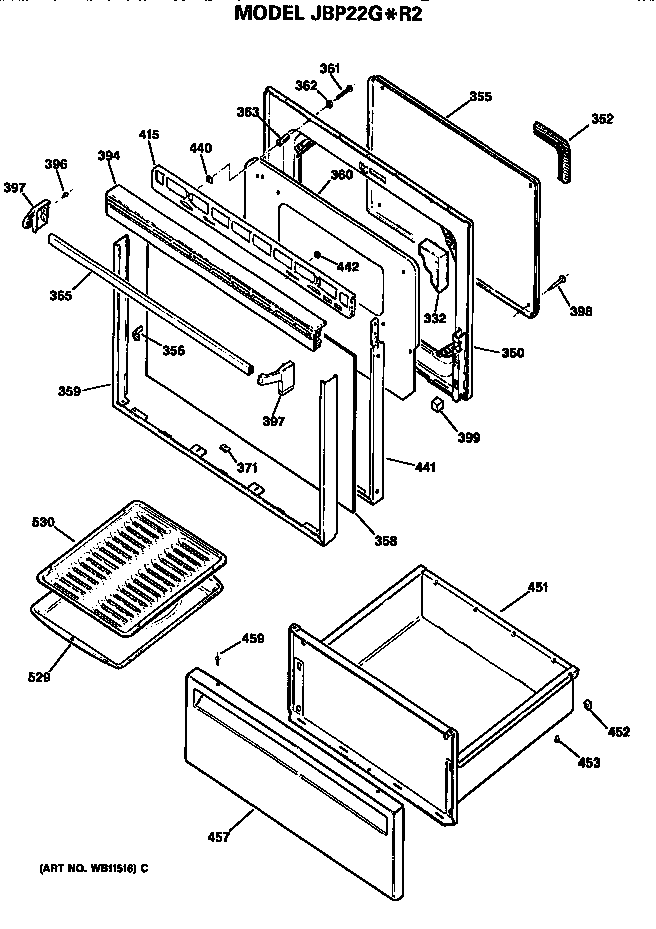

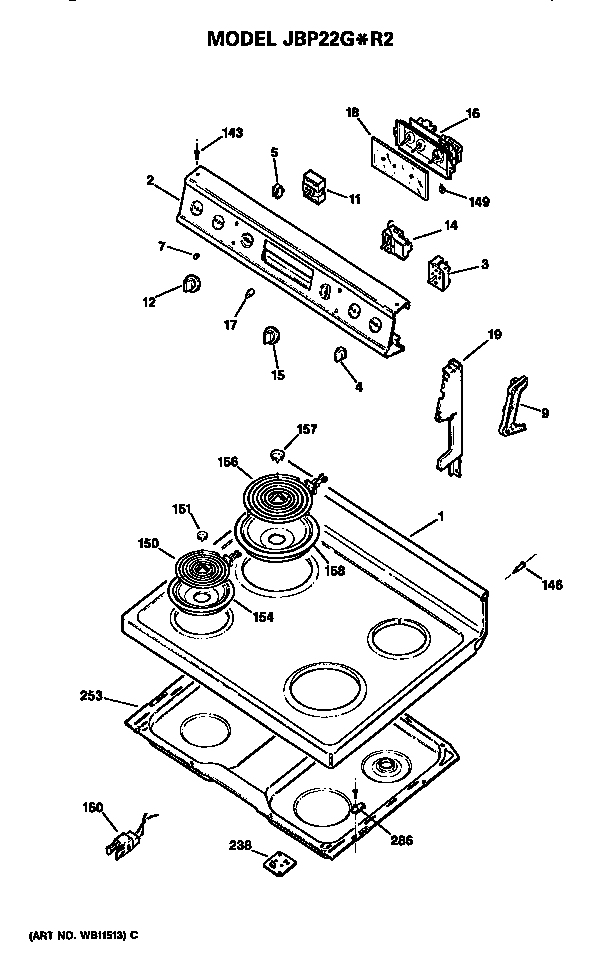

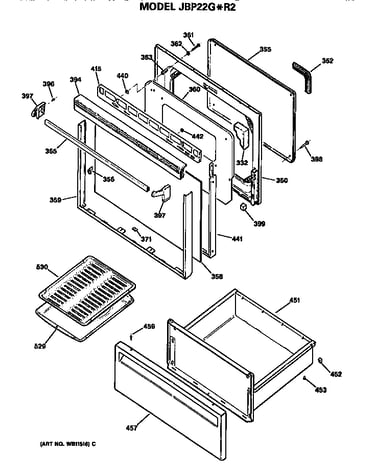

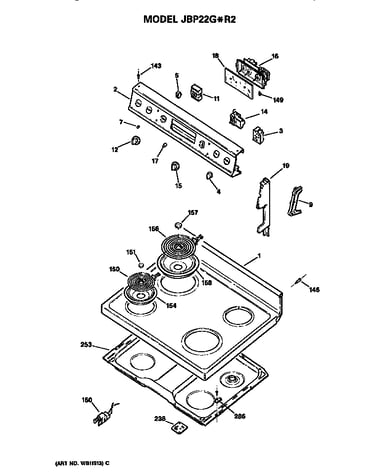

All parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Element Control Switch WB21X5243

#3

All parts diagram

Range surface element control switch

Part #WB21X5243

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB21X5243. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082

#650

All parts diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$47.68 |
11% OFF Phone Price : $53.68
In Stock
8" Surf Elem WB30M0002

#57

All parts diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Range Drip Pan WB32X5076

#158

All parts diagram

Range drip pan

Part #WB32X5076

Replaced by #WB31K10266

?
Manufacturer substitution
This part replaces WB32X5076. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Drip Pan WB32X5075

#154

All parts diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Receptacle WB8X5095

#279

All parts diagram

Receptacle

Part #WB8X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB8X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Unit WB44X185

#651

All parts diagram

Broil unit

Part #WB44X185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Lamp Cover WB36X389

#259

All parts diagram

Lamp cover

Part #WB36X389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Surface Element Receptacle (replaces Wb02x7618, Wb17x5094, Wb2x7618) WB17X5113

#160

All parts diagram

Range surface element receptacle (replaces wb02x7618, wb17x5094, wb2x7618)

Part #WB17X5113

This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
