Model # 69660851 Official Sears 12 x 19' lawn building

Here are the diagrams and repair parts for Official Sears 69660851 12 x 19' lawn building, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

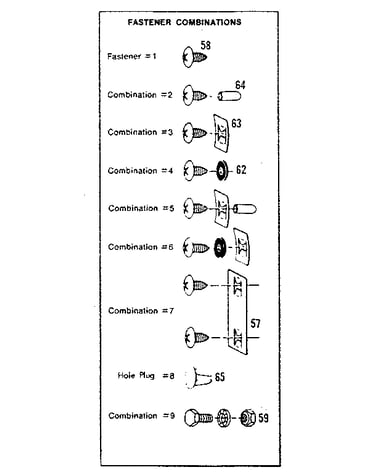

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Screw 671400-000

#58

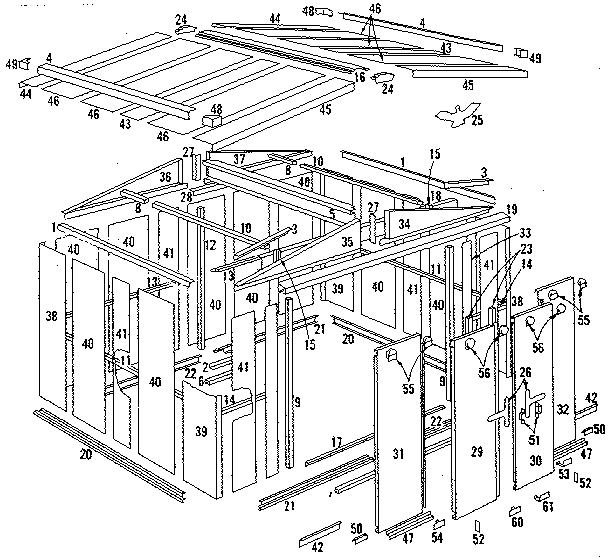

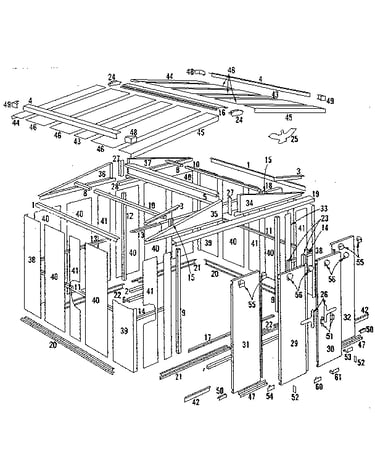

All parts diagram

Screw

Part #671400-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 671402-000

#58A

All parts diagram

Screw

Part #671402-000

The manufacturer no longer makes this part, and there's no substitute part

Rollar 671426-000

#55

All parts diagram

Rollar

Part #671426-000

The manufacturer no longer makes this part, and there's no substitute part

Stiffener 511485-000

#23

All parts diagram

Stiffener

Part #511485-000

The manufacturer no longer makes this part, and there's no substitute part

Belt Nut 671829-000

#59

All parts diagram

Belt nut

Part #671829-000

The manufacturer no longer makes this part, and there's no substitute part

Brace 511345-399

#12

All parts diagram

Brace

Part #511345-399

The manufacturer no longer makes this part, and there's no substitute part

Cap 521716-398

#16

All parts diagram

Cap

Part #521716-398

The manufacturer no longer makes this part, and there's no substitute part

Cap 311412-398

#49

All parts diagram

Cap

Part #311412-398

The manufacturer no longer makes this part, and there's no substitute part

Gable 521268-398

#34

All parts diagram

Gable

Part #521268-398

The manufacturer no longer makes this part, and there's no substitute part

Door 511663-564

#29

All parts diagram

Door

Part #511663-564

The manufacturer no longer makes this part, and there's no substitute part
