Model # REG438QME0 Official Frigidaire electric range - lf32087030

Here are the diagrams and repair parts for Official Frigidaire REG438QME0 electric range - lf32087030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

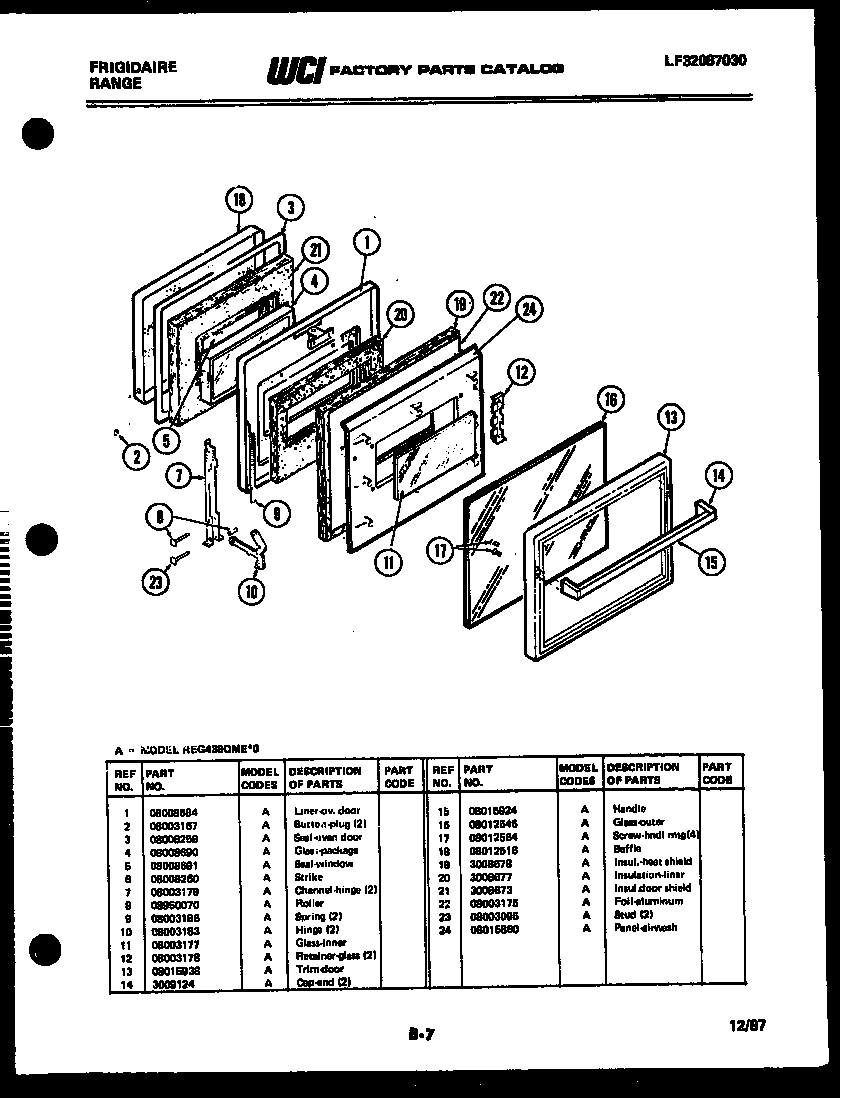

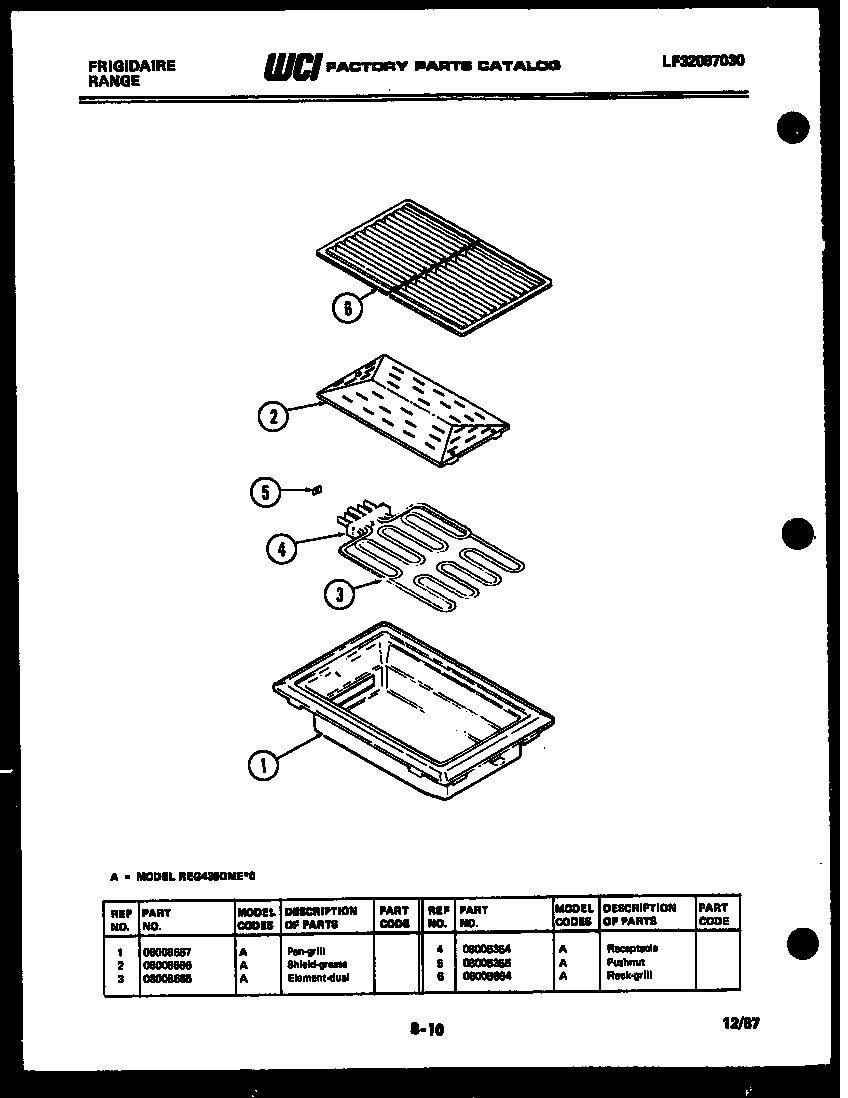

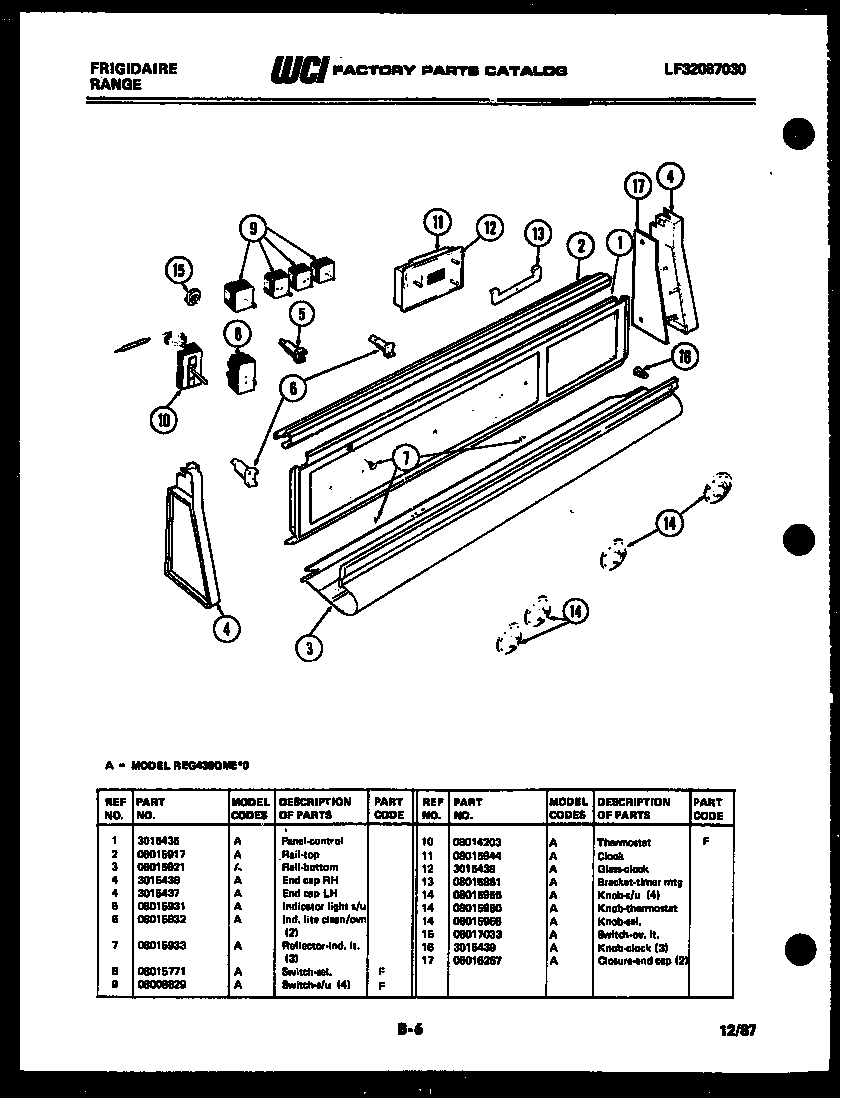

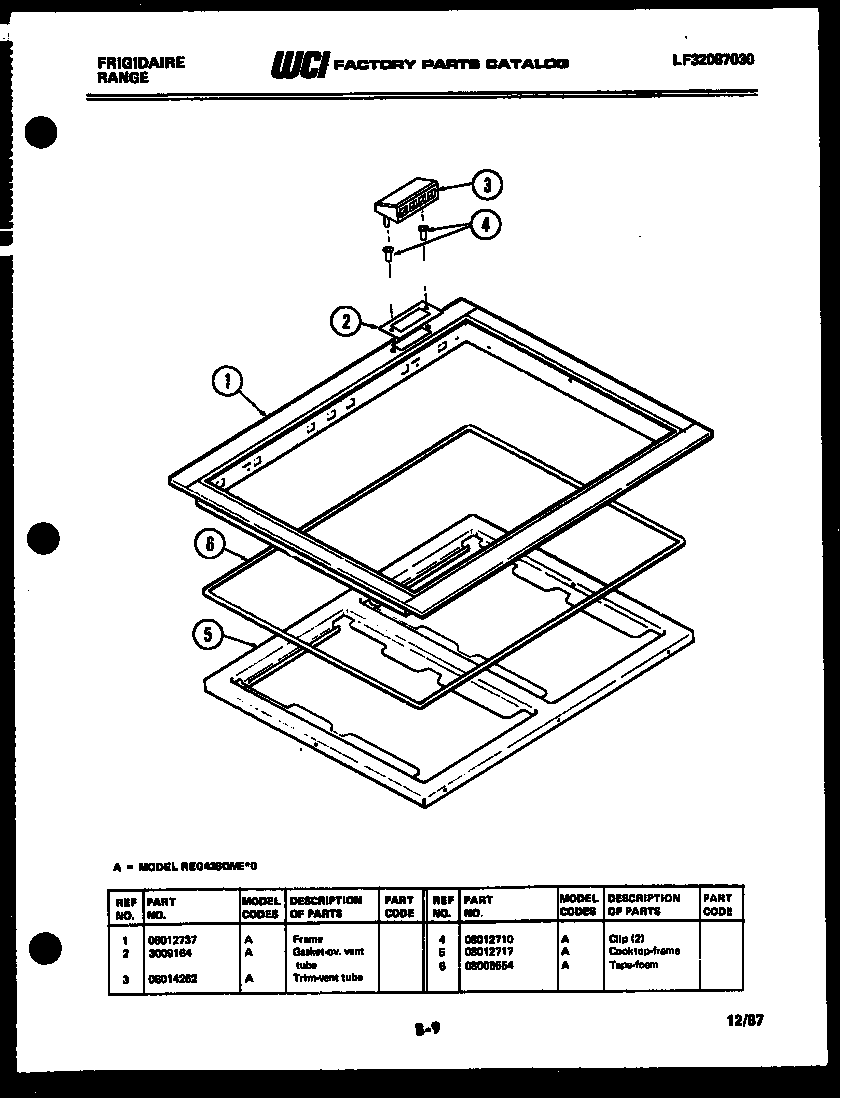

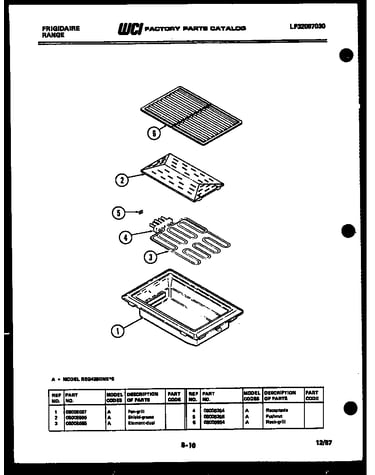

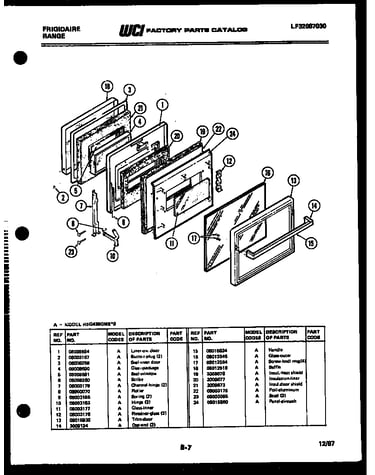

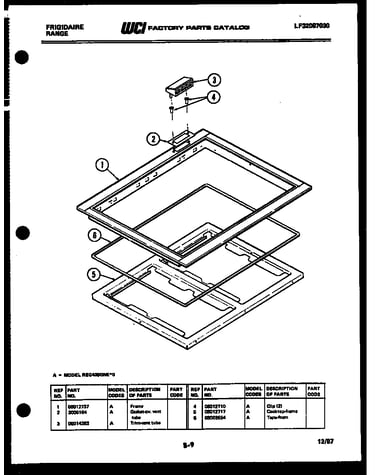

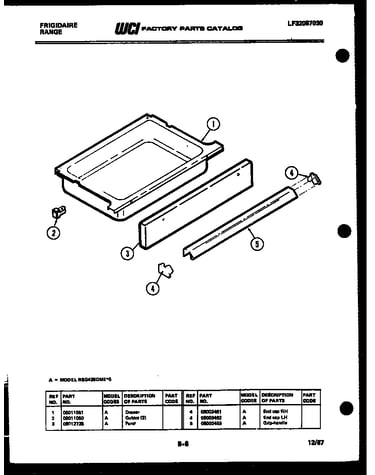

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Surface Element 08003118
#10

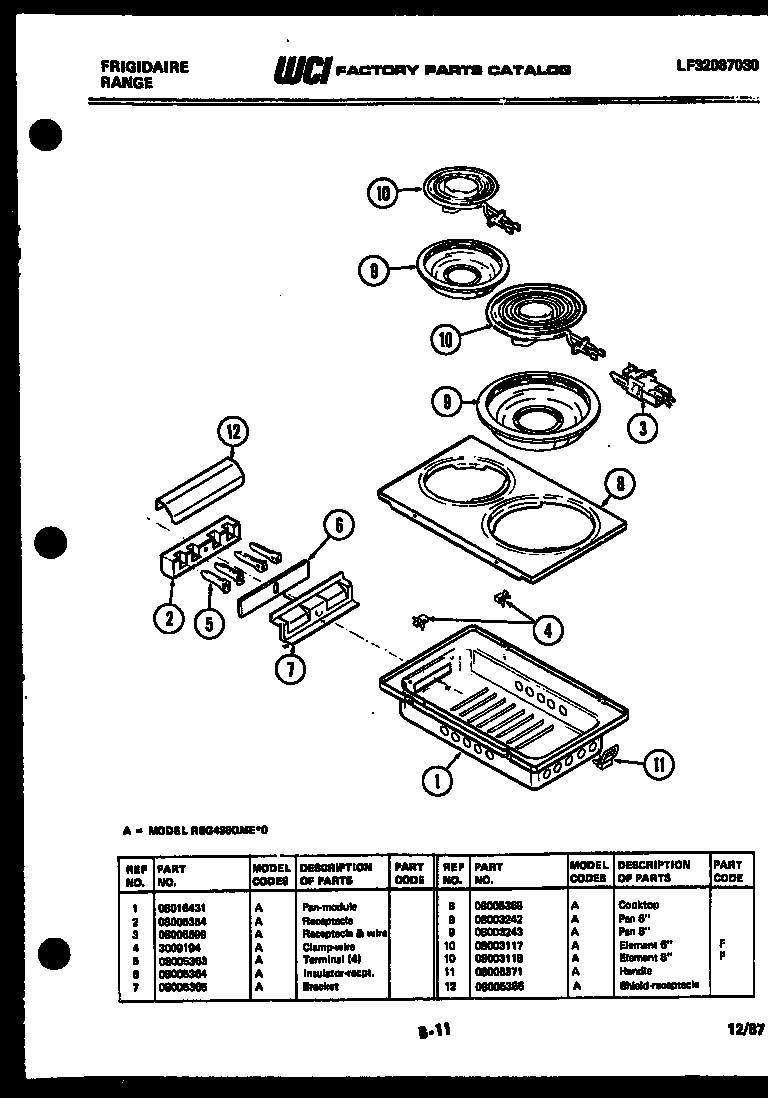

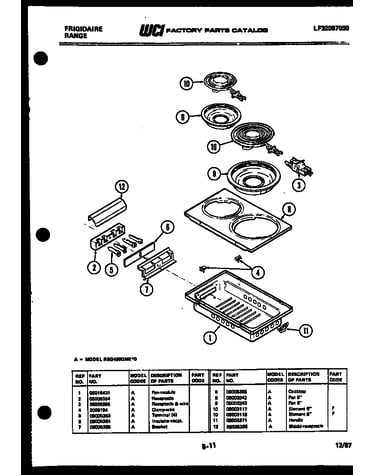

Cooktop parts diagram

Surface element

Part #08003118

Replaced by #316442301

?
Manufacturer substitution
This part replaces 08003118. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Terminal Block 08008699
#3

Cooktop parts diagram

Terminal block

Part #08008699

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 08008699. Substitute parts can look different from the original.
BEST SELLER
$8.19 |
11% OFF Phone Price : $9.19
In Stock
Surface Pan 08003243
#9

Cooktop parts diagram

Surface pan

Part #08003243

Replaced by #316048413

?
Manufacturer substitution
This part replaces 08003243. Substitute parts can look different from the original.
BEST SELLER
$7.52 |
12% OFF Phone Price : $8.52
In Stock
Surface Pan 08003242
#9

Cooktop parts diagram

Surface pan

Part #08003242

Replaced by #316048414

?
Manufacturer substitution
This part replaces 08003242. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Surface Unit 08003117
#10

Cooktop parts diagram

Surface unit

Part #08003117

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08003117. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Bake Element 08002858
#55

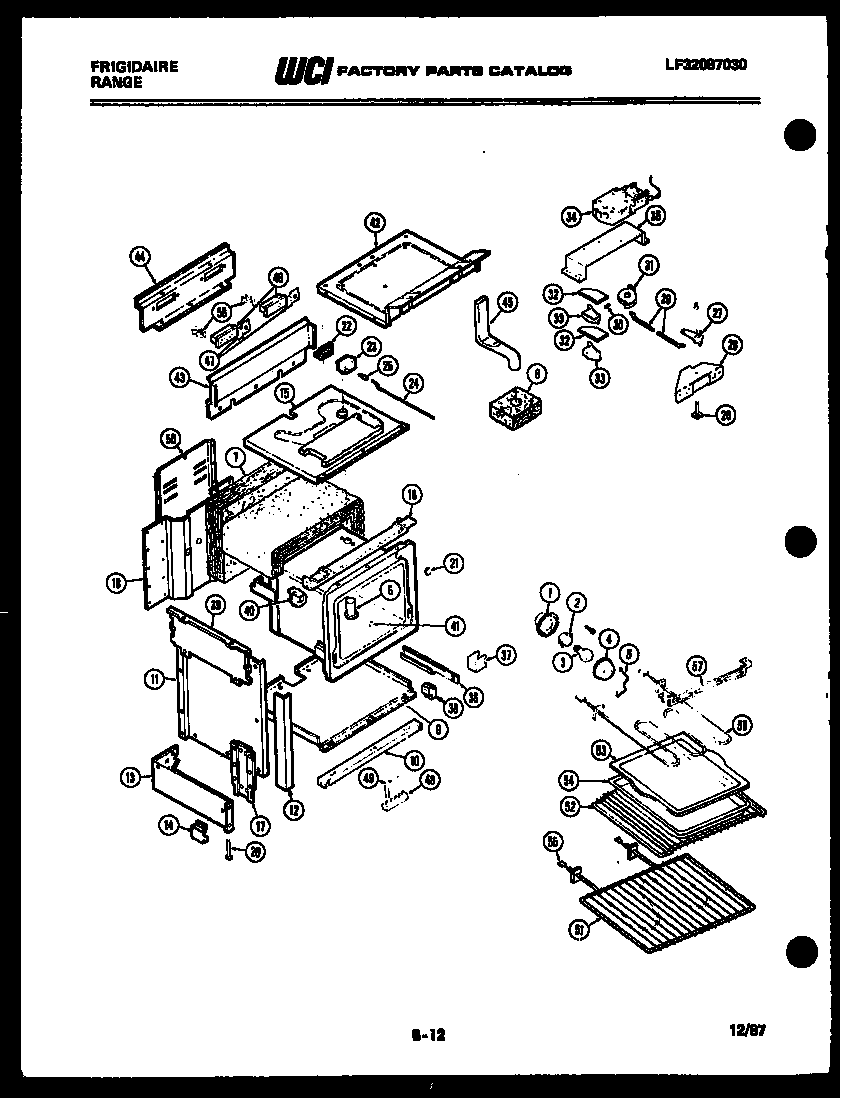

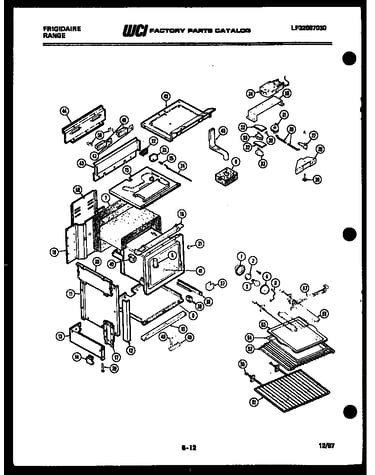

Body parts diagram
