Caloric
Electric Range

Model # EBE24CB0-P1142408NW Official Caloric electric freestanding range

Here are the diagrams and repair parts for Official Caloric EBE24CB0-P1142408NW electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Kit, Top Ele 0089336
#4

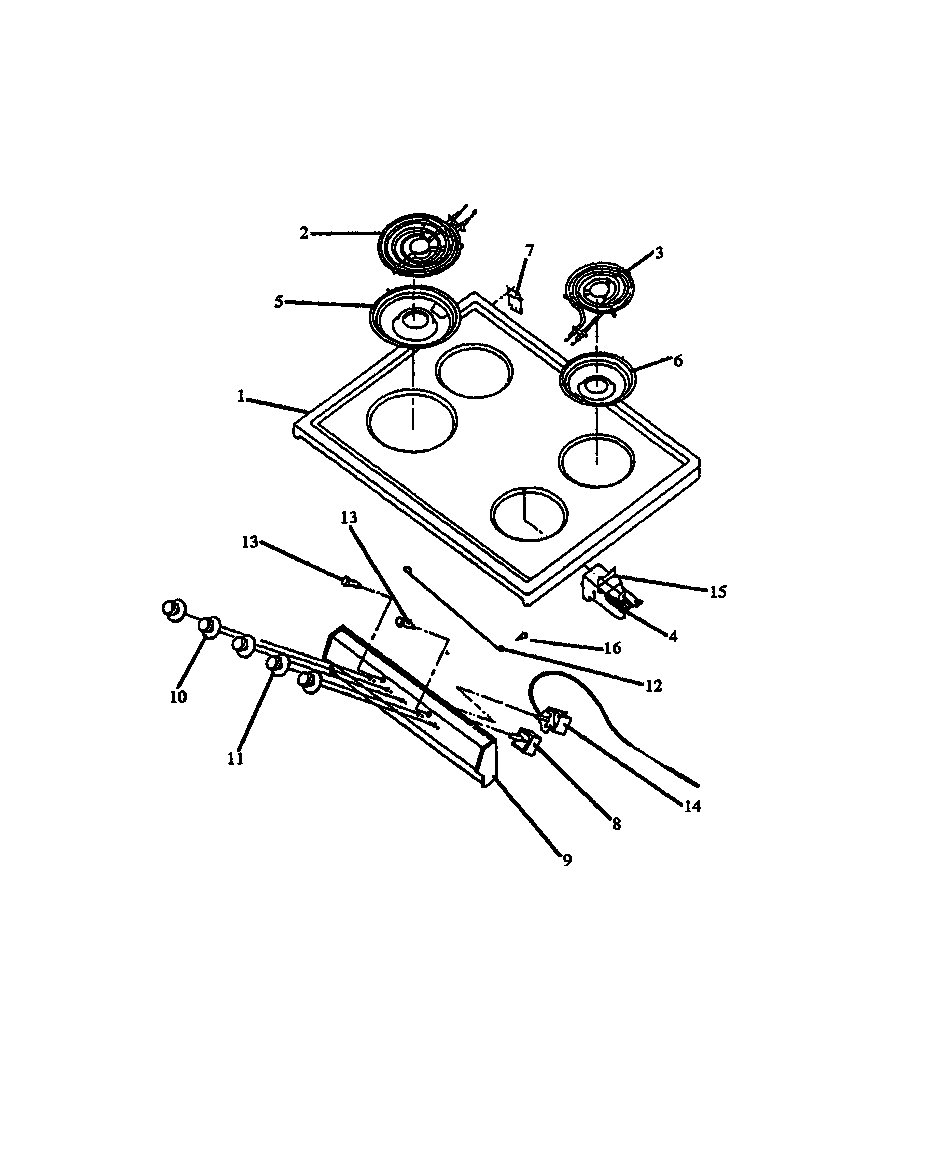

Page 3 diagram

Kit, top ele

Part #0089336

Replaced by #330031

?
Manufacturer substitution
This part replaces 0089336. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Burner Bowl 0042142
#5

Page 3 diagram

Burner bowl

Part #0042142

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 0042142. Substitute parts can look different from the original.
BEST SELLER
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Pan Screw 0310611
#12A

Page 5 diagram

Pan screw

Part #0310611

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 0310611. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Element, 4 T 0051582
#2

Page 3 diagram

Element, 4 t

Part #0051582

Replaced by #WPY04000035

?
Manufacturer substitution
This part replaces 0051582. Substitute parts can look different from the original.
$65.19 |
8% OFF Phone Price : $71.19
In Stock
Terminal Block 0088776
#21

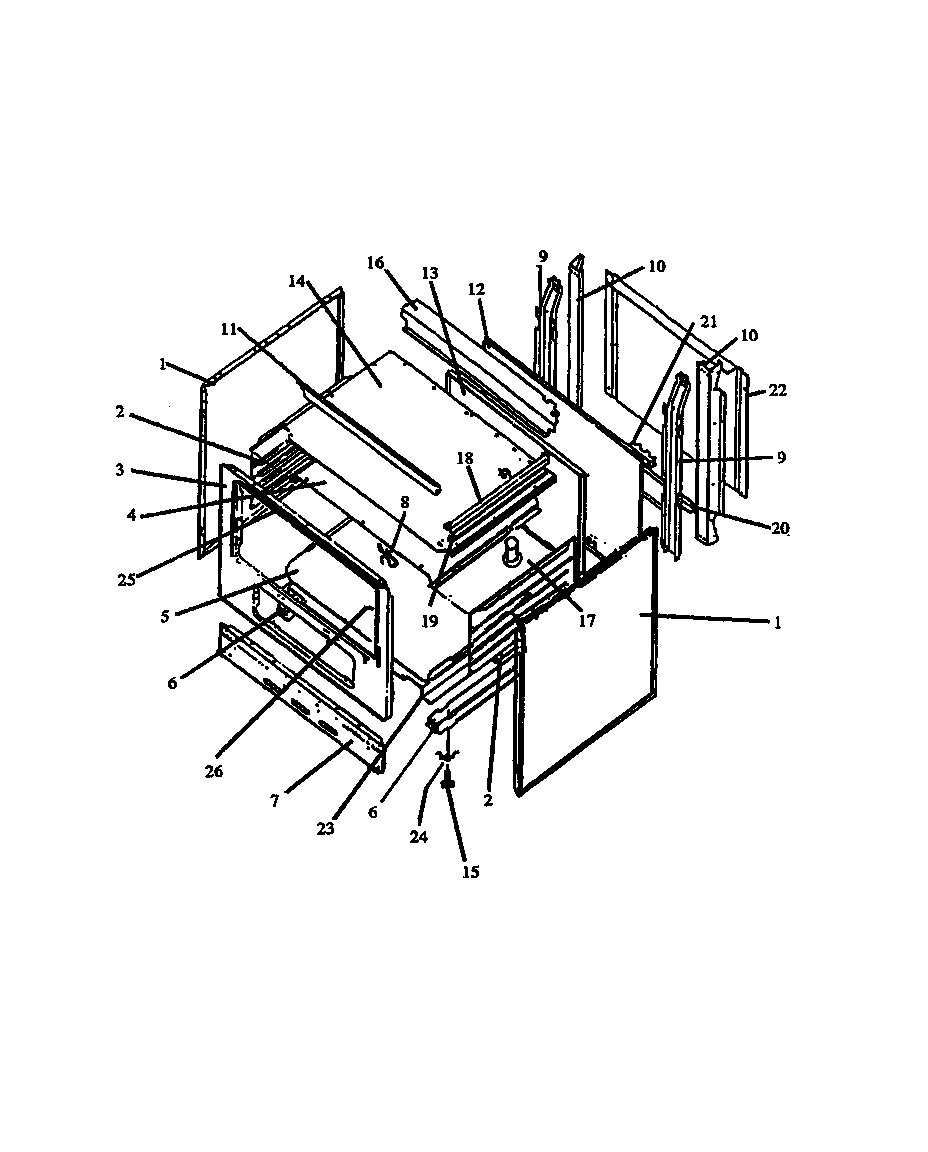

Page 1 diagram

Terminal block

Part #0088776

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 0088776. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Oven Broiler Griddle 87723CG
#2

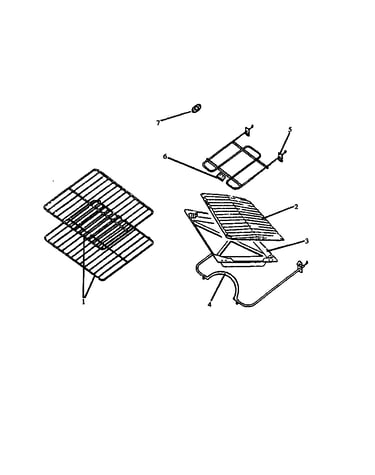

Page 2 diagram

Oven broiler griddle

Part #87723CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 87723CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Oven Broiler Pan 87722CG
#3

Page 2 diagram

Oven broiler pan

Part #87722CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 87722CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw 0086727
#5

Page 5 diagram

Screw

Part #0086727

Replaced by #WP8281236

?
Manufacturer substitution
This part replaces 0086727. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Screw, #10-1 0310803
Screw, #10-1

Part #0310803

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 0310803. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Burner Knob 0310526
#10

Page 3 diagram

Burner knob

Part #0310526

Replaced by #WPY0310526

?
Manufacturer substitution
This part replaces 0310526. Substitute parts can look different from the original.
$25.29 |
19% OFF Phone Price : $31.29
In Stock
