Whirlpool
Chest Freezer

Model # EH150FXEN04 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool EH150FXEN04 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Drier Tube 4356675
#4

Unit diagram

Drier tube

Part #4356675

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356675. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Run Capacitor 4356601
#8

Unit diagram

Run capacitor

Part #4356601

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 4356601. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Compressor 4356660
#1

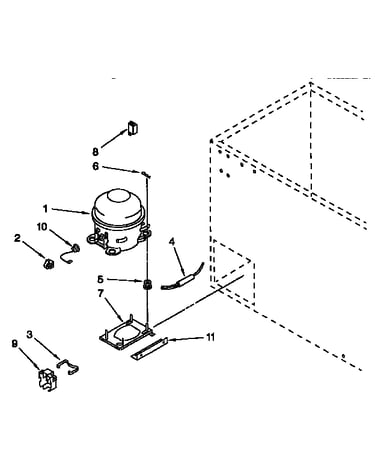

Unit diagram

Compressor

Part #4356660

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 4356660. Substitute parts can look different from the original.
BEST SELLER
$317.27 |
6% OFF Was : $338.61
In Stock
Door Gasket 4356537
#13

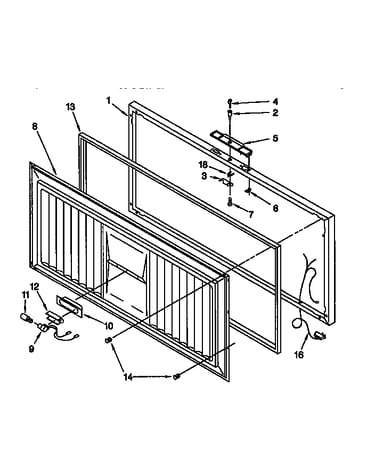

Door diagram

Door gasket

Part #4356537

Replaced by #WP4-35260-005

?
Manufacturer substitution
This part replaces 4356537. Substitute parts can look different from the original.
$124.66 |
9% OFF Phone Price : $136.66
In Stock
Touch Up 72107

#NI

All parts diagram

Touch up

Part #72107

Replaced by #WP72107

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
This item is not returnable
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Screw 4356491
#16

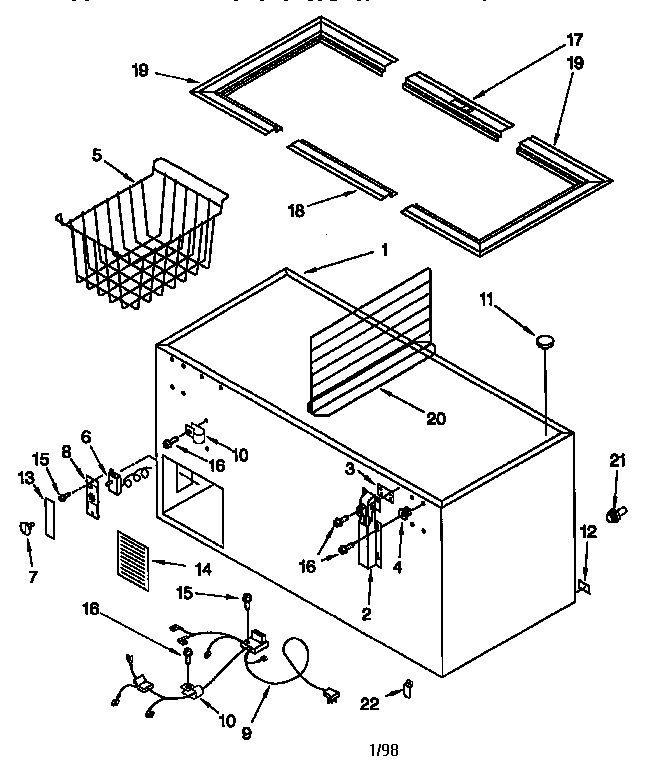

Cabinet diagram

Screw

Part #4356491

$11.59
In Stock
Lock Clip 4356493
#18

Door diagram

Lock clip

Part #4356493

Replaced by #1-26359

?
Manufacturer substitution
This part replaces 4356493. Substitute parts can look different from the original.
$36.58
In Stock
Thermostat 4356670
#6

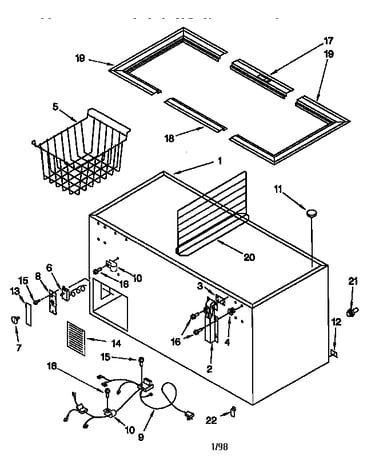

Cabinet diagram

Thermostat

Part #4356670

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 4356670. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Screw 4356583
#15

Cabinet diagram

Screw

Part #4356583

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces 4356583. Substitute parts can look different from the original.
This item is not returnable
$7.29
In Stock
Freezer Door Handle Mounting Bolt 4356306
#6

Door diagram

Freezer door handle mounting bolt

Part #4356306

Replaced by #3-24059-024

?
Manufacturer substitution
This part replaces 4356306. Substitute parts can look different from the original.
$9.79
In Stock
