Hoover
Carpet Cleaner

Model # FH50230 SERIES A Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover FH50230-SERIES-A carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Seal Hose 521367001
#24

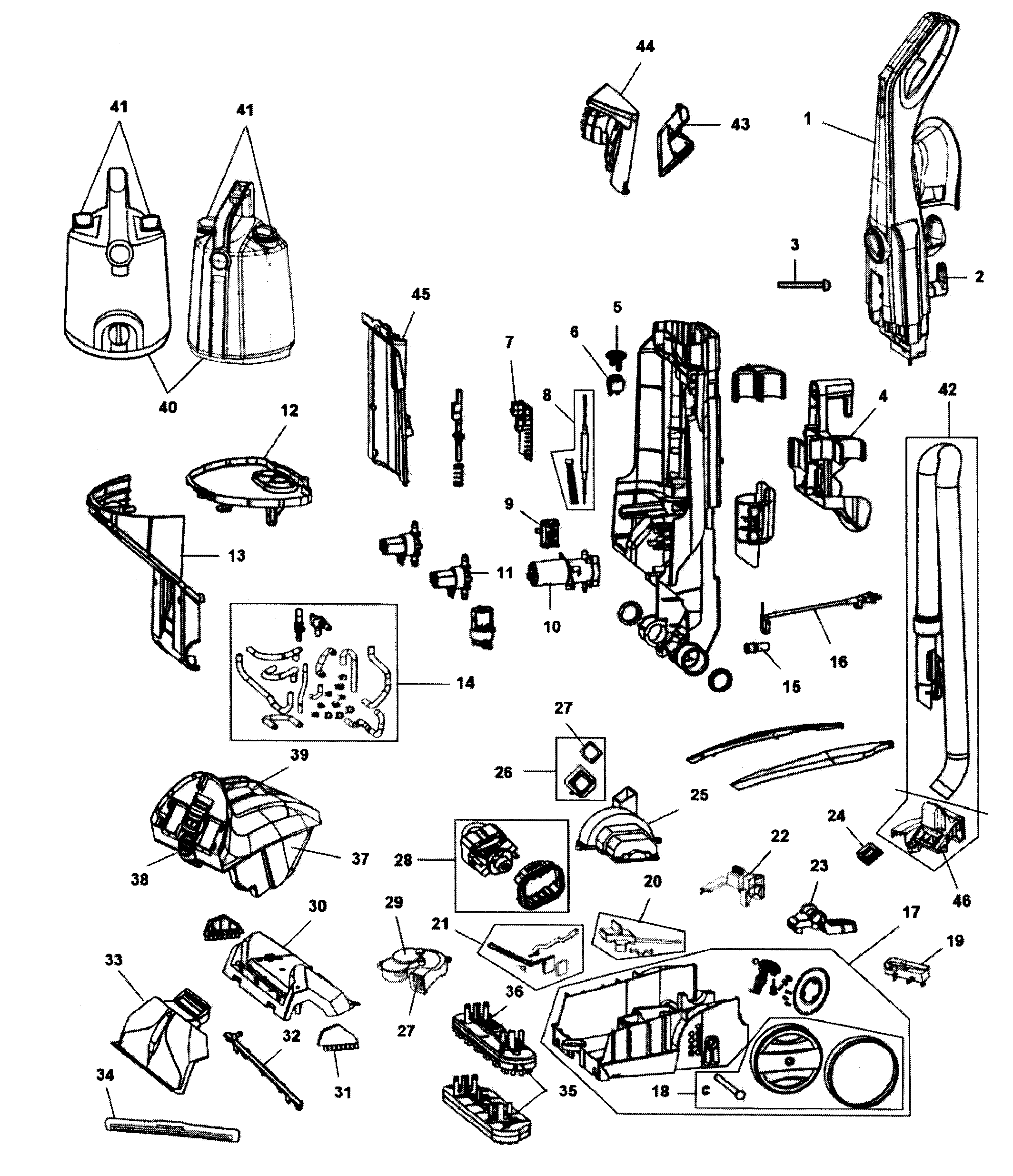

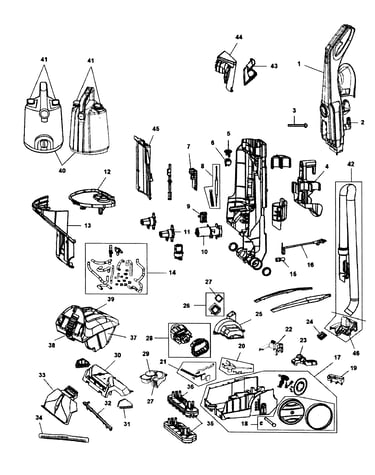

Main assy diagram

Seal hose

Part #521367001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve 440001361
#11

Main assy diagram

Carpet cleaner solution valve

Part #440001361

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 440001364
#18

Main assy diagram

Vacuum wheel

Part #440001364

The manufacturer no longer makes this part, and there's no substitute part

Recovery Tank 440003874
#37

Main assy diagram

Recovery tank

Part #440003874

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Handle Screw 440001355
#3

Main assy diagram

Carpet cleaner handle screw

Part #440001355

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Tank Base 303806001
#12

Main assy diagram

Carpet cleaner solution tank base

Part #303806001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Recovery Tank Valve 304331001
#37A

Main assy diagram

Carpet cleaner recovery tank valve

Part #304331001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Hose Assembly 304335001
#42

Main assy diagram

Carpet cleaner hose assembly

Part #304335001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Turbine Assembly 304347001
#29

Main assy diagram

Carpet cleaner turbine assembly

Part #304347001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 304332001
#1

Main assy diagram

Vacuum handle

Part #304332001

The manufacturer no longer makes this part, and there's no substitute part
