Model # TAX10SNXDRWH Official GE refrigerator - d series

Here are the diagrams and repair parts for Official GE TAX10SNXDRWH refrigerator - d series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Cable Clamp WR01X5278
#83

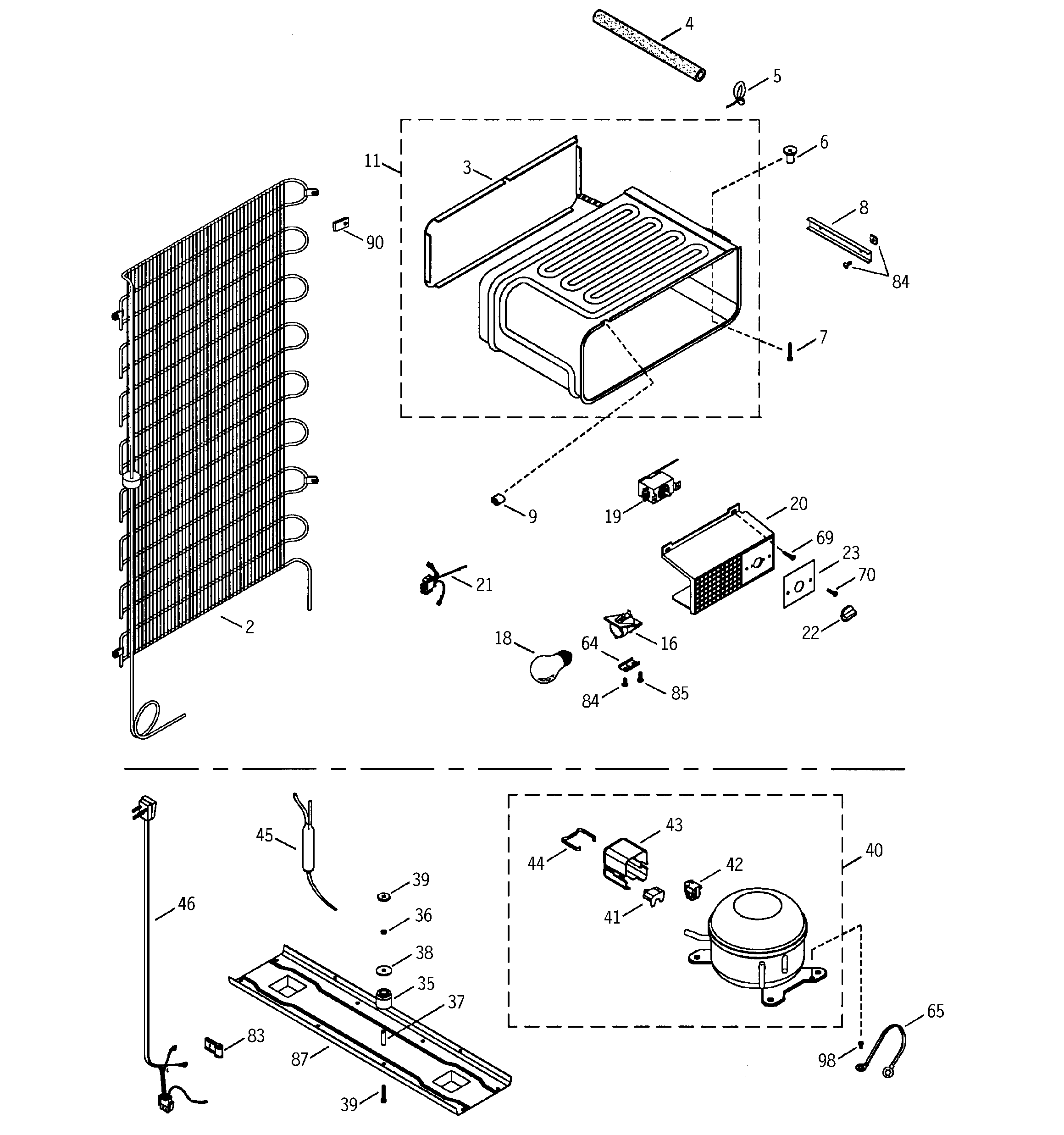

Unit parts diagram

Cable clamp

Part #WR01X5278

Replaced by #WR1X5278

?
Manufacturer substitution
This part replaces WR01X5278. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Clamp WR02X8272
#5

Unit parts diagram

Refrigerator clamp

Part #WR02X8272

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Corner Cap WR02X9125
#74

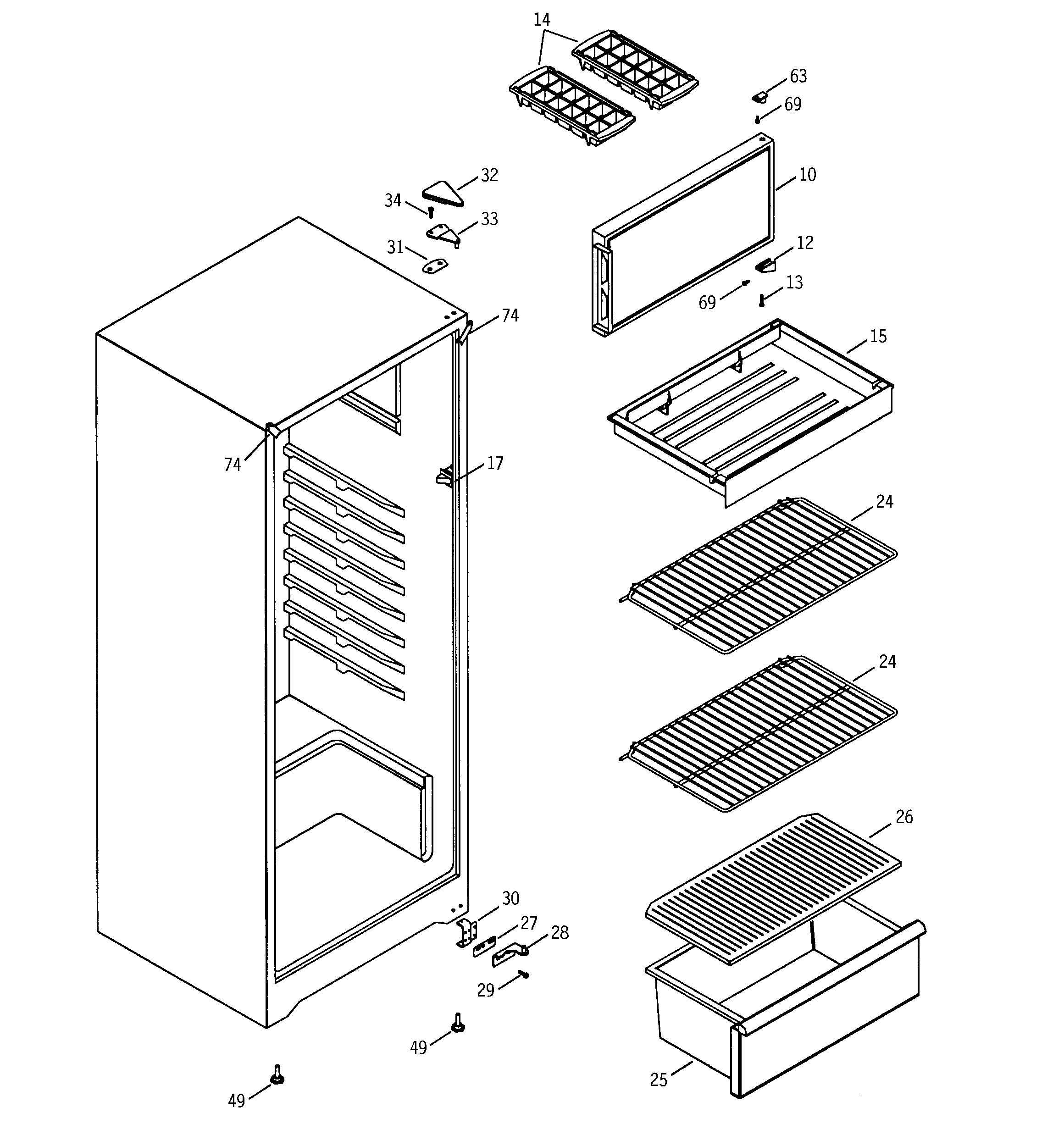

Cabinet diagram

Refrigerator corner cap

Part #WR02X9125

The manufacturer no longer makes this part, and there's no substitute part

Clip Comp WR02K0055
#44

Unit parts diagram

Clip comp

Part #WR02K0055

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support Evaporator WR02K10020
#6

Unit parts diagram

Refrigerator support evaporator

Part #WR02K10020

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Nameplate WR04X0221
#62

Door diagram

Refrigerator nameplate

Part #WR04X0221

The manufacturer no longer makes this part, and there's no substitute part

Butter Door WR22X5100
#57

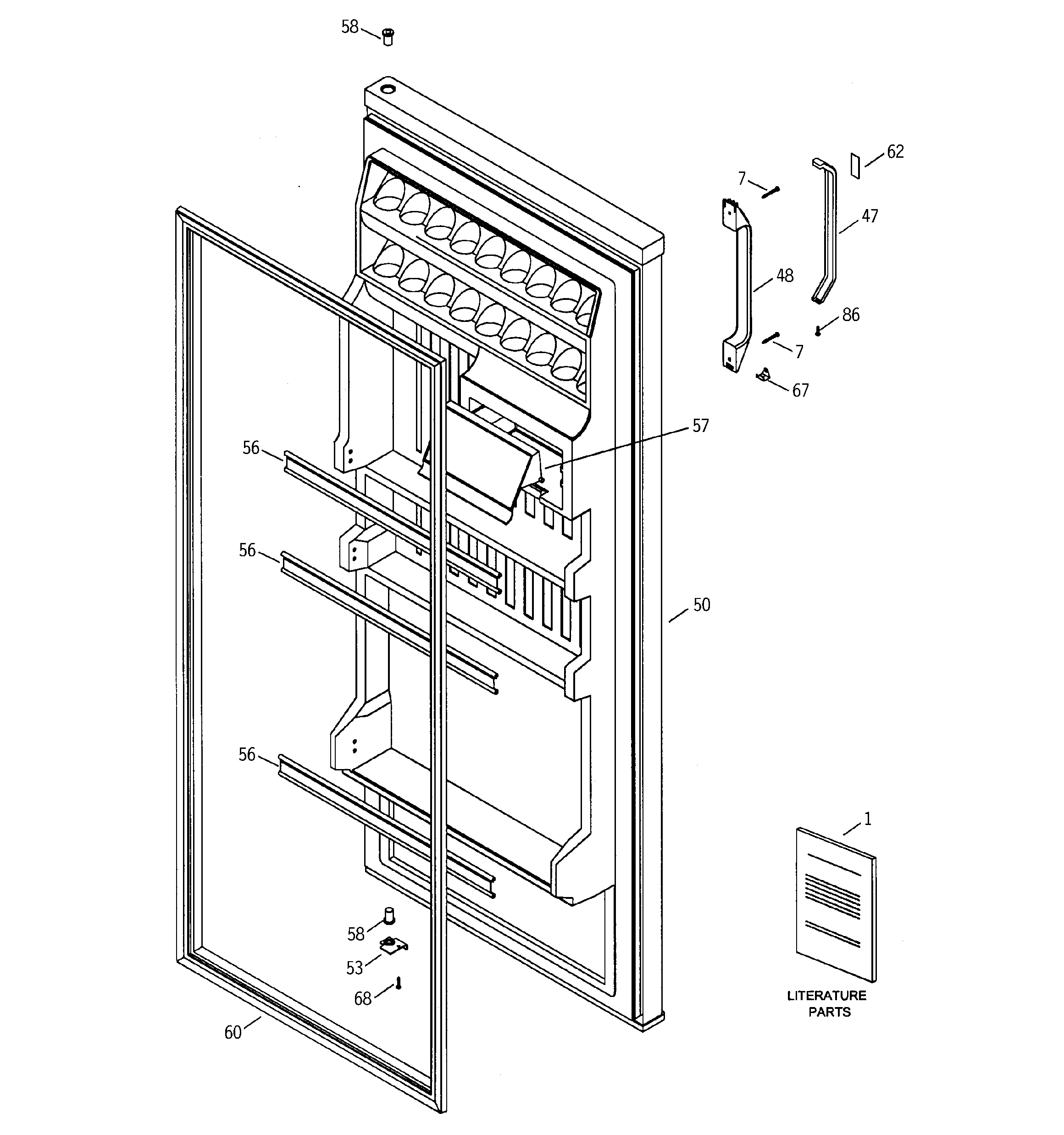

Door diagram

Butter door

Part #WR22X5100

The manufacturer no longer makes this part, and there's no substitute part

Cord Power & Harness WR23K10007
#46

Unit parts diagram

Cord power & harness

Part #WR23K10007

The manufacturer no longer makes this part, and there's no substitute part

Kit Replacem WR49K10007
#60

Door diagram

Kit replacem

Part #WR49K10007

The manufacturer no longer makes this part, and there's no substitute part

Insulation Hose WR02K0031
#4

Unit parts diagram

Insulation hose

Part #WR02K0031

The manufacturer no longer makes this part, and there's no substitute part
