Magic Chef
Gas Range

Model # U83EY-1G-11 Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef U83EY-1G-11 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Screw Unit 0S10601526
#7

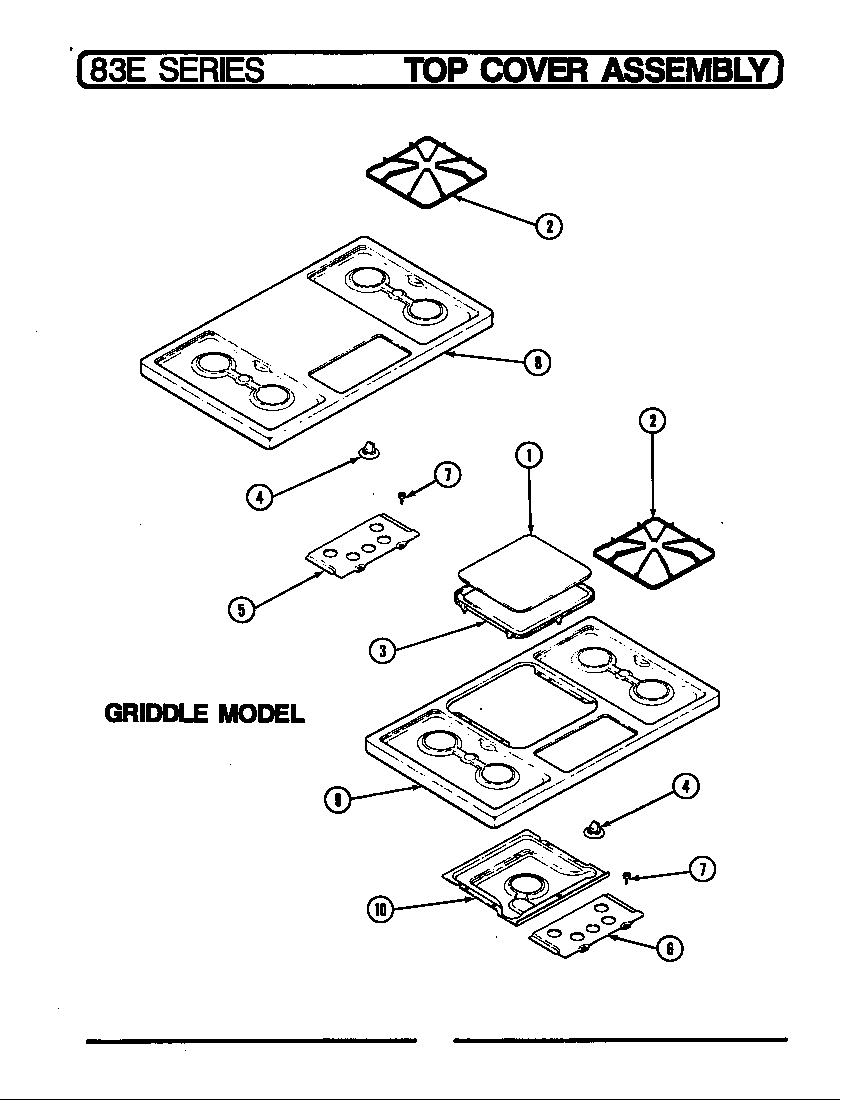

Top assembly diagram

Screw unit

Part #0S10601526

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 0S10601526. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Griddle 0G00501916
#3

Top assembly diagram

Griddle

Part #0G00501916

The manufacturer no longer makes this part, and there's no substitute part

Drip Tray 4G12900424
#10

Top assembly diagram

Drip tray

Part #4G12900424

The manufacturer no longer makes this part, and there's no substitute part

Filter Pilot 0F00105099
#7

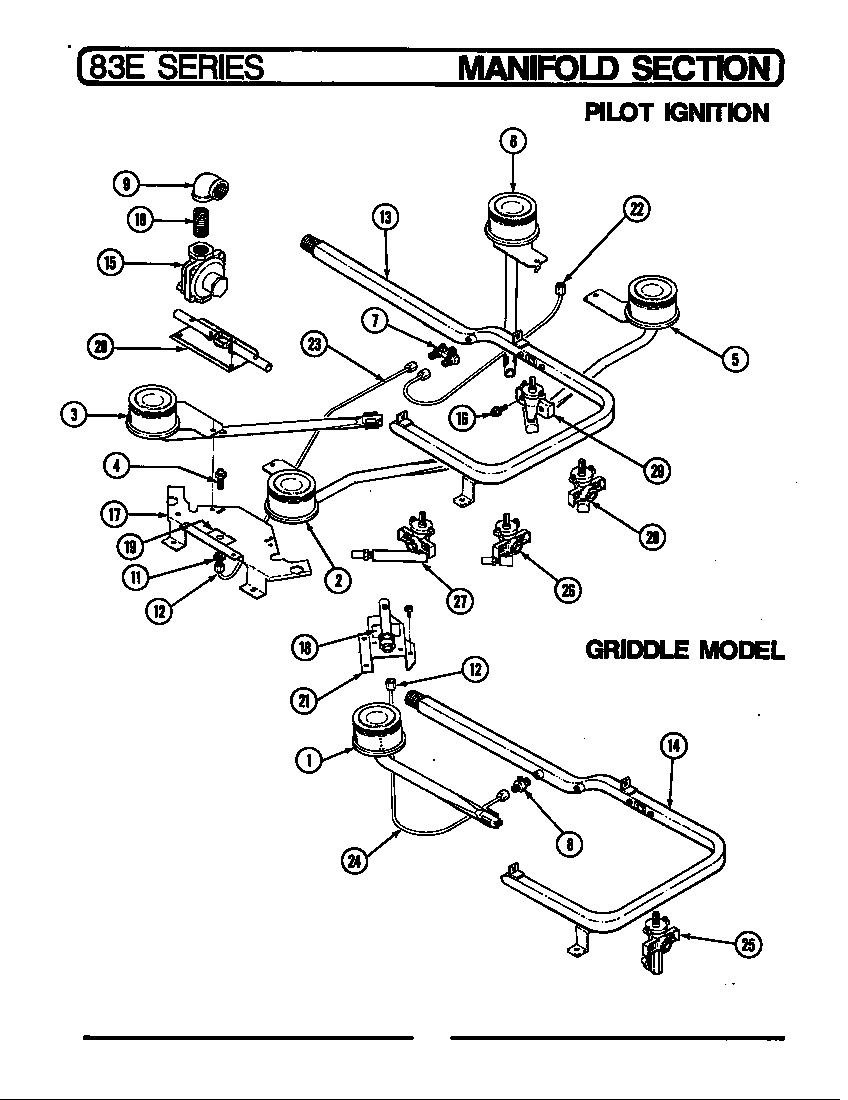

Manifold section (pilot ignition) diagram

Filter pilot

Part #0F00105099

The manufacturer no longer makes this part, and there's no substitute part

Valve 7502P026-60
#29

Manifold section (pilot ignition) diagram

Valve

Part #7502P026-60

The manufacturer no longer makes this part, and there's no substitute part

Top Burner Valve 7502P033-60
#28A

Manifold section (pilot ignition) diagram

Top burner valve

Part #7502P033-60

The manufacturer no longer makes this part, and there's no substitute part

Hinge, Top W 0H01400411
#4

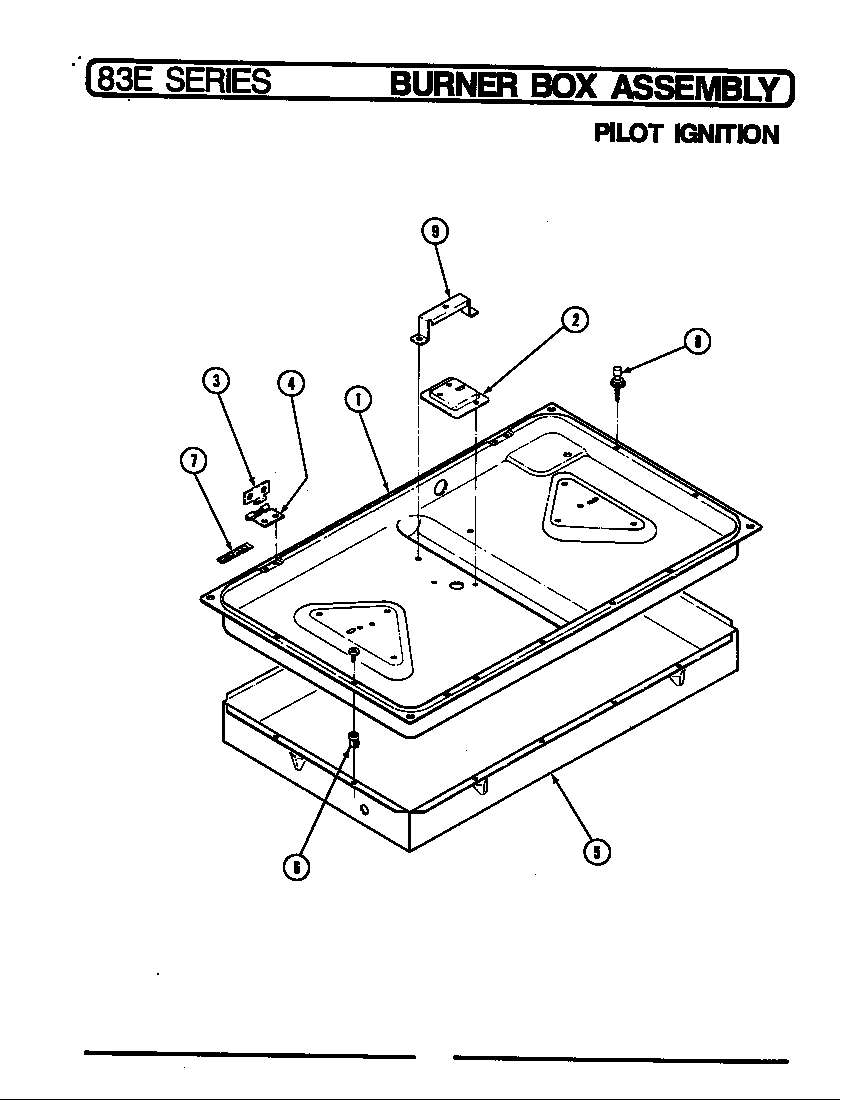

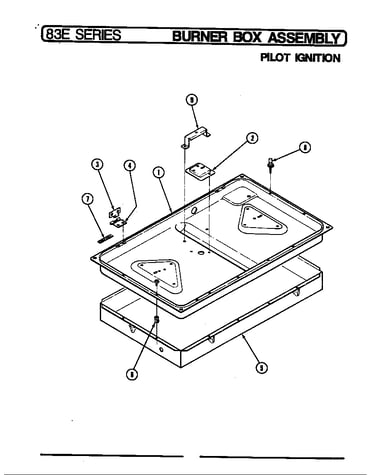

Burner box assy. (pilot ignition) diagram

Hinge, top w

Part #0H01400411

The manufacturer no longer makes this part, and there's no substitute part

Valve 7502P003-60
#25

Manifold section (pilot ignition) diagram

Valve

Part #7502P003-60

The manufacturer no longer makes this part, and there's no substitute part

Screw Control 0S10001099
#16

Manifold section (pilot ignition) diagram

Screw control

Part #0S10001099

The manufacturer no longer makes this part, and there's no substitute part

Tubing 1/8 X 4E42205016
#23

Manifold section (pilot ignition) diagram

Tubing 1/8 x

Part #4E42205016

The manufacturer no longer makes this part, and there's no substitute part
