Craftsman
Electric Leaf Blower

Model # 13651582 Official Craftsman blower/vacuum

Here are the diagrams and repair parts for Official Craftsman 13651582 blower/vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Inlet Cover 93-0569
#11

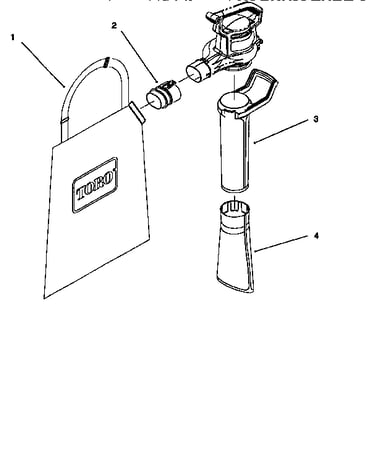

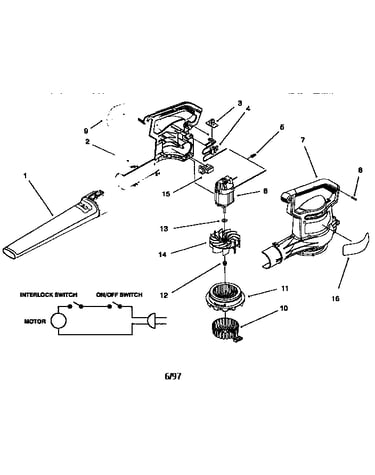

Blower assembly diagram

Inlet cover

Part #93-0569

In Stock
Inlet Cover 93-0568

#NI

All parts diagram

Inlet cover

Part #93-0568

In Stock
Rh Housing 93-0562

#NI

All parts diagram

Rh housing

Part #93-0562

In Stock
Leaf Blower Washer 93-0585
#13

Blower assembly diagram

Leaf blower washer

Part #93-0585

This item is not returnable
In Stock
Twist-on Wire Connector 73-6570
#5

Blower assembly diagram

Twist-on wire connector

Part #73-6570

This item is not returnable
In Stock
Motor 2.00 93-0575
#6

Blower assembly diagram

Motor 2.00

Part #93-0575

In Stock
Rh Housing 93-0563
#2

Blower assembly diagram

Rh housing

Part #93-0563

In Stock
Lh Housing 93-0560

#NI

All parts diagram

Lh housing

Part #93-0560

In Stock
Air Choke 93-0559
#10

Blower assembly diagram

Air choke

Part #93-0559

This item is not returnable
In Stock
Pan Head Screw 94-4496
#8

Blower assembly diagram

Pan head screw

Part #94-4496

This item is not returnable
In Stock
