Model # 2500B Official Thermador garbage disposal

Here are the diagrams and repair parts for Official Thermador 2500B garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Guard Splash Original 27723
#19A

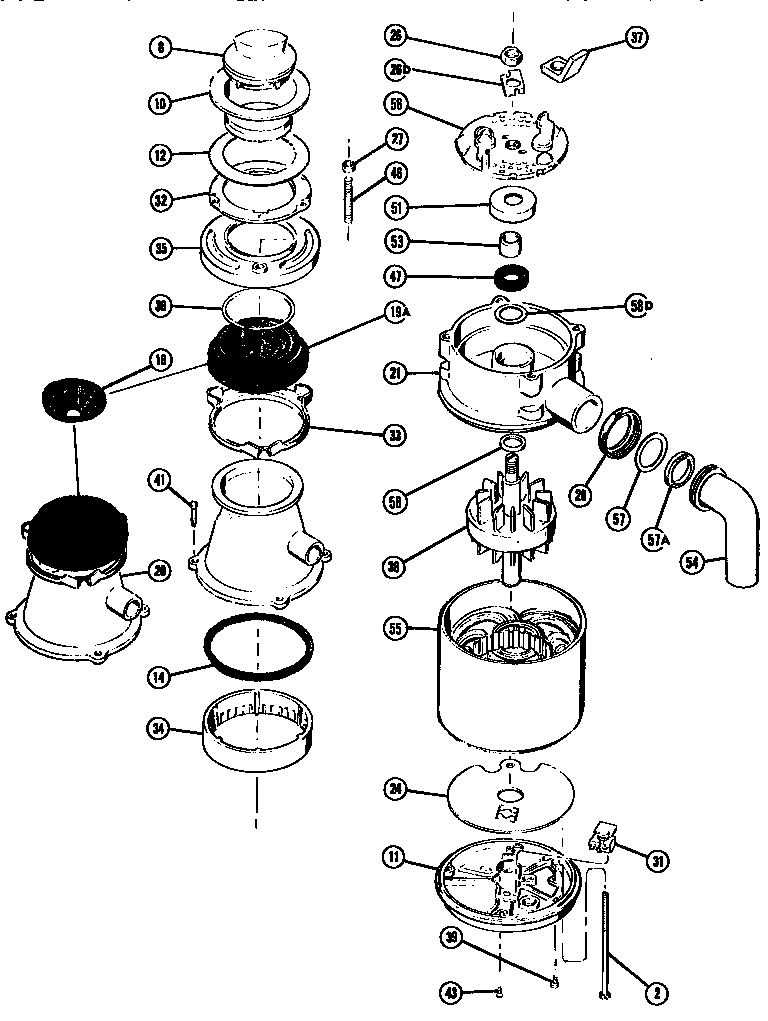

Unit parts diagram

Guard splash original

Part #27723

The manufacturer no longer makes this part, and there's no substitute part

Screw Relay Mounting 901271
#43

Unit parts diagram

Screw relay mounting

Part #901271

The manufacturer no longer makes this part, and there's no substitute part

Gasket Grind Ring 111528
#14

Unit parts diagram

Gasket grind ring

Part #111528

The manufacturer no longer makes this part, and there's no substitute part

Rotor And Shaft Assembly 111431
#38

Unit parts diagram

Rotor and shaft assembly

Part #111431

The manufacturer no longer makes this part, and there's no substitute part

Shaft Seal 111440
#47

Unit parts diagram

Shaft seal

Part #111440

The manufacturer no longer makes this part, and there's no substitute part

Ring Clamp Upper Housing 55073
#33

Unit parts diagram

Ring clamp upper housing

Part #55073

The manufacturer no longer makes this part, and there's no substitute part

Protector And Relay 111450
#31

Unit parts diagram

Protector and relay

Part #111450

The manufacturer no longer makes this part, and there's no substitute part

Washer Thrust Seal / Spcr 111437
#58DA

Unit parts diagram

Washer thrust seal / spcr

Part #111437

The manufacturer no longer makes this part, and there's no substitute part

Washer Slip Joint Brass 75016
#57

Unit parts diagram

Washer slip joint brass

Part #75016

The manufacturer no longer makes this part, and there's no substitute part

Gasket Sink Flange 27001
#12

Unit parts diagram

Gasket sink flange

Part #27001

The manufacturer no longer makes this part, and there's no substitute part
