Frigidaire
Electric Cooktop

Model # FGEC3645KBB Official Frigidaire electric counter unit

Here are the diagrams and repair parts for Official Frigidaire FGEC3645KBB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

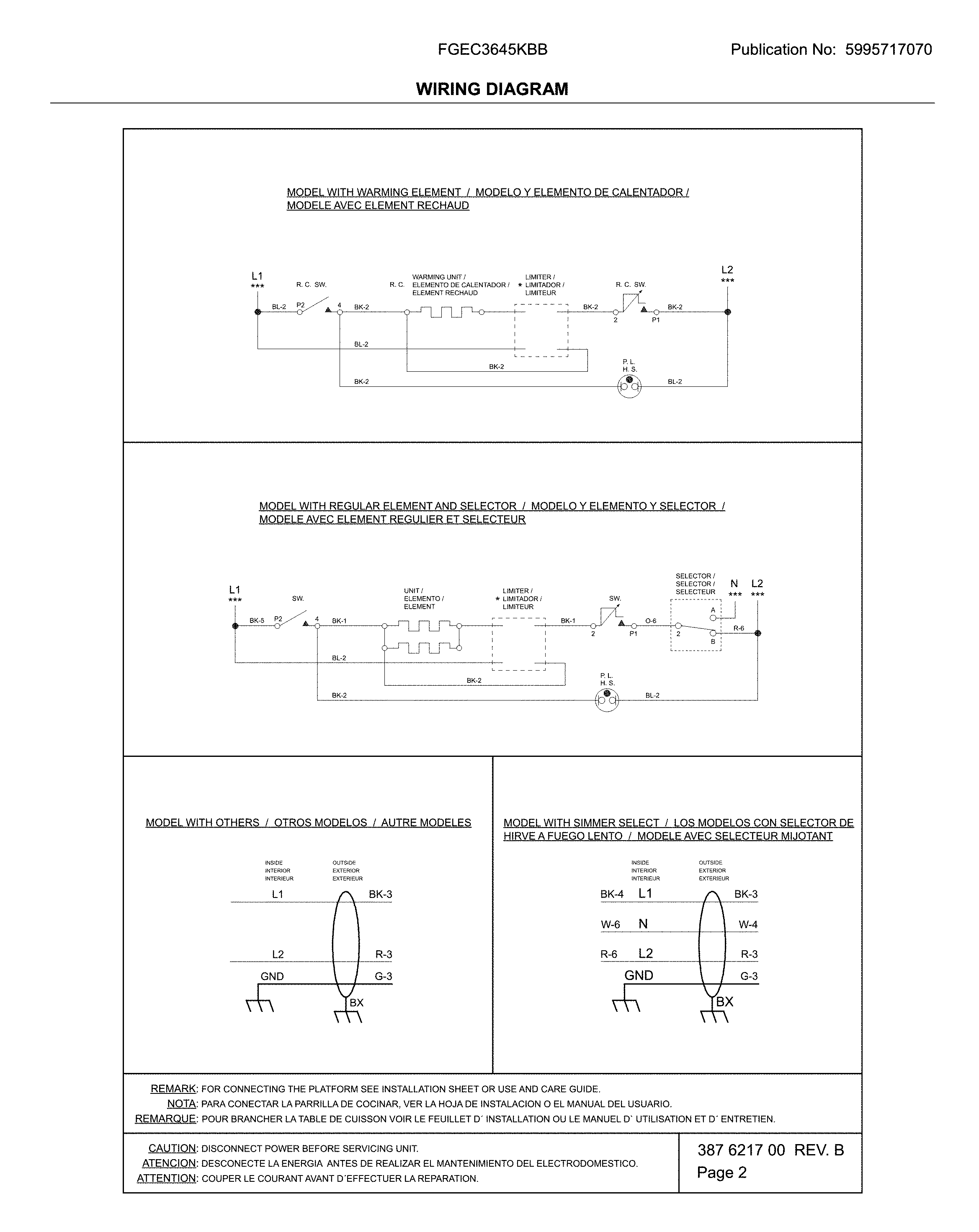

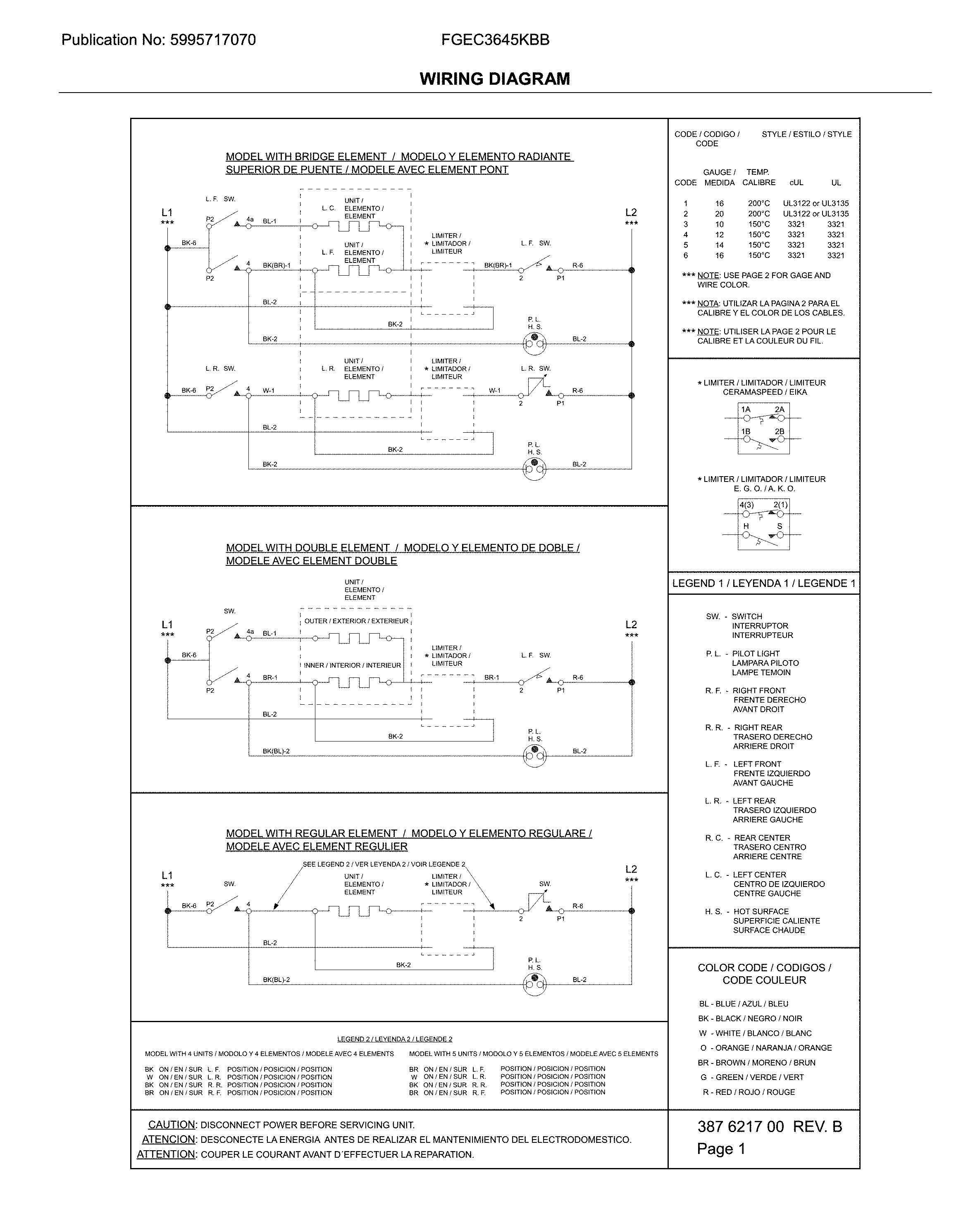

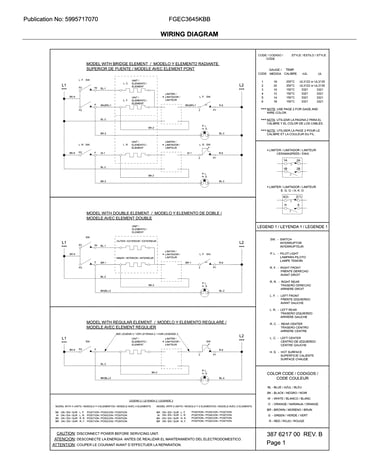

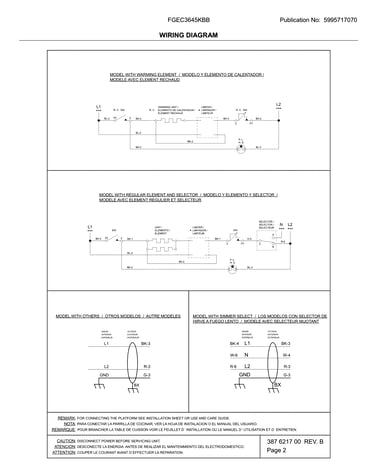

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Cooktop Element Control Switch 305458904
#5A

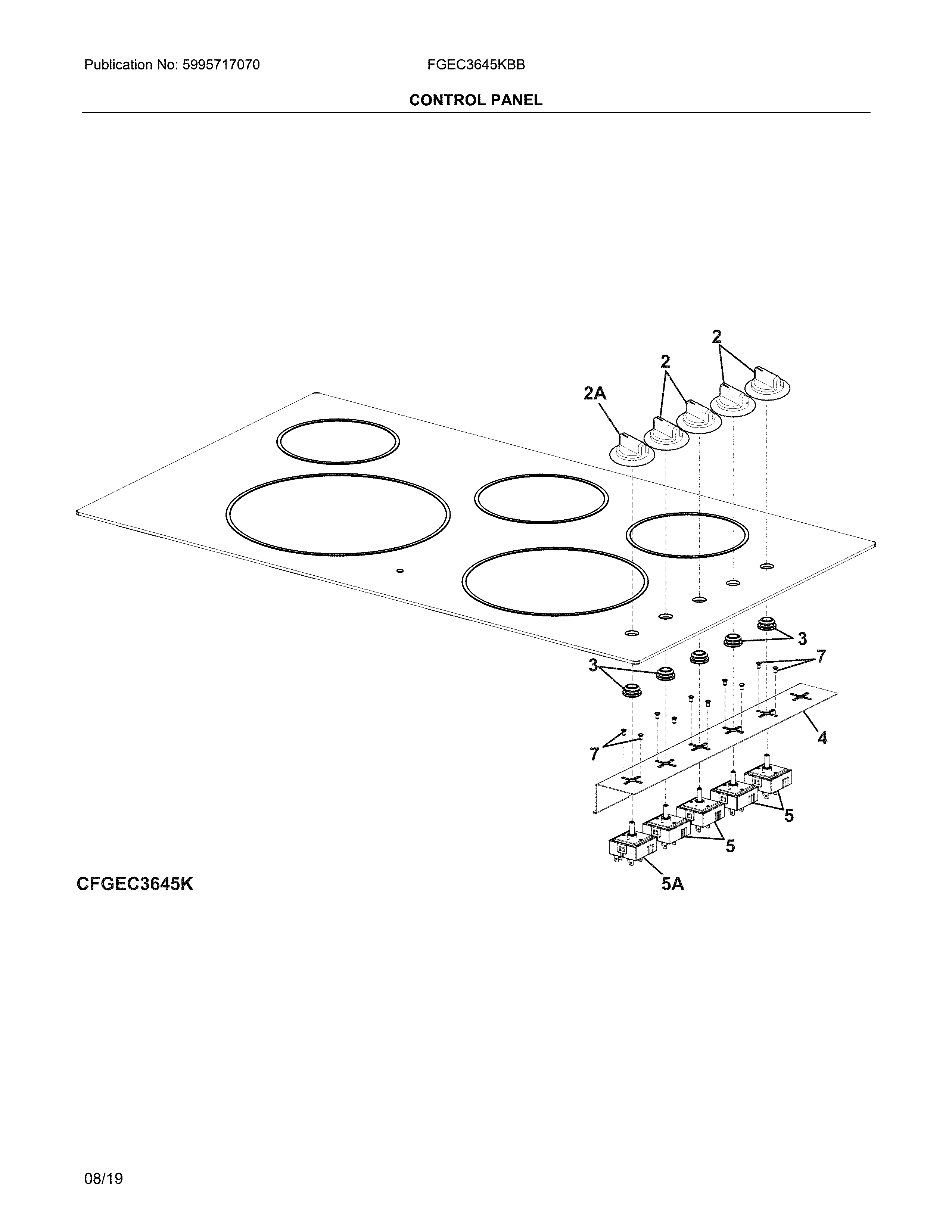

Control panel diagram

Cooktop element control switch

Part #305458904

$102.19 |
11% OFF Phone Price : $114.19
In Stock
Ikea Cooktop Dual Radiant Element 389087401
#11

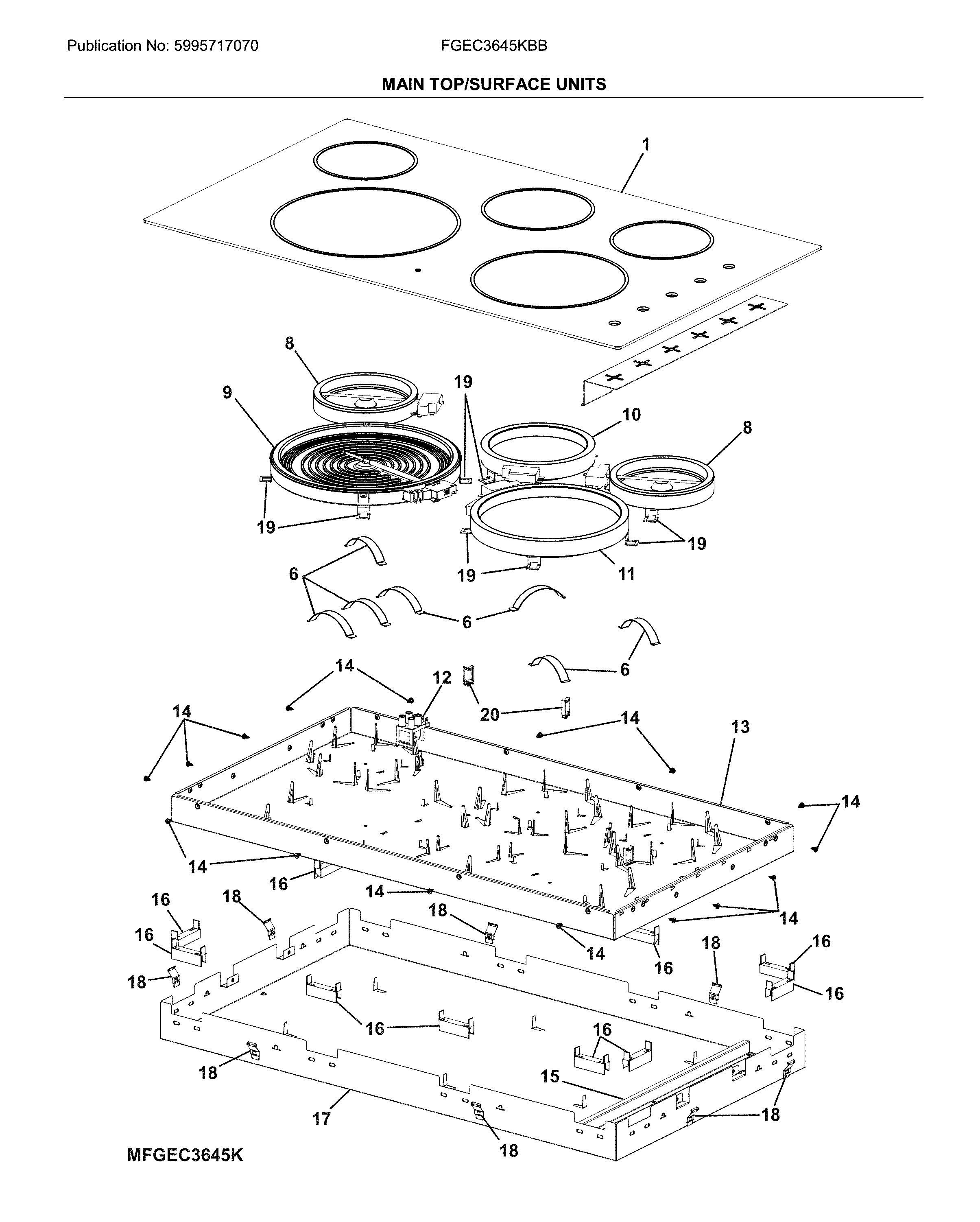

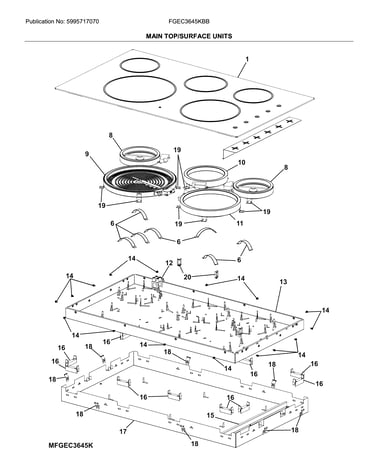

Main top/surface units diagram

Ikea cooktop dual radiant element

Part #389087401

$191.70 |
6% OFF Phone Price : $203.70
In Stock
Cooktop Radiant Element, 6-in 374063522
#8

Main top/surface units diagram

Cooktop radiant element, 6-in

Part #374063522

Replaced by #A02843501

?
Manufacturer substitution
This part replaces 374063522. Substitute parts can look different from the original.
$117.03 |
9% OFF Phone Price : $129.03
In Stock
Cooktop Main Top 305379362
#1

Main top/surface units diagram

Cooktop main top

Part #305379362

$505.57
In Stock
Cooktop Element Control Knob Bushing 387316100
#3

Control panel diagram

Cooktop element control knob bushing

Part #387316100

$13.26
In Stock
Screw 330447900
#14

Main top/surface units diagram

Screw

Part #330447900

This item is not returnable
$11.17
In Stock
Harness,wiring ,main 5304522465
#NI

Main top/surface units diagram

Harness,wiring ,main

Part #5304522465

$138.76
In Stock
Cooktop Installation Bracket 387627700
#NI

Main top/surface units diagram

Cooktop installation bracket

Part #387627700

$26.63 |
18% OFF Phone Price : $32.63
In Stock
Spacer 387627600
#16

Main top/surface units diagram

Spacer

Part #387627600

$12.57
In Stock
Cooktop Element, 7-in 318178104
#10

Main top/surface units diagram

Cooktop element, 7-in

Part #318178104

$294.98
In Stock
