Model # AZ91H18E5EW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AZ91H18E5EW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Main Board WP26X22021
#34

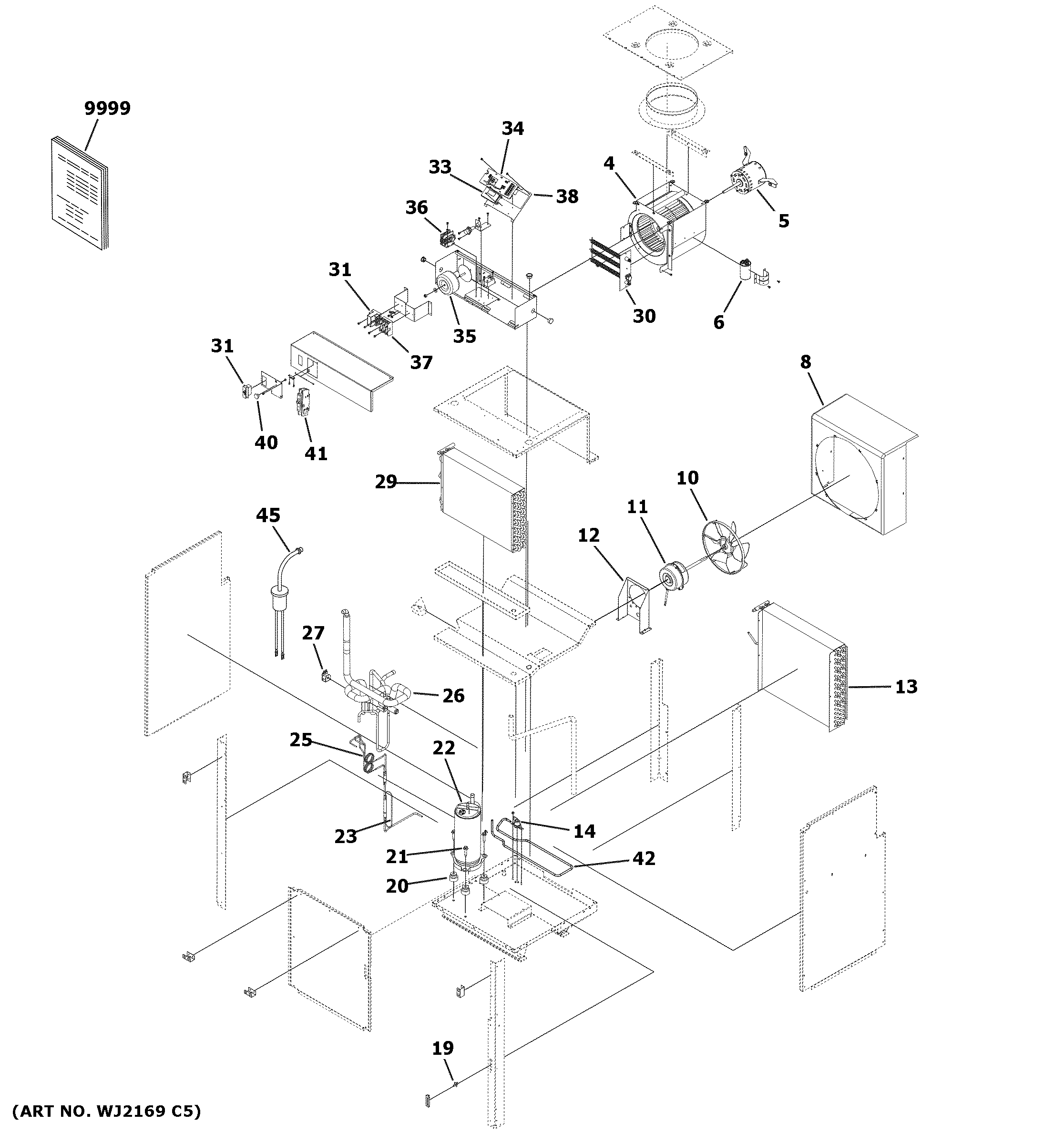

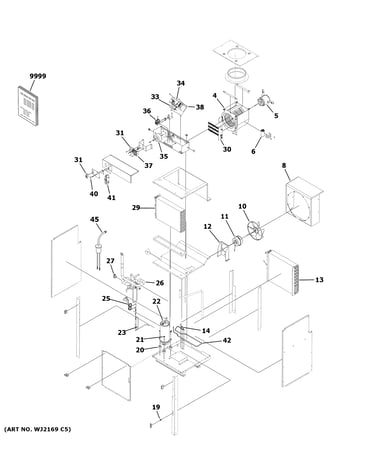

Vertical zoneline diagram

Main board

Part #WP26X22021

Replaced by #WP26X21993

?
Manufacturer substitution
This part replaces WP26X22021. Substitute parts can look different from the original.
$460.43
In Stock
Outdoor Fan WP76X25623
#8

Vertical zoneline diagram

Outdoor fan

Part #WP76X25623

$73.14
In Stock
Fuse Block WP20X22001
#37

Vertical zoneline diagram

Fuse block

Part #WP20X22001

$142.84
In Stock
Check Valve Assembly WP53X25620
#23

Vertical zoneline diagram

Check valve assembly

Part #WP53X25620

$186.28
In Stock
Outdoor Fan WP94X25617
#11

Vertical zoneline diagram

Outdoor fan

Part #WP94X25617

$554.23
In Stock
Room Air Conditioner Indoor Fan Motor WP94X25619
#5

Vertical zoneline diagram

Room air conditioner indoor fan motor

Part #WP94X25619

$556.85
In Stock
Outdoor Coil WP88X22022
#13

Vertical zoneline diagram

Outdoor coil

Part #WP88X22022

$971.34
In Stock
Sump Tube WP53X25618
#42

Vertical zoneline diagram

Sump tube

Part #WP53X25618

$63.33
In Stock
Outdoor Fan Blade WP73X22023
#10

Vertical zoneline diagram

Outdoor fan blade

Part #WP73X22023

$196.86
In Stock
Heater Assembly WP27X22597
#30

Vertical zoneline diagram

Heater assembly

Part #WP27X22597

$268.32
In Stock
