Kenmore
Compact Refrigerator

Model # 21873750 Official Kenmore compact refrigerator

Here are the diagrams and repair parts for Official Kenmore 21873750 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Refrigerator Spring 481949268028
#33A

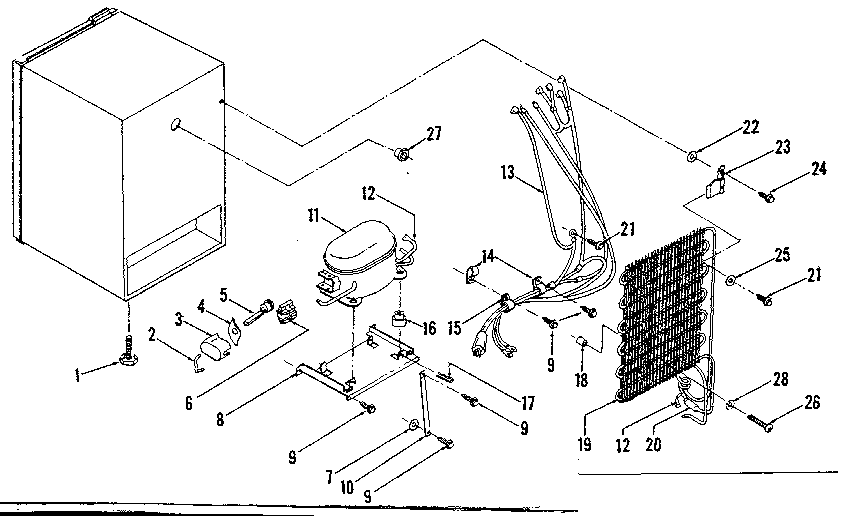

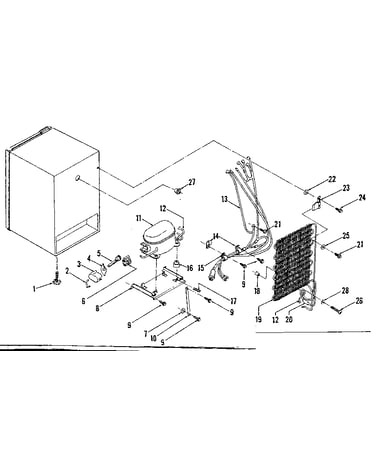

Unit parts diagram

Refrigerator spring

Part #481949268028

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Holder 481946688066
#19

Unit parts diagram

Evaporator holder

Part #481946688066

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat 481927128054
#22

Unit parts diagram

Refrigerator thermostat

Part #481927128054

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Panel 481946698203
#45

Unit parts diagram

Refrigerator panel

Part #481946698203

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door 481944028816
#44A

Unit parts diagram

Refrigerator door

Part #481944028816

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hinge 481941718524
#11

Unit parts diagram

Refrigerator hinge

Part #481941718524

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser 481951148044
#15

Unit parts diagram

Refrigerator condenser

Part #481951148044

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf Trim 481946038299
#56

Unit parts diagram

Refrigerator shelf trim

Part #481946038299

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spring 481949268528
#25

Unit parts diagram

Refrigerator spring

Part #481949268528

The manufacturer no longer makes this part, and there's no substitute part

Shelfguard 481946058288
#50

Unit parts diagram

Shelfguard

Part #481946058288

The manufacturer no longer makes this part, and there's no substitute part
