Kenmore
Electric Range

Model # 9119332190 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 9119332190 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

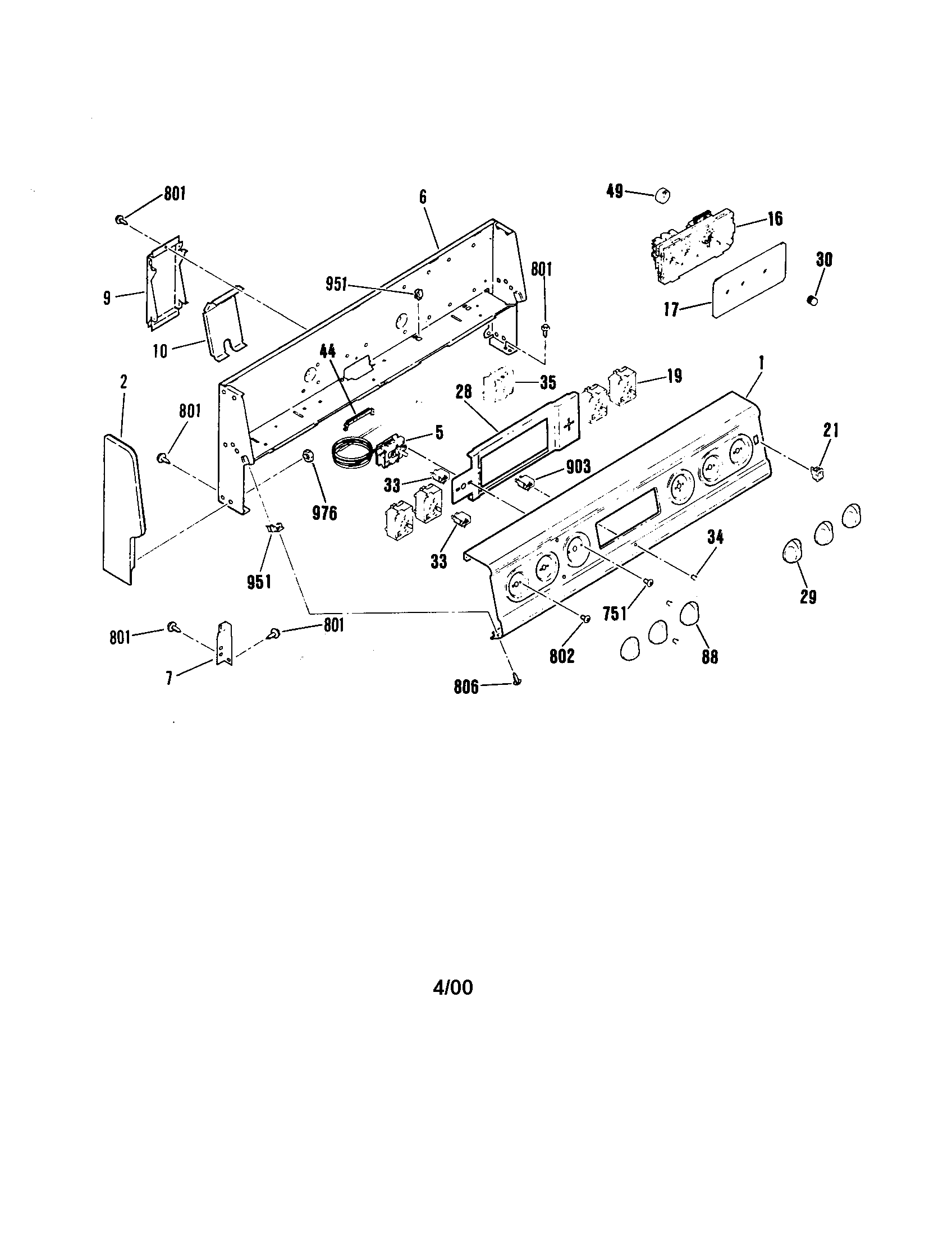

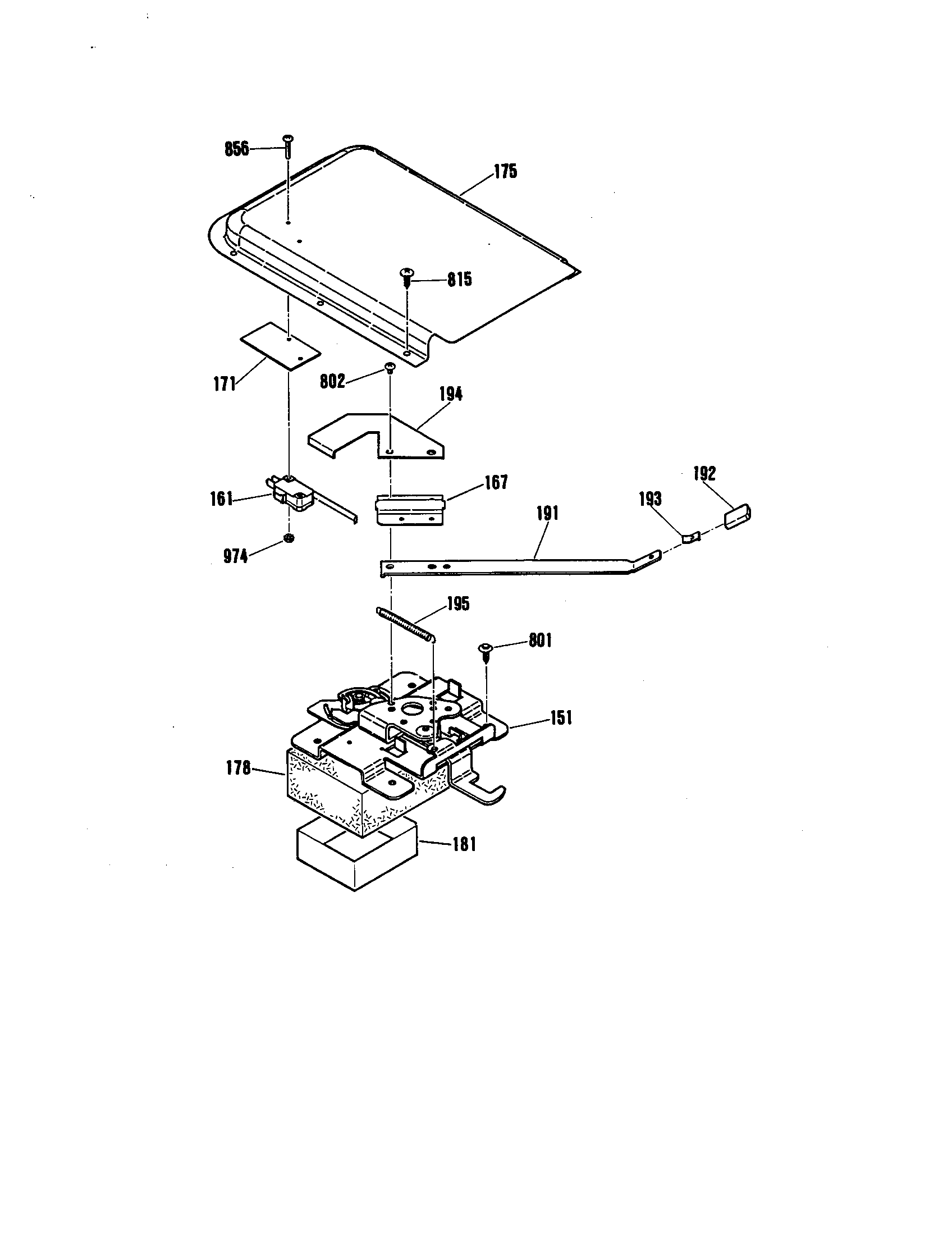

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
40a15bulb STD372401
#257

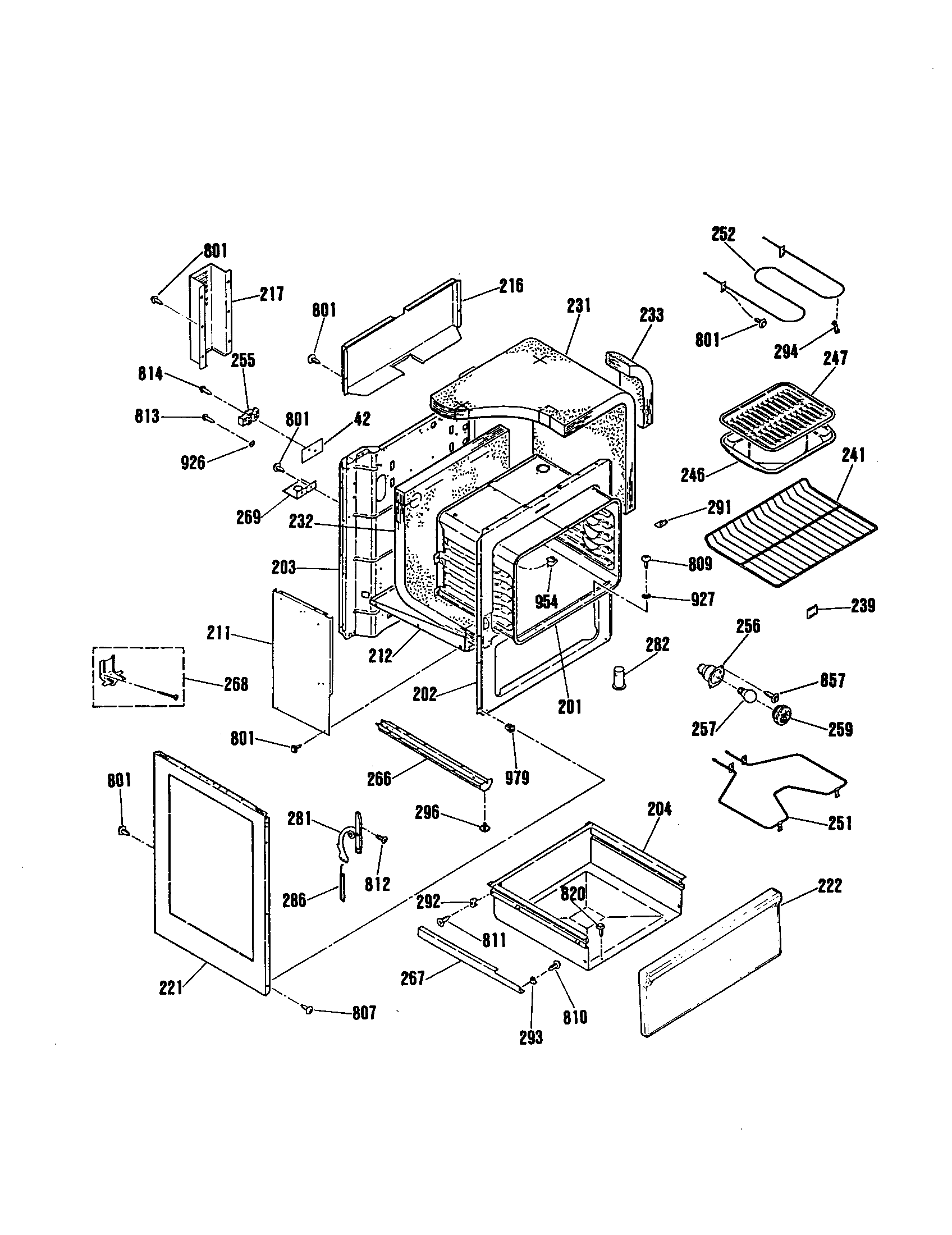

Body diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block WB17X0210
#82

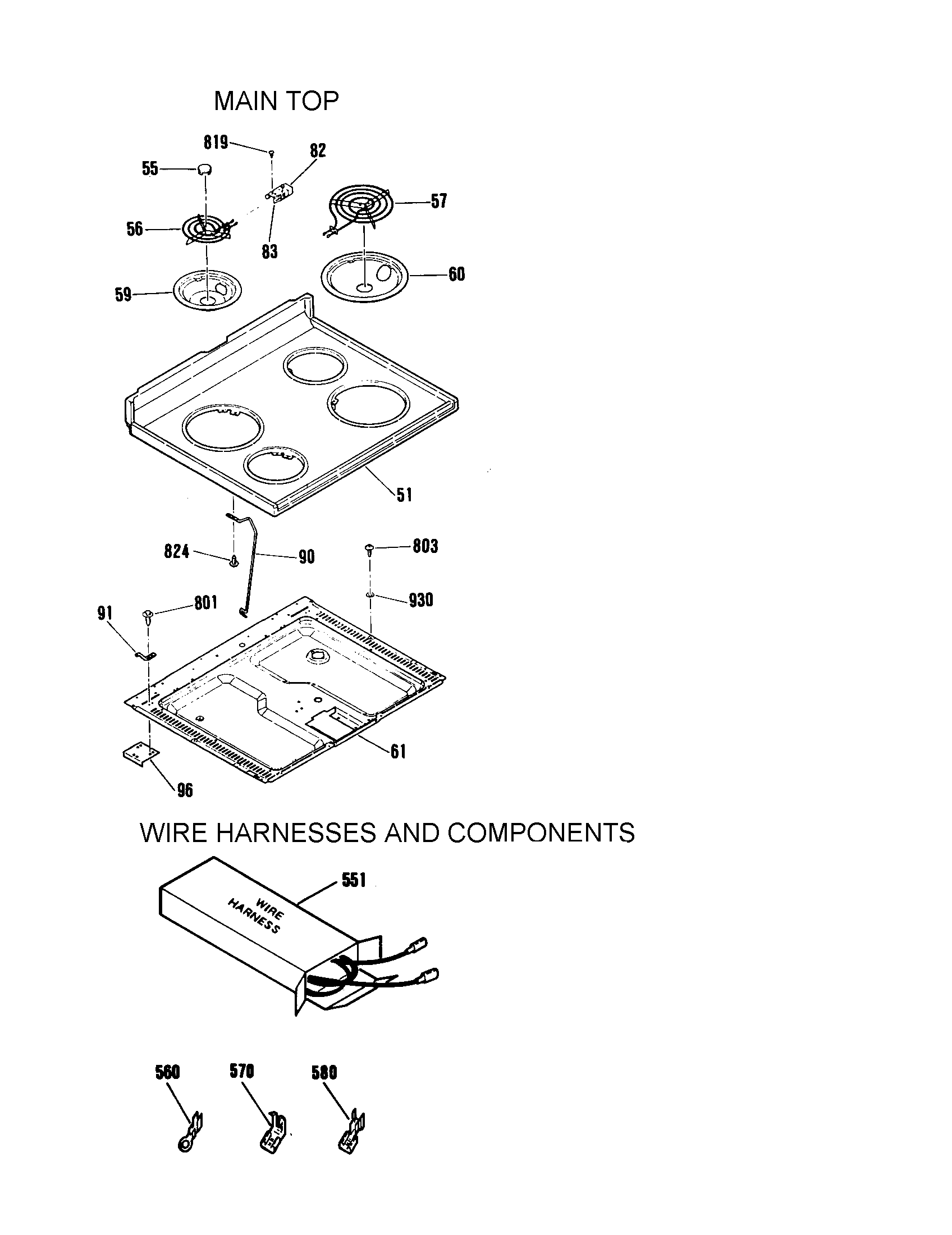

Maintop/wire harnesses/components diagram

Terminal block

Part #WB17X0210

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17X0210. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Broil Support WB02X9719
#294

Body diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Surf Unit 8" WB30X0253
#57

Maintop/wire harnesses/components diagram

Surf unit 8"

Part #WB30X0253

Replaced by #WB30X253

?
Manufacturer substitution
This part replaces WB30X0253. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Broilunt 240 WB44X0232
#252

Body diagram

Broilunt 240

Part #WB44X0232

Replaced by #WB44X232

?
Manufacturer substitution
This part replaces WB44X0232. Substitute parts can look different from the original.
BEST SELLER
$58.44 |
9% OFF Phone Price : $64.44
In Stock
Hinge WB14X0103
#281

Body diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Range Drip Pan (replaces Wb31k5025e) WB31K5025
#60

Maintop/wire harnesses/components diagram

Range drip pan (replaces wb31k5025e)

Part #WB31K5025

$22.35 |
21% OFF Phone Price : $28.35
In Stock
Bake Element WB44M0001
#251

Body diagram

Bake element

Part #WB44M0001

The manufacturer no longer makes this part, and there's no substitute part

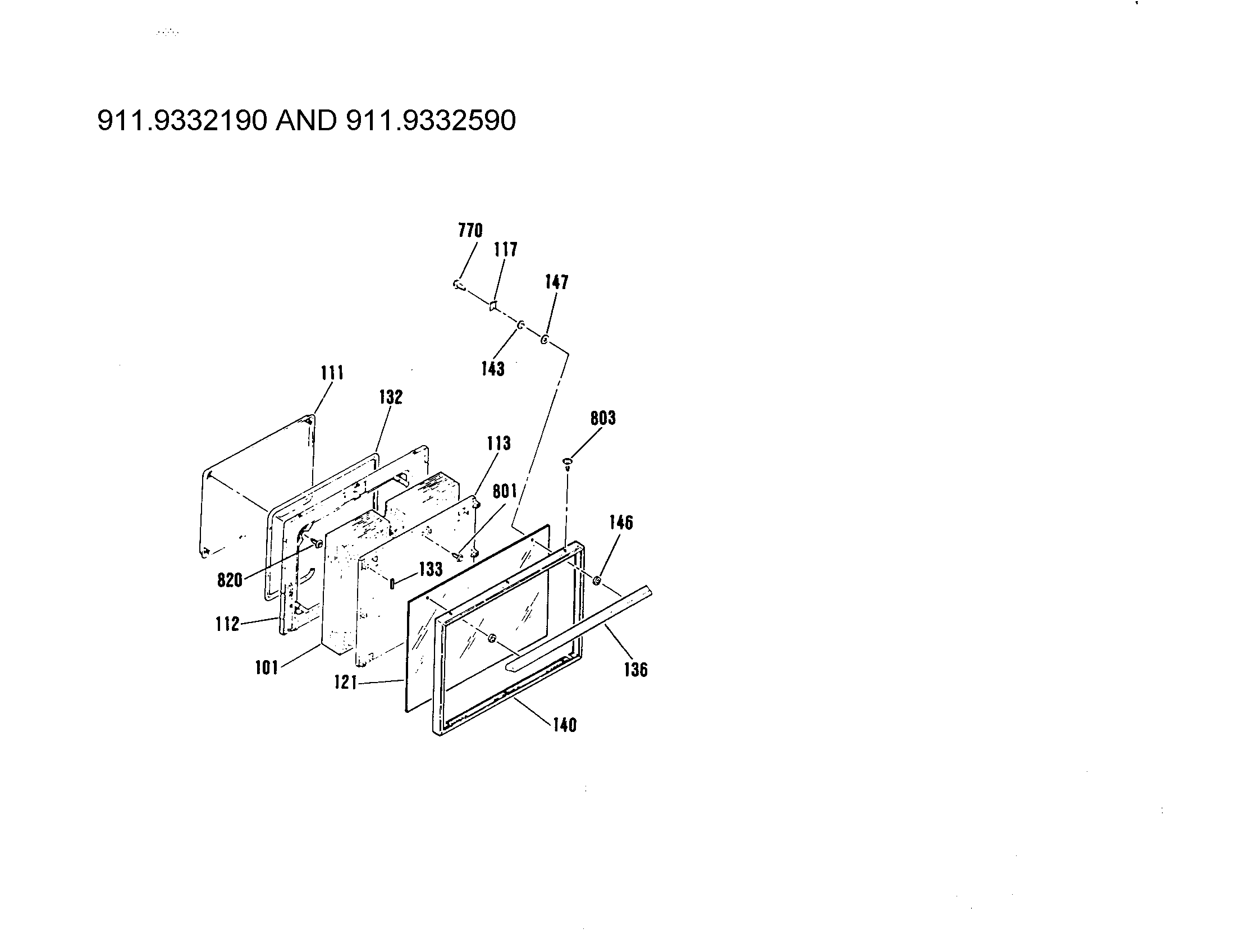

Oven Door Gasket WB02K5221
#132

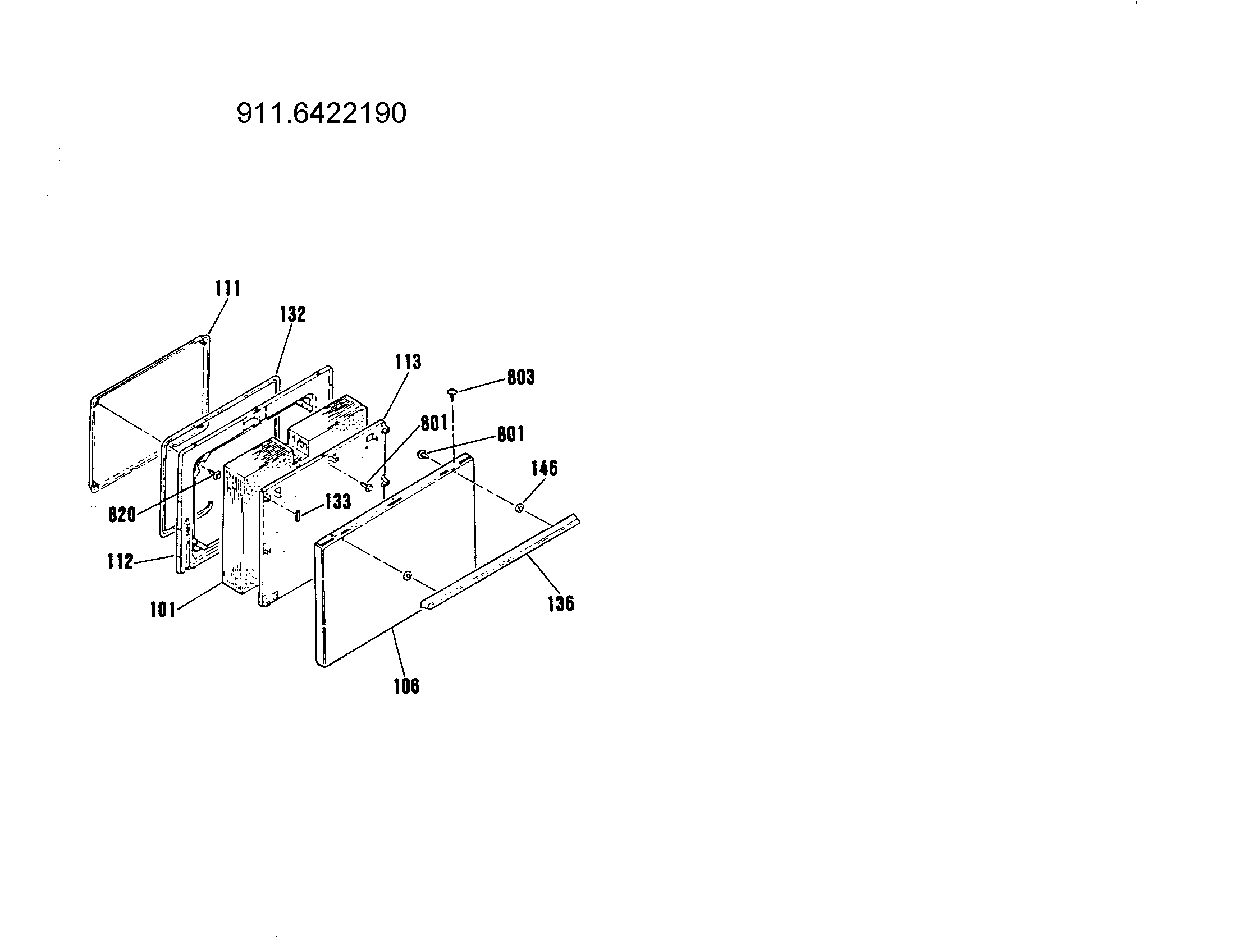

Front panel diagram

Oven door gasket

Part #WB02K5221

Replaced by #WB2K5319

?
Manufacturer substitution
This part replaces WB02K5221. Substitute parts can look different from the original.
$109.34 |
10% OFF Phone Price : $121.34
In Stock
Clip-term Bk WB17X0211
#83

Maintop/wire harnesses/components diagram

Clip-term bk

Part #WB17X0211

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces WB17X0211. Substitute parts can look different from the original.
$8.87 |
10% OFF Phone Price : $9.87
In Stock
