Model # WS3000 Official InSinkErator dishwasher

Here are the diagrams and repair parts for Official InSinkErator WS3000 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

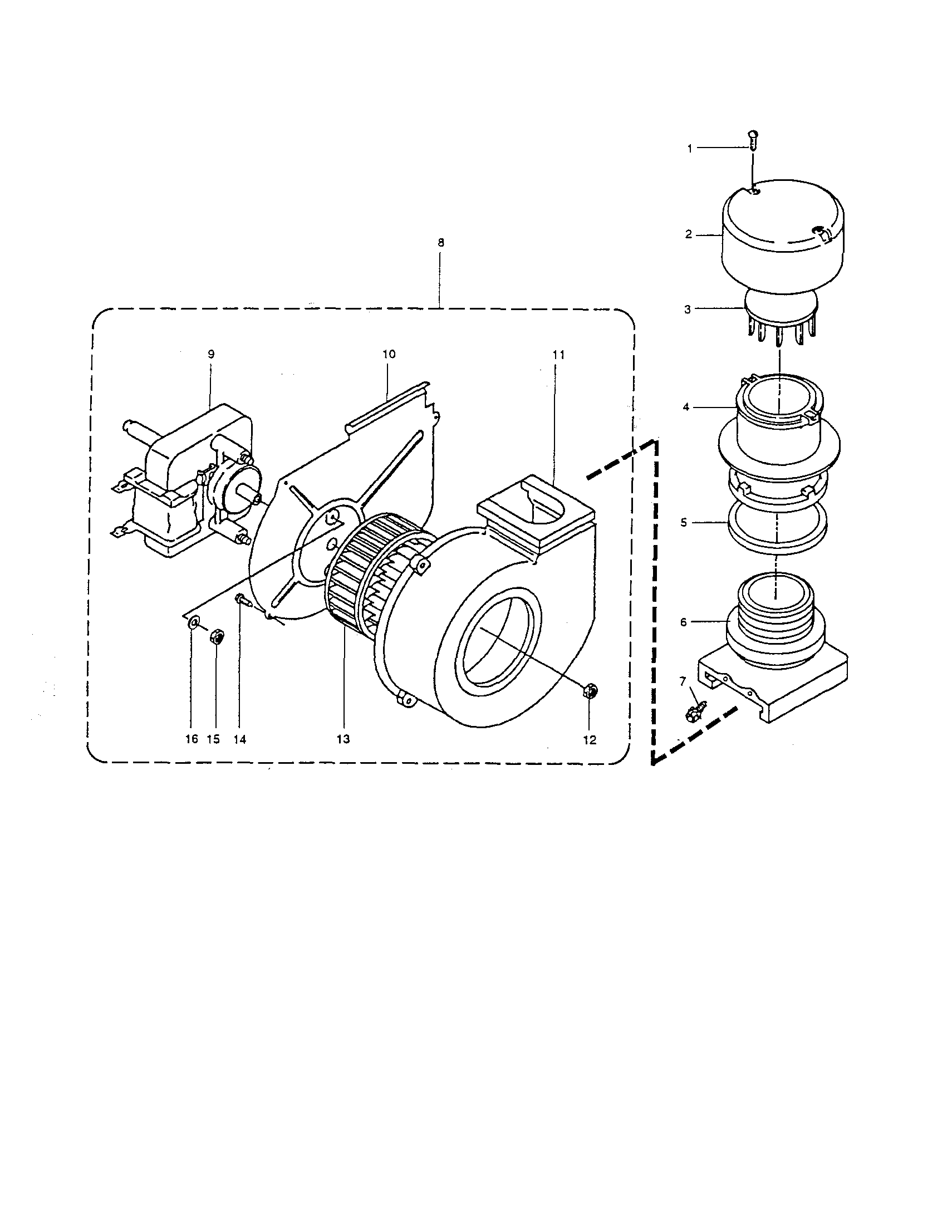

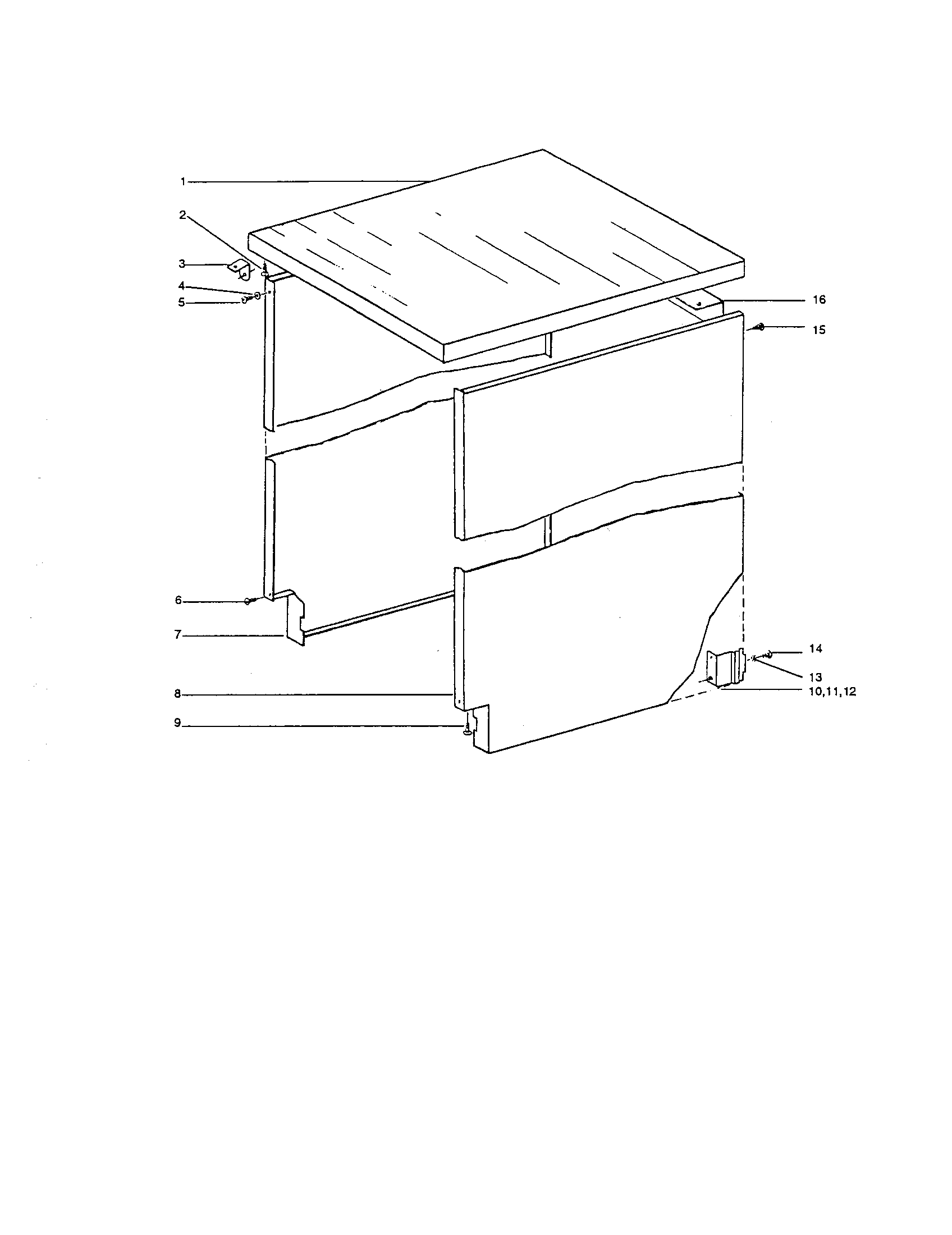

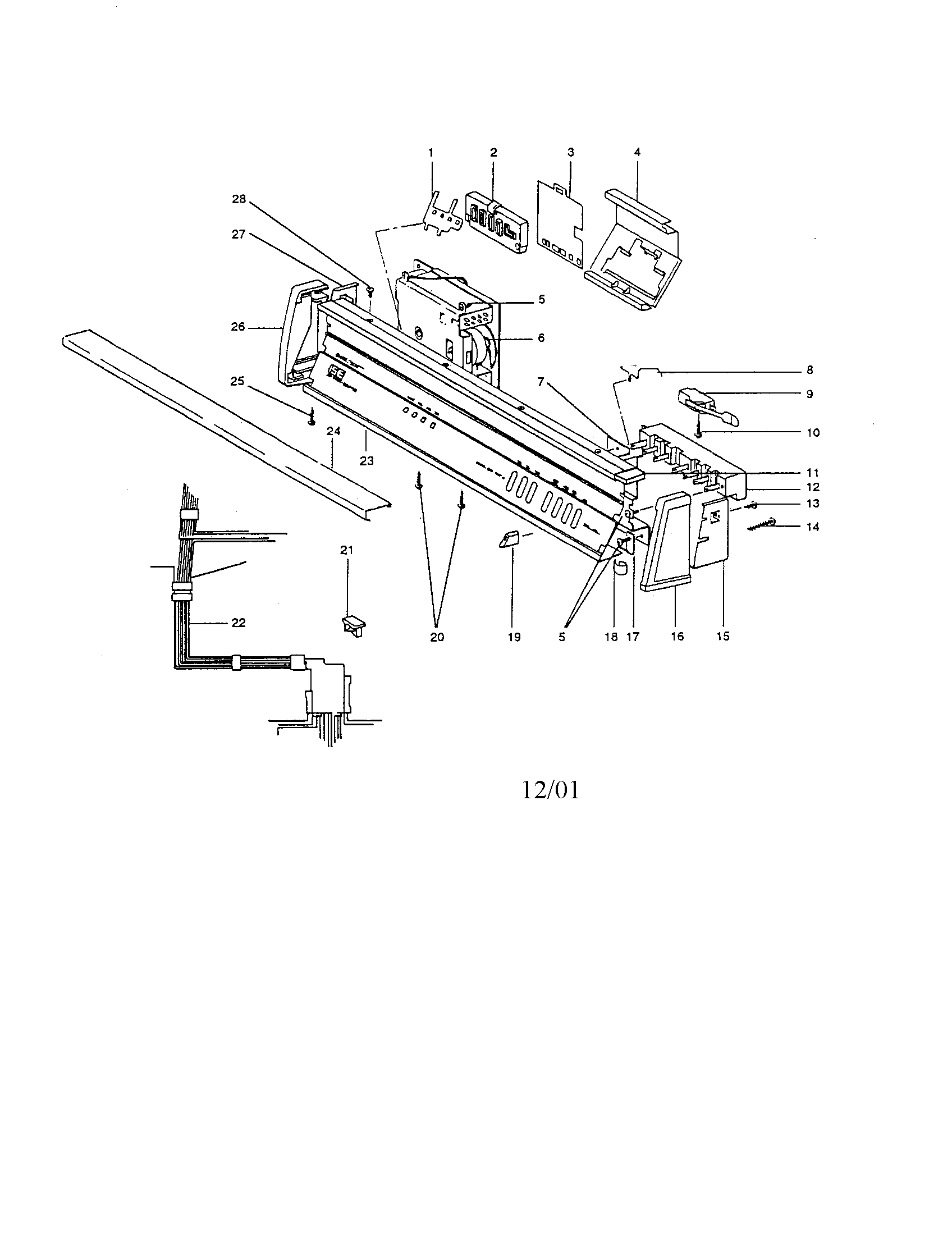

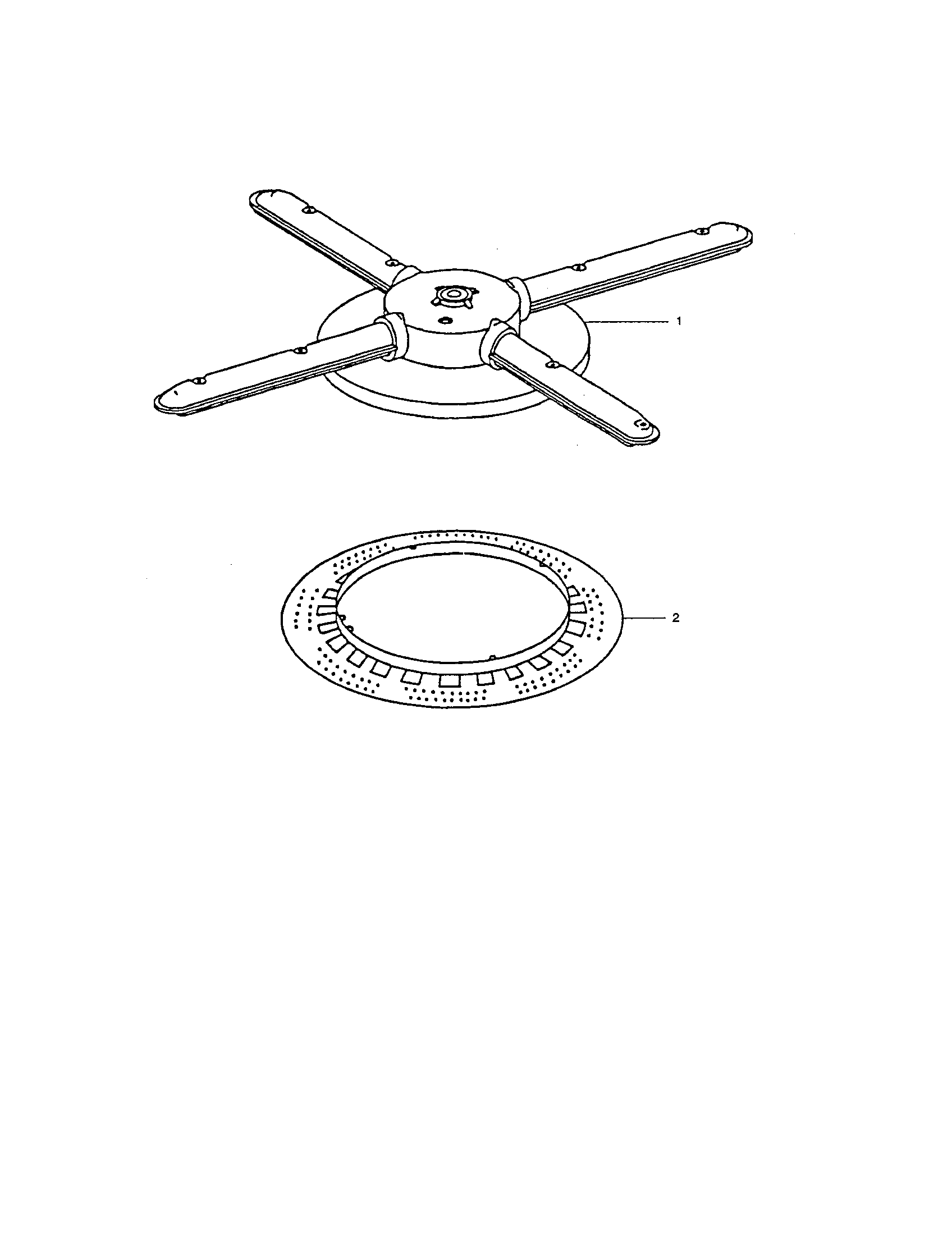

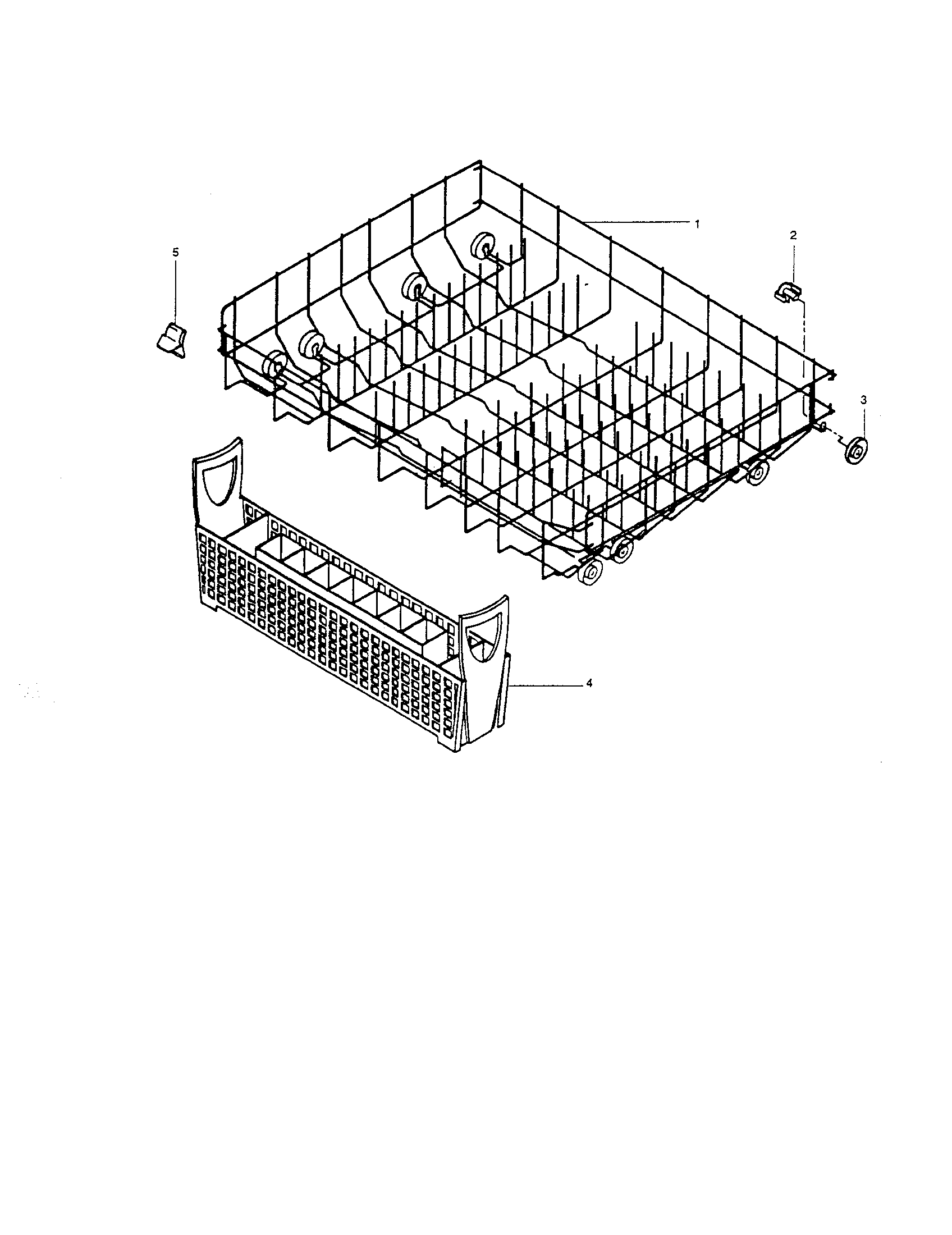

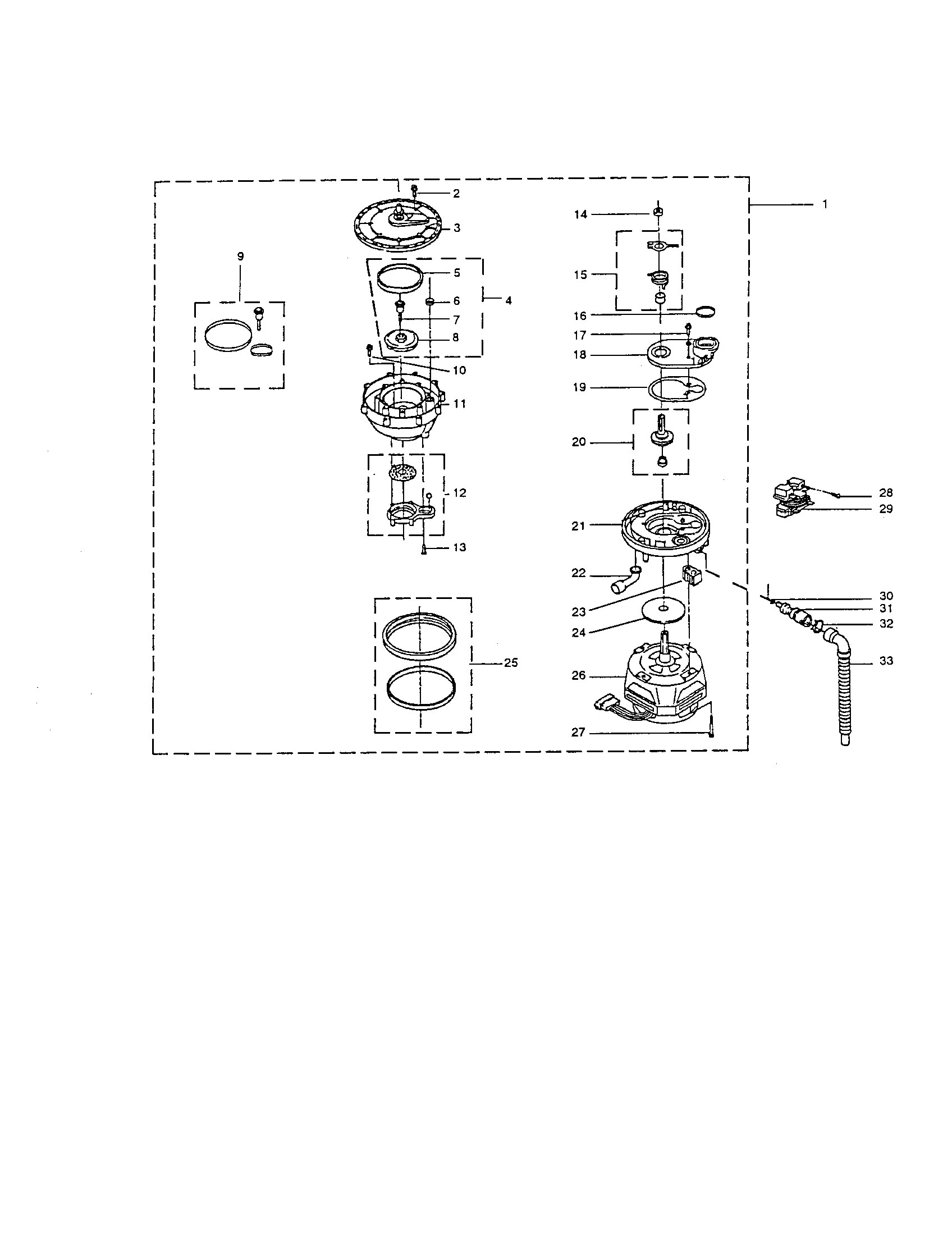

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 227 parts  |
Plastic Service Door 51284
#0

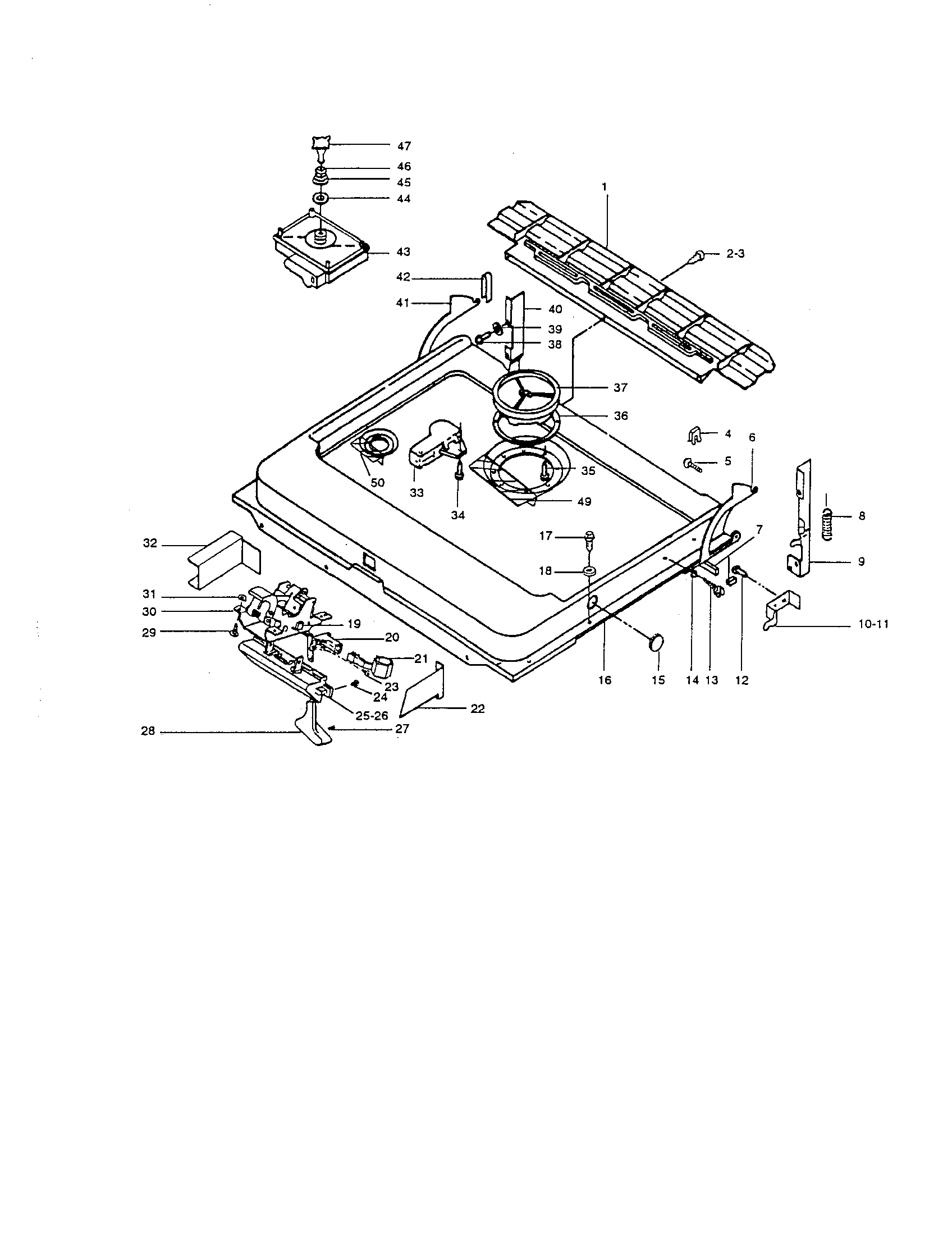

Door and latch unit diagram

Plastic service door

Part #51284

The manufacturer no longer makes this part, and there's no substitute part

Grommet-heater Element (2) 51113
#12

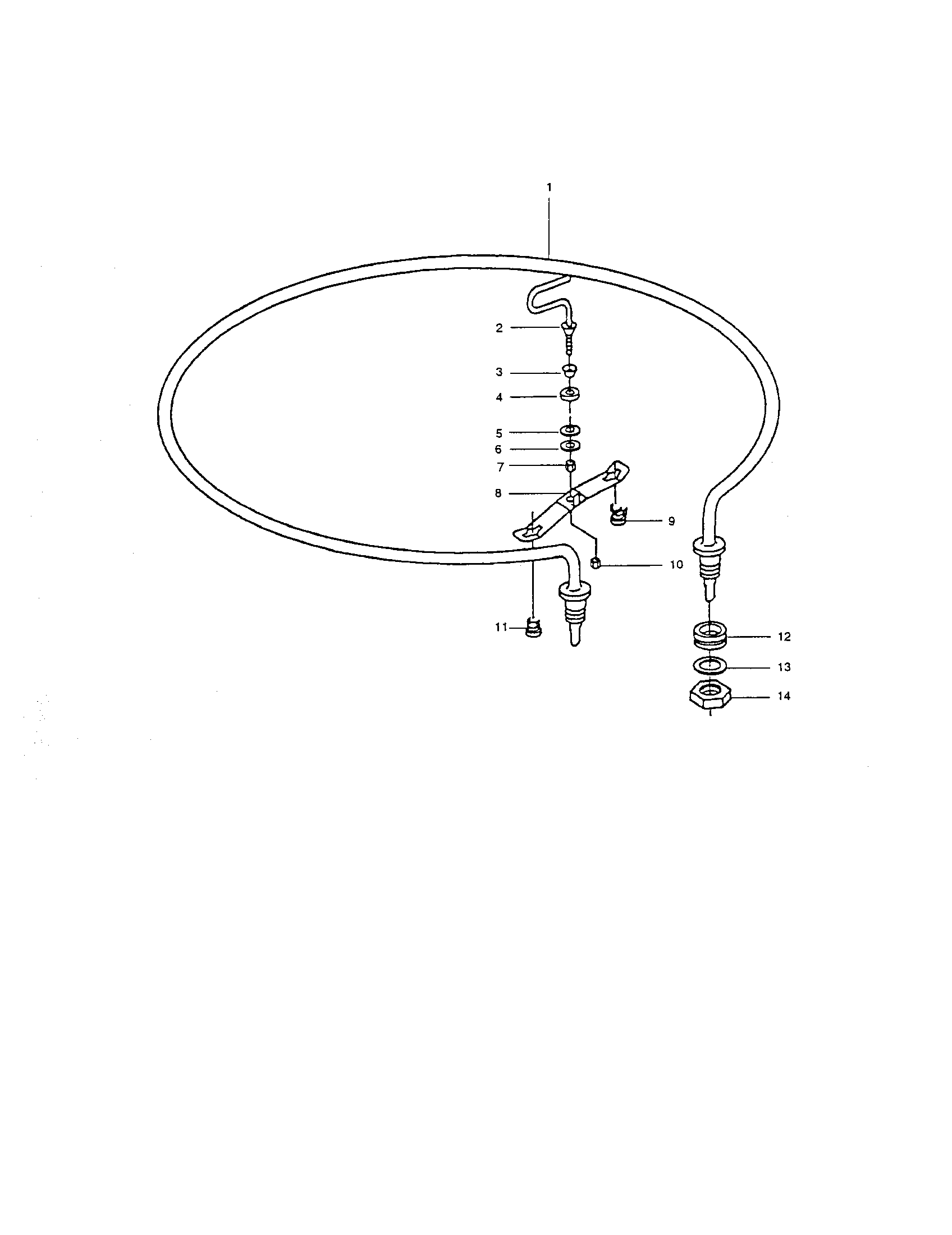

Heating element diagram

Grommet-heater element (2)

Part #51113

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Oval Thermostat 51606
#8

Heating element diagram

Bracket, oval thermostat

Part #51606

The manufacturer no longer makes this part, and there's no substitute part

Fill Valve Assembly (wssup-3/3000-3) 51655
#8B

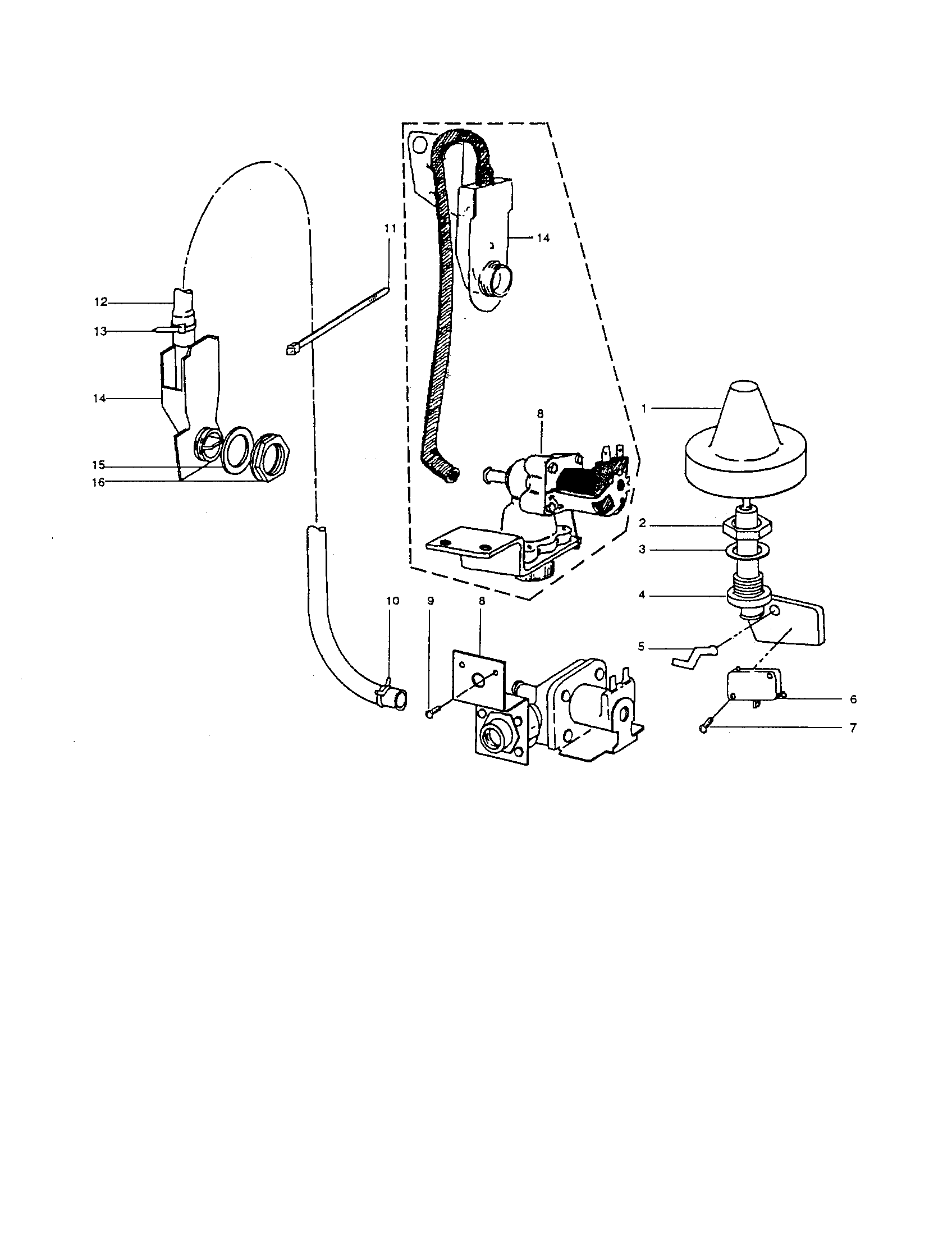

Fill and overfill unit diagram

Fill valve assembly (wssup-3/3000-3)

Part #51655

The manufacturer no longer makes this part, and there's no substitute part

Vapor Shield Kit 51143
#7

Door and latch unit diagram

Vapor shield kit

Part #51143

The manufacturer no longer makes this part, and there's no substitute part

Washer-roller Spacing (4) 51201
#10

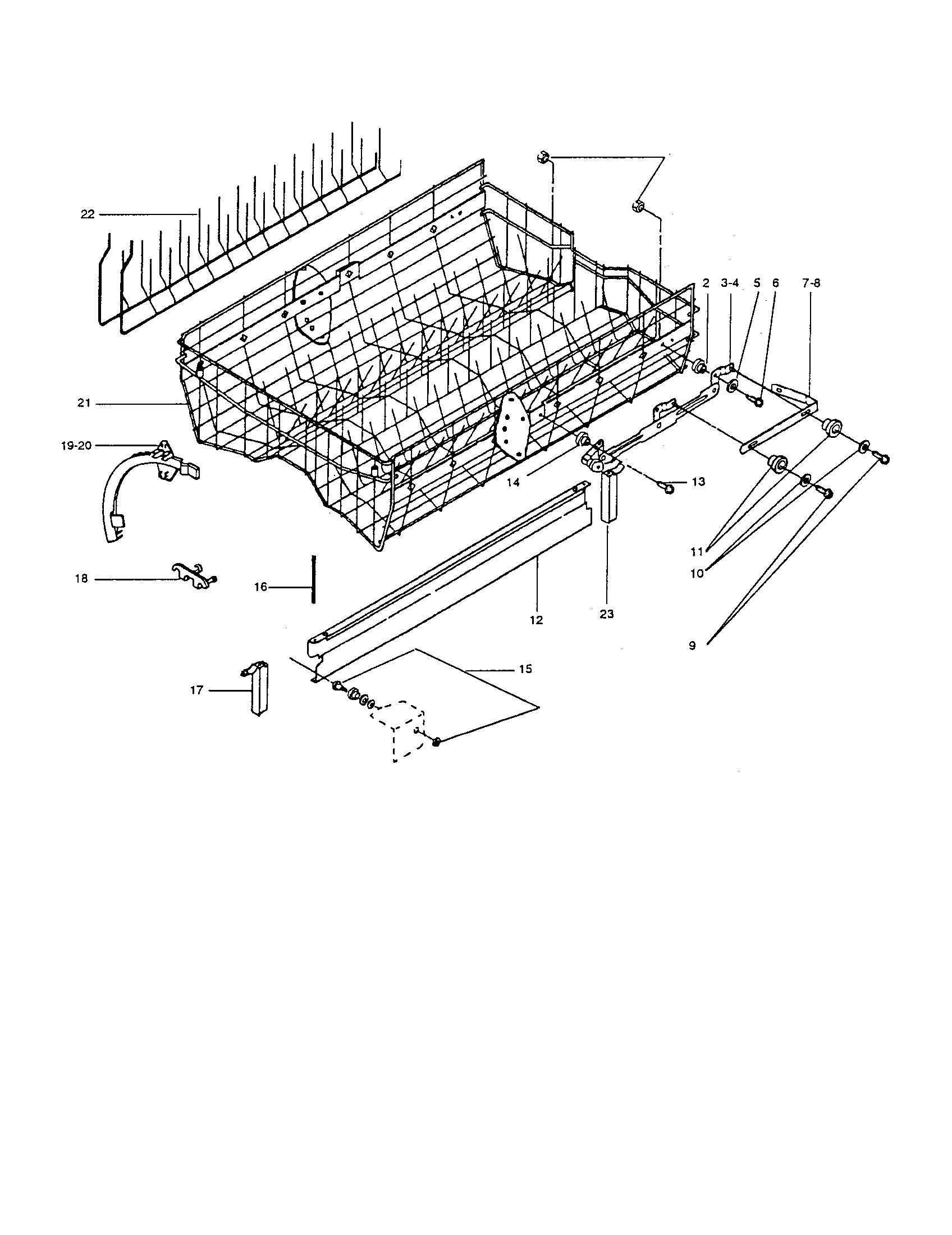

Upper rack and track unit diagram

Washer-roller spacing (4)

Part #51201

The manufacturer no longer makes this part, and there's no substitute part

Tank And Frame Assembly Wssup-1 And 2) (not Shown) 51581
#0

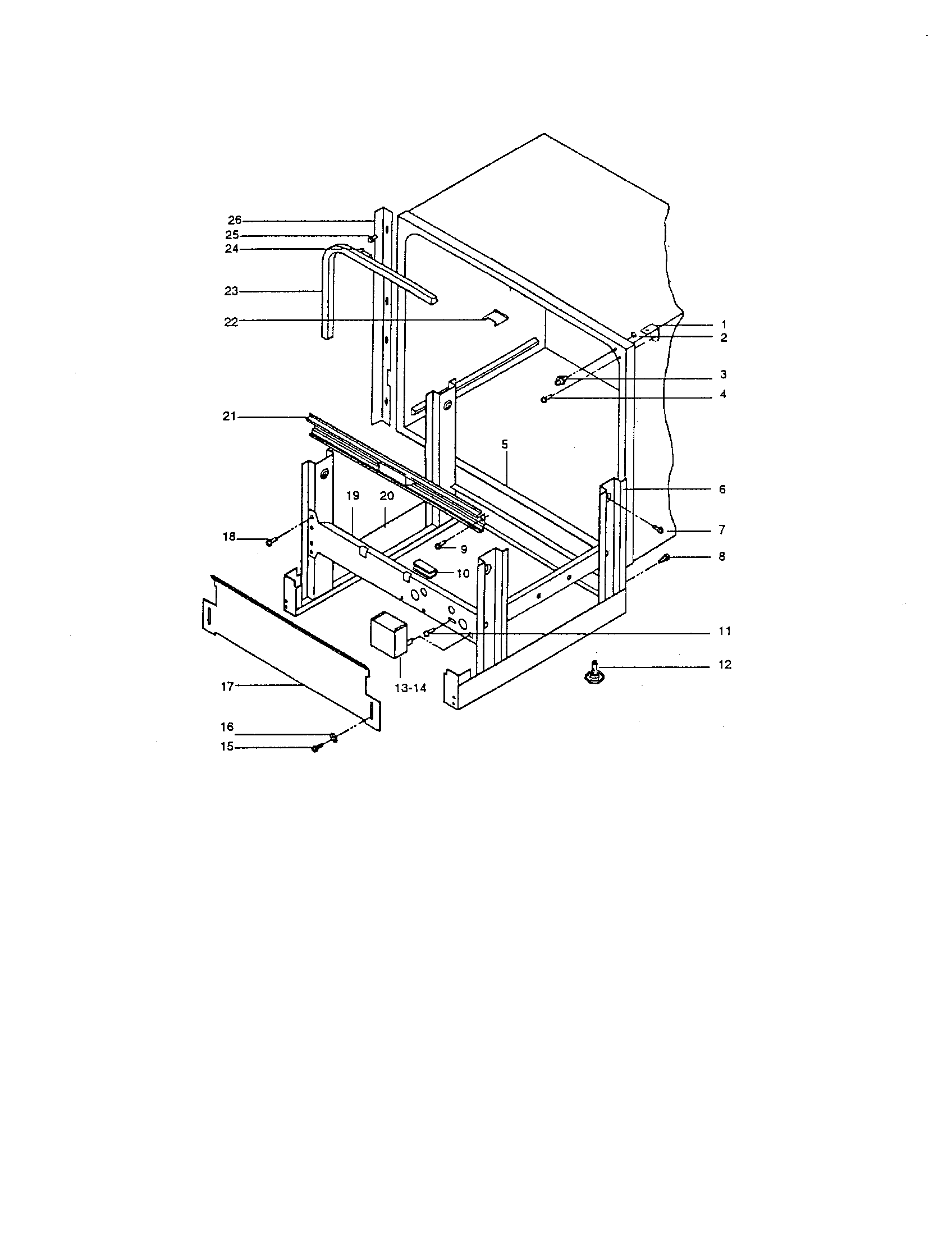

Frame and misc. items diagram

Tank and frame assembly wssup-1 and 2) (not shown)

Part #51581

The manufacturer no longer makes this part, and there's no substitute part

Guard-arm 51130
#16

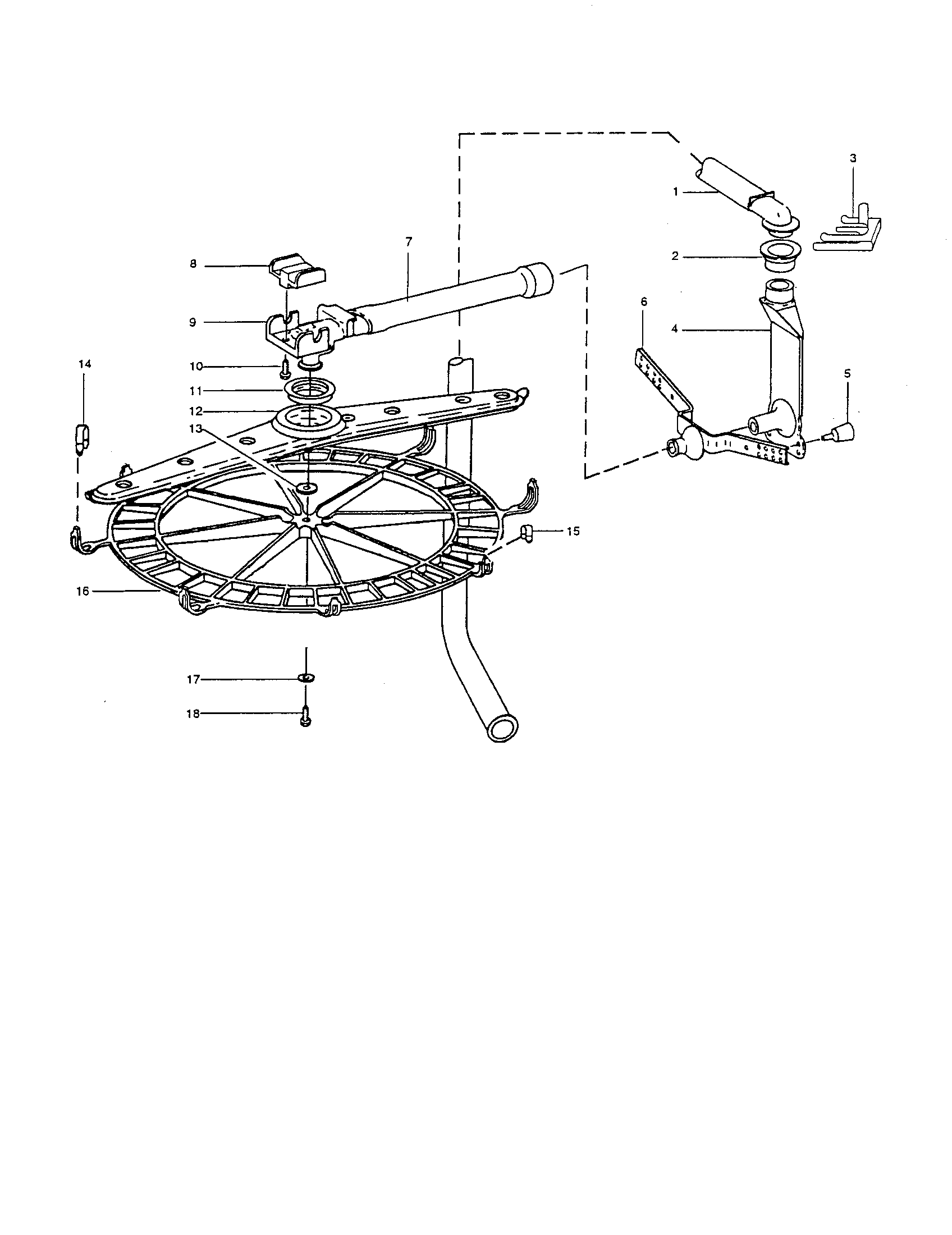

Upper wash/rinse unit diagram

Guard-arm

Part #51130

The manufacturer no longer makes this part, and there's no substitute part

Cross Frame-front 51178
#19

Frame and misc. items diagram

Cross frame-front

Part #51178

The manufacturer no longer makes this part, and there's no substitute part

Switch, Overfill Control (115 V., 60 Hz.) 51068
#6

Fill and overfill unit diagram

Switch, overfill control (115 v., 60 hz.)

Part #51068

The manufacturer no longer makes this part, and there's no substitute part
