Model # JS660 TYPE1 Official Black & Decker jig saw

Here are the diagrams and repair parts for Official Black & Decker JS660-TYPE1 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Screw 583173-00
#55

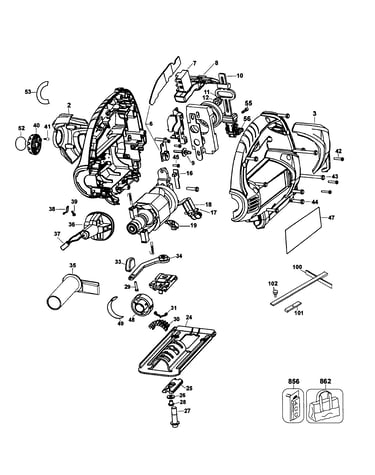

Cut saw diagram

Screw

Part #583173-00

The manufacturer no longer makes this part, and there's no substitute part

Detent 326467-00
#41

Cut saw diagram

Detent

Part #326467-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 90514216
#26

Cut saw diagram

Black & decker washer

Part #90514216

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 098091-10
#45

Cut saw diagram

Black & decker screw

Part #098091-10

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Insert 90514228
#30

Cut saw diagram

Black & decker insert

Part #90514228

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Label 90520107
#49

Cut saw diagram

Black & decker label

Part #90520107

The manufacturer no longer makes this part, and there's no substitute part

Rip Fence 858274
#100

Cut saw diagram

Rip fence

Part #858274

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Shoe Assembly 90517431SV
#24

Cut saw diagram

Black & decker shoe assembly

Part #90517431SV

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pivot Pin 90514424
#17

Cut saw diagram

Black & decker pivot pin

Part #90514424

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Bolt 582827-00
#28

Cut saw diagram

Black & decker bolt

Part #582827-00

The manufacturer no longer makes this part, and there's no substitute part
